The Leica DISTO X1 is a laser distance meter built for tough interior construction sites. Indoor site work is hard on instruments, with drops, dust and water all common, so a meter that keeps measuring accurately under those conditions saves the rework and downtime that follow a damaged or unreliable tool.
The Leica DISTO X1 measures distance with a typical accuracy of plus or minus 1.5 mm to ISO 16331-1, the standard that defines how laser distance meter accuracy and range are determined, over a range of 0.05 up to 100 m. Measuring units are m, ft and in, and X-Range Power Technology supports performance over the full range of the Leica DISTO X1, with reference distances at 10, 50 and 100 m and a laser dot of 6, 30 and 60 mm at those distances. The display is illuminated for readability in poor light.
Connectivity is by Bluetooth 6.0 and NFC, the latter giving a simplified tap-to-connect link to the Leica DISTO Plan app for quick data transfer, visualisation and documentation; free Windows software and an iOS and Android app are also available. The housing of the Leica DISTO X1 is rated IP65 and is drop tested from 2 m. The Leica DISTO X1 runs up to 7,000 measurements or up to 14 hours on 2 x AAA 1.5 V batteries, weighs 129 g with batteries and measures 125 x 53.5 x 25.5 mm.
The Leica DISTO X1 is supplied by BAMR, South Africa's authorised distributor.

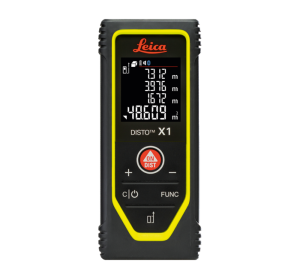

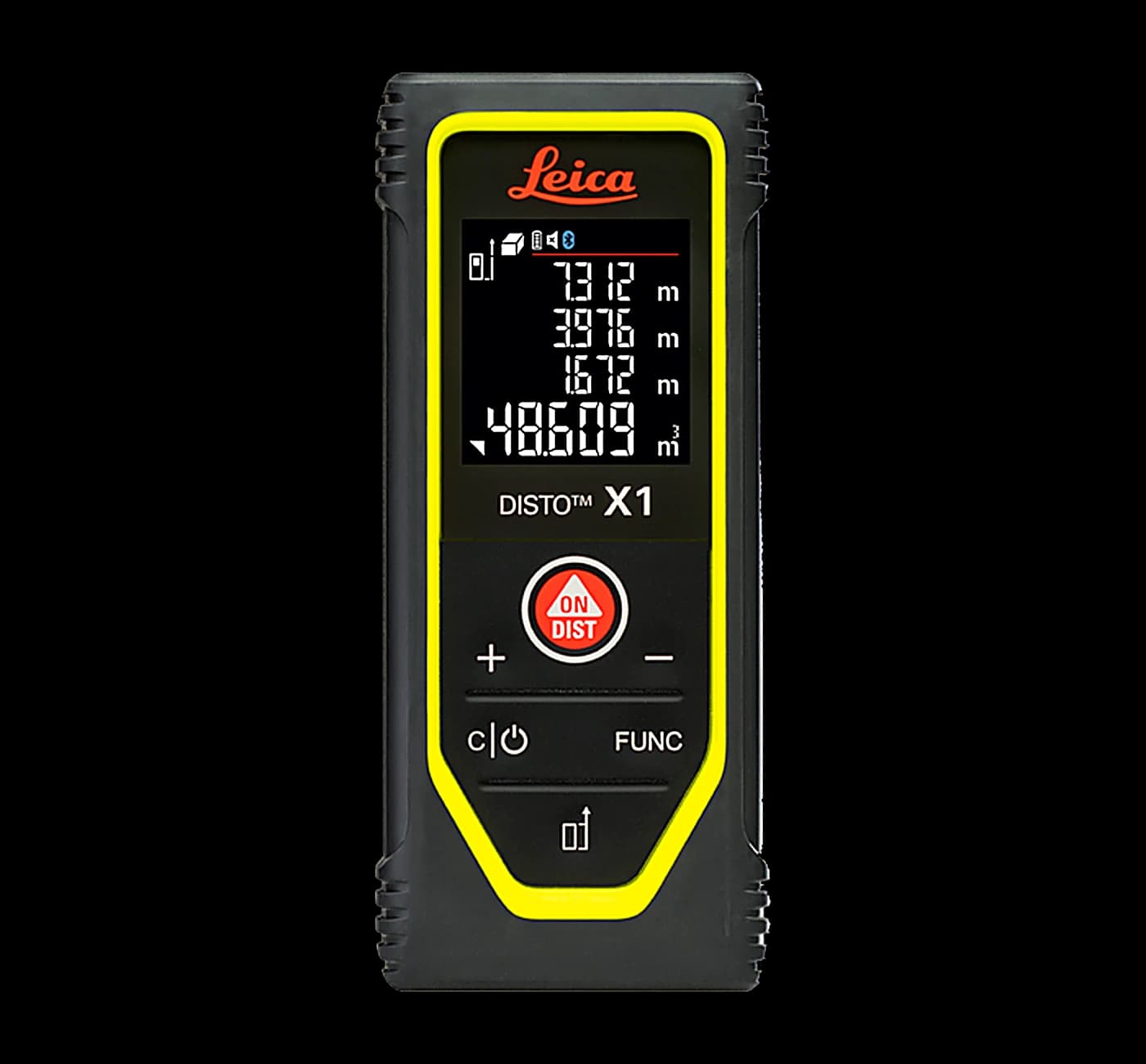

Leica DISTO X1 Laser Distance Meter
The robust laser measurement tool. For tough interior construction sites.
- Robust design reliably measuring accuracy
- NFC Simplified and streamlined connectivity
- Fast and reliable measurement performance
Specifications
- Typ. distance measuring accuracy (ISO 16331-1)
- ± 1.5 mm
- Range (ISO 16331-1)
- 0.05 up to 100m
- Measuring units
- m, ft, in
- X-Range Power Technology
- yes
- Distance in m
- 10, 50, 100 m
- Ø of the laser dot in mm
- 6, 30, 60 mm
- Display illumination
- yes
- Free software for Windows
- yes
- App for iOS and Android
- yes
- Wireless interface
- Bluetooth® 6.0
- Wireless interface
- NFC
- Measurements per set of batteries
- up to 7,000*
- Service life of batteries
- up to 14 h*
- Batteries
- type AAA 2 × 1.5 V
- Protection class
- IP65
- 2 m drop tested
- yes
- Dimensions
- 125 x 53.5 x 25.5 mm
- Weight with batteries
- 129 g
Specifications
Specifications
- Typ. distance measuring accuracy (ISO 16331-1)
- ± 1.5 mm
- Range (ISO 16331-1)
- 0.05 up to 100m
- Measuring units
- m, ft, in
- X-Range Power Technology
- yes
- Distance in m
- 10, 50, 100 m
- Ø of the laser dot in mm
- 6, 30, 60 mm
- Display illumination
- yes
- Free software for Windows
- yes
- App for iOS and Android
- yes
- Wireless interface
- Bluetooth® 6.0
- Wireless interface
- NFC
- Measurements per set of batteries
- up to 7,000*
- Service life of batteries
- up to 14 h*
- Batteries
- type AAA 2 × 1.5 V
- Protection class
- IP65
- 2 m drop tested
- yes
- Dimensions
- 125 x 53.5 x 25.5 mm
- Weight with batteries
- 129 g
What's in the kit
What's in the kit
Standards
Standards
Downloads
Frequently asked questions
What accuracy standard does the DISTO X1 meet?
Meets ISO 16331-1 with ±1.5 mm accuracy. This standard applies across the full 0.05 m to 100 m measurement range.
How does laser dot size affect measurement precision?
Laser dot diameter grows with distance: 6 mm at 10 m, 30 mm at 50 m, 60 mm at 100 m. This affects precision when measuring small features or tight spaces.
Is the DISTO X1 built for rough construction sites?
Yes. IP65 protection against dust and water, plus 2 m drop-tested. Specified for tough interior construction environments.
How long do batteries last on site?
Up to 14 hours per battery set, delivering up to 7,000 measurements. Uses standard AAA batteries (2 × 1.5 V).
Can I transfer measurements to my phone or computer?
Yes. Bluetooth 6.0 and NFC wireless connectivity to Windows software, iOS, or Android apps for data management.
What measurement units does it support?
Metres, feet, and inches. The display illumination feature aids work in dimly lit site areas.
