The TIME TH5104 Portable Digital Hardness Tester (part number TH5104) is an integrated Leeb hardness tester that combines the special DL impact device and a data processor in a single handheld unit. It is suitable for testing the hardness of all metals across a wide measuring range.
Hardness is a key indicator of a metal component's strength and wear resistance, but many parts cannot be moved to a bench tester or have features that a standard probe cannot reach. The TH5104's needle front section, 4mm in diameter and 50mm long, lets it measure in extremely confined spaces, the base of grooves and special components such as gear wheels, where a conventional impact device would not fit.
The tester reads on the HLDL scale and automatically converts to Vickers (HV), Rockwell (HRC, HRB), Brinell (HB) and Shore (HS) values for steel and cast steel, with an accuracy of plus or minus 12HLD at 760 plus or minus 30HLD and a maximum workpiece hardness of 960HLD. The minimum workpiece surface roughness is 1.6μm Ra and the minimum thickness of hardened layers is 0.8mm. It stores 270 average readings across 9 group files, displays and prints in real time or batch mode, and runs for 8 hours without backlight on AAA batteries. The unit measures 215 x 60 x 25mm at 180g, with the full kit in its case weighing 4.365kg.
Used in manufacturing, maintenance and quality control of metal parts, the TH5104 is supplied by BAMR, South Africa's authorised distributor.

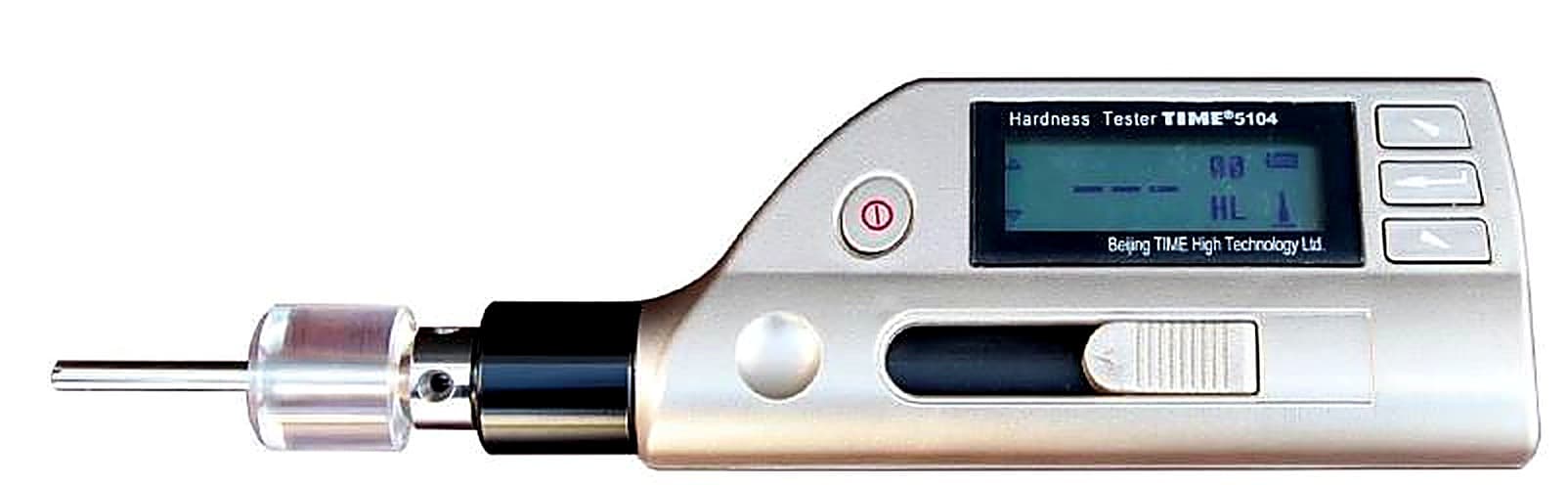

TIME TH5104 Portable Digital Hardness Tester
The TH5104 is an advanced integrated digital hardness tester distinguished by its compact size, high accuracy, wide measuring range and simplicity of operation. It is suitable for testing the hardness of all metals and is widely applied in many areas of industry.
- Compact size with needle front section 4mm diameter and 50mm length, suitable for testing hardness in extremely confined spaces, the base of grooves, and special components such as gear wheels
- Integrated digital data processor Combines the special impact device DL and a data processor in a single unit
- Multiple hardness scale conversions Automatically computes all Vickers, Rockwell, Brinell or Shore hardness values of steel and cast steel components
- Real time and batch printing Can display and print readings in real time or batch mode
Specifications
- Model
- TIME TH5104 Portable Digital Hardness Tester
- Impact device
- DL integrated
- Hardness scales
- HLDL, HB, HRC, HRB, HV, HS
- Accuracy
- ±12HLD (760 ±30HLD)
- Memory
- 270 average readings in 9 group files
- Min. surface roughness of workpiece
- 1.6μm (Ra)
- Max. workpiece hardness
- 960HLD
- Min. radius of workpiece (convex/concave)
- Rmin = 10mm (with support ring Rmin = 10mm)
- Min. workpiece weight
- 2-5kg on stable support / 0.05-2kg with compact coupling
- Min. workpiece thickness coupled
- 5mm
- Min. thickness of hardened layers
- 0.8mm
- Indentation depth
- Impact devices data
- Continuous working time
- 8h (without backlight)
- Power
- AAA 1.5V batteries
- Operating temperature
- 0-40℃
- Dimensions & Weight
- 215×60×25mm & 180g
- Weight of Unit in accessories in case
- 4.365kg
Specifications
Specifications
- Model
- TIME TH5104 Portable Digital Hardness Tester
- Impact device
- DL integrated
- Hardness scales
- HLDL, HB, HRC, HRB, HV, HS
- Accuracy
- ±12HLD (760 ±30HLD)
- Memory
- 270 average readings in 9 group files
- Min. surface roughness of workpiece
- 1.6μm (Ra)
- Max. workpiece hardness
- 960HLD
- Min. radius of workpiece (convex/concave)
- Rmin = 10mm (with support ring Rmin = 10mm)
- Min. workpiece weight
- 2-5kg on stable support / 0.05-2kg with compact coupling
- Min. workpiece thickness coupled
- 5mm
- Min. thickness of hardened layers
- 0.8mm
- Indentation depth
- Impact devices data
- Continuous working time
- 8h (without backlight)
- Power
- AAA 1.5V batteries
- Operating temperature
- 0-40℃
- Dimensions & Weight
- 215×60×25mm & 180g
- Weight of Unit in accessories in case
- 4.365kg
Accessories
Accessories
| Support Rings |
| Dataview Software |
Downloads
Frequently asked questions
Which hardness scales does the TH5104 cover?
The TH5104 covers HLDL, HB, HRC, HRB, HV, and HS hardness scales.
What measurement accuracy does the TH5104 offer?
Accuracy is ±12HLD at 760HLD. Verify this meets your quality tolerance requirements before selecting the tool for your application.
What is the minimum layer thickness the TH5104 can measure?
The minimum thickness of hardened layers it can measure is 0.8mm.
What's the minimum surface finish required for the TH5104?
The workpiece surface must have a minimum roughness of 1.6μm (Ra) for accurate measurement.
How portable is the TH5104, and how long does the battery last?
The unit weighs 180g and runs for 8 hours on AAA 1.5V batteries without backlight.
How much data can the TH5104 store?
It holds 270 average readings organised into 9 group files, allowing batch testing and QC record-keeping.
