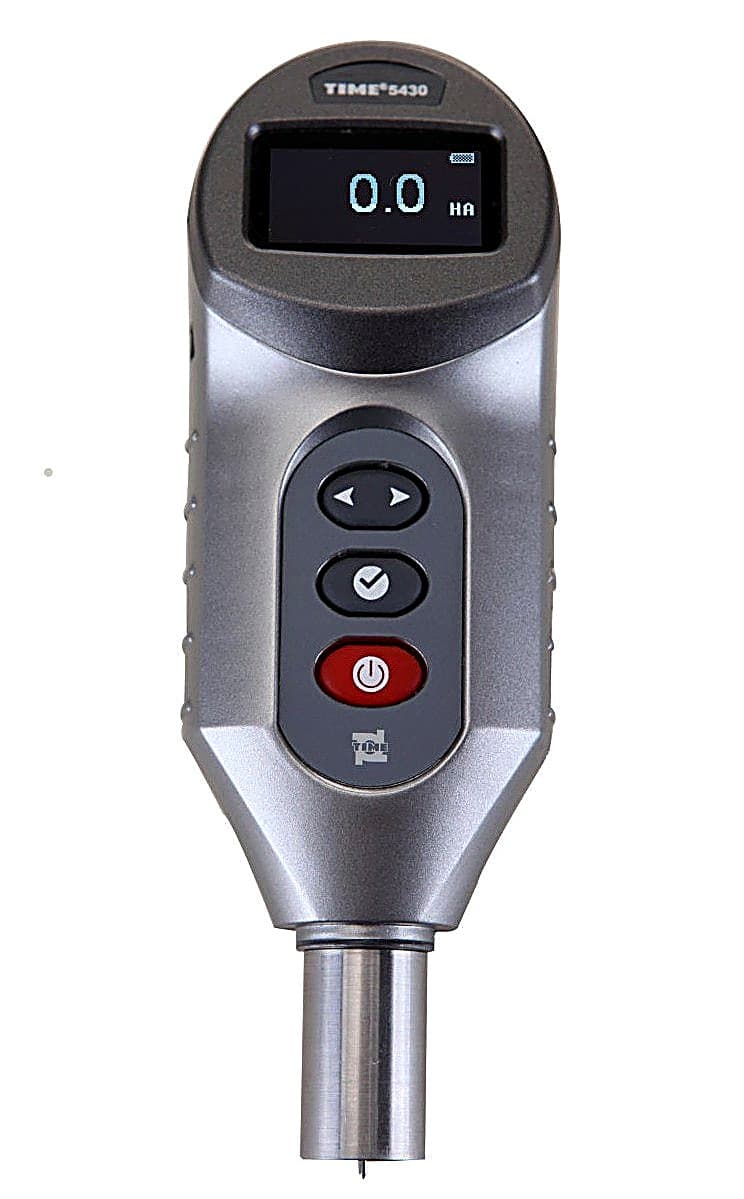

TIME TH5430 Digital Shore A Durometer Hardness Tester
Product Description
The NEW TIME TH5340 Shore A hardness tester is the first new generation digital durometer developed by TIME and has the same look as the TIME TH5420 however with a brand-new inner design.
TIME TH5430 adopts new LVDT displacement sensor and OLED screen, with added USB interface and software.
This shore hardness tester is suitable for measuring soft rubber, plastic, printer rollers and other elastomers.
Specifications
Specifications
| Product Features | Description |
| Model | TIME TH5430 |
| Test scale available | Shore A |
| Standards | DIN53505, ASTM D2240, ISO 7619, JIS K7215 |
| Display | Hardness result, Average value, Max value (Peak value lock), Battery indication |
| Data output | USB |
| Measuring range | 0~100HA |
| Tolerance | ±1HA |
| Display resolution | 0.1HA |
| Power supply | Built in 3.7V rechargeable battery |
| Operating temperature | 0~40℃ |
| Continuous working time | 20 hours |
| Dimensions (mm) | 173x56x42 |
| Weight (g) | 175 |
