TIME TH Portable Hardness Tester Comparison Table
Compare the TIME TH portable Leeb hardness tester range at a glance. All three models test the hardness of metals on the same hardness scales, so the headline specifications below cover the hardness scales, accuracy and operating conditions across the TH5100, TH5104 and TH5370 to help you select the right instrument.

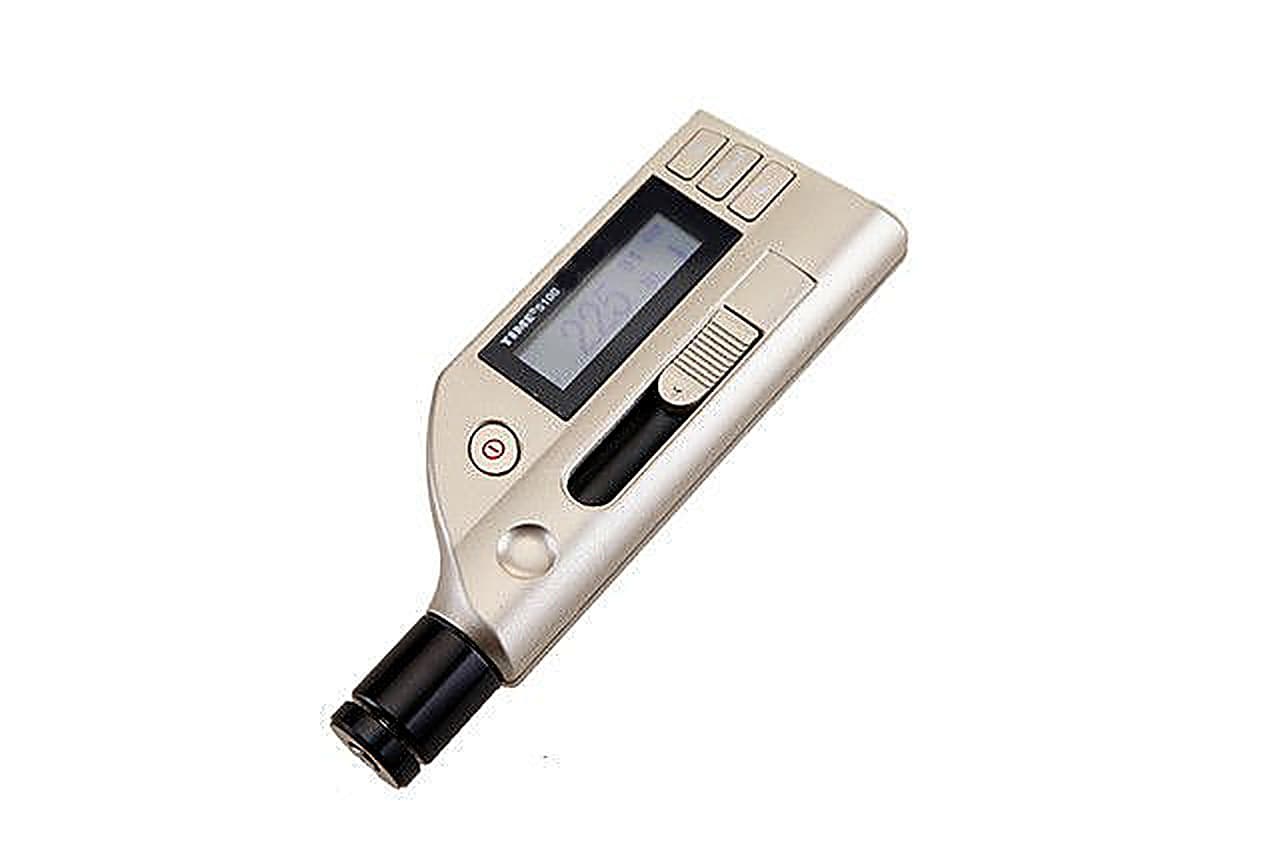

TIME TH5100
- Hardness scales
- HLD, HB, HRC, HRB, HV, HS
- Accuracy
- ±6HLD (760 ±30HLD)
- Continuous working time
- 8h (without backlight)
- Operating temperature
- 0-40℃
TIME TH5104
- Hardness scales
- HLDL, HB, HRC, HRB, HV, HS
- Accuracy
- ±12HLD (760 ±30HLD)
- Continuous working time
- 8h (without backlight)
- Operating temperature
- 0-40℃

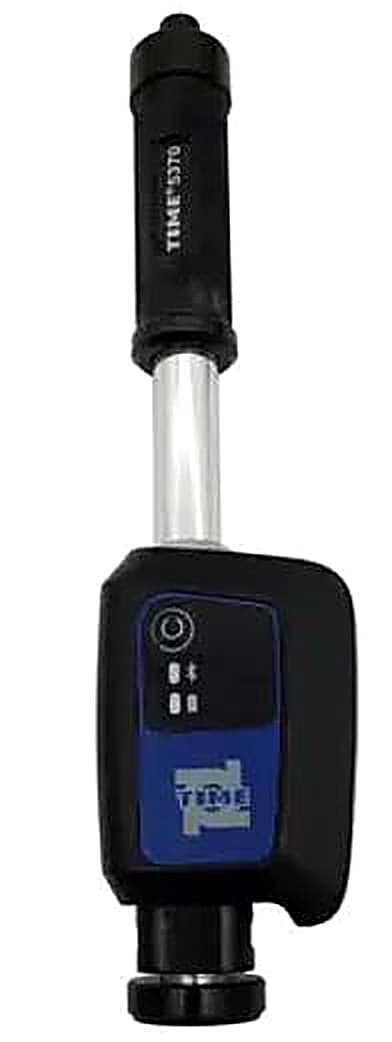

TIME TH5370
- Hardness scales
- HL, HB, HRB, HRC, HRA, HV, HS
- Accuracy
- ±6HLD(when HLD=760±30)
- Continuous working time
- 8 hours
- Operating temperature
- 0℃~40℃
Specifications
TIME TH5100
- Hardness scales
- HLD, HB, HRC, HRB, HV, HS
- Accuracy
- ±6HLD (760 ±30HLD)
- Continuous working time
- 8h (without backlight)
- Operating temperature
- 0-40℃
TIME TH5104
- Hardness scales
- HLDL, HB, HRC, HRB, HV, HS
- Accuracy
- ±12HLD (760 ±30HLD)
- Continuous working time
- 8h (without backlight)
- Operating temperature
- 0-40℃
TIME TH5370
- Hardness scales
- HL, HB, HRB, HRC, HRA, HV, HS
- Accuracy
- ±6HLD(when HLD=760±30)
- Continuous working time
- 8 hours
- Operating temperature
- 0℃~40℃
Frequently asked questions
Which TIME TH model offers the best accuracy?
The TH5100 and TH5370 both deliver ±6HLD accuracy, whilst the TH5104 is ±12HLD. Select the TH5100 or TH5370 if your application requires tighter measurement tolerance.
What hardness scales can each model measure?
The TH5100 measures HLD, HB, HRC, HRB, HV, and HS. The TH5104 measures HLDL, HB, HRC, HRB, HV, and HS. The TH5370 measures HL, HB, HRB, HRC, HRA, HV, and HS.
Do all three models work in the same temperature range?
Yes, all three operate between 0℃ and 40℃, so they perform consistently across typical workshop and field environments.
How long will each tester run on a single charge?
All three models provide 8 hours of continuous working time without backlight, which is sufficient for a full working day.
If both the TH5100 and TH5370 offer ±6HLD accuracy, which should I choose?
The difference is in hardness scales. The TH5100 measures HLD, whilst the TH5370 measures HL and also includes HRA scale, which the TH5100 does not. Select based on which scales you need for your application.
