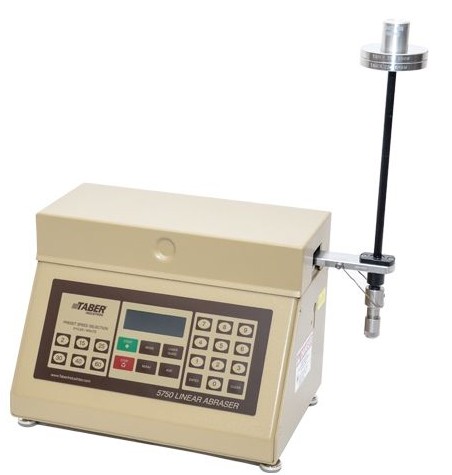

The Elcometer 5750 Taber Linear Abraser (part number ST985750) is an abrasion tester that uses a free-floating head to follow the contours of the sample, making it suited to abrasion testing on flat or curved surfaces. It can also be used as a scratch tool with the scratch kit accessory. Abrasion and scratch resistance determine how a finish holds up to wear in service; a linear abraser that tracks curved profiles lets laboratories test real component shapes rather than being limited to flat panels.
The Elcometer 5750 Taber® Linear Abraser uses Wearasers, abrasive media the size and shape of a pencil eraser made from the same Taber abrasive grades used on the rotary abrasers, simulating real-life wear conditions. Abrasion media, stroke length, load and stroke speed are all user-defined to meet specific test requirements. Stroke lengths of 12.7, 25, 76 and 102mm are available, with variable stroke speed from 2 to 75 cycles per minute and preset speed buttons for 2, 15, 25, 30, 40 and 60 cycles per minute. Load is variable from 350 to 2100g with optional weights, and a stainless steel collet holds vitrified or resilient Wearasers.
The Elcometer 5750 Taber® Linear Abraser (230V 50Hz) measures 208 x 228 x 279mm and weighs 10kg. It can be used in accordance with AATCC Method 8, ASTM D 2197, ASTM D 5178, ASTM D 6279, ASTM F1319, ISO 105-X12 and JIS L 0849. Used in coatings, materials and finish durability testing, it is supplied by BAMR, South Africa's authorised Elcometer distributor.

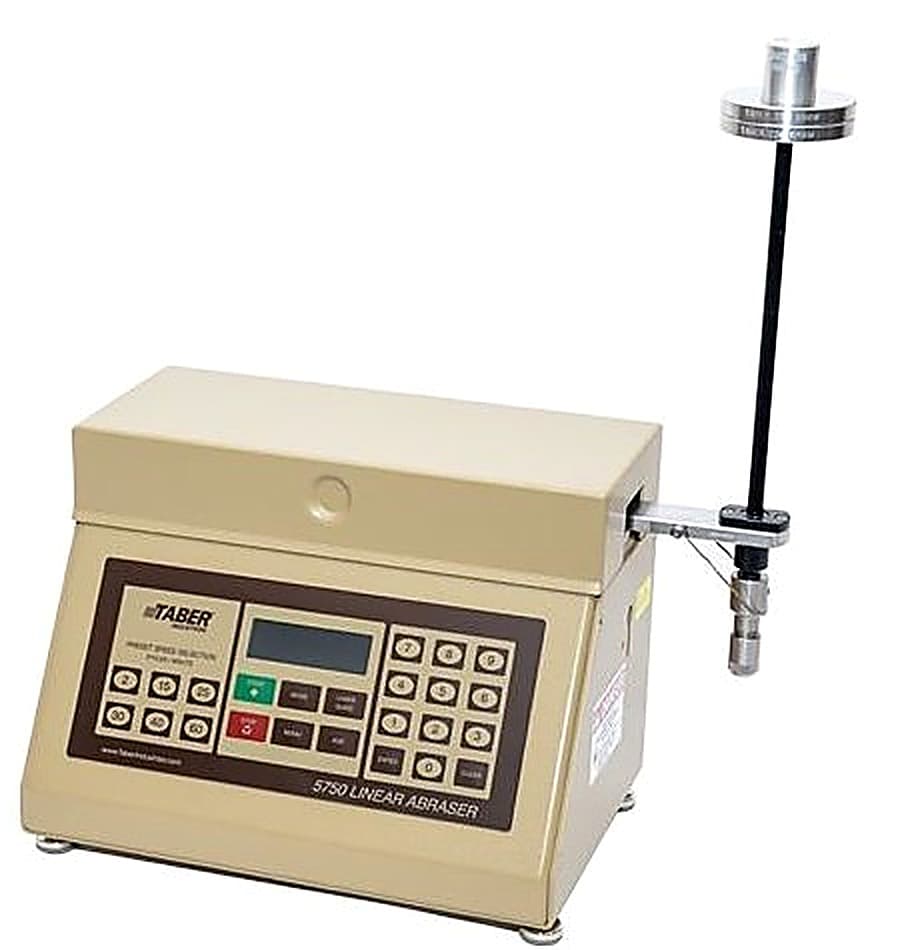

Elcometer 5750 Taber® Linear Abraser
Using a free floating head to follow the contours of the sample, the Taber® 5750 is the ideal abrasion tester for flat or curved surfaces. It may also be used as a scratch tool, using the scratch kit accessory.
- Stroke lengths 12.7, 25, 76 and 102mm
- Variable stroke speed 2-75 cycles per minute
- Preset stroke speed buttons 2, 15, 25, 30, 40 and 60 cycles per minute
- Variable load 350-2100g (12.4-74.1oz) with optional weights
- Stainless steel Wearasers® holder (Collet) For use with vitrified or resilient Wearasers®
When to use the Elcometer 5750 Taber Linear Abraser
Use the 5750 when the sample you must abrasion test is flat or curved rather than only flat. A free floating head follows the contours of the part, and a scratch kit accessory turns the same machine into a scratch tester. It suits labs testing shaped or three dimensional parts that a rotary abraser cannot sit on cleanly.
- 1Follows flat or curved surfacesThe free floating head tracks the contour of the sample, so curved or shaped parts can be tested without a flat coupon being cut first.
- 2Doubles as a scratch toolWith the scratch kit accessory the same instrument runs scratch tests, so one machine covers two test types in a busy lab.
- 3Adjustable stroke and loadVariable stroke lengths, preset and variable speeds and a 350 to 2100g load range let you match the test to the standard and material rather than to a fixed setting.
Lower-budget alternatives
Ten minutes on a call with one of our specialists usually saves you from buying the wrong instrument.
Book a 10-minute callOr , our product assistant, for an instant answer.
When to use this
When to use the Elcometer 5750 Taber Linear Abraser
Use the 5750 when the sample you must abrasion test is flat or curved rather than only flat. A free floating head follows the contours of the part, and a scratch kit accessory turns the same machine into a scratch tester. It suits labs testing shaped or three dimensional parts that a rotary abraser cannot sit on cleanly.
- 1Follows flat or curved surfacesThe free floating head tracks the contour of the sample, so curved or shaped parts can be tested without a flat coupon being cut first.
- 2Doubles as a scratch toolWith the scratch kit accessory the same instrument runs scratch tests, so one machine covers two test types in a busy lab.
- 3Adjustable stroke and loadVariable stroke lengths, preset and variable speeds and a 350 to 2100g load range let you match the test to the standard and material rather than to a fixed setting.
Lower-budget alternatives
Ten minutes on a call with one of our specialists usually saves you from buying the wrong instrument.
Book a 10-minute callOr , our product assistant, for an instant answer.
Specifications
General
- Part Number
- ST985750
- Description
- Elcometer Taber® 5750 Linear Abraser (230V 50Hz)
- Dimensions
- 208 x 228 x 279mm
- Weight
- 10kg
Packing List
Packing List
Standards
Standards
Accessories
Accessories
| ST131852 | Wearasers® Holder (collet) Kit - Aluminium |
| ST131852-1 | Wearasers® Holder (collet) Kit - Plastic |
| ST130575 | Scratch Kit - Stainless Steel (includes conical diamond tool - 3mil and x7 measuring magnifier) |
| ST131604 | ISO Scratch Kit - Aluminium (includes conical diamond tool - 3.5mil and x7 measuring magnifier) |
| ST121006 | Conical Diamond Tool with 90°, 76.2µm Radius Point (for use with Scratch kit) |
| ST121006-1 | Conical Diamond Tool with 90°, 88.9µm Radius Point (for use with Scratch kit) |
| ST131716-1 | Coin Holder Attachment 45° (for use with Scratch Kit) |
| ST131716-2 | Coin Holder Attachment 60° (for use with Scratch Kit) |
| ST131716-3 | Coin Holder Attachment 75° (for use with Scratch Kit) |
| ST130570 | Crockmeter Kit* |
| ST130684 | CS-10F Resilient Wearaser® (pack of 10) |
| ST130685 | CS-10 Resilient Wearaser® (pack of 10) |
| ST130686 | CS-17 Resilient Wearaser® (pack of 10) |
| ST130681 | H-18 Non-resilient Wearaser® (pack of 5) |
| ST130682 | H-22 Non-resilient Wearaser® (pack of 5) |
Downloads
Frequently asked questions
What type of surfaces can the Elcometer 5750 Taber Linear Abraser test?
The 5750 uses a free-floating head that follows sample contours, making it suitable for both flat and curved surfaces. It can also be used as a scratch tool with the optional scratch kit accessory.
What are the physical dimensions and weight of the Elcometer 5750?
The instrument measures 208 x 228 x 279 mm and weighs 10 kg. The supplied unit is rated 230 V, 50 Hz.
