The Elcometer 1500 Set of Cylindrical Mandrels on a stand (part number K0001500M002) is a mechanical test instrument for determining the elasticity, adhesion and cracking resistance of dry paint on flat specimens. When a coated component is formed or bent in service, a film that is too brittle or poorly adhered will crack and lift, so bend testing predicts how a coating will behave when the substrate is deformed and helps formulators and quality teams accept or reject a paint system.
The set consists of a mandrel support that also serves as a test stand. A coated metal sheet, up to 150mm long and 100mm wide, is bent manually and successively around mandrels of decreasing diameter until cracks appear in the film; the smallest mandrel a coating survives indicates its flexibility. This metric version (Elcometer 1500/2) supplies 13 cylindrical mandrels in diameters of 2, 3, 4, 5, 6, 8, 10, 12, 13, 16, 20, 25 and 32mm. The assembly measures 178 x 138 x 145mm and weighs 3.3kg.
Testing can be carried out in accordance with AS/NZS 1580.402.1, ASTM D 2485, ASTM D 522-B, ASTM D 1737, BS EN3900-E1, DIN 53152, ISO 1519-1, JIS K 5600-5-1 and NF T30-040, the recognised bend-test methods for paint flexibility. The Elcometer 1500 Set of Cylindrical Mandrels on a stand is used in coatings laboratories and paint manufacturing. Supplied by BAMR, South Africa's authorised Elcometer distributor.

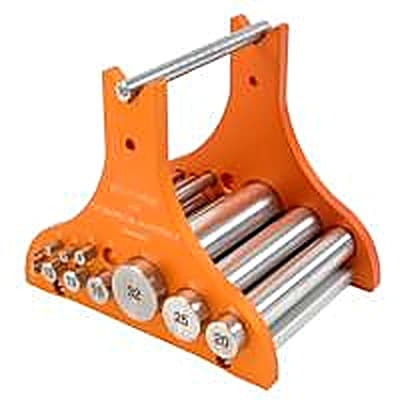

Elcometer 1500 Set of Cylindrical Mandrels on a stand
The Elcometer 1500 Cylindrical Mandrel is a simple instrument for determining the elasticity, adhesion and cracking of dry paint on flat specimens, consisting of a mandrel support which also serves as a test stand.
- Coated metal sheets testing Manually and successively bent around mandrels of decreasing diameter until cracks appear, maximum 150mm in length x 100mm wide
- Mandrel Size Metric Version: 2, 3, 4, 5, 6, 8, 10, 12, 13, 16, 20, 25, and 32mm
Specifications
- Part Number
- K0001500M002
- Description
- Elcometer 1500/2 Metric Set of 13 Cylindrical Mandrels on a stand from 2 to 32mm
- Mandrel Size
- Metric Version: 2, 3, 4, 5, 6, 8, 10, 12, 13, 16, 20, 25, and 32mm
- Dimensions
- 178 x 138 x 145mm
- Weight
- 3.3kg
Specifications
Specifications
- Part Number
- K0001500M002
- Description
- Elcometer 1500/2 Metric Set of 13 Cylindrical Mandrels on a stand from 2 to 32mm
- Mandrel Size
- Metric Version: 2, 3, 4, 5, 6, 8, 10, 12, 13, 16, 20, 25, and 32mm
- Dimensions
- 178 x 138 x 145mm
- Weight
- 3.3kg
Packing List
Packing List
Standards
Standards
Frequently asked questions
What paint properties does the Elcometer 1500 mandrel set determine?
The mandrels determine elasticity, adhesion and cracking of dry paint films on flat specimens. Testing with different mandrel diameters reveals how paint responds to varying stress conditions.
Which mandrel sizes are included in the metric set?
The set includes 13 metric mandrels: 2, 3, 4, 5, 6, 8, 10, 12, 13, 16, 20, 25 and 32mm. This comprehensive range covers typical testing requirements across paint systems.
Can I use these mandrels on curved surfaces?
No. The Elcometer 1500 is designed for flat specimens only. The included support stand positions the flat substrate during testing.
Is the test stand included with the set?
Yes. The mandrel support stand is included with the set and serves as the complete test stand. No additional equipment is required.
How portable is this set for field testing?
At 3.3kg and measuring 178 x 138 x 145mm with integrated stand, the set is compact and portable for both laboratory and on-site testing.
