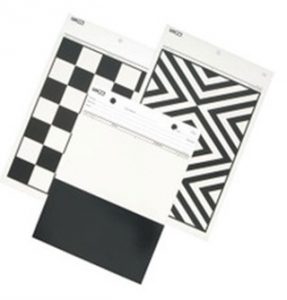

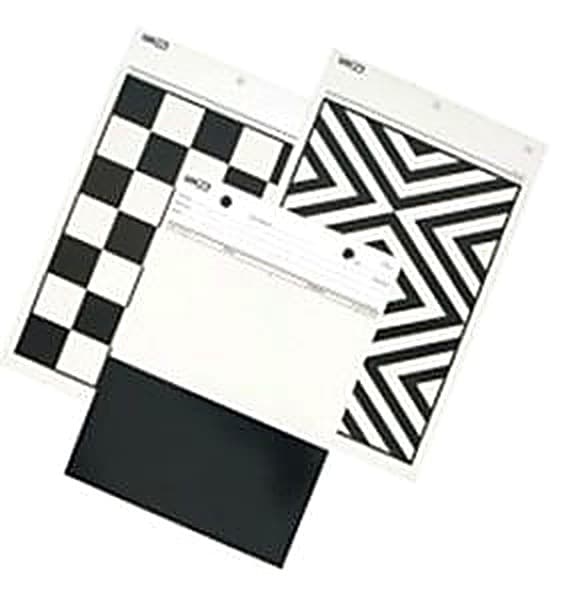

Elcometer 4695 Brushout Cards

Product Description

Elcometer supplies a wide range of Leneta Test Charts, from plain white to those having different patterns of black and white. Made from naturally bright, non-fluorescent white paper, these charts contain no optical brighteners that can affect instrumental color measurements.

Leneta Test Charts are the market standard in today’s coatings industry. Foil Card substrates of steel, aluminum, glass and plastic are also available. Leneta Test Charts are available in boxes & cases.

Charts can be used with the Elcometer 4340 Motorised Film Applicator

Brushout Charts

The Elcometer 4695 Brushout Cards are designed for informal brushout applications; thicker paper is used for the testing of coatings applied with a brush or roller. The paper stock is almost twice the thickness of regular chart paper to give greater rigidity for more convenient handling – nominal thickness 0.5mm.

Brushout Cards are also used widely for drawdowns and colorimetric measurements.

The Elcometer 4695 Leneta Test Charts can be used in accordance with:

• AS/NZS 1580.213.1
• ASTM D 344
• ASTM D2805
• ASTM D 2486
• ASTM D 5150
• ASTM D 6441
• BS 3900-D4*
• DIN 53162-2
• FTMS 141 4121
• ISO 2814

* Standards not in bold have been superseded but are still recognised in some industries

Specifications

Elcometer 4695 Leneta Brushout Cards – Specifications

Part Number   Description Chart Dimensions Box Weight Quantity per Box Boxes per Case
Box Case
K0004695M005 K0004695M205 Leneta Chart 2DX 98 x 152 mm 3.18kg 500 4
K0004695M016 K0004695M216 Leneta Chart 5DX 98 x 152 mm 3.18kg 500 4
K0004695M102 K0004695M302 Leneta Chart WDX 98 x 152 mm 3.18kg 500 4

Data Sheet

Elcometer 4695 Leneta Brushout Cards – Data Sheet

Elcometer 4695 Leneta Brushout Cards Data Sheet

Standards

Elcometer 4695 Leneta Brushout Cards – Standards

The Elcometer 4695 Leneta Test Charts can be used in accordance with:

• AS/NZS 1580.213.1
• ASTM D 344
• ASTM D2805
• ASTM D 2486
• ASTM D 5150
• ASTM D 6441
• BS 3900-D4*
• DIN 53162-2
• FTMS 141 4121
• ISO 2814

* Standards not in bold have been superseded but are still recognised in some industries
