The Elcometer 4695 Opacity Charts (part numbers K0004695M003, K0004695M203, K0004695M004, K0004695M006, K0004695M206, K0004695M015 and K0004695M215) are Leneta test charts whose test pattern is a simple combination of large black and white areas, used to test the hiding power of an applied coating.
Hiding power determines whether a coating obscures the surface beneath it at its intended film thickness, which affects coverage, the number of coats and the evenness of the finish. The large black and white areas on these charts are sized for wider aperture reflectance instruments as well as for visual opacity and colour observations, so the same drawdown can support both instrumental and visual assessment.
The charts are made from naturally bright, non-fluorescent white paper and contain no optical brighteners that could affect instrumental colour measurements. Four forms are available: Leneta Chart 2A (140 x 254 mm, 2.72 kg per box, 250 per box, 6 boxes per case); Leneta Chart 2C (194 x 260 mm, 4.08 kg, 250 per box, 4 boxes per case); Leneta Chart 3B (194 x 289 mm, 4.08 kg, 250 per box, 4 boxes per case); and Leneta Chart 5C (194 x 260 mm, 4.08 kg, 250 per box, 4 boxes per case). The charts can be used with the Elcometer 4340 Motorised Film Applicator.
They can be used in accordance with AS/NZS 1580.213.1, ASTM D344, ASTM D2805, ASTM D2486, ASTM D5150, ASTM D6441, BS 3900-D4, DIN 53162-2, FTMS 141 4121 and ISO 2814. The Elcometer 4695 Opacity Charts are supplied by BAMR, South Africa's authorised Elcometer distributor.

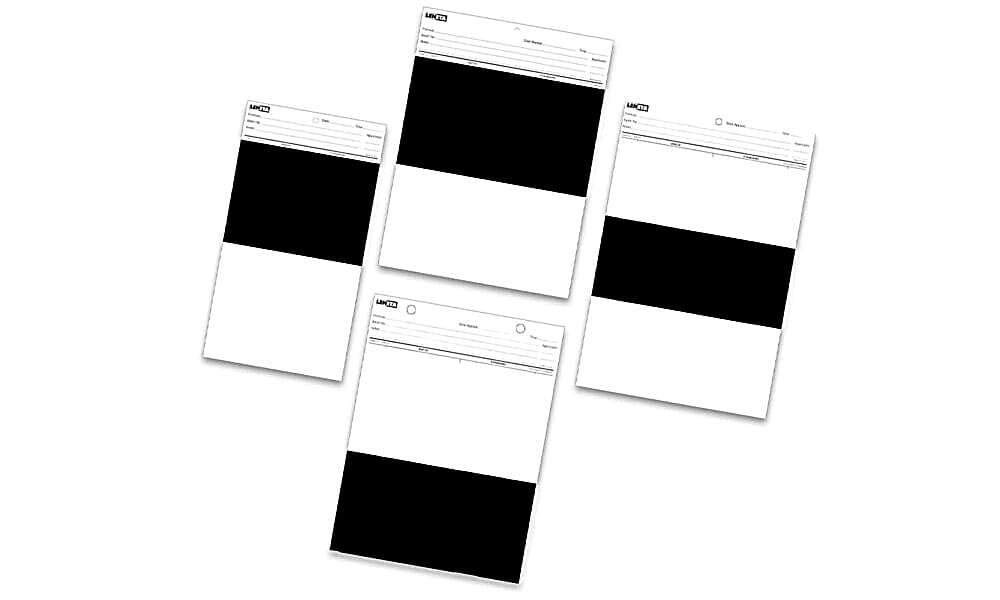

Elcometer 4695 Opacity Charts
Elcometer supplies a wide range of Leneta Test Charts, from plain white to those having different patterns of black and white. Made from naturally bright, non-fluorescent white paper, these charts contain no optical brighteners that can affect instrumental colour measurements.
- Opacity Charts Charts on which the test pattern is a simple combination of black and white areas, large enough for wider aperture reflectance instruments, as well as for visual opacity and colour observations.
- Used to test the hiding power of the coating using large black and white areas.
- Available in boxes and cases
- Can be used with the Elcometer 4340 Motorised Film Applicator
Standards
Standards
Standards
Specifications
Specifications
| Part Number (Box) | Part Number (Case) | Description | Chart Dimensions | Box Weight | Quantity per Box | Boxes per Case |
|---|---|---|---|---|---|---|
| K0004695M003 | K0004695M203 | Leneta Chart 2A | 140 x 254 mm | 2.72 kg | 250 | 6 |
| K0004695M004 | - | Leneta Chart 2C | 194 x 260 mm | 4.08 kg | 250 | 4 |
| K0004695M006 | K0004695M206 | Leneta Chart 3B | 194 x 289 mm | 4.08 kg | 250 | 4 |
| K0004695M015 | K0004695M215 | Leneta Chart 5C | 194 x 260 mm | 4.08 kg | 250 | 4 |
Downloads
Frequently asked questions
Why does the Elcometer 4695 use non-fluorescent white paper without optical brighteners?
Optical brighteners can affect instrumental colour measurements. The charts are made from naturally bright, non-fluorescent white paper without optical brighteners to provide an accurate reference for colour measurement.
What sizes are available in the Elcometer 4695 range?
Four sizes are available: Leneta Chart 2A (140 x 254 mm), Chart 2C (194 x 260 mm), Chart 3B (194 x 289 mm), and Chart 5C (194 x 260 mm).
How many charts are supplied per box?
Each box contains 250 charts. Boxes can be ordered individually or by the case, with either 4 or 6 boxes per case depending on the chart type.
Do the opacity charts include a range of opacity levels?
Yes, the range includes options from plain white to charts with different black and white patterns, allowing measurement across varying opacity levels.
