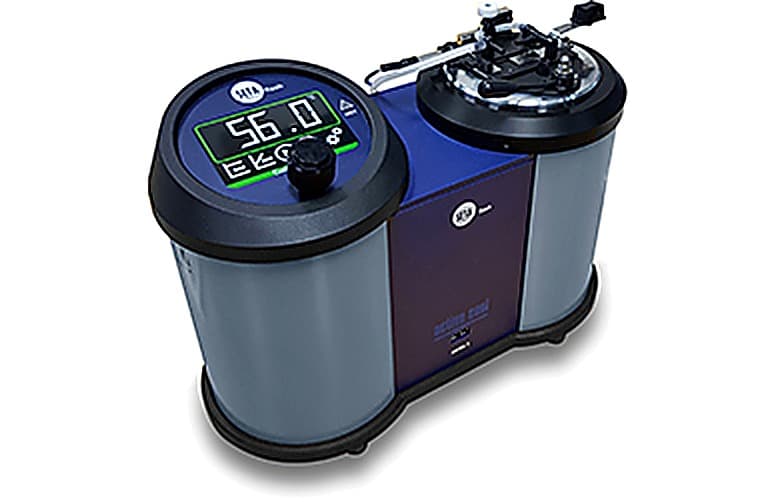

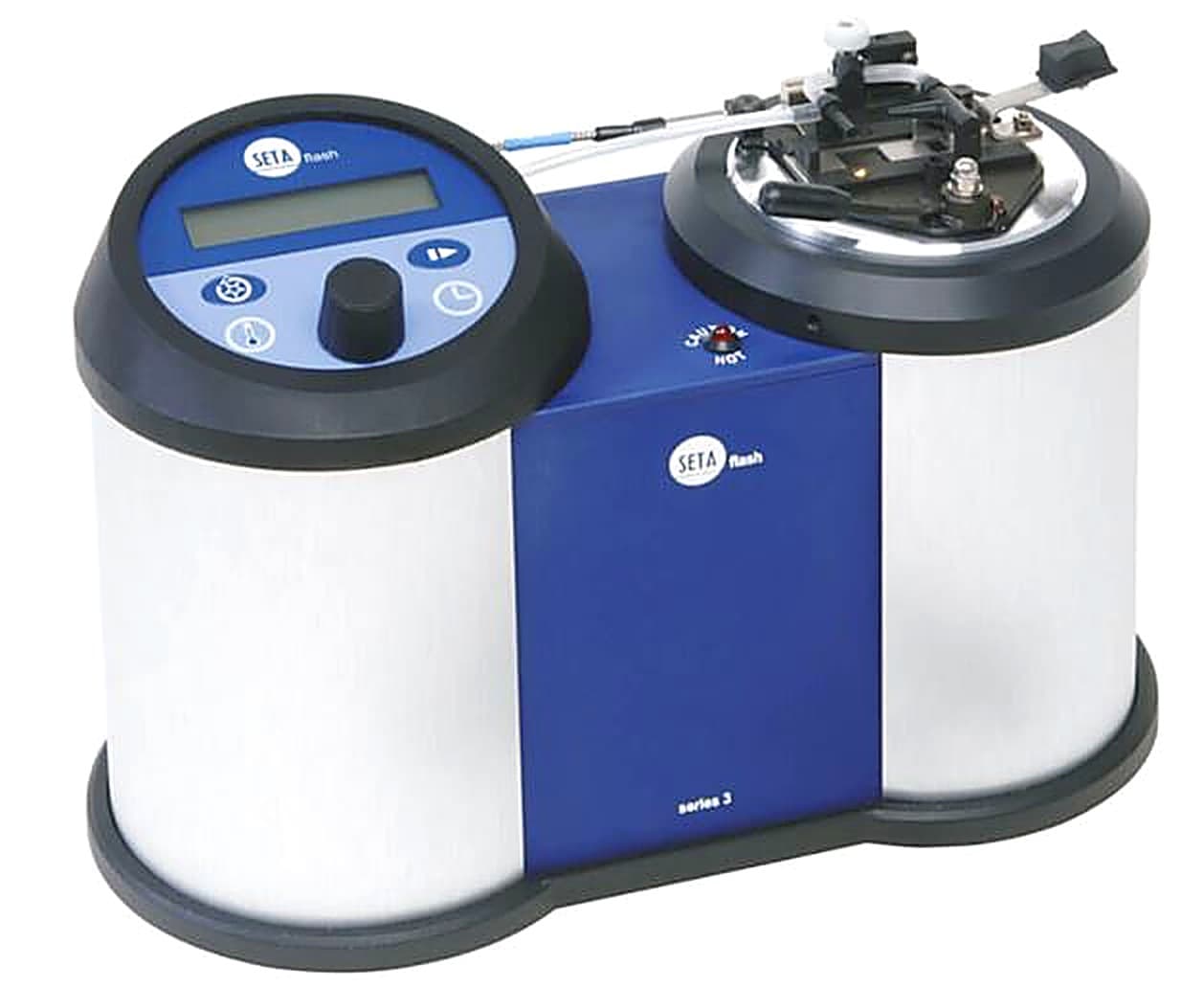

Elcometer 6910/3 Setaflash ‘Series 3’ Active-Cool Closed Cup Tester

Product Description

The Setaflash ‘Series 3’ Active-Cool Tester offers the same features as the Elcometer 6910/1 Setaflash but is fitted with a cup suitable for testing corrosive samples. It has been designed to carry out flash/no flash tests rapidly and efficiently to determine the flash point of liquids and semi-solids in the 10°C to 130°C temperature range. A sample cup is heated and then cooled by Peltier cells. This gives very accurate and stable sub-ambient test temperatures and the benefit of rapid temperature normalisation between tests. Flash point is automatically detected using a thermally activated detector, reducing the risk of operator error and minimising the potential danger of inhaling fumes during a test. A rechargeable gas tank with on/off switch and fine adjustment are integral to the unit.

Features of the Elcometer 6910/3 Setaflash ‘Series 3’ Active-Cool Closed Cup Tester

  • Flash/No Flash & Ramp Modes
  • Flash point test in less than 2 minutes
  • Small sample size, 2ml or 4ml
  • Automatic flash detection
  • Electronic Peltier cooling
  • Audible and on-screen prompts
  • Portable
  • Corrosion resistant cup insert
The Elcometer 6910/3 Setaflash ‘Series 3’ Active-Cool Closed Cup Tester can be used in accordance with:
  • ASTM D1655
  • ASTM D3278
  • ASTM D3828
  • ASTM E502
  • BS 2000-523
  • CLP Regulations EC No 1272/2008
  • DEF STAN 91-91
  • EPA 1020 A & B
  • ISO 3679
  • ISO 3680*
  • UN Class 3 Non-viscous Flammable Liquids
* Standards not bolded have been superseded but are still recognised in some industries

Specifications

Elcometer 6910/3 Setaflash ‘Series 3’ Active-Cool Closed Cup Tester – Specifications

Part Number Description Certificate
K6910M013 Elcometer 6910/3 Setaflash ‘Series 3’ Active-Cool Closed Cup ο
Temperature Range 10°C to 135°C
Test Mode Rapid Equilibrium and Ramp
Sample Size 2ml for flash points up to 100°C
4ml for flash points above 100°C
Test Duration 1 minute below 100°C, 2 minutes above 100°C, or user determined 1 to 99 minutes
Ramp Rate 2°C/min ramp
Cup Material Corrosion resistant steel insert
Dimensions 195 x 295 x 140mm
Weight 3kg
ο Optional Calibration Certificate available

Data Sheet

Elcometer 6910/3 Setaflash ‘Series 3’ Active-Cool Closed Cup Tester – Data Sheet

Elcometer 6910/3 Setaflash ‘Series 3’ Active-Cool Closed Cup Tester Data Sheet

Standards

Elcometer 6910/3 Setaflash ‘Series 3’ Active-Cool Closed Cup Tester – Standards

The Elcometer 6910/3 Setaflash ‘Series 3’ Active-Cool Closed Cup Tester can be used in accordance with:
  • ASTM D1655
  • ASTM D3278
  • ASTM D3828
  • ASTM E502
  • BS 2000-523
  • CLP Regulations EC No 1272/2008
  • DEF STAN 91-91
  • EPA 1020 A & B
  • ISO 3679
  • ISO 3680*
  • UN Class 3 Non-viscous Flammable Liquids
* Standards not bolded have been superseded but are still recognised in some industries

Accessories

Elcometer 6910/3 Setaflash ‘Series 3’ Active-Cool Closed Cup Tester – Accessories

KT006910N001 Cooling Module Option for 5°C Ambient Temperature
KT006910N009 Certified Flash Point Material 50ml
