The Elcometer 6910 Setaflash 'Series 8' Closed Cup Tester (part number K6910M020) is an automated closed cup flash point tester with a temperature range of ambient to 300 degrees C. Flash point is the lowest temperature at which a liquid gives off enough vapour to ignite, and determining it accurately governs how a product is classified, transported and stored, so automated detection and rapid cycling improve both result consistency and laboratory throughput.
Test parameters, instrument status and flash point results are shown on a bright colour LCD display, navigated by keypad. The Elcometer 6910 Setaflash 'Series 8' Closed Cup Tester uses an electric hot wire ignitor and offers two modes of operation. In Ramp mode the sample temperature increases at 2 degrees C/min and the ignitor dips automatically every 1 degree C up to 100 degrees C, then every 2 degrees C above, until a flash is detected or the end temperature is reached. Automatic flash detection ignores halo and other false flash effects to reduce inaccurate results and improve repeatability. After each test the cup is cooled by forced air, going from 80 degrees C to 20 degrees C in 4 minutes.
The tester takes a 2ml or 4ml sample according to method and runs Rapid Equilibrium tests in 1 minute below 100 degrees C and 2 minutes above, with Ramp mode typically taking 7 minutes. The cup is aluminium. It measures 300 x 340 x 380mm and weighs 8kg. It can be used in accordance with ASTM D3278, ASTM D3828, ASTM D7236, ASTM E502, BS 2000-523, CLP Regulations EC No 1272/2008, EPA 1020 A and B, ISO 3679 and ISO 3680. Used in fuels, coatings, chemical and petrochemical testing, it is supplied by BAMR, South Africa's authorised distributor.

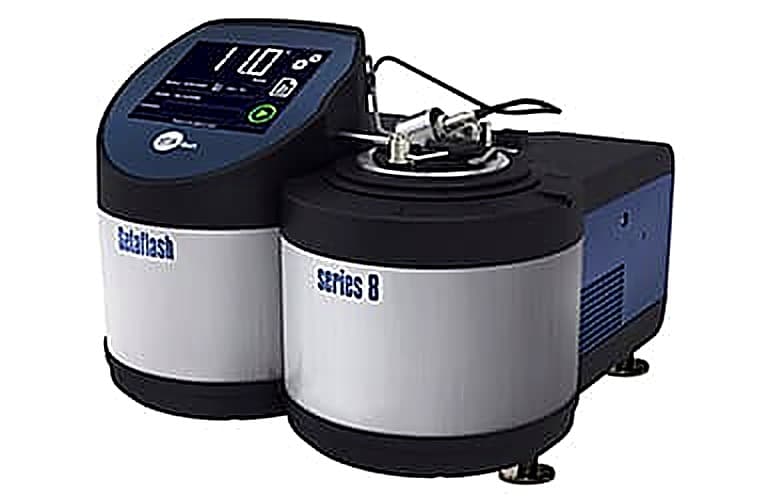

Elcometer 6910 Setaflash 'Series 8' Closed Cup Tester
The Elcometer 6910 Setaflash 'Series 8' is an automated closed cup tester with a temperature range of ambient to 300°C
- Small sample size 2ml or 4ml
- Flash/No Flash & Ramp Modes
- Electric ignitor
- Automatic dipping and flash detection
- Forced air cooling for rapid test cycling
Specifications
| Part Number | Description | Certificate |
|---|---|---|
| K6910M020 | Elcometer 6910 Setaflash 'Series 8' Closed Cup Tester | ● |
| Temperature Range | Ambient to 300°C | |
| Sample Size | 2ml or 4ml according to method | |
| Test Mode | Rapid Equilibrium and Ramp | |
| Test Duration Rapid Equilibrium Mode | 1 minute below 100°C 2 minutes above 100°C | |
| Test Duration Ramp Mode | Typically 7 minutes | |
| Cool Down Time | 80°C to 20°C in 4 minutes | |
| Cup Material | Aluminium | |
| Dimensions | 300 x 340 x 380mm | |
| Weight | 8kg |
Specifications
Specifications
| Part Number | Description | Certificate |
|---|---|---|
| K6910M020 | Elcometer 6910 Setaflash 'Series 8' Closed Cup Tester | ● |
| Temperature Range | Ambient to 300°C | |
| Sample Size | 2ml or 4ml according to method | |
| Test Mode | Rapid Equilibrium and Ramp | |
| Test Duration Rapid Equilibrium Mode | 1 minute below 100°C 2 minutes above 100°C | |
| Test Duration Ramp Mode | Typically 7 minutes | |
| Cool Down Time | 80°C to 20°C in 4 minutes | |
| Cup Material | Aluminium | |
| Dimensions | 300 x 340 x 380mm | |
| Weight | 8kg |
Standards
Standards
Accessories
Accessories
| KT006910N009 | Certified Flash Point Material |
Product Description
Product Description
The Elcometer 6910 Setaflash 'Series 8' is an automated closed cup tester with a temperature range of ambient to 300°C
Test parameters, instrument status and flash point results are shown on the bright colour LCD display - all easily accessed via menus, navigated by the keypad, which guides the operator through a straightforward testing process.
The instrument uses an electric hot wire ignitor and is designed with two modes of flash point operation: Flash/No Flash and Ramp. Ramp Mode increases the sample temperature at the rate of 2°C/min and automatically dips the ignitor every 1°C up to 100°C (every 2°C above 100°C), until either a flash is detected, or the end of test temperature is reached.
During the test the automatic flash point is set to ignore halo and other false flash effects reducing the risk of inaccurate test results and enhancing repeatability. At the end of the flash point test, the sample cup is cooled by forced air to reduce the cycle time between tests.
Up to 64 results can be stored in the memory which can be downloaded to a PC or printer via USB for further reporting.
Downloads
Frequently asked questions
What test modes does the 6910 offer?
The 6910 provides Rapid Equilibrium mode and Ramp mode. Rapid Equilibrium completes in 1 minute for temperatures below 100°C and 2 minutes above 100°C. Ramp mode takes approximately 7 minutes.
What sample volume does the tester require?
The 6910 accommodates either 2ml or 4ml sample volumes according to your specific test method.
How quickly can I run consecutive tests?
The cup cools from 80°C to 20°C in approximately 4 minutes, enabling reasonable turnaround for back-to-back sample testing.
What temperature range does the 6910 cover?
The tester operates from ambient temperature up to 300°C, supporting a broad range of flash point testing applications.
What space does the 6910 need on the bench?
It measures 300 x 340 x 380mm and weighs 8kg, fitting standard laboratory bench setups without requiring substantial floor space.
