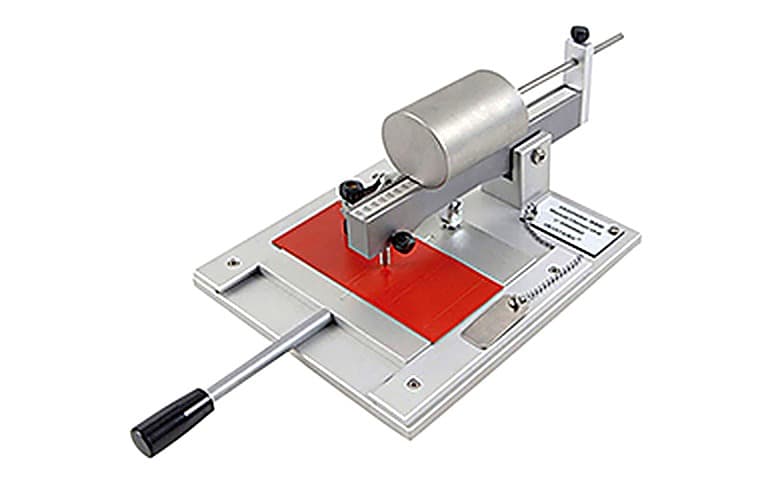

Elcometer 3000 Clemen Hardness Tester
Product Description

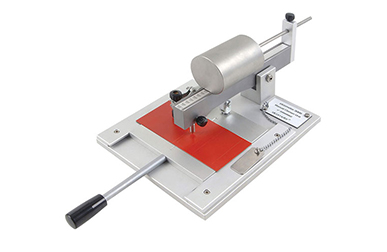

The Elcometer 3000 Manual Clemen Unit is a robust and simple to use instrument for evaluating the resistance to scratching of a coated surface.
A tool is fitted with a hemispherical tip of 1mm diameter (standard), lowered gradually on to the sample surface which is then pulled linearly 60mm.
Depending on the load applied, varying degrees of penetration of the tool into the coating are observed – from a superficial trace to total destruction.
The Elcometer 3000 Manual Clemen Unit can be used in accordance with:
• AS/NZS 1580.403.1
• BS 3900-E2*
• DIN 53799*
• ECCA T12*
• EN 13523-12
• ISO 1518-1:2011
* Standards not in bold have been superseded but are still recognised in some industries.
Specifications
| Part Number | Description | Certificate |
| K0003000M001 | Elcometer 3000 Manual Clemen Unit | ο |
| Sample Width | 75mm | |
| Variable Load | 0 – 2000g | |
| Dimensions | Manual: 410 x 200 x 155mm | |
| Weight | Manual: 6 kg |
ο Optional Calibration Certificate available
Packing List
- Elcometer 3000 Manual Clemen Unit
- 1mm ball tool
- Operating instructions
Data Sheet
Standards
The Elcometer 3000 Manual Clemen Unit can be used in accordance with:
• AS/NZS 1580.403.1
• BS 3900-E2*
• DIN 53799*
• ECCA T12*
• EN 13523-12
• ISO 1518-1:2011
* Standards not in bold have been superseded but are still recognised in some industries.
Accessories
| Part Number | Description |
| KT003000P021 | 1mm Ball Tool in Tungsten Carbide |
| KT003000N001 | 2mm Cutting Tool in Tungsten Carbide |
| KT003000N013 | VW Cutting Tool |
| KT003000N015 | Adjustment Kit to test from 5 to 20mm |
| KT007210M001 | Illuminated Microscope (x30) |
| KT003025P007 | Magnifier (x10) |
