The Elcometer NDT CG100ABDL+ Corrosion Ultrasonic Thickness Gauge (part number CG100ABDL) is a handheld ultrasonic gauge that measures material thickness and detects corrosion across a full range of measurement modes, with a high-contrast colour display for instant measurement response. The Elcometer NDT CG100ABDL+ Corrosion Ultrasonic Thickness Gauge serves inspectors who need to match the measurement method to the material and condition being tested.
Internal corrosion thins the walls of pipes, tanks and structural steel where it cannot be seen, so verifying remaining wall thickness is what keeps assets in service safely. The Elcometer NDT CG100ABDL+ Corrosion Ultrasonic Thickness Gauge offers Pulse-Echo (PE), Temperature Compensation (PETP), Echo-Echo ThruPaint (EE), EEV, Coating Only (CT) and Pulse-Echo Coating (PECT) modes, reading true metal thickness through paint or measuring coating and substrate together. Automatic gain control eases set-up, while manual gain from minus 30dB to 70dB and time corrected gain compensate for sound attenuation in awkward materials. Three adjustable gates and threshold control let the user bypass surface echoes and noise.
The PE measuring range of the Elcometer NDT CG100ABDL+ Corrosion Ultrasonic Thickness Gauge is 0.63 to 508mm, with accuracy of plus or minus 0.01mm, 0.01mm resolution and a velocity calibration range of 1250 to 9,999m/s. Scan mode runs at 32 readings per second. The quarter-VGA AMOLED colour display refreshes at 120Hz for an immediate reading. The Elcometer NDT CG100ABDL+ Corrosion Ultrasonic Thickness Gauge stores up to 16,000 readings with waveforms across 6 factory and 64 user-definable setups, with bi-directional RS232 output to ElcoMaster software via the supplied USB cable. The Elcometer NDT CG100ABDL+ Corrosion Ultrasonic Thickness Gauge uses a dual element transducer at 1 to 10MHz. The CG100ABDL+ is supplied by BAMR, South Africa's authorised Elcometer distributor.

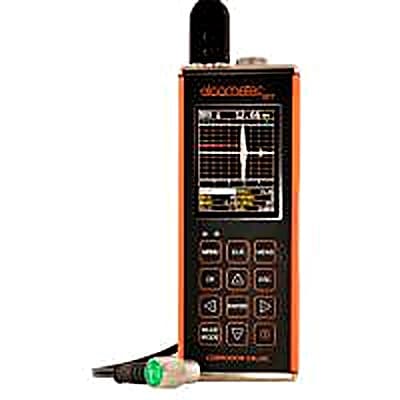

Elcometer NDT CG100ABDL+ Corrosion Ultrasonic Thickness Gauge
Offering a full range of measurement modes including: Pulse-Echo Temp Comp Mode (PETP) and Coating Only Mode (CT) to Pulse-Echo Coating Mode (PECT), the Elcometer NDT CG100 Corrosion Ultrasonic Thickness Gauge range of handheld corrosion thickness gauges allow the inspector to choose the right tool for the job.
- Range of display & measurement options Pulse-Echo, Echo-Echo, Pulse-Echo Temp Comp Mode (PETP), Coating Only Mode (CT), Pulse-Echo Coating Mode (PECT)
- Adjustable gain -30dB to 70dB range
- Automatic gain control (AGC)
- Time corrected gain (TCG)
- Gate control
- Threshold adjustment
- 64 User defined setups
- Multiple language display
- Multiple calibration and material selection options
- High speed scan mode 32 readings per second
Specifications
- Model & Part Number
- CG100ABDL
- Material thickness digits display
- Yes
- B-Scan cross sectional display
- Yes
- Combined B-Scan and digits display
- Yes
- Scan bar display
- Yes
- Coating thickness display
- Yes
- A-Scan Display
- + Rectified, - Rectified, Full Waveform (RF)
- Measurement Mode
- PE, PETP (Temp Compensation), EE (ThruPaint), EEV, CT (Coating) & PECT
- Manual Measurement Rate
- 4 readings per second
- Scan mode Measurement Rate
- 32 readings per second
- Scan bar display Measurement Rate
- 6 readings per second
- Measuring Range PE
- 0.63 - 508mm
- Measuring Range PETP
- 0.63 - 508mm
- Measuring Range EE
- 1.27 - 102mm
- Measuring Range EEV
- 1.27 - 25.4mm
- Measuring Range CT
- 12.7 - 254μm
- Measuring Range PECT Material
- 0.63 - 508mm
- Measuring Range PECT Coating
- 0.01 - 2.54mm
- Measurement Accuracy
- ±0.01mm
- Measurement Resolution
- 0.01mm
- Velocity Calibration Range
- 1250 - 9,999m/s
- High speed scan mode
- Yes
- Differential mode
- Yes
- Limit alarm mode
- Yes
- B-Scan display speed
- Adjustable display speed
- Flaw mode
- Basic prove-up flaw detection using single element angle beam transducers
- Calibration setups
- 6 factory & 64 user-definable setups
- Gates
- 3 fully adjustable gates: start, stop, width & threshold
- Damping
- Adjustable; impedance matching for optimising transducer performance
- Pulser type
- Dual 200 volt square wave pulsers with adjustable pulse width (spike, thin, wide) and 50 volt cut/boost
- Gain
- Manual, automatic gain control (AGC) with 110dB range (limited), or selectable gain: vlow, low, medium hi or vhi
- Timing
- Precision 25MHz TCXO with single shot 100MHz 8bit ultra low power 8 bit digitizer
- Calibration Options
- Single, two point, velocity & material type
- Transducer Probe Type
- Dual element & flaw prove up
- Transducer Frequency Range
- 1 - 10MHz
- Transducer recognition
- Manual - selectable from a list
- Data logging
- 8,000 with A/B-scan image & gauge settings; 210,000 - coating, material, min, max thickness; sequential and grid logging; Alpha numeric batch identification; OBSTRUCT indicates inaccessible locations
- V-path / dual path error correction
- Automatic
- Probe zero
- Manual (via probe disk)
- Display
- 1/4 VGA AMOLED colour display 57.6 x 43.2mm viewable area
- Display Refresh Rate
- 120Hz
- Backlight
- Adjustable brightness
- Repeatability / Stability Indicator
- Yes
- Battery Type
- 3 x AA alkaline
- Battery Life (approximate)
- 25 hours
- Low Battery Indicator
- Yes
- Battery Save Mode
- Auto
- Operating Temperature
- -10 to 60°C
- Size (w x h x d)
- 63.5 x 165.0 x 31.5mm
- Weight (including batteries)
- 383g
- Aluminium case design
- With gasket sealed end caps, waterproof membrane keypad
- Transducer Connector Type
- LEMO
- RS232 Interface
- Bi-directional
Specifications
Specifications
- Model & Part Number
- CG100ABDL
- Material thickness digits display
- Yes
- B-Scan cross sectional display
- Yes
- Combined B-Scan and digits display
- Yes
- Scan bar display
- Yes
- Coating thickness display
- Yes
- A-Scan Display
- + Rectified, - Rectified, Full Waveform (RF)
- Measurement Mode
- PE, PETP (Temp Compensation), EE (ThruPaint), EEV, CT (Coating) & PECT
- Manual Measurement Rate
- 4 readings per second
- Scan mode Measurement Rate
- 32 readings per second
- Scan bar display Measurement Rate
- 6 readings per second
- Measuring Range PE
- 0.63 - 508mm
- Measuring Range PETP
- 0.63 - 508mm
- Measuring Range EE
- 1.27 - 102mm
- Measuring Range EEV
- 1.27 - 25.4mm
- Measuring Range CT
- 12.7 - 254μm
- Measuring Range PECT Material
- 0.63 - 508mm
- Measuring Range PECT Coating
- 0.01 - 2.54mm
- Measurement Accuracy
- ±0.01mm
- Measurement Resolution
- 0.01mm
- Velocity Calibration Range
- 1250 - 9,999m/s
- High speed scan mode
- Yes
- Differential mode
- Yes
- Limit alarm mode
- Yes
- B-Scan display speed
- Adjustable display speed
- Flaw mode
- Basic prove-up flaw detection using single element angle beam transducers
- Calibration setups
- 6 factory & 64 user-definable setups
- Gates
- 3 fully adjustable gates: start, stop, width & threshold
- Damping
- Adjustable; impedance matching for optimising transducer performance
- Pulser type
- Dual 200 volt square wave pulsers with adjustable pulse width (spike, thin, wide) and 50 volt cut/boost
- Gain
- Manual, automatic gain control (AGC) with 110dB range (limited), or selectable gain: vlow, low, medium hi or vhi
- Timing
- Precision 25MHz TCXO with single shot 100MHz 8bit ultra low power 8 bit digitizer
- Calibration Options
- Single, two point, velocity & material type
- Transducer Probe Type
- Dual element & flaw prove up
- Transducer Frequency Range
- 1 - 10MHz
- Transducer recognition
- Manual - selectable from a list
- Data logging
- 8,000 with A/B-scan image & gauge settings; 210,000 - coating, material, min, max thickness; sequential and grid logging; Alpha numeric batch identification; OBSTRUCT indicates inaccessible locations
- V-path / dual path error correction
- Automatic
- Probe zero
- Manual (via probe disk)
- Display
- 1/4 VGA AMOLED colour display 57.6 x 43.2mm viewable area
- Display Refresh Rate
- 120Hz
- Backlight
- Adjustable brightness
- Repeatability / Stability Indicator
- Yes
- Battery Type
- 3 x AA alkaline
- Battery Life (approximate)
- 25 hours
- Low Battery Indicator
- Yes
- Battery Save Mode
- Auto
- Operating Temperature
- -10 to 60°C
- Size (w x h x d)
- 63.5 x 165.0 x 31.5mm
- Weight (including batteries)
- 383g
- Aluminium case design
- With gasket sealed end caps, waterproof membrane keypad
- Transducer Connector Type
- LEMO
- RS232 Interface
- Bi-directional
What's in the kit
What's in the kit
Frequently asked questions
What measurement modes does the CG100ABDL support?
The gauge offers PE and PETP (temperature-compensated) for material thickness, EE (ThruPaint) for through-paint measurement, EEV, CT for coating-only, and PECT for simultaneous coating and material measurement.
Can I measure material thickness through an existing coating?
Yes. Use PECT mode to measure both coating (0.01 to 2.54mm) and underlying material (0.63 to 508mm) simultaneously, or use EE (ThruPaint) mode for measurements up to 102mm through paint.
What accuracy and resolution does the CG100ABDL provide?
Measurement accuracy is plus or minus 0.01mm with resolution of 0.01mm. The gauge features adjustable gain (110dB range) and three fully adjustable gates for precision reading.
Can I store measurement data on the device?
Yes. The gauge logs up to 8,000 readings with A-scan and B-scan images plus settings, or up to 210,000 records for coating and material thickness with sequential and grid logging and alphanumeric batch identification.
Is the CG100ABDL waterproof for field work?
Yes. It features an aluminium case with gasket-sealed end caps and a waterproof membrane keypad, designed for operation in wet conditions. Battery life is approximately 25 hours on three AA alkaline batteries.
What measurement rates does the CG100ABDL achieve?
Manual mode delivers 4 readings per second, scan mode 32 readings per second, and scan bar display mode 6 readings per second, with a 120Hz display refresh rate.
