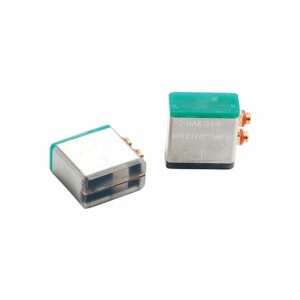

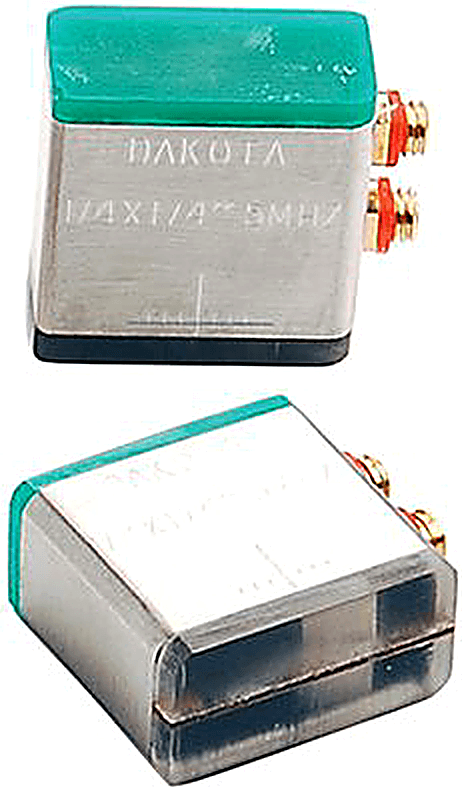

Dakota Shear Wave Dual Transducers
Product Description
Shear Wave Dual Transducers are dual element transducers with high near surface resolution, ideal for detecting small, near surface cracks and weld inspection. Potted in durable cast housing, the transducers are available in a variety of angles, including 45°, 60° or 70°, for producing the required shear waves. The Shear Wave Dual Transducers are used in conjunction with the “Trigonometry” function of the gauge.
Technical Specifications
| Connector Type | Suitable For | ||||||||||
| Part Number | Probe Diameter | Angle | Probe Characteristic | Damping | Microdot | Top | End | FX70 | FX71 | FX80 | FX81 |
| 1.00 MHz Shear Wave – Dual Transducers | |||||||||||
| PCDA251##E | 1/4 x 1/4 | 45°, 60°, 70°* | Composite | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |
| PCDA25371##E | 1/4 x 3/8″ | 45°, 60°, 70°* | Composite | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |
| PCDA371##E | 3/8 x 3/8″ | 45°, 60°, 70°* | Composite | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |
| PCDA501##E | 1/2 x 1/2″ | 45°, 60°, 70°* | Composite | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |
| PCDA251##T | 1/4 x 1/4″ | 45°, 60°, 70°* | Composite | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |
| PCDA25371##T | 1/4 x 3/8″ | 45°, 60°, 70°* | Composite | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |
| PCDA371##T | 3/8 x 3/8″ | 45°, 60°, 70°* | Composite | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |
| PCDA501##T | 1/2 x 1/2″ | 45°, 60°, 70°* | Composite | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |
| 2.25 MHz Shear Wave – Dual Transducers | |||||||||||
| CDA2525##E | 1/4 x 1/4″ | 45°, 60°, 70°* | Standard | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |
| CDA253725##E | 1/4 x 3/8″ | 45°, 60°, 70°* | Standard | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |
| CDA3725##E | 3/8 x 3/8″ | 45°, 60°, 70°* | Standard | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |
| CDA5025##E | 1/2 x 1/2″ | 45°, 60°, 70°* | Standard | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |
| CDA2525##T | 1/4 x 1/4″ | 45°, 60°, 70°* | Standard | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |
| CDA253725##T | 1/4 x 3/8″ | 45°, 60°, 70°* | Standard | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |
| CDA3725##T | 3/8 x 3/8″ | 45°, 60°, 70°* | Standard | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |
| CDA5025##T | 1/2 x 1/2″ | 45°, 60°, 70°* | Standard | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |
| 5.00 MHz Shear Wave – Dual Transducers | |||||||||||
| CDA2550##E | 1/4 x 1/4″ | 45°, 60°, 70°* | Standard | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |
| CDA253750##E | 1/4 x 3/8″ | 45°, 60°, 70°* | Standard | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |
| CDA3750##E | 3/8 x 3/8″ | 45°, 60°, 70°* | Standard | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |
| CDA5050##E | 1/2 x 1/2″ | 45°, 60°, 70°* | Standard | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |
| CDA2550##T | 1/4 x 1/4″ | 45°, 60°, 70°* | Standard | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |
| CDA253750##T | 1/4 x 3/8″ | 45°, 60°, 70°* | Standard | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |
| CDA3750##T | 3/8 x 3/8″ | 45°, 60°, 70°* | Standard | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |
| CDA5050##T | 1/2 x 1/2″ | 45°, 60°, 70°* | Standard | M | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | |
“* Shear Wave Transducers are available in 45, 60 & 70 angles. Replace ## within the part number with 45 for the 45° angle, 60 for the 60° degree angle and 70 for the 70° angle.
M – Medium Damped Transducer”
Accessories
| Ultrasonic Couplant; 120ml bottle | ||
 | Part Number: | V-000-0001 |
| Ultrasonic Couplant; 360ml bottle | ||
| Part Number: | V-000-0003 |
| Ultrasonic Couplant; 4.5L | ||
| Part Number: | V-000-0004 |
| High Temperature Ultrasonic Couplant; 60ml | ||
| Part Number: | V-000-0002 |
| T/Cable: 1.2m Single Lemo 00 to BNC | ||
| Part Number: | N-104-0070 |
| T/Cable: 1.2m Single Lemo 00 to Lemo 00 | ||
| Part Number: | N-104-0000 |
| T/Cable: 1.2m Single Lemo 00 to Microdot | ||
| Part Number: | N-104-0020 |
| T/Cable: 1.2m Dual Lemo 00 to BNC | ||
| Part Number: | TL-24030-5 |
| T/Cable: 1.2m Dual Lemo to Lemo | ||
| Part Number: | N-204-0000 |
| T/Cable: 1.2m Dual Lemo to Microdot | ||
| Part Number: | N-204-0020 |
| T/Cable: 1.2m Dual Lemo to Microdot Single | ||
| Part Number: | N-104-0021 |
| RS232 Cable 1.8m; DB-9 to Lemo | ||
| Part Number: | TL-24031 |
| USB to Serial Converter | ||
| Part Number: | TL-24032 |
| Cone Tip Delay Line: Acrylic; 1/8″ | ||
| Part Number: | X-132-0000 |
| Cone Tip Delay Line: Acrylic; 3/16″ | ||
| Part Number: | X-532-0000 |
| Cone Tip Delay Line: Graphite; 3/16″ | ||
| Part Number: | X-533-0000 |
| Delay Line Tip (Pencil): Acrylic; 1/16″ Dia x 0.45″ L | ||
| Part Number: | X-152-0000 |
| Delay Line Tip (Pencil): Acrylic; 1/8″ Dia x 0.45″ L | ||
| Part Number: | X-752-0000 |
| Delay Line Tip: Acrylic; 1/4″ Dia x 1/2″ L | ||
| Part Number: | F-000-7103 |
| Delay Line Tip: Acrylic; 1/4″ Dia x 3/8″ L | ||
| Part Number: | F-000-7102 |
| Delay Line Tip: Graphite; 1/4″ | ||
| Part Number: | X-633-0000 |
| 6″ Ext Wand for S/E Microdot Transducers | ||
| Part Number: | TZ-24035 | |
