About this product

Dakota Transducer Cables connect an ultrasonic probe to its gauge or flaw detector, and the range of the Dakota Transducer Cables covers various types, lengths and connector configurations to suit different applications. Choosing the correct cable matters more than it appears: the wrong connector simply will not mate with the gauge or probe, and the wrong length degrades the signal, so the cable is a working part of the measurement chain rather than an afterthought.

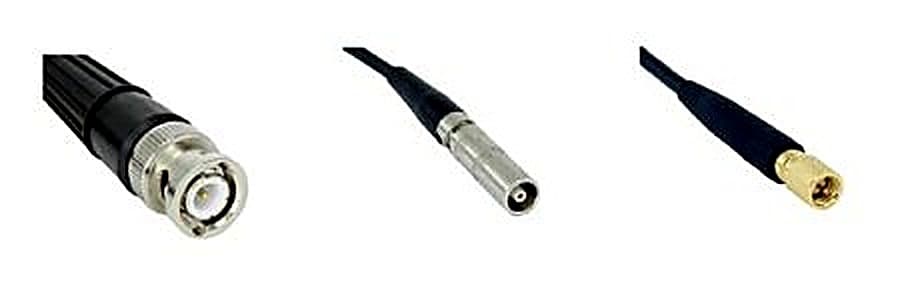

Four connector styles cover most needs. BNC is a common connector for general-purpose applications. Lemo connectors are high-precision fittings known for their durability and secure locking mechanism, suited to demanding environments. UHF is commonly used for RF applications, and microdot connectors are miniature fittings for high-frequency applications. Cable length should be matched to the job, because short cables minimise signal loss while excessively long cables introduce unwanted resistance and capacitance. The range for the Dakota Transducer Cables runs from single Lemo to BNC, Lemo or microdot patterns through to dual Lemo configurations, with lengths from 1.2m up to 6m, plus armoured, high temperature and high wear Teflon variants and dedicated single and dual element transducer adaptors.

These Dakota Transducer Cables are used by non-destructive testing technicians pairing Dakota transducers with their gauges across thickness and flaw detection work. Dakota Transducer Cables are supplied in South Africa by BAMR, the country's authorised distributor.

Dakota

Dakota Transducer Cables

SKU · N-104-0070 (+28 more - see Part Numbers)

Transducer cables come in various types, lengths, and connector configurations to cater to diverse applications.

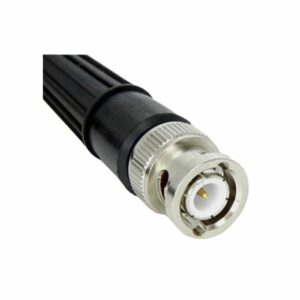

BNC A common connector for general-purpose applications.
Lemo High-precision connectors known for their durability and secure locking mechanism, used in demanding environments.
UHF Commonly used for RF applications.
Microdot Miniature connectors for high-frequency applications.
Cable Length Selecting the right cable length is crucial. Short cables minimize signal loss, while excessively long ones can introduce unwanted resistance and capacitance.

Indicative price

Specialist-built quote, by close of business

Used by inspection teams in

RefiningMarineMiningBridge / civil

Part Numbers

T/Cable: 1.2m Single Lemo 00 to BNC: N-104-0070
T/Cable: 1.2m Single Lemo 00 to Lemo 00: N-104-0000
T/Cable: 1.2m Single Lemo 00 to Microdot: N-104-0020
T/Cable: 1.2m Single Lemo UW to Lemo UW: N-104-2990
T/Cable: 1.2m Dual Lemo to Lemo: N-204-0000
T/Cable: 1.2m Dual Lemo to Microdot: N-204-0020
T/Cable: 1.2m Dual Lemo to Microdot Single: N-104-0021
T/Cable: 1,2m Dual Lemo to Microdot (High Temp Armoured): N-204-4020
T/Cable: 3m Single Lemo to Microdot: N-110-0020
T/Cable: 6m Single Lemo to Microdot Single: N-120-0020
T/Cable: 2m Single Lemo 00 to Microdot: N-106-0020
T/Cable: 3m Single Lemo 00 to Microdot (High Temp, High Wear Teflon): N-110-6020
T/Cable: 6m Single Lemo 00 to Microdot (High Temp, High Wear Teflon): N-120-6020
T/Cable: 6m Lemo 00 2 pin to Lemo 00 2 pin: N-320-0000
T/Cable: 1,2m Single Lemo 00 to Spring Loaded Center Pin Fixture - Recessed Cap Bolts: N-104-0090
T/Cable: 1,2m Single Lemo 00 to Spring Loaded 2 Pin fixture 5/16" Spacing: N-704-0090
T/Cable: 1,2m Single Lemo 00 to Spring Loaded 2 Pin fixture 1/4" Spacing: N-704-0094
T/Cable: 1.2m Dual Lemo to BNC: N-204-0070
T/Cable: 2m Single Lemo 00 to BNC: N-106-0100
T/Cable: 2m Single Lemo 00 to Lemo 00: N-106-0000
Dual Element Transducer Adaptor: T92024911
T/Cable: 2m Dual Lemo 00 to Microdot: N-206-0020
Single Element Transducer Adaptor: T92025657
T/Cable: 2m Dual Lemo 00 to BNC: N-206-0100
T/Cable: 2m Dual Lemo 00 to Lemo 00: N-206-0000
T/Cable: 1.2m Dual Lemo to Microdot, Hi Temp Strain Relief: N-204-3020
T/Cable: 1.2m Dual Lemo to Lemo (Armoured): N-204-1000
T/Cable: 1.2m Dual Lemo to Microdot (Armoured): N-204-5020
T/Cable: 6m Lemo 1 (5 pin) to Lemo 00: N-120-0400

Specifications

Part Numbers

T/Cable: 1.2m Single Lemo 00 to BNC: N-104-0070
T/Cable: 1.2m Single Lemo 00 to Lemo 00: N-104-0000
T/Cable: 1.2m Single Lemo 00 to Microdot: N-104-0020
T/Cable: 1.2m Single Lemo UW to Lemo UW: N-104-2990
T/Cable: 1.2m Dual Lemo to Lemo: N-204-0000
T/Cable: 1.2m Dual Lemo to Microdot: N-204-0020
T/Cable: 1.2m Dual Lemo to Microdot Single: N-104-0021
T/Cable: 1,2m Dual Lemo to Microdot (High Temp Armoured): N-204-4020
T/Cable: 3m Single Lemo to Microdot: N-110-0020
T/Cable: 6m Single Lemo to Microdot Single: N-120-0020
T/Cable: 2m Single Lemo 00 to Microdot: N-106-0020
T/Cable: 3m Single Lemo 00 to Microdot (High Temp, High Wear Teflon): N-110-6020
T/Cable: 6m Single Lemo 00 to Microdot (High Temp, High Wear Teflon): N-120-6020
T/Cable: 6m Lemo 00 2 pin to Lemo 00 2 pin: N-320-0000
T/Cable: 1,2m Single Lemo 00 to Spring Loaded Center Pin Fixture - Recessed Cap Bolts: N-104-0090
T/Cable: 1,2m Single Lemo 00 to Spring Loaded 2 Pin fixture 5/16" Spacing: N-704-0090
T/Cable: 1,2m Single Lemo 00 to Spring Loaded 2 Pin fixture 1/4" Spacing: N-704-0094
T/Cable: 1.2m Dual Lemo to BNC: N-204-0070
T/Cable: 2m Single Lemo 00 to BNC: N-106-0100
T/Cable: 2m Single Lemo 00 to Lemo 00: N-106-0000
Dual Element Transducer Adaptor: T92024911
T/Cable: 2m Dual Lemo 00 to Microdot: N-206-0020
Single Element Transducer Adaptor: T92025657
T/Cable: 2m Dual Lemo 00 to BNC: N-206-0100
T/Cable: 2m Dual Lemo 00 to Lemo 00: N-206-0000
T/Cable: 1.2m Dual Lemo to Microdot, Hi Temp Strain Relief: N-204-3020
T/Cable: 1.2m Dual Lemo to Lemo (Armoured): N-204-1000
T/Cable: 1.2m Dual Lemo to Microdot (Armoured): N-204-5020
T/Cable: 6m Lemo 1 (5 pin) to Lemo 00: N-120-0400

Part Numbers

Description	Part Numbers
T/Cable: 1.2m Single Lemo 00 to BNC	N-104-0070
T/Cable: 1.2m Single Lemo 00 to Lemo 00	N-104-0000
T/Cable: 1.2m Single Lemo 00 to Microdot	N-104-0020
T/Cable: 1.2m Single Lemo UW to Lemo UW	N-104-2990
T/Cable: 1.2m Dual Lemo to Lemo	N-204-0000
T/Cable: 1.2m Dual Lemo to Microdot	N-204-0020
T/Cable: 1.2m Dual Lemo to Microdot Single	N-104-0021
T/Cable: 1,2m Dual Lemo to Microdot (High Temp Armoured)	N-204-4020
T/Cable: 3m Single Lemo to Microdot	N-110-0020
T/Cable: 6m Single Lemo to Microdot Single	N-120-0020
T/Cable: 2m Single Lemo 00 to Microdot	N-106-0020
T/Cable: 3m Single Lemo 00 to Microdot (High Temp, High Wear Teflon)	N-110-6020
T/Cable: 6m Single Lemo 00 to Microdot (High Temp, High Wear Teflon)	N-120-6020
T/Cable: 6m Lemo 00 2 pin to Lemo 00 2 pin	N-320-0000
T/Cable: 1,2m Single Lemo 00 to Spring Loaded Center Pin Fixture - Recessed Cap Bolts	N-104-0090
T/Cable: 1,2m Single Lemo 00 to Spring Loaded 2 Pin fixture 5/16" Spacing	N-704-0090
T/Cable: 1,2m Single Lemo 00 to Spring Loaded 2 Pin fixture 1/4" Spacing	N-704-0094
T/Cable: 1.2m Dual Lemo to BNC	N-204-0070
T/Cable: 2m Single Lemo 00 to BNC	N-106-0100
T/Cable: 2m Single Lemo 00 to Lemo 00	N-106-0000
Dual Element Transducer Adaptor	T92024911
T/Cable: 2m Dual Lemo 00 to Microdot	N-206-0020
Single Element Transducer Adaptor	T92025657
T/Cable: 2m Dual Lemo 00 to BNC	N-206-0100
T/Cable: 2m Dual Lemo 00 to Lemo 00	N-206-0000
T/Cable: 1.2m Dual Lemo to Microdot, Hi Temp Strain Relief	N-204-3020
T/Cable: 1.2m Dual Lemo to Lemo (Armoured)	N-204-1000
T/Cable: 1.2m Dual Lemo to Microdot (Armoured)	N-204-5020
T/Cable: 6m Lemo 1 (5 pin) to Lemo 00	N-120-0400

Answers

Frequently asked questions

What connector types does Dakota supply?

Dakota cables are available with Lemo 00, Lemo, Microdot, BNC, Spring Loaded fixtures, and Lemo 1 (5 pin) connectors. Single and dual-element adaptors (T92024911, T92025657) are supplied for system integration.

What lengths are available?

Standard lengths are 1.2 m, 2 m, 3 m, and 6 m, covering both compact bench installations and field applications requiring extended cable runs.

Do you stock high-temperature rated cables?

Yes. High Temp variants, High Temp Armoured cables, and High Temp High Wear Teflon-insulated models (N-110-6020, N-120-6020) are available for demanding thermal environments.

Are armoured cables supplied?

Armoured cables are stocked, including High Temp Armoured variants (N-204-4020) for mechanical protection in harsh or elevated temperature applications.
