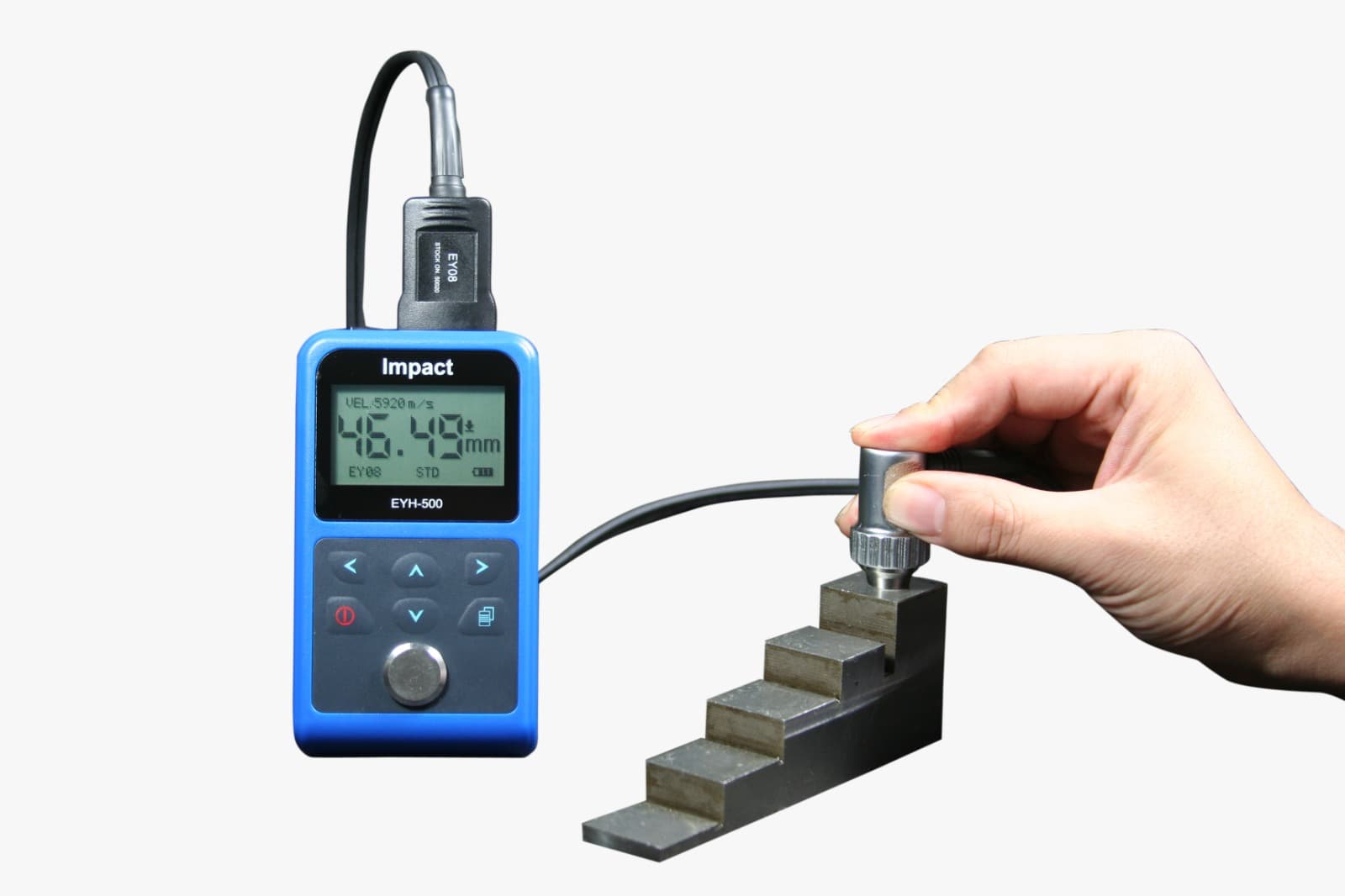

EYH-500 Ultrasonic Thickness Gauge with EY08 probe measuring a stepped steel test block
EYH-500 Ultrasonic Thickness Gauge
SKU · EYH-500
The EYH-500 is a pocket-size ultrasonic thickness gauge that measures the thickness of metal and non-metal materials from one side with a standard 5MHz probe. It works on materials such as steel, stainless steel, aluminium, glass, polystyrene and polyethylene. It reads 1.0 to 300mm in steel, identifies the connected probe automatically, and stores nine material velocities, with the option to enter a new velocity.
- Pocket-size design Handheld gauge for field thickness measurements
- Auto probe identification Recognises the connected probe automatically
- Menu driven Simple menu-driven operation
- Wide measuring range 1.0 to 300mm in steel with the standard 5MHz probe
- Dual resolution 0.1 or 0.01mm, 0.01 or 0.001 inch
- Multiple material compatibility Steel, stainless steel, aluminium, glass, polystyrene and polyethylene
- Stored velocities Nine material velocities stored for selection, or enter a new velocity
Indicative price
POA
Specialist-built quote, by close of business
Used by inspection teams in
RefiningMarineMiningBridge / civil
Specifications
- Velocity range
- 1000 to 9999 m/s (3280 to 32805 ft/s)
- Measuring range
- 1.0 to 300mm in steel with standard probe
- Resolution
- 0.1/0.01mm, 0.01/0.001 inch
- Units
- mm / inch
- Accuracy
- ±0.04mm (thickness under 9.99mm); ±(0.1% thickness + 0.04)mm (10 to 99.9mm); ±0.3% thickness (over 100mm)
- Working temperature
- -15°C to 50°C
- Dimensions
- 113 x 64 x 29mm (W x D x H)
- Weight
- 110g (including batteries)
- Power supply
- 2 x 1.5V AAA alkaline batteries
- Standard probe
- 5MHz (EY08)
Specifications
Specifications
- Velocity range
- 1000 to 9999 m/s (3280 to 32805 ft/s)
- Measuring range
- 1.0 to 300mm in steel with standard probe
- Resolution
- 0.1/0.01mm, 0.01/0.001 inch
- Units
- mm / inch
- Accuracy
- ±0.04mm (thickness under 9.99mm); ±(0.1% thickness + 0.04)mm (10 to 99.9mm); ±0.3% thickness (over 100mm)
- Working temperature
- -15°C to 50°C
- Dimensions
- 113 x 64 x 29mm (W x D x H)
- Weight
- 110g (including batteries)
- Power supply
- 2 x 1.5V AAA alkaline batteries
- Standard probe
- 5MHz (EY08)
Standard Delivery
Standard Delivery
Main unit
Standard 5MHz probe (EY08)
Built-in 4mm calibration block
Couplant
Carry package
