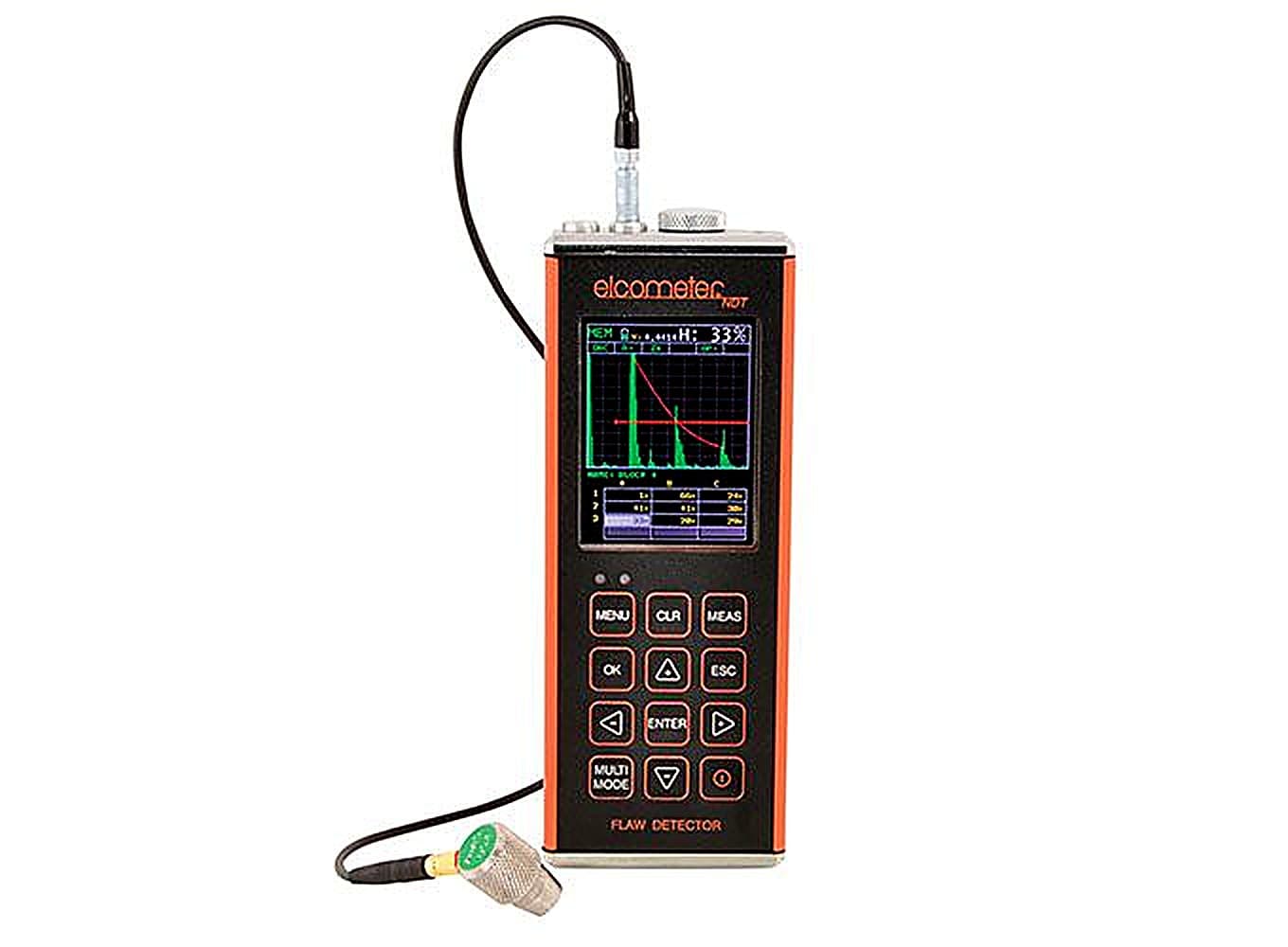

The Elcometer FD700 Mini Flaw Detector is a hand-held ultrasonic instrument that combines flaw detection with material thickness measurement, available in two models: the FD700+ and the data-logging FD700DL+. It is used to find internal defects such as cracks, voids and inclusions in welds and metal components and to measure remaining wall thickness, the information that decides whether a part is fit for service or must be repaired or replaced.
Ultrasound is pulsed into the material and the Elcometer FD700 Mini Flaw Detector times and analyses the returning echoes. The FD700 offers flaw detection modes including TRIG, DAC, AWS, TCG, Zero Crossing, Flank and Peak, with the time corrected gain feature automatically compensating for sound attenuation through the material. Measurement modes cover Pulse Echo, temperature-compensated PE, Echo Echo ThruPaint, EEV, coating thickness and pulse echo coating thickness, with a velocity calibration range of 256 to 16,000 m/s, measurement accuracy and resolution of 0.01mm down to 0.001mm, and a pulse echo range reaching up to 30,480mm on a single contact. Three fully adjustable gates, automatic probe recognition, probe zero and temperature compensation speed up setup.
A colour VGA AMOLED display (320 x 240 pixels) stays readable in sunlight. The FD700DL+ adds 4GB of internal memory with sequential and grid logging, OBSTRUCT marking for inaccessible locations, and download to ElcoMaster data management software. Used in NDT, weld inspection and corrosion monitoring across fabrication, refineries and marine work, it is supplied by BAMR, South Africa's authorised Elcometer distributor.
Elcometer FD700 Mini Flaw Detectors
The hand-held FD700 flaw detector range combines state-of-the-art flaw detection with advanced material thickness capabilities. The Elcometer FD700 Mini Flaw Detector is available in two models: FD700+ and FD700DL+. Whether you are on-site or in the laboratory these gauges are the tool you need for all your flaw detecting needs.
- Exceptional visibility in sunlight AMOLED
- Colour VGA display 320 x 240 pixels
- Sizing Toolkits DAC, AWS, TCG, DGS
- Pulse Repetition Frequency 8 to 333 Hz, adjustable
- Screen Refresh Rate Adjustable 60 & 120 Hz
- Detection Z-Cross, Flank & Peak
- Automatic probe zero, probe recognition, and temperature compensation
- Measurement Variety of modes to address a number of applications
- Large data storage with multiple formats Alpha numeric grid and sequential with auto identifier
- Download to ElcoMaster® data management software
Model & Part Number
- Model & Part Number
- FD700+ & FD700DL+
- Material thickness digits display
- ■
- B-Scan cross sectional display
- ■
- B-Scan with digits display
- ■
- Scan bar display
- ■
- Coating thickness display
- ■
- A-Scan display
- + Rectified, - Rectified, Full Waveform (RF)
- Flaw detection modes
- TRIG, DAC, AWS, TCG, Zero Crossing, Flank, Peak
- Measurement Mode
- PE, PETP (Temp Compensation), EE (ThruPaint™), EEV, CT (Coating) & PECT
Measurement Rate (Thickness Mode)
- Manual
- 8 readings per second
- Scan mode
- 50 readings per second
- Scan bar display
- 10 readings per second
Measuring Range
- Measuring Range
- Pulse Echo (PE) 0.63 - 2,440mm; Pulse Echo (single contact) 1.0 - 30,480mm; Echo Echo ThruPaint™ (EE) 1.27 - 102mm; Echo Echo (single delay line) 0.178 - 25.4mm; Echo Echo (single contact) 1.0 - 3,050mm; Echo Echo Verify (EEV) 1.27 - 25.4mm; Pulse Echo Temp Comp (PETP) 0.63 - 2,440mm; Coating Thickness (CT) 0.0127 - 2.54mm; Pulse Echo Coating Thickness (PECT) 0.63 - 2,440mm; Pulse Echo Coating Thickness (PECT) 0.01 - 2.54mm
Measurement Accuracy & Resolution
- Measurement Accuracy
- 0.01mm
- Measurement Resolution
- 0.01mm, 0.001mm
Velocity Calibration Range
- Velocity Calibration Range
- 256 - 16,000m/s
Additional Features
- High speed scan mode
- ■
- Differential mode
- ■
- Limit alarm mode
- ■
- B-Scan display speed
- adjustable display speed
- Calibration setups
- 64 user-definable setups transferrable to and from a PC archive
- Gates
- 3 fully adjustable gates: start, stop, width & threshold
- Damping
- adjustable; impedance matching for optimising transducer performance
- Pulser type
- Two adjustable square wave pulsers and receivers
- Gain
- manual, automatic gain control (AGC) with 110dB range with 0.2dB resolution
- Timing
- precision 25MHz TCXO with single shot 100MHz 8bit ultra low power 8bit digitizer
- Data logging
- 4GB internal memory; sequential and grid logging; Alpha numeric batch identification; OBSTRUCT indicates inaccessible locations
- Calibration Options
- single, two point, velocity & material type
- Transducer recognition
- automatic
- V-path / dual path error correction
- automatic
- Probe zero
- automatic
Flaw Detection Mode Features
- Automatic Calibration
- Longitudinal (straight), or Shear (angle)
- Probe Types
- Single Contact, Dual, Delay & Angle
- Material Velocity Table
- Contains longitudinal and shear velocities for a variety of material types
- TRIG
- Trigonometric display of beam path, depth, surface distance, and curved surface correction. Used with angle beam transducers
- DAC
- Up to 8 points may be entered and used to digitally draw a DAC curve. Reference -2, -6, -10, (-6/-12), (-6/-14), (-2/-6/-10) dB. Amplitude displayed in %DAC, dB, or %FSH
- AWS
- Automatic defect sizing in accordance with AWS D1.1 structural welding code.
- AVG/DGS
- Automatic defect sizing using probe data. Stores up to 64 custom setups
- TCG
- Time corrected gain. 50 dB dynamic range, 20 dB per microsecond, up to 8 points for curve definition
- Detection Modes
- Zero Crossing, Flank and Peak
- Display Freeze
- Hold current waveform on screen
- Peak Memory
- Captures peak signal amplitude.
- PRF
- 8 to 2000Hz in selectable steps (8, 16, 32, 66, 125, 250, 333, 1000, 2000Hz)
- Pulse Width
- 40 to 400 ns. Selectable step options 40, 80 & 400 ns (labelled spike, thin & wide)
- Frequency Bands
- FD700+ & FD700DL+: Broadband 1.8 - 19 MHz (-3dB). FD700DL+: Three narrow bands at 2MHz, 5MHz, 10MHz
- Horizontal Linearity
- +/- 0.4% FSW
- Vertical Linearity
- +/- 1% FSH
- Amplifier Linearity
- +/- 1 dB
- Amplitude Measurement
- 0 to 100% FSH, with 1% resolution
- Delay
- 0 - 999in (25,375mm) at steel velocity
- Display
- 1/4 VGA AMOLED colour display 57.6 x 43.2mm viewable area
- Display Refresh Rate
- 60
- Units (selectable)
- mm or inches
- Backlight
- adjustable brightness
- Repeatability / Stability Indicator
- ■
- Battery Type
- 3 x AA alkaline
- Battery Life (approximate)
- Alkaline (12hrs), Nicad (5hrs), and NI-MH (12hrs)
- Low Battery Indicator
- ■
- Battery Save Mode
- auto
- Size (w x h x d)
- 63.5 x 165.0 x 31.5mm
- Weight (including batteries)
- 397g
- Case Design
- Aluminium case design with gasket sealed end caps, waterproof membrane keypad
- Transducer Connector Type
- LEMO
- USB Interface
- ■
Specifications
Model & Part Number
- Model & Part Number
- FD700+ & FD700DL+
- Material thickness digits display
- ■
- B-Scan cross sectional display
- ■
- B-Scan with digits display
- ■
- Scan bar display
- ■
- Coating thickness display
- ■
- A-Scan display
- + Rectified, - Rectified, Full Waveform (RF)
- Flaw detection modes
- TRIG, DAC, AWS, TCG, Zero Crossing, Flank, Peak
- Measurement Mode
- PE, PETP (Temp Compensation), EE (ThruPaint™), EEV, CT (Coating) & PECT
Measurement Rate (Thickness Mode)
- Manual
- 8 readings per second
- Scan mode
- 50 readings per second
- Scan bar display
- 10 readings per second
Measuring Range
- Measuring Range
- Pulse Echo (PE) 0.63 - 2,440mm; Pulse Echo (single contact) 1.0 - 30,480mm; Echo Echo ThruPaint™ (EE) 1.27 - 102mm; Echo Echo (single delay line) 0.178 - 25.4mm; Echo Echo (single contact) 1.0 - 3,050mm; Echo Echo Verify (EEV) 1.27 - 25.4mm; Pulse Echo Temp Comp (PETP) 0.63 - 2,440mm; Coating Thickness (CT) 0.0127 - 2.54mm; Pulse Echo Coating Thickness (PECT) 0.63 - 2,440mm; Pulse Echo Coating Thickness (PECT) 0.01 - 2.54mm
Measurement Accuracy & Resolution
- Measurement Accuracy
- 0.01mm
- Measurement Resolution
- 0.01mm, 0.001mm
Velocity Calibration Range
- Velocity Calibration Range
- 256 - 16,000m/s
Additional Features
- High speed scan mode
- ■
- Differential mode
- ■
- Limit alarm mode
- ■
- B-Scan display speed
- adjustable display speed
- Calibration setups
- 64 user-definable setups transferrable to and from a PC archive
- Gates
- 3 fully adjustable gates: start, stop, width & threshold
- Damping
- adjustable; impedance matching for optimising transducer performance
- Pulser type
- Two adjustable square wave pulsers and receivers
- Gain
- manual, automatic gain control (AGC) with 110dB range with 0.2dB resolution
- Timing
- precision 25MHz TCXO with single shot 100MHz 8bit ultra low power 8bit digitizer
- Data logging
- 4GB internal memory; sequential and grid logging; Alpha numeric batch identification; OBSTRUCT indicates inaccessible locations
- Calibration Options
- single, two point, velocity & material type
- Transducer recognition
- automatic
- V-path / dual path error correction
- automatic
- Probe zero
- automatic
Flaw Detection Mode Features
- Automatic Calibration
- Longitudinal (straight), or Shear (angle)
- Probe Types
- Single Contact, Dual, Delay & Angle
- Material Velocity Table
- Contains longitudinal and shear velocities for a variety of material types
- TRIG
- Trigonometric display of beam path, depth, surface distance, and curved surface correction. Used with angle beam transducers
- DAC
- Up to 8 points may be entered and used to digitally draw a DAC curve. Reference -2, -6, -10, (-6/-12), (-6/-14), (-2/-6/-10) dB. Amplitude displayed in %DAC, dB, or %FSH
- AWS
- Automatic defect sizing in accordance with AWS D1.1 structural welding code.
- AVG/DGS
- Automatic defect sizing using probe data. Stores up to 64 custom setups
- TCG
- Time corrected gain. 50 dB dynamic range, 20 dB per microsecond, up to 8 points for curve definition
- Detection Modes
- Zero Crossing, Flank and Peak
- Display Freeze
- Hold current waveform on screen
- Peak Memory
- Captures peak signal amplitude.
- PRF
- 8 to 2000Hz in selectable steps (8, 16, 32, 66, 125, 250, 333, 1000, 2000Hz)
- Pulse Width
- 40 to 400 ns. Selectable step options 40, 80 & 400 ns (labelled spike, thin & wide)
- Frequency Bands
- FD700+ & FD700DL+: Broadband 1.8 - 19 MHz (-3dB). FD700DL+: Three narrow bands at 2MHz, 5MHz, 10MHz
- Horizontal Linearity
- +/- 0.4% FSW
- Vertical Linearity
- +/- 1% FSH
- Amplifier Linearity
- +/- 1 dB
- Amplitude Measurement
- 0 to 100% FSH, with 1% resolution
- Delay
- 0 - 999in (25,375mm) at steel velocity
- Display
- 1/4 VGA AMOLED colour display 57.6 x 43.2mm viewable area
- Display Refresh Rate
- 60
- Units (selectable)
- mm or inches
- Backlight
- adjustable brightness
- Repeatability / Stability Indicator
- ■
- Battery Type
- 3 x AA alkaline
- Battery Life (approximate)
- Alkaline (12hrs), Nicad (5hrs), and NI-MH (12hrs)
- Low Battery Indicator
- ■
- Battery Save Mode
- auto
- Size (w x h x d)
- 63.5 x 165.0 x 31.5mm
- Weight (including batteries)
- 397g
- Case Design
- Aluminium case design with gasket sealed end caps, waterproof membrane keypad
- Transducer Connector Type
- LEMO
- USB Interface
- ■
Accessories
Accessories
| TL-24030-1 | T/Cable: 4′ Single Lemo 00 to BNC |
| TL-24030-2 | T/Cable: 4′ Single Lemo 00 to Lemo 00 |
| TL-24030-3 | T/Cable: 4′ Single Lemo 00 to Microdot |
| TL-24030-5 | T/Cable: 4′ Dual Lemo 00 to BNC |
| TL-24030-6 | T/Cable: 4′ Dual Lemo to Lemo |
| TL-24030-7 | T/Cable: 4′ Dual Lemo to Microdot |
| TL-24030-8 | T/Cable: 4′ Dual Lemo to Microdot Single |
| TL-24031 | RS232 Cable (6′); DB-9 to Lemo |
| TL-24032 | USB to Serial Adapter |
| TC-24034-1 | Couplant: Standard; 4oz Bottle (Material Safety Data Sheet) |
| TC-24034-2 | Couplant: Standard; 12oz Bottle (Material Safety Data Sheet) |
| TC-24034-3 | Couplant: Standard; 1 Gallon (Material Safety Data Sheet) |
| TC-24034-9 | Couplant: Hi-Temp 371°C; 2oz Tube (Material Safety Data Sheet) |
| TD-24033-1 | Cone Tip Delay Line: Acrylic; 1/8″ |
| TD-24033-2 | Cone Tip Delay Line: Acrylic; 3/16″ |
| TD-24033-3 | Cone Tip Delay Line: Graphite; 3/16″ |
| TD-24033-4 | Delay Tip (P): Acry; 1/16″ Dia x 0.45″ L |
| TD-24033-5 | Delay Tip (P): Acry; 1/8″ Dia x 0.45″ L |
| TD-24033-6 | Delay Tip: Acrylic; 1/4″ Dia x 1/2″ L |
| TD-24033-7 | Delay Tip: Acrylic; 1/4″ Dia x 3/8″ L |
| TD-24033-8 | Delay Tip: Graphite; 1/4″ |
| TZ-24035 | 6″ Ext Wand for S/E Microdot Transducers |
Frequently asked questions
What is the difference between the FD700+ and FD700DL+?
The FD700+ offers broadband detection from 1.8 to 19 MHz. The FD700DL+ adds three narrow frequency bands at 2 MHz, 5 MHz, and 10 MHz. Choose the DL+ when selective frequency filtering suits your material or defect detection requirements.
What measuring ranges does the FD700 support?
Ranges vary by mode. Pulse Echo reaches 2,440mm. Single-contact Pulse Echo extends to 30,480mm. Echo Echo ThruPaint is 1.27 to 102mm. Coating Thickness (CT) mode is 0.0127 to 2.54mm. Confirm the mode and material velocity for your application.
Does the FD700 support AWS D1.1 structural welding inspection?
Yes. The AWS flaw detection mode performs automatic defect sizing in accordance with AWS D1.1 structural welding code, supporting compliance documentation and verification.
How many measurement readings can the FD700 deliver per second?
Manual mode delivers 8 readings per second. Scan mode delivers 50 readings per second. Scan bar display mode delivers 10 readings per second. Choose the mode that suits your surface coverage requirements.
Can I transfer calibration setups between instruments?
Yes. The FD700 stores up to 64 user-definable calibration and flaw detection setups. Setups transfer to and from a PC archive via USB, simplifying repeated inspections or multi-site deployment.
