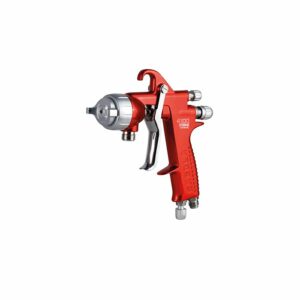

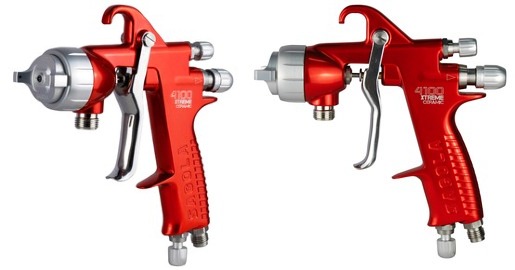

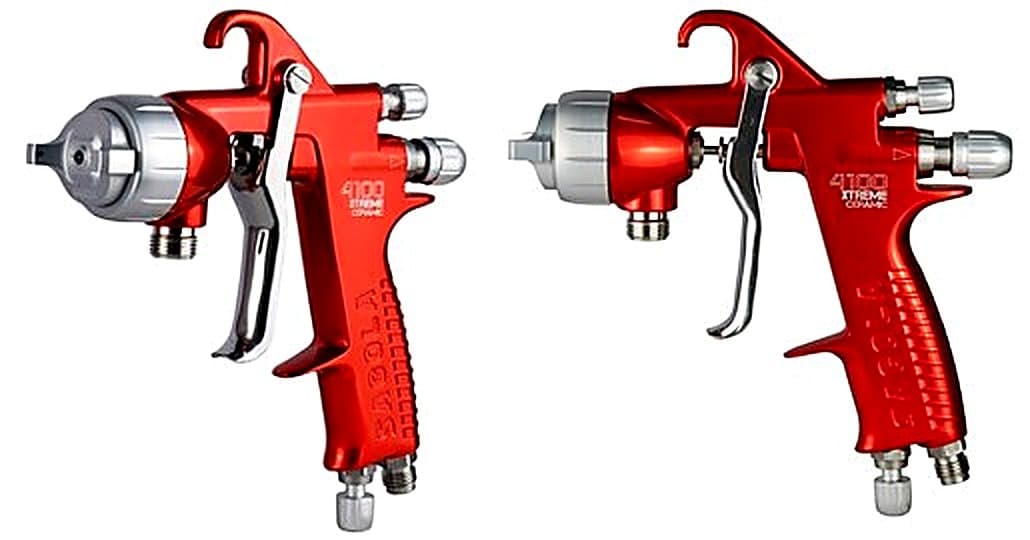

Sagola 4100 Xtreme Ceramic Pressure Spray Gun
Product Description
Ideal for highly refined ceramic applications which use abrasive products, the Sagola 4100 Xtreme Ceramic offers fast application and unbeatable finish quality.
Ergonomic and easy to use
The spray gun is perfectly balanced for comfortable use over prolonged periods.
Minimal Maintenance
Designed without seals or plastic parts in the product area, this spray gun is easy to clean and maintain.
Corrosion Resistant
Tungsten carbide needles and nozzles with anodised aluminium air caps to prevent wear from abrasive products.
Specifications
| Model | Sagola 4100 Xtreme Ceramic Pressure Spray Guns | ||
| Dimensions | 200 x 190 x 420 mm – with cup | ||
| Weight | 552g | ||
| Air Inlet Coupling | 19mm BSP Male | ||
| Product Inlet Coupling | 6.35mm BSP Male | ||
| Design Pressure | 10bar | ||
| Working Pressure | 2 – 3bar | ||
| Materials in contact with product | Stainless Steel, POM, Teflon, Nylon & Tungsten Carbide | ||
| Compliance | ATEX II 2G x (Directive 2014/34/EU) | ||
Data Sheet
Part Numbers
 |
Sagola 4100 Xtreme Ceramic Pressure Spray Gun with 67 Aircap & 1.80mm Stainless Steel Needle & Nozzle Kit |
| Part Number : PG10152132 | |
|
|
Sagola 4100 Xtreme Ceramic Pressure Spray Gun with 64 Aircap & 2.20mm Stainless Steel Needle & Nozzle Kit |
| Part Number : PG10152133 | |
|
|
Sagola 4100 Xtreme Ceramic Pressure Spray Gun with 64 Aircap & 2.50mm Stainless Steel Needle & Nozzle Kit |
| Part Number : PG10152134 | |
|
|
Sagola 4100 Xtreme Ceramic Pressure Spray Gun with 63 Aircap & 2.80mm Stainless Steel Needle & Nozzle Kit |
| Part Number : PG10152136 | |
|
|
Sagola 4100 Xtreme Ceramic Pressure Spray Gun with 62 Aircap & 2.80mm Stainless Steel Needle & Nozzle Kit |
| Part Number : PG10152135 | |
|
|
Sagola 4100 Xtreme Ceramic Pressure Spray Gun with 78 Aircap & 1.40mm Stainless Steel Needle & Nozzle Kit |
| Part Number : PG10152130 | |
|
|
Sagola 4100 Xtreme Ceramic Pressure Spray Gun with 3030 Aircap & 1.40mm Stainless Steel Needle & Nozzle Kit |
| Part Number : PG10152131 | |
Accessories
| Paint Packing Nut | ||
 |
Part Number: | PT56411616 |
| Air Gasket Replacement Kit (x6) | ||
 |
Part Number: | PT56418494 |
| Aircap Gasket & Spring Clip Kit | ||
|
|
Part Number: | PT56418678 |
| Aircap Gasket, Pack of 5 | ||
|
|
Part Number: | PT56418681 |
| 67 Aircap for use with Sagola X4100 Xtreme Ceramic Aircap | ||
|
|
Part Number: | PT56418568 |
| 64 Aircap for use with Sagola X4100 Xtreme Ceramic Aircap | ||
|
|
Part Number: | PT56418570 |
| 63 Aircap for use with Sagola X4100 Xtreme Ceramic Aircap | ||
|
|
Part Number: | PT56418659 |
| 62 Aircap for use with Sagola X4100 Xtreme Ceramic Aircap | ||
|
|
Part Number: | PT56418567 |
| 78 Aircap for use with Sagola X4100 Xtreme Ceramic Aircap | ||
|
|
Part Number: | PT56418590 |
| Air Valve Seat | ||
|
|
Part Number: | PT54110012 |
