Product Description

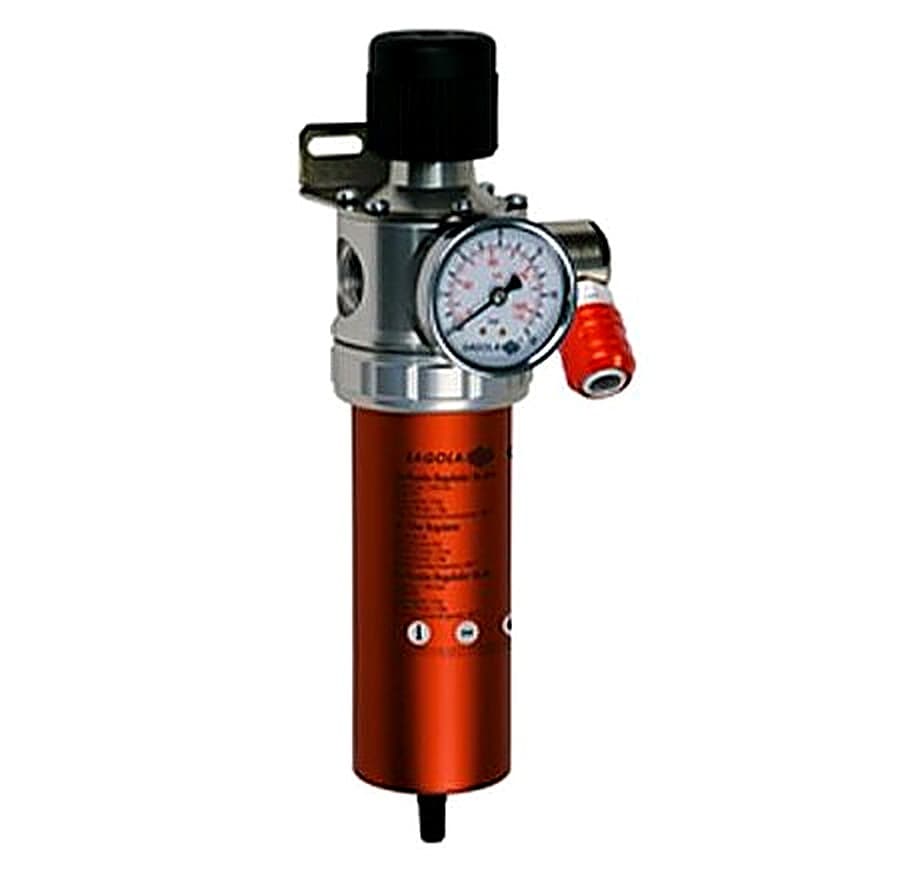

The Sagola 4120 Plus Air Regulator Filter is a highly reliable air regulation system that eliminates air, oil and particles down to 24 microns.
Features
- Highly reliable air regulation system that eliminates air, oil and particles down to 24 microns.
- Ideal for waterborne or HS paints providing a high-quality spray, whatever the coating
- Manufactured from a solid aluminum block.
- Friction and centrifugal filtration.
- Automatic drain of condensed liquids.
- High air flow.
- High quality analogue pressure gauge.
- Easy wall mounting.
- Tough heavy-duty construction for long service life.

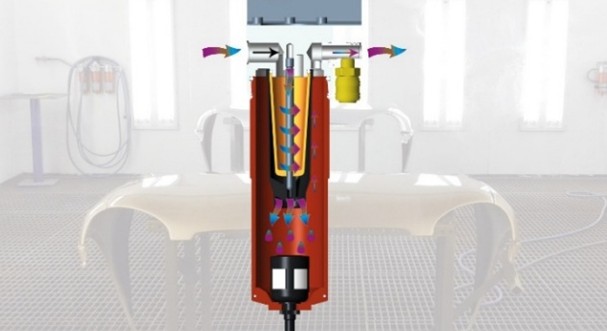

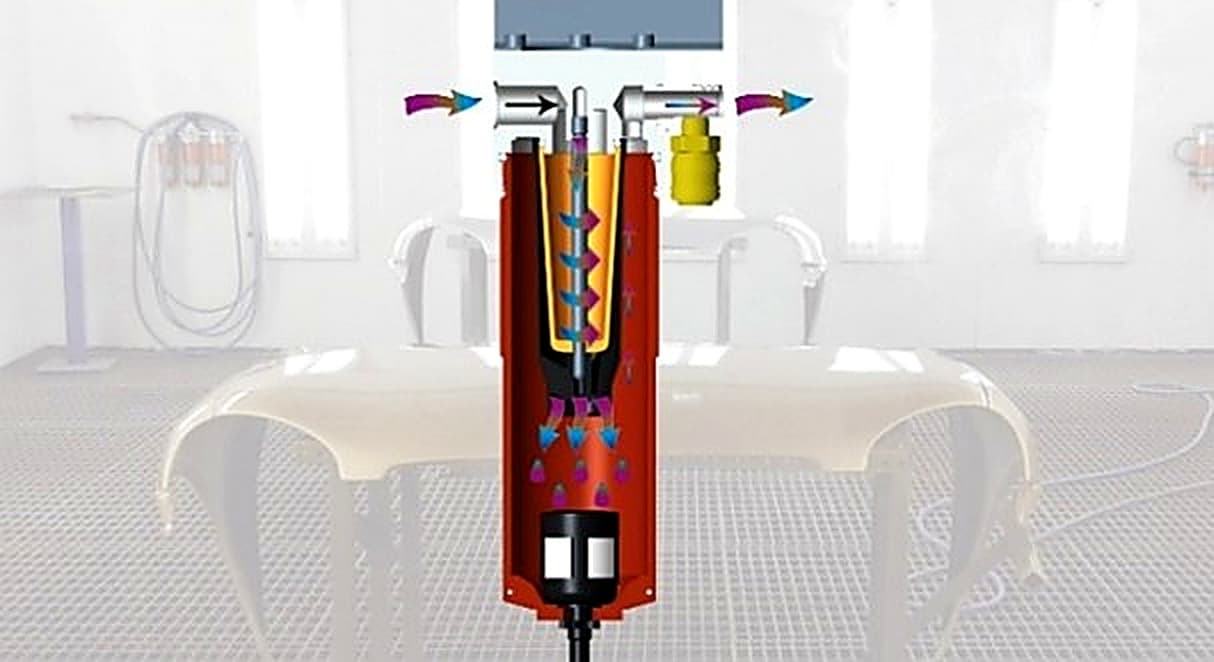

How the Sagola 4120 Plus works
| 1. The friction of the compressed air against the walls of the unit produces a decanting of solid and liquid particles which fall to the bottom of the unit’s vessel.
|
 |
| 2. The compressed air is forced through the porous brass filter, in a downward flow, generating an increase in speed which then sharply changes to an upward direction that produces a further decanting of the liquid particles that were in condensation. |
Technical Specifications
| Air Flow (at 7bar) | 2910LPM |
| Air inlet | 12.7 mm BSP |
| Air outlet | 6.35 mm BSP |
| Maximum working pressure | 12bar |
| Maximum operating temperature | 90°C |
| Drain system | Automatic |
| Dimensions | 97 x 117 x 279mm without coupling |
| Weight | 1.22kg |
Packing List
| Sagola 4120 Plus Air Regulator Filter – Single Stage containing Brass Filter (24μm) |
| Analogue Pressure Gauge (x1) |
| Support Bracket |
* US-MIL, Euro-profile or NITTO version depending on part number ordered.
Data Sheet
Sagola 4120 Plus Air Regulator Filter – Stage 1 Data Sheet
Sagola 4120 Plus Air Regulator Filter – Stage 1 Accessories Data Sheet
Part Numbers
| Sagola 4120 Plus Air Regulator Filter – 1 Stage Filter; Euro-Profile Coupling | ||
|
Connection Type: | Euro-Profile |
| Filter Type: | Stage 1 | |
| Part Number: | 10730504 | |
| Sagola 4120 Plus Air Regulator Filter – 1 Stage Filter; US-MIL Coupling | ||
|
|
Connection Type: | US-MIL |
| Filter Type: | Stage 1 | |
| Part Number: | 10730502 | |
| Sagola 4120 Plus Air Regulator Filter – 1 Stage Filter; NITTO Coupling | ||
|
Connection Type: | NITTO |
| Filter Type: | Stage 1 | |
| Part Number: | 10730503 | |
