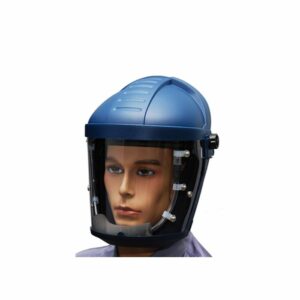

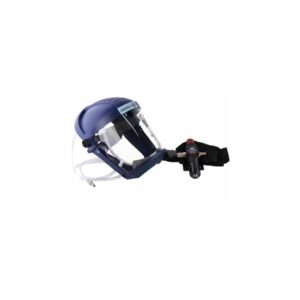

The Sagola 4240 Breathing Equipment Kit is a complete supplied-air respiratory protection kit for spray painting activities. Spray painting exposes the operator to atomised paint, solvent vapour and odour, so a clean, regulated air supply delivered to a mask protects the painter where filtering ambient air alone is not enough.
The kit supplies air to the mask through a preset regulator that incorporates a flow warning gauge and an integrated high efficiency coalescent filter, removing low levels of moisture and oil, with a carbon filter to absorb vapour and odour. It includes a belt, a pocket regulator and coalescent filter, 10 metres of hose with safety plugs and a 1.5 metre hose to the spray gun outlet. Solid particle filtration reaches 0.01 micron, and the nominal filter life is 400 operating hours.
The Sagola 4240 Breathing Equipment Kit runs on an air supply pressure of 4 to 10 bar, delivering a mask air supply rate of 160 to 232 LPM, with a maximum mask hose length of 15 m from supply to regulator and an environmental working temperature range of 1.5 to 50 degrees C. It conforms to BS EN 1835 (protection factor of 40), EC 58459 and BSi Product Certification 89/686/CEE, the standards governing supplied-air breathing apparatus and personal protective equipment. Complete and basic versions are available with US-Mil or Nitto connections. Supplied by BAMR, South Africa's authorised Sagola distributor.

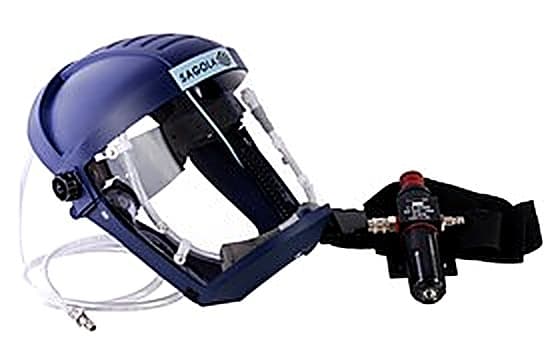

Sagola 4240 Breathing Equipment Kit
The Sagola 4240 is a complete Breathing Equipment Kit for all spray painting activities.
- Belt
- Pocket regulator and coalescent filter to remove low levels of moisture and oil
- 10 metres of hose and safety plugs
- 1.5 metre of hose spray gun outlet
- Preset regulator incorporating a flow warning gauge with an integrated high efficiency coalescent filter
- Carbon filter to absorb vapour and odour
When to use the Sagola 4240 Breathing Equipment Kit
Reach for the 4240 when sprayers need a supplied-air respiratory setup for paint booth work, not just a dust mask. It is a complete kit covering the belt, regulators, filters, hose and mask for jobs where solvent vapour and odour are present. The decision is whether you need certified respiratory protection across a whole spray session, not occasional touch-ups.
- 1Removes vapour and odourThe carbon filter absorbs vapour and odour and the coalescent filters strip low levels of moisture and oil, so the operator breathes cleaner air during solvent spraying.
- 2Certified respiratory protectionIt conforms to BS EN 1835 and EC 58459 under BSi Product Certification, which matters when you have to prove compliant PPE for booth operators.
- 3Complete supply chain in one kitBelt, pocket regulator, 10 metres of hose, safety plugs, preset regulator with flow warning gauge and gun outlet hose all ship together, so there is nothing to source separately before a sprayer can work safely.
Lower-budget alternatives
Ten minutes on a call with one of our specialists usually saves you from buying the wrong instrument.
Book a 10-minute callOr , our product assistant, for an instant answer.
When to use this
When to use the Sagola 4240 Breathing Equipment Kit
Reach for the 4240 when sprayers need a supplied-air respiratory setup for paint booth work, not just a dust mask. It is a complete kit covering the belt, regulators, filters, hose and mask for jobs where solvent vapour and odour are present. The decision is whether you need certified respiratory protection across a whole spray session, not occasional touch-ups.
- 1Removes vapour and odourThe carbon filter absorbs vapour and odour and the coalescent filters strip low levels of moisture and oil, so the operator breathes cleaner air during solvent spraying.
- 2Certified respiratory protectionIt conforms to BS EN 1835 and EC 58459 under BSi Product Certification, which matters when you have to prove compliant PPE for booth operators.
- 3Complete supply chain in one kitBelt, pocket regulator, 10 metres of hose, safety plugs, preset regulator with flow warning gauge and gun outlet hose all ship together, so there is nothing to source separately before a sprayer can work safely.
Lower-budget alternatives
Ten minutes on a call with one of our specialists usually saves you from buying the wrong instrument.
Book a 10-minute callOr , our product assistant, for an instant answer.
Specifications
Specifications
- Air Supply Pressure
- 4 - 10 bar
- Mask Air Supply Rate
- 160 - 232 LPM
- Mask Hose Length (Max)
- 15 m (supply to regulator)
- Environmental Working Temperature
- 1.5 - 50°C
- Nominal Actual Filter Life
- 400 operating hours
- Solid Particle Filtration
- 0.01 µm (0.0004 mil)
What's in the kit
What's in the kit
Standards
Standards
Accessories
Accessories
- Sagola 4240 Mask Visor (10 Units)
- PT15880013
- Sagola 4240 Mask Carbon Filter
- PT15880015
- Sagola 4240 Mask Acetate Screen Kit
- PT15880011
- Sagola 4240 Hygiene Kit (x5 Face Seals & Sweatbands)
- PT15880012
Part Numbers
Part Numbers
| Description | Part Numbers |
|---|---|
| Sagola 4240 Complete Breathing Equipment Kit | PT15830101PT15830102 |
| Sagola 4240 Basic Breathing Equipment Kit | PT15830103PT15830104 |
Downloads
Frequently asked questions
Does the Sagola 4240 work with my air compressor?
The kit requires air supply pressure of 4 to 10 bar and a mask air supply rate of 160 to 232 litres per minute. Check that your compressor can deliver both consistently during spray operations.
How often do I need to replace the filter?
The filter has a nominal operating life of 400 hours. Replace it when you reach this operating time to maintain filtration performance.
What's the maximum hose length for the air supply?
The hose can be up to 15 metres long from the air supply to the regulator. Longer runs may reduce pressure at the mask.
What particle size does the filter capture?
The kit is designed for spray painting and filters solid particles down to 0.01 micrometres (0.0004 mil).
What replacement parts does Sagola offer for the 4240?
Replacement and consumable accessories include mask visors, carbon filters, acetate screen kits, and hygiene kits with face seals and sweatbands.
