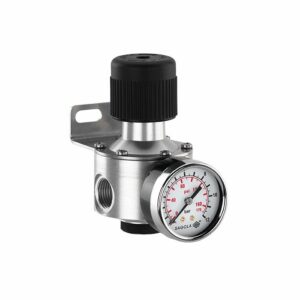

The Sagola 430 Plus Mini Air Regulator is a compact air regulation system machined from a solid aluminium block, used to set and hold a stable air pressure feeding a spray gun or other pneumatic tool. The part numbers PT10740503, PT10740502 and PT10740501 cover the 1/4 inch, 3/8 inch and 1/2 inch inlet versions of the Sagola 430 Plus Mini Air Regulator.
Spray finish quality depends on a steady, correct supply pressure; fluctuating line pressure shows up as an inconsistent fan and finish. The Sagola 430 Plus Mini Air Regulator is a diaphragm regulator adjustable from 0 to 10 bar, with a quick release and short shift wheel for fast setting and a high quality analogue pressure gauge to read the value directly. The Sagola 430 Plus Mini Air Regulator mounts easily to a wall, so it can be fixed at the point of use.
Air flow at 7 bar is 1200 to 1700 l/min, the maximum working pressure is 10 bar and the maximum operating temperature is 90 degrees C. The Sagola 430 Plus Mini Air Regulator measures 107 by 65 by 115 mm without the coupling and weighs 544 g. Supplied by BAMR, South Africa's authorised distributor.
Sagola 430 Plus Mini Air Regulator
The Sagola 430 Plus Mini Air Regulator is a highly reliable air regulation system which is manufactured from a solid aluminium block.
- Highly reliable air regulation system.
- Manufactured from a solid aluminium block.
- Diaphragm regulator from 0 to 10bar.
- Quick release and short shift wheel.
- High quality analogue pressure gauge.
- Easy wall mounting.
Specifications
- Air Flow (at 7bar)
- 1200 - 1700 l/min
- Maximum working pressure
- 10bar
- Maximum operating temperature
- 90°C
- Dimensions
- 107 x 65 x 115 mm without coupling
- Weight
- 544g
- Packing List
- Sagola 430 Plus Mini Air Regulator
Specifications
Specifications
- Air Flow (at 7bar)
- 1200 - 1700 l/min
- Maximum working pressure
- 10bar
- Maximum operating temperature
- 90°C
- Dimensions
- 107 x 65 x 115 mm without coupling
- Weight
- 544g
- Packing List
- Sagola 430 Plus Mini Air Regulator
Part Numbers
Part Numbers
| Description | Part Numbers |
|---|---|
| Sagola 430 Plus Mini Air Regulator - ¼" Inlet | PT10740503 |
| Sagola 430 Plus Mini Air Regulator - ⅜" Inlet | PT10740502 |
| Sagola 430 Plus Mini Air Regulator - ½" Inlet | PT10740501 |
Downloads
Frequently asked questions
What air flow does the Sagola 430 Plus Mini deliver?
At 7 bar, the regulator delivers 1200 to 1700 litres per minute. This flow range suits most hand-held spray systems and coating work.
What is the maximum working pressure?
The 430 Plus Mini operates up to a maximum of 10 bar. Ensure your compressor does not exceed this limit.
Can it handle warm air from the compressor?
The regulator operates safely up to 90°C. If your compressor discharges air hotter than this, install an upstream cooler or allow the air to cool first.
How compact is the 430 Plus Mini?
The unit weighs 544 grams and measures 107 x 65 x 115 mm without coupling, making it suitable for portable spray work.
