The Sagola 4600 Digital Gravity Spray Gun is a gravity-feed spray gun, available in digital and standard versions, that delivers even and uniform paint distribution from top to bottom. That uniformity is why it suits difficult base colours such as metallics, silvers and pearls, and it minimises common paint defects like shadows, patch coats and striping while using less paint, less air and less time.
Two design features carry the performance. Dynamic Flow Technology harnesses the ambient air around the aircap so the Sagola 4600 Digital Gravity Spray Gun gives a stable, uniform fan and superior atomisation even at lower working pressures, with less bounce back and overspray and easier overlapping. Metal to Metal Technology uses aerospace grade engineering with fewer joints, o-rings and seals than other guns, which means low maintenance, fewer wearing parts, fast clean and colour change, no packings or seals in the fluid area, and greater reliability.

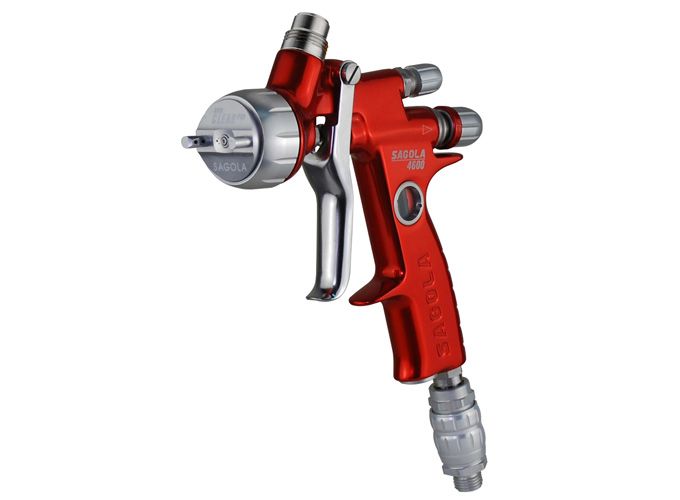

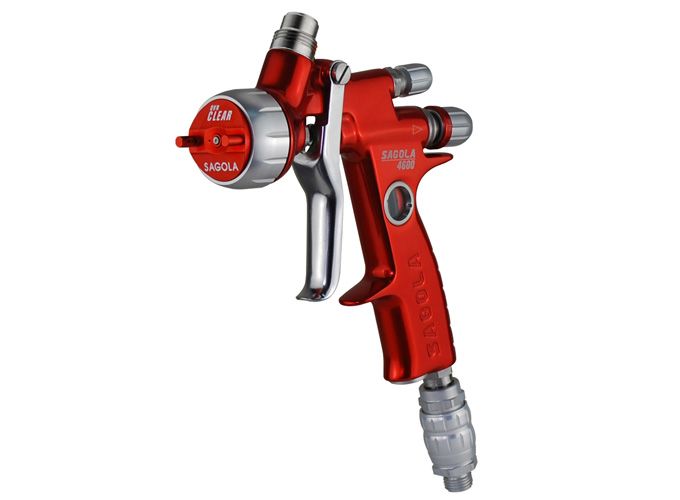

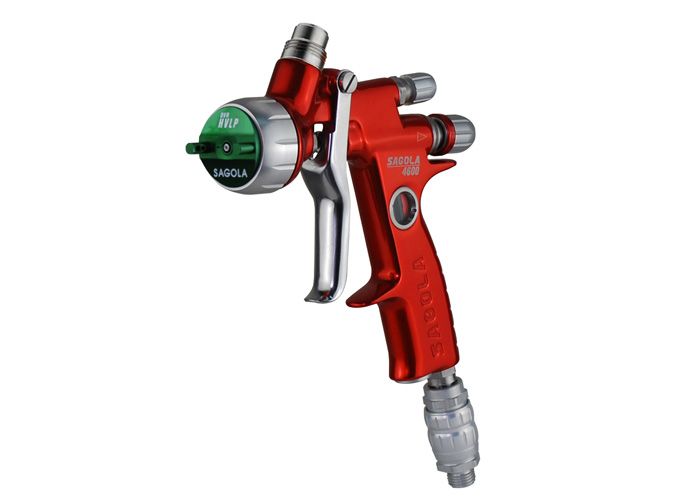

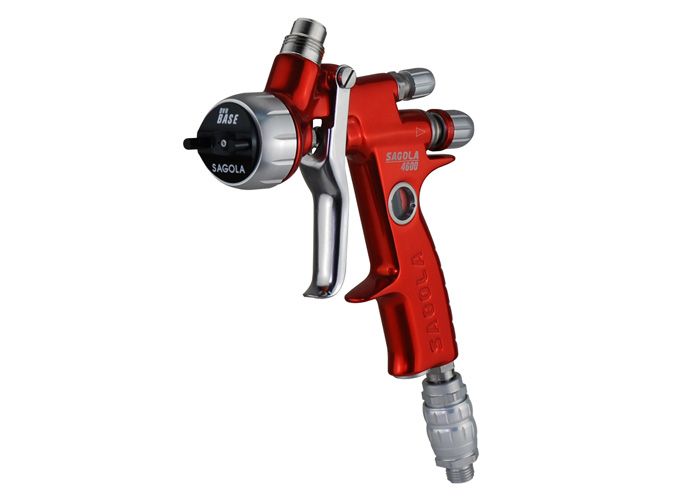

The gun is offered with DVR BASE, DVR HVLP, DVR CLEAR and DVR CLEAR PRO aircaps. Output flow ranges from 170 to 229 g/min, air consumption from 280 to 450 L/min, fan width from 275 to 325 cm and application distance from 15 to 20 cm, depending on the aircap, with air inlet pressures of 1.8 to 2.2 bar. Both digital and standard versions weigh 675 g with the supplied cup (492.8 g without), use a high-flow BSP 1/4 inch male air inlet, an 80 mesh paint filter, a 650 ml cup and a recommended working pressure of 2 bar. Needle and nozzle kits run from 1.20 mm to 1.40 mm with bar and psi options. Supplied by BAMR, South Africa's authorised Sagola distributor.

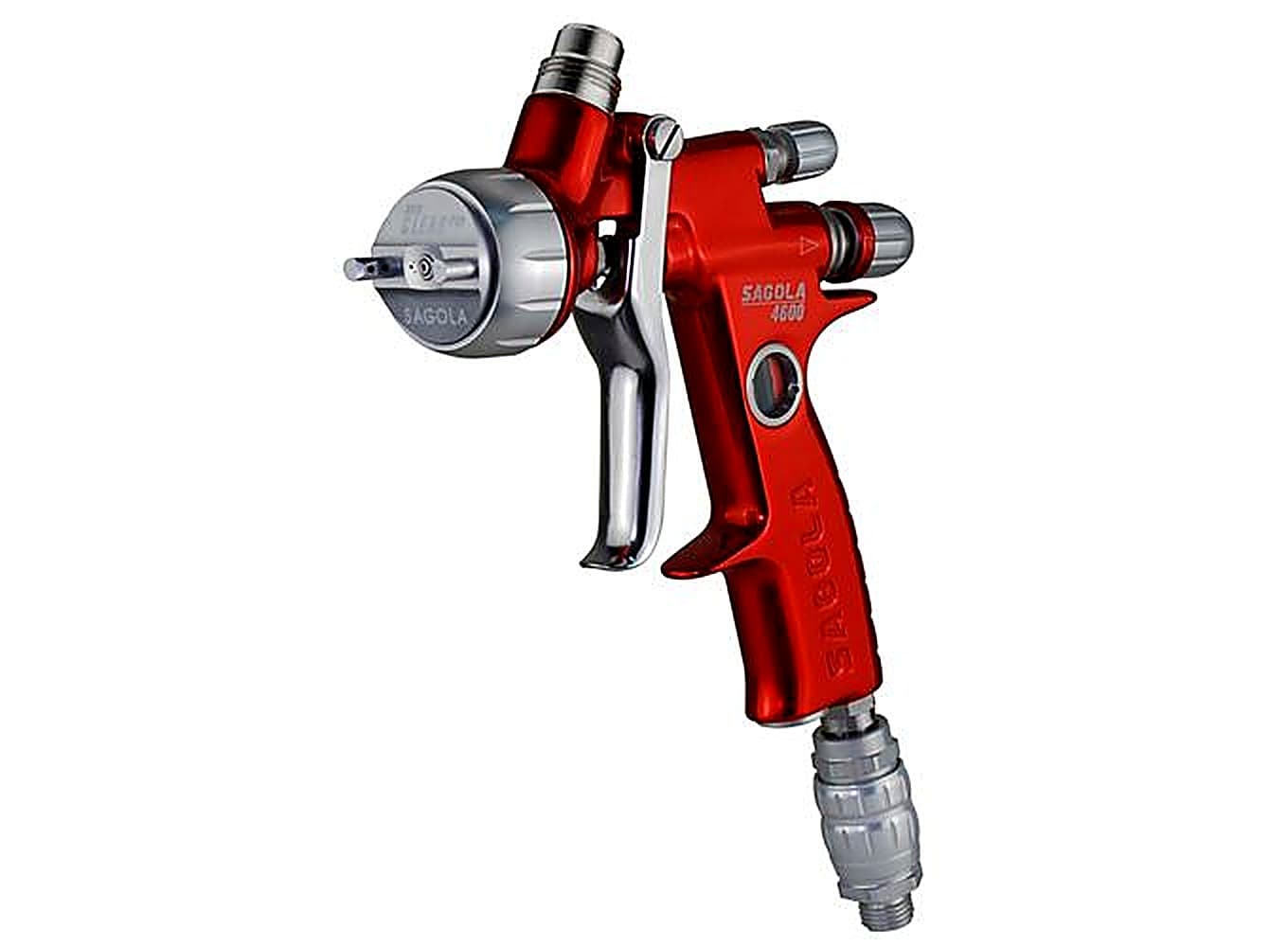

Sagola 4600 Digital Gravity Spray Gun
The Sagola 4600 Digital Gravity Spray Gun provides more even and uniform paint distribution from top to bottom. This makes it ideal for difficult base colours such as metallics, silver, and pearls. It also minimises common paint defects like shadows, patch coats, and striping. All of this is achieved while using less paint, less air, and less time, ultimately lowering your costs and boosting your profits.
- Efficient and Easy Ultra-fine atomization and less overspray for an industry leading transfer efficiency. Stable fan pattern, uniform from top to bottom, for precise colour matches, seamless transitions, and blends with easier overlapping.
- Even and Ergonomic A flawless finish with even particle distribution with minimal patching. Designed to be so comfortable you forget you are holding it.
- Effortless and Economic It's so easy to use, you get a professional finish every time, with minimal effort. Less air, less bounce back for the same flawless result with Dynamic Flow Technology

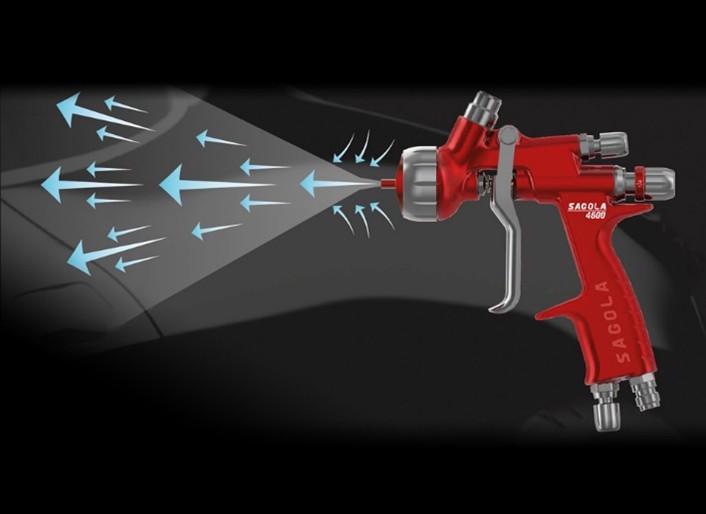

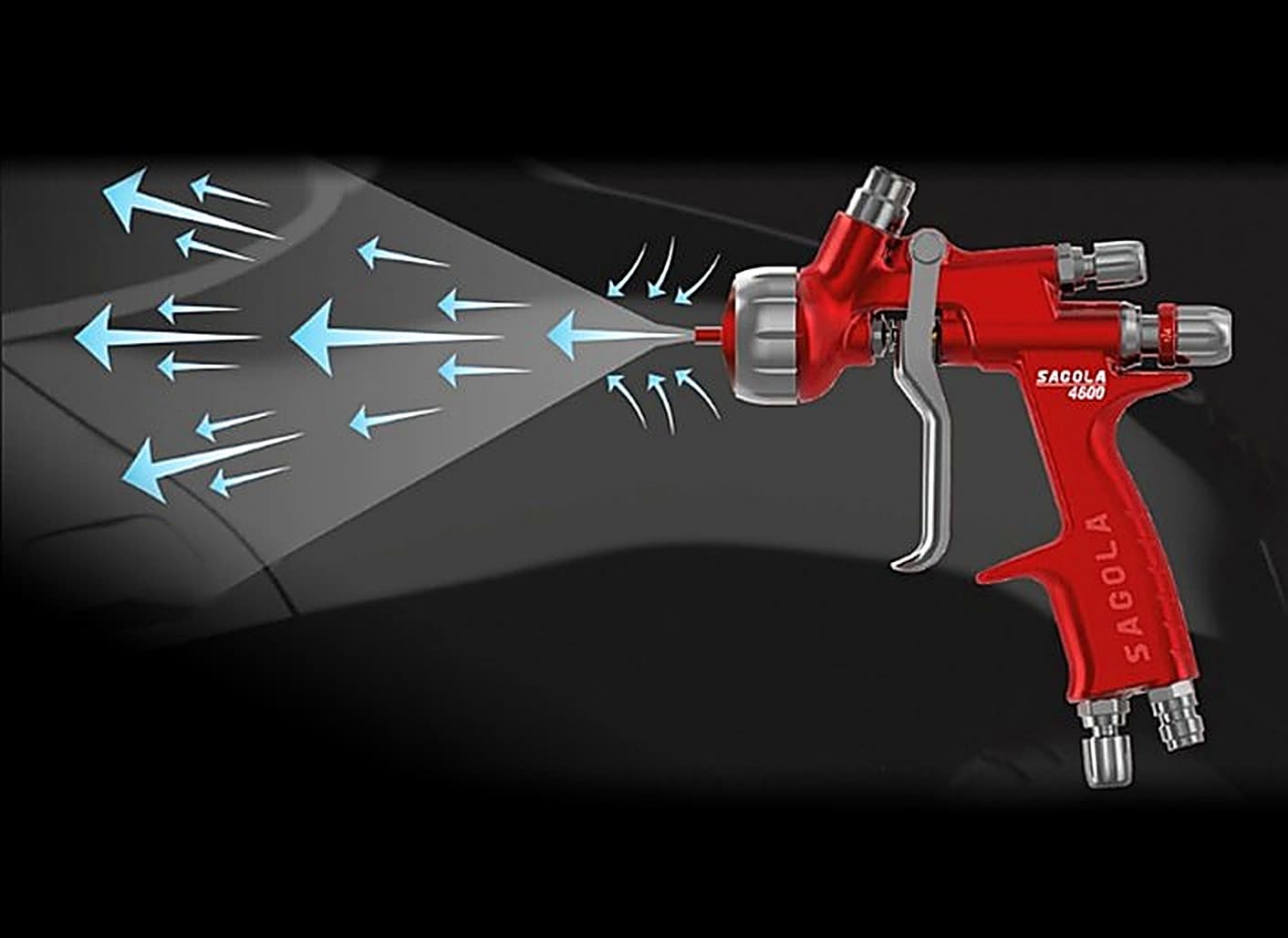

- Dynamic Flow Technology Harnesses the ambient air around the aircap allowing the Sagola 4600 spray gun to provide a flawless finish even at lower working pressures. Greater fan stability, superior atomization, uniform fan from top to bottom, less bounce back and less overspray, a more precise application with easier overlapping, less painting defects such as shadowing, patch coats and striping, and even paint distribution ideal for difficult base colours such as metallics, silvers, and pearls.

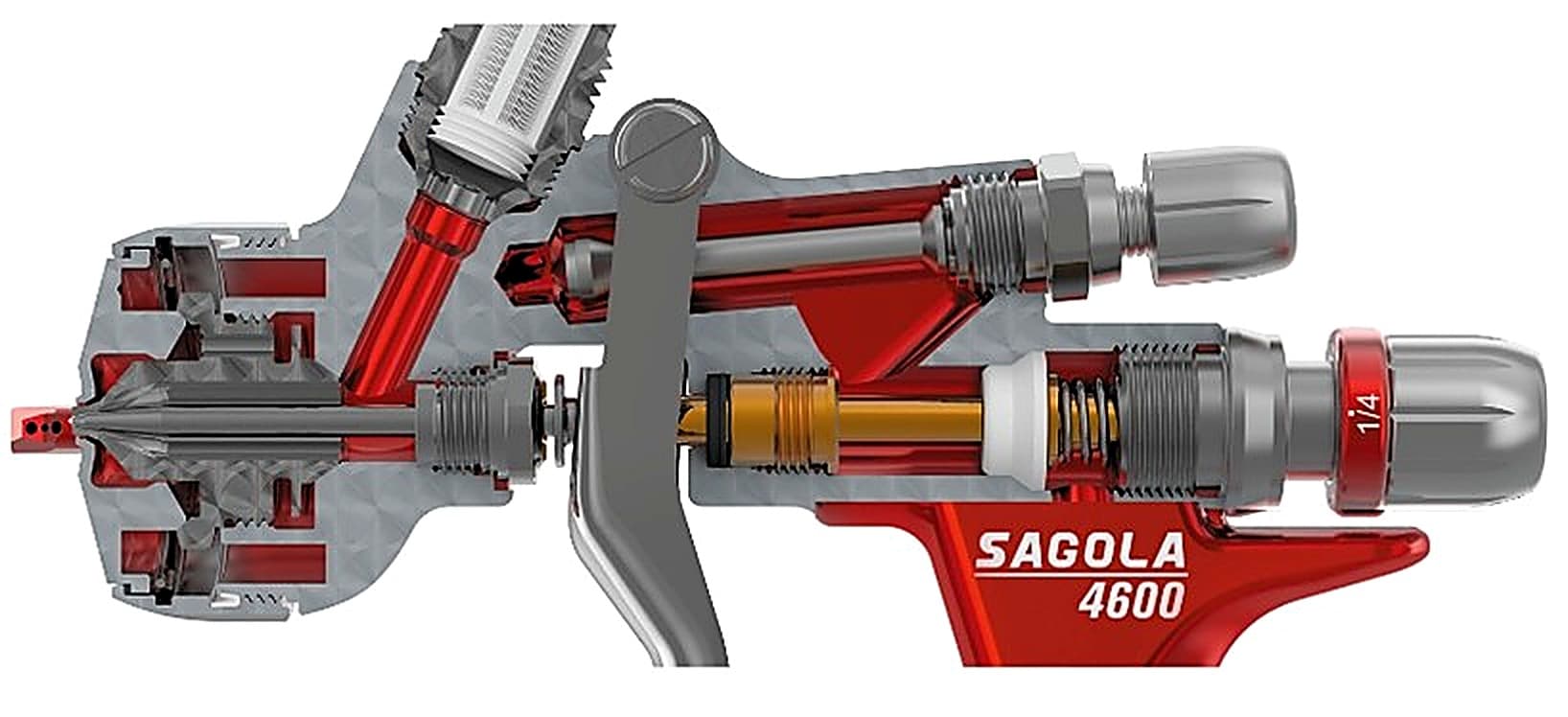

- Metal to Metal Technology Aerospace grade engineering which allows spray guns using metal to metal technology with fewer joints, o-rings and seals than any other spray gun on the market. Offers low maintenance, fewer wearing parts, low cost of ownership, fast clean and colour change, no packings, joints or seals in fluid area, and greater reliability.
Technical Specifications
| Specification | Digital Version | Standard Version |
|---|---|---|
| Weight with Supplied Cup | 675g | 675g |
| Weight without Cup | 492.8g | 492.8g |
| Air inlet connection | BSP 1/4" M (High flow) | BSP 1/4" M (High flow) |
| Paint Filter | 80 mesh | 80 mesh |
| Recommended working air pressure | 2 bar | 2 bar |
| Cup Capacity | 650ml | 650ml |
| Sound Pressure Level (Average) | 80 dB | 80 dB |
| Pressure Gauge Battery Type | ||
| Materials in contact with the product | Anodized aluminium, Polyoxymethylene, stainless steel | Anodized aluminium, Polyoxymethylene, stainless steel |
Part Numbers
- Sagola 4600 Clear Pro Digital (BAR) 1.20 Needle & Nozzle Kit
- 10142422
- Sagola 4600 Clear Pro Digital (BAR) 1.20XL Needle & Nozzle Kit
- 10142434
- Sagola 4600 Clear Pro Digital (BAR) 1.30 Needle & Nozzle Kit
- 10142426
- Sagola 4600 Clear Pro Digital (BAR) 1.30XL Needle & Nozzle Kit
- 10142438
- Sagola 4600 Clear Pro Digital (BAR) 1.40 Needle & Nozzle Kit
- 10142430
- Sagola 4600 Clear Pro Digital (PSI) 1.20 Needle & Nozzle Kit
- 10142442
- Sagola 4600 Clear Pro Digital (PSI) 1.20XL Needle & Nozzle Kit
- 10142454
- Sagola 4600 Clear Pro Digital (PSI) 1.30 Needle & Nozzle Kit
- 10142446
- Sagola 4600 Clear Pro Digital (PSI) 1.30XL Needle & Nozzle Kit
- 10142458
- Sagola 4600 Clear Pro Digital (PSI) 1.40 Needle & Nozzle Kit
- 10142450
- Sagola 4600 Base Digital (BAR) 1.20XL Needle & Nozzle Kit
- 10142433
- Sagola 4600 Base Digital (BAR) 1.30 Needle & Nozzle Kit
- 10142425
- Sagola 4600 Base Digital (BAR) 1.30XL Needle & Nozzle Kit
- 10142437
- Sagola 4600 Base Digital (BAR) 1.40 Needle & Nozzle Kit
- 10142429
- Sagola 4600 Base Digital (PSI) 1.20 Needle & Nozzle Kit
- 10142441
- Sagola 4600 Base Digital (PSI) 1.20XL Needle & Nozzle Kit
- 10142453
- Sagola 4600 Base Digital (PSI) 1.30 Needle & Nozzle Kit
- 10142445
- Sagola 4600 Base Digital (PSI) 1.30XL Needle & Nozzle Kit
- 10142457
- Sagola 4600 Base Digital (PSI) 1.40 Needle & Nozzle Kit
- 10142449
- Sagola 4600 HVLP Digital (BAR) 1.20 Needle & Nozzle Kit
- 10142424
- Sagola 4600 HVLP Digital (BAR) 1.20XL Needle & Nozzle Kit
- 10142436
- Sagola 4600 HVLP Digital (BAR) 1.30 Needle & Nozzle Kit
- 10142428
- Sagola 4600 HVLP Digital (BAR) 1.30XL Needle & Nozzle Kit
- 10142440
- Sagola 4600 HVLP Digital (BAR) 1.40 Needle & Nozzle Kit
- 10142432
- Sagola 4600 HVLP Digital (PSI) 1.00 Needle & Nozzle Kit
- 10142444
- Sagola 4600 HVLP Digital (PSI) 1.20XL Needle & Nozzle Kit
- 10142456
- Sagola 4600 HVLP Digital (PSI) 1.30 Needle & Nozzle Kit
- 10142448
- Sagola 4600 HVLP Digital (PSI) 1.30XL Needle & Nozzle Kit
- 10142460
- Sagola 4600 HVLP Digital (PSI) 1.40 Needle & Nozzle Kit
- 10142452
- Sagola 4600 Clear Digital (BAR) 1.20XL Needle & Nozzle Kit
- 10142435
- Sagola 4600 Clear Digital (BAR) 1.30 Needle & Nozzle Kit
- 10142427
- Sagola 4600 Clear Digital (BAR) 1.30XL Needle & Nozzle Kit
- 10142439
- Sagola 4600 Clear Digital (BAR) 1.40 Needle & Nozzle Kit
- 10142431
- Sagola 4600 Clear Digital (PSI) 1.20 Needle & Nozzle Kit
- 10142443
- Sagola 4600 Clear Digital (PSI) 1.20XL Needle & Nozzle Kit
- 10142455
- Sagola 4600 Clear Digital (PSI) 1.30 Needle & Nozzle Kit
- 10142447
- Sagola 4600 Clear Digital (PSI) 1.30XL Needle & Nozzle Kit
- 10142459
- Sagola 4600 Clear Digital (PSI) 1.40 Needle & Nozzle Kit
- 10142451
Specifications
Technical Specifications
| Specification | Digital Version | Standard Version |
|---|---|---|
| Weight with Supplied Cup | 675g | 675g |
| Weight without Cup | 492.8g | 492.8g |
| Air inlet connection | BSP 1/4" M (High flow) | BSP 1/4" M (High flow) |
| Paint Filter | 80 mesh | 80 mesh |
| Recommended working air pressure | 2 bar | 2 bar |
| Cup Capacity | 650ml | 650ml |
| Sound Pressure Level (Average) | 80 dB | 80 dB |
| Pressure Gauge Battery Type | ||
| Materials in contact with the product | Anodized aluminium, Polyoxymethylene, stainless steel | Anodized aluminium, Polyoxymethylene, stainless steel |
Part Numbers
- Sagola 4600 Clear Pro Digital (BAR) 1.20 Needle & Nozzle Kit
- 10142422
- Sagola 4600 Clear Pro Digital (BAR) 1.20XL Needle & Nozzle Kit
- 10142434
- Sagola 4600 Clear Pro Digital (BAR) 1.30 Needle & Nozzle Kit
- 10142426
- Sagola 4600 Clear Pro Digital (BAR) 1.30XL Needle & Nozzle Kit
- 10142438
- Sagola 4600 Clear Pro Digital (BAR) 1.40 Needle & Nozzle Kit
- 10142430
- Sagola 4600 Clear Pro Digital (PSI) 1.20 Needle & Nozzle Kit
- 10142442
- Sagola 4600 Clear Pro Digital (PSI) 1.20XL Needle & Nozzle Kit
- 10142454
- Sagola 4600 Clear Pro Digital (PSI) 1.30 Needle & Nozzle Kit
- 10142446
- Sagola 4600 Clear Pro Digital (PSI) 1.30XL Needle & Nozzle Kit
- 10142458
- Sagola 4600 Clear Pro Digital (PSI) 1.40 Needle & Nozzle Kit
- 10142450
- Sagola 4600 Base Digital (BAR) 1.20XL Needle & Nozzle Kit
- 10142433
- Sagola 4600 Base Digital (BAR) 1.30 Needle & Nozzle Kit
- 10142425
- Sagola 4600 Base Digital (BAR) 1.30XL Needle & Nozzle Kit
- 10142437
- Sagola 4600 Base Digital (BAR) 1.40 Needle & Nozzle Kit
- 10142429
- Sagola 4600 Base Digital (PSI) 1.20 Needle & Nozzle Kit
- 10142441
- Sagola 4600 Base Digital (PSI) 1.20XL Needle & Nozzle Kit
- 10142453
- Sagola 4600 Base Digital (PSI) 1.30 Needle & Nozzle Kit
- 10142445
- Sagola 4600 Base Digital (PSI) 1.30XL Needle & Nozzle Kit
- 10142457
- Sagola 4600 Base Digital (PSI) 1.40 Needle & Nozzle Kit
- 10142449
- Sagola 4600 HVLP Digital (BAR) 1.20 Needle & Nozzle Kit
- 10142424
- Sagola 4600 HVLP Digital (BAR) 1.20XL Needle & Nozzle Kit
- 10142436
- Sagola 4600 HVLP Digital (BAR) 1.30 Needle & Nozzle Kit
- 10142428
- Sagola 4600 HVLP Digital (BAR) 1.30XL Needle & Nozzle Kit
- 10142440
- Sagola 4600 HVLP Digital (BAR) 1.40 Needle & Nozzle Kit
- 10142432
- Sagola 4600 HVLP Digital (PSI) 1.00 Needle & Nozzle Kit
- 10142444
- Sagola 4600 HVLP Digital (PSI) 1.20XL Needle & Nozzle Kit
- 10142456
- Sagola 4600 HVLP Digital (PSI) 1.30 Needle & Nozzle Kit
- 10142448
- Sagola 4600 HVLP Digital (PSI) 1.30XL Needle & Nozzle Kit
- 10142460
- Sagola 4600 HVLP Digital (PSI) 1.40 Needle & Nozzle Kit
- 10142452
- Sagola 4600 Clear Digital (BAR) 1.20XL Needle & Nozzle Kit
- 10142435
- Sagola 4600 Clear Digital (BAR) 1.30 Needle & Nozzle Kit
- 10142427
- Sagola 4600 Clear Digital (BAR) 1.30XL Needle & Nozzle Kit
- 10142439
- Sagola 4600 Clear Digital (BAR) 1.40 Needle & Nozzle Kit
- 10142431
- Sagola 4600 Clear Digital (PSI) 1.20 Needle & Nozzle Kit
- 10142443
- Sagola 4600 Clear Digital (PSI) 1.20XL Needle & Nozzle Kit
- 10142455
- Sagola 4600 Clear Digital (PSI) 1.30 Needle & Nozzle Kit
- 10142447
- Sagola 4600 Clear Digital (PSI) 1.30XL Needle & Nozzle Kit
- 10142459
- Sagola 4600 Clear Digital (PSI) 1.40 Needle & Nozzle Kit
- 10142451
Aircap, Needles & Nozzle Kits
Aircap, Needles & Nozzle Kits
| Specification | DVR BASE | DVR HVLP | DVR CLEAR | DVR CLEAR PRO |
|---|---|---|---|---|
| Output Flow | 191-227 g/min | 170-198 g/min | 185-219 g/min | 196-229 g/min |
| Air Consumption | 280 L/min | 450 L/min | 295 L/min | 315 L/min |
| Fan Width | 290-315 cm | 290-325 cm | 275-295 cm | 285-310 cm |
| Application Distance | 18-20 cm | 15-18 cm | 18-20 cm | 18-20 cm |
| Air Inlet Pressure | 1.8-2.0 bar | 2.0 bar | 2.2 bar | 2.2 bar |
Part Numbers
Part Numbers
| Description | Part Numbers |
|---|---|
| Sagola 4600 Clear Pro Digital (BAR) 1.20 Needle & Nozzle Kit | 10142422 |
| Sagola 4600 Clear Pro Digital (BAR) 1.20XL Needle & Nozzle Kit | 10142434 |
| Sagola 4600 Clear Pro Digital (BAR) 1.30 Needle & Nozzle Kit | 10142426 |
| Sagola 4600 Clear Pro Digital (BAR) 1.30XL Needle & Nozzle Kit | 10142438 |
| Sagola 4600 Clear Pro Digital (BAR) 1.40 Needle & Nozzle Kit | 10142430 |
| Sagola 4600 Clear Pro Digital (PSI) 1.20 Needle & Nozzle Kit | 10142442 |
| Sagola 4600 Clear Pro Digital (PSI) 1.20XL Needle & Nozzle Kit | 10142454 |
| Sagola 4600 Clear Pro Digital (PSI) 1.30 Needle & Nozzle Kit | 10142446 |
| Sagola 4600 Clear Pro Digital (PSI) 1.30XL Needle & Nozzle Kit | 10142458 |
| Sagola 4600 Clear Pro Digital (PSI) 1.40 Needle & Nozzle Kit | 10142450 |
| Sagola 4600 Base Digital (BAR) 1.20XL Needle & Nozzle Kit | 10142433 |
| Sagola 4600 Base Digital (BAR) 1.30 Needle & Nozzle Kit | 10142425 |
| Sagola 4600 Base Digital (BAR) 1.30XL Needle & Nozzle Kit | 10142437 |
| Sagola 4600 Base Digital (BAR) 1.40 Needle & Nozzle Kit | 10142429 |
| Sagola 4600 Base Digital (PSI) 1.20 Needle & Nozzle Kit | 10142441 |
| Sagola 4600 Base Digital (PSI) 1.20XL Needle & Nozzle Kit | 10142453 |
| Sagola 4600 Base Digital (PSI) 1.30 Needle & Nozzle Kit | 10142445 |
| Sagola 4600 Base Digital (PSI) 1.30XL Needle & Nozzle Kit | 10142457 |
| Sagola 4600 Base Digital (PSI) 1.40 Needle & Nozzle Kit | 10142449 |
| Sagola 4600 HVLP Digital (BAR) 1.20 Needle & Nozzle Kit | 10142424 |
| Sagola 4600 HVLP Digital (BAR) 1.20XL Needle & Nozzle Kit | 10142436 |
| Sagola 4600 HVLP Digital (BAR) 1.30 Needle & Nozzle Kit | 10142428 |
| Sagola 4600 HVLP Digital (BAR) 1.30XL Needle & Nozzle Kit | 10142440 |
| Sagola 4600 HVLP Digital (BAR) 1.40 Needle & Nozzle Kit | 10142432 |
| Sagola 4600 HVLP Digital (PSI) 1.00 Needle & Nozzle Kit | 10142444 |
| Sagola 4600 HVLP Digital (PSI) 1.20XL Needle & Nozzle Kit | 10142456 |
| Sagola 4600 HVLP Digital (PSI) 1.30 Needle & Nozzle Kit | 10142448 |
| Sagola 4600 HVLP Digital (PSI) 1.30XL Needle & Nozzle Kit | 10142460 |
| Sagola 4600 HVLP Digital (PSI) 1.40 Needle & Nozzle Kit | 10142452 |
| Sagola 4600 Clear Digital (BAR) 1.20XL Needle & Nozzle Kit | 10142435 |
| Sagola 4600 Clear Digital (BAR) 1.30 Needle & Nozzle Kit | 10142427 |
| Sagola 4600 Clear Digital (BAR) 1.30XL Needle & Nozzle Kit | 10142439 |
| Sagola 4600 Clear Digital (BAR) 1.40 Needle & Nozzle Kit | 10142431 |
| Sagola 4600 Clear Digital (PSI) 1.20 Needle & Nozzle Kit | 10142443 |
| Sagola 4600 Clear Digital (PSI) 1.20XL Needle & Nozzle Kit | 10142455 |
| Sagola 4600 Clear Digital (PSI) 1.30 Needle & Nozzle Kit | 10142447 |
| Sagola 4600 Clear Digital (PSI) 1.30XL Needle & Nozzle Kit | 10142459 |
| Sagola 4600 Clear Digital (PSI) 1.40 Needle & Nozzle Kit | 10142451 |
Downloads
Frequently asked questions
When should I use the Sagola 4600 Digital for metallic and pearl finishes?
The 4600 is specifically designed for difficult base colours including metallics, silver, and pearls. Its gravity system delivers uniform paint distribution from top to bottom, minimising defects like shadows, patch coats, and striping that are common with these challenging finishes.
What compressor capacity and air pressure do I need for the 4600?
The recommended working pressure is 2 bar. Air consumption varies by kit: BASE requires 280 L/min, HVLP requires 450 L/min, CLEAR requires 295 L/min, and CLEAR PRO requires 315 L/min. Ensure your compressor delivers the flow rate for your chosen kit.
What are the main differences between the BASE, HVLP, and CLEAR kits?
Each kit is optimised for different paint types and operating conditions. BASE operates at 1.8-2.0 bar with 280 L/min air consumption. HVLP operates at 2.0 bar with 450 L/min consumption and a wider fan pattern (290-325 cm). CLEAR and CLEAR PRO operate at higher pressures (2.2 bar) with different air flows. Select the kit matched to your paint type and compressor capacity.
What cup capacity and paint filter does the 4600 use?
The cup holds 650ml and is fitted with an 80-mesh paint filter across all digital and standard versions of the 4600.
What application distance and fan width should I use with the 4600?
These specifications vary by kit. Application distance ranges from 15-18 cm for HVLP to 18-20 cm for BASE, CLEAR, and CLEAR PRO. Fan width ranges from 275-295 cm (CLEAR) to 290-325 cm (HVLP). Check your specific kit's technical specifications for exact values.
Quote on the Sagola 4600 Digital Gravity Spray Gun by close of business.
Tell us about your application and we will send a quote with lead time and accessories.
Not sure this is the right model for your job? for a quick recommendation.
Request a quote
Request a quote
Tell us about your application and we will send a quote with lead time and accessories.
