The Sagola 475 XTech Gravity Fed Touch Up Gun (part numbers PG20140801 through PG20140804) is a small, light gravity-fed spray gun built for precision work such as shading, retouches and the spraying of small parts. Detail and touch-up work needs a tight, controllable fan that a full-size gun cannot deliver cleanly, so a dedicated small gun lets the painter feather edges and blend repairs without flooding the surrounding finish.
The Sagola 475 XTech Gravity Fed Touch Up Gun is offered with four needle, nozzle and aircap combinations to match the level of detail. The 0.5 mm setup with the R5 aircap gives 38 g/min for the finest featherings, while 0.5, 0.8 and 1.0 mm setups with the 05 and 10 aircaps cover feathering and retouches at 60, 73 and 90 g/min respectively. All run in a low working pressure range of 1.5 to 2.0 bar with an application distance of 18 to 20 cm, and fan widths up to 162 mm depending on the kit fitted for the Sagola 475 XTech Gravity Fed Touch Up Gun.
The Sagola 475 XTech Gravity Fed Touch Up Gun carries a 125 ml cup and is described as virtually maintenance free, with no internal or exterior gaskets to service. The Sagola 475 XTech Gravity Fed Touch Up Gun is used for automotive detailing, refinishing touch-ups and small parts spraying where high spray quality is needed in tight areas. The Sagola 475 XTech Gravity Fed Touch Up Gun is supplied by BAMR, South Africa's authorised Sagola distributor.

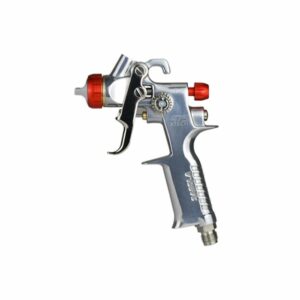

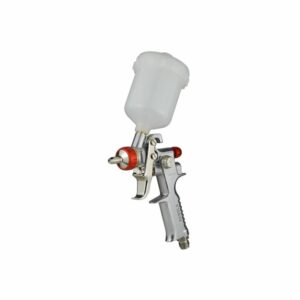

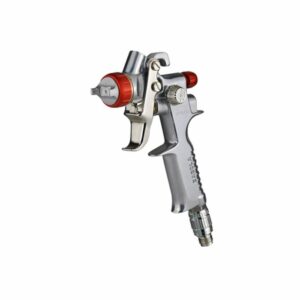

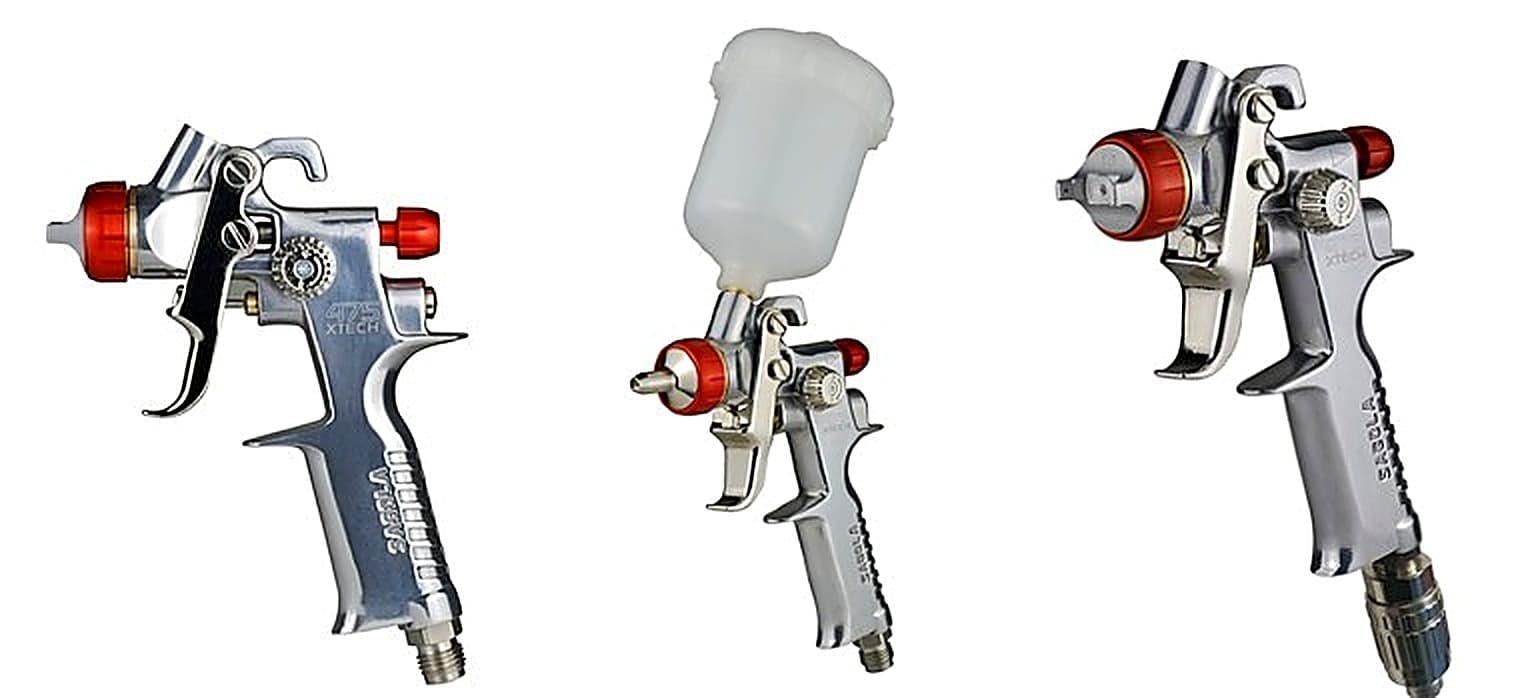

Sagola 475 XTech Gravity Fed Touch Up Gun
The Sagola 475 XTech Gravity Fed Touch Up Gun is designed to be small, light and incredibly precise, perfect for shading, retouches or spraying of small parts.
- Precision Precision solutions for detailing and retouches
- High quality Very high spray quality
- Virtually Maintenance Free No internal or exterior gaskets
When to use the Sagola 475 XTech Touch Up Gun
Reach for the 475 XTech when the job is shading, retouches or spraying small parts that a full-size gun cannot handle precisely. It is a small, light gravity gun with a 125ml cup and fine aircap and nozzle options down to 0.50mm. The decision is detail and precision on small areas, not coverage of large panels.
- 1Built for fine detailSmall, light and precise, it is suited to shading, retouches and small parts where a large gun would lay down too much material.
- 2Fine nozzle rangeNeedle and nozzle kits from 0.50mm to 1.00mm with matched 05, 10 and R5 aircaps let you tune the gun tightly to small detail work.
- 3Virtually maintenance freeWith no internal or external gaskets, there is little to wear or service between jobs.
Lower-budget alternatives
Ten minutes on a call with one of our specialists usually saves you from buying the wrong instrument.
Book a 10-minute callOr , our product assistant, for an instant answer.
When to use this
When to use the Sagola 475 XTech Touch Up Gun
Reach for the 475 XTech when the job is shading, retouches or spraying small parts that a full-size gun cannot handle precisely. It is a small, light gravity gun with a 125ml cup and fine aircap and nozzle options down to 0.50mm. The decision is detail and precision on small areas, not coverage of large panels.
- 1Built for fine detailSmall, light and precise, it is suited to shading, retouches and small parts where a large gun would lay down too much material.
- 2Fine nozzle rangeNeedle and nozzle kits from 0.50mm to 1.00mm with matched 05, 10 and R5 aircaps let you tune the gun tightly to small detail work.
- 3Virtually maintenance freeWith no internal or external gaskets, there is little to wear or service between jobs.
Lower-budget alternatives
Ten minutes on a call with one of our specialists usually saves you from buying the wrong instrument.
Book a 10-minute callOr , our product assistant, for an instant answer.
Specifications
Specifications
- Model
- Sagola 475 XTech
- Cup Capacity
- 125ml
- Cup Type
- Removable Anti-Drip System
- Air Inlet Couplings
- 6.35mm Male BSP
- Paint Filter
- 100 mesh
- Weight with Supplied Cup
- 339.4g
- Weight without Cup
- 272.9g
- Dimensions without Cup (W x D x H)
- 109 x 33 x 152mm
What's in the kit
What's in the kit
Product Features
Product Features
| Needle Nozzle & Aircaps | Ideal for use with | Working Pressure Range | Air Consumption at 2bar | Output Flow (average) | Application Distance | Fan Width (max) |
|---|---|---|---|---|---|---|
| 0.5 [R5] | Finest featherings | 1.5 - 2.0bar | 45LPM | 38g/min | 18 - 20cm | , |
| 0.5 [05] | Feathering and retouches | 1.5 - 2.0bar | 100LPM | 60g/min | 18 - 20cm | 140mm |
| 0.8 [05] | Feathering and retouches | 1.5 - 2.0bar | 100LPM | 73g/min | 18 - 20cm | 162mm |
| 1.0 [10] | Feathering and retouches | 1.5 - 2.0bar | 110LPM | 90g/min | 18 - 20cm | 160mm |
Accessories
Accessories
- RC2 Economy Air Flow Regulator with Analogue Pressure Gauge
- PT40000335
- Reusable Gravity Cup - Plastic; 125ml
- PT56418081
- Product Filter (x6) for PT56418081, PT56418099, PT56418079
- PT56418061
- Sagola 475 XTech: 05 Aircap
- PT56418246
- Sagola 475 XTech: 10 Aircap
- PT56418247
- Sagola 475 XTech: R5 Aircap
- PT56418271
- Sagola 475 XTech: 0.50 Needle & Nozzle Kit for 05 Aircap
- PT10011195
- Sagola 475 XTech: 0.80 Needle & Nozzle Kit for 05 Aircap
- PT10011197
- Sagola 475 XTech: 1.00 Needle & Nozzle Kit for 10 Aircap
- PT10011198
- Reusable Gravity Cup - Plastic; 200ml
- PT56418079
- Sagola 475 XTech: 0.50mm Needle & Nozzle Kit for R5 Aircap
- PT10011196
Part Numbers
Part Numbers
| Description | Part Numbers |
|---|---|
| Sagola 475 XTech Gravity Fed Touch Up Gun, 05 Aircap - 0.50 Needle & Nozzle Kit | PG20140801 |
| Sagola 475 XTech Gravity Fed Touch Up Gun, 05 Aircap - 0.80 Needle & Nozzle Kit | PG20140802 |
| Sagola 475 XTech Gravity Fed Touch Up Gun, 10 Aircap - 1.00 Needle & Nozzle Kit | PG20140803 |
| Sagola 475 XTech Gravity Fed Touch Up Gun, R5 Aircap - 0.50 Needle & Nozzle Kit | PG20140804 |
Downloads
Frequently asked questions
What needle and nozzle sizes are available for this gun?
Four configurations are available: 0.5mm (R5 and 05 types), 0.8mm (05 type), and 1.0mm (10 type). The R5 is for finest feathering, while the other sizes suit feathering and retouches.
What air consumption should I expect from the Sagola 475 XTech?
Air consumption ranges from 45LPM with the smallest 0.5mm R5 nozzle to 110LPM with the 1.0mm nozzle. The gun operates at 1.5 to 2.0bar working pressure.
Is the cup removable on the Sagola 475 XTech?
Yes, the 125ml cup features a removable anti-drip system. A larger 200ml cup is available as an accessory for jobs requiring more paint capacity.
How portable is the Sagola 475 XTech for touch-up work?
Very portable. With the supplied cup it weighs 339.4g. Without the cup, the gun itself weighs only 272.9g and measures 109 x 33 x 152mm.
What spray distance and coverage area does this gun achieve?
Application distance is 18 to 20cm. Maximum fan width ranges from 140mm to 162mm depending on the needle nozzle size selected.
What paint filter does this gun include?
A 100 mesh paint filter is included as standard. Replacement filters are available as an accessory when the filter needs cleaning or changing.
