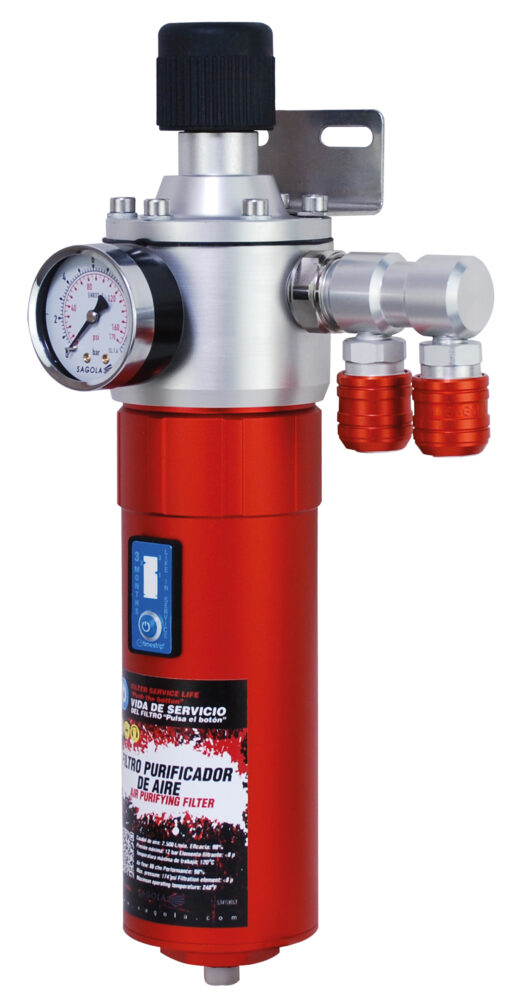

The Sagola 5100X Air Regulator Filter, Stage 1 is a single-stage compressed air filter supplied with a pressure regulator and analogue pressure gauge. Spray finishing with HS paints and high quality coatings fails when the air supply carries water or impurities, or when line pressure is unstable, so this unit conditions and regulates the air before it reaches the gun.
Filtration is by friction and centrifugal action through an 8 micron sinterised brass filter, with a triple filtration system retaining water and impurities while keeping pressure loss to a minimum. An automatic draining system clears trapped condensate and reduces maintenance, and an air-assisted regulator wheel sets line pressure. Two outlets allow two tools to be run at once. The machined aluminium casing gives heavy duty protection for long service.
Specifications include air flow above 3000 LPM (106 CFM) at 7 bar, a 12.7 mm BSP air inlet and 6.35 mm BSP air outlet, a maximum working pressure of 12 bar and a maximum operating temperature of 90 degrees C. The Sagola 5100X Air Regulator Filter measures 159 x 123 x 373 mm and weighs 2.64 kg. It ships with the brass filter complete with integrated life timer, two male BSPT 6.35 mm couplings, an analogue pressure gauge and a support bracket. Used in spray booths and finishing lines demanding the highest quality finishes. Supplied by BAMR, South Africa's authorised Sagola distributor.

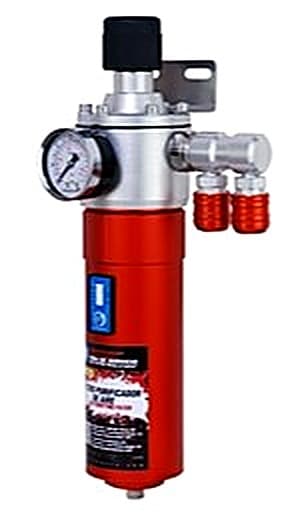

Sagola 5100X Air Regulator Filter - Stage 1
The Sagola 5100X Air Regulator Filter is valid for HS paints and highest quality finishes. The Sagola 5100X Stage 1 Air Regulator Filter is supplied with a pressure regulator and pressure gauge.
- High performance filtration for maximum air quality with minimum pressure loss
- Friction and centrifugal filtering
- Incorporates an 8 micron sinterised brass filter
- Triple filtration system retains water and impurities
- 2 outlets allowing you to use two tools at once
- Tough machined aluminium casing is tougher and more protective
- Comes with a new automatic draining system which reduces maintenance costs due to its greater durability
- Valid for HS paints and highest quality finishes
- Self-draining system and air assisted regulator wheel
- Tough heavy duty construction for long service life
When to use the Sagola 5100X Air Regulator Filter
Reach for the 5100X when you are spraying HS paints and demanding finishes that need the cleanest stage 1 air with regulation and two outlets. It is a machined aluminium unit with an 8 micron sintered brass filter, triple filtration, a fully automatic drain and a filter life timer. The decision is top-quality air for high-spec finishes with the least maintenance.
- 1Valid for HS paintsIt is rated for HS paints and the highest quality finishes, where any water or impurity in the line would show in the result.
- 2Triple filtration, 8 micronAn 8 micron sintered brass filter in a triple filtration system retains water and impurities for maximum air quality with minimum pressure loss.
- 3Automatic drain and life timerThe automatic draining system and integrated filter life timer reduce maintenance and tell you when the brass filter needs changing.
Lower-budget alternatives
Ten minutes on a call with one of our specialists usually saves you from buying the wrong instrument.
Book a 10-minute callOr , our product assistant, for an instant answer.
When to use this
When to use the Sagola 5100X Air Regulator Filter
Reach for the 5100X when you are spraying HS paints and demanding finishes that need the cleanest stage 1 air with regulation and two outlets. It is a machined aluminium unit with an 8 micron sintered brass filter, triple filtration, a fully automatic drain and a filter life timer. The decision is top-quality air for high-spec finishes with the least maintenance.
- 1Valid for HS paintsIt is rated for HS paints and the highest quality finishes, where any water or impurity in the line would show in the result.
- 2Triple filtration, 8 micronAn 8 micron sintered brass filter in a triple filtration system retains water and impurities for maximum air quality with minimum pressure loss.
- 3Automatic drain and life timerThe automatic draining system and integrated filter life timer reduce maintenance and tell you when the brass filter needs changing.
Lower-budget alternatives
Ten minutes on a call with one of our specialists usually saves you from buying the wrong instrument.
Book a 10-minute callOr , our product assistant, for an instant answer.
Specifications
Specifications
- Air Flow (at 7bar)
- >3000LPM (106CFM)
- Air inlet
- 12.7 mm BSP
- Air outlet
- 6.35 mm BSP
- Maximum working pressure
- 12bar
- Maximum operating temperature
- 90°C
- Drain system
- Automatic
- Dimensions
- 159 x 123 x 373mm
- Weight
- 2.64kg
- Packing List
- Sagola 5100X Air Regulator Filter - Single Stage containing Brass Filter (8μm) with Integrated "Life" Timer, Male BSPT 6.35mm Coupling (x2)*, Analogue Pressure Gauge (x1) and Support Bracket
What's in the kit
What's in the kit
Downloads
Frequently asked questions
What air line connection sizes does the 5100X have?
The inlet is 12.7 mm BSP and the outlet is 6.35 mm BSP. The unit ships with two male BSPT 6.35 mm couplings to support connection to your spray equipment.
At what flow rate and maximum pressure is the 5100X designed to operate?
The unit delivers over 3000 LPM at 7 bar. Maximum working pressure is 12 bar and maximum operating temperature is 90 degrees Celsius.
What filtration level does the brass filter element provide?
The brass filter provides 8 micrometres filtration, suitable for high-solids paint finishes where fine particle removal is critical.
How do I know when the filter element needs replacing?
The filter includes an integrated Life Timer that indicates when the element has reached the end of its service life, eliminating guesswork on replacement intervals.
Does the 5100X come with a pressure gauge and regulator?
Yes. The unit includes an analogue pressure gauge and integrated pressure regulator, so you can set and monitor air pressure at the filter itself without separate equipment.
