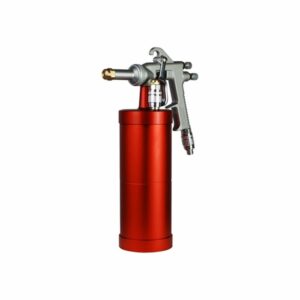

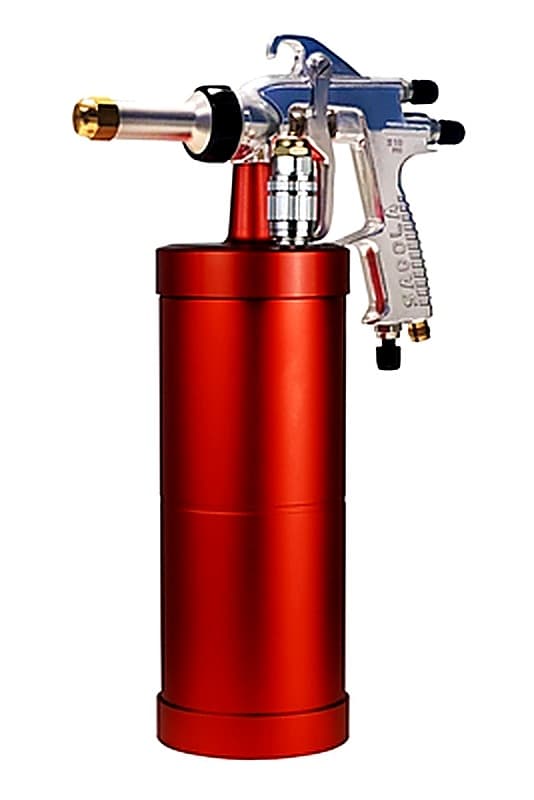

Sagola 518 PRO Pneumatic Gun
Product Description
The Sagola 518 PRO Pneumatic Gun is complete with a pressurised 1 litre can for anti-gravel or underbody protection cartridges, offers high atomization quality and maximum productivity.
- Complete with a pressurised anodized aluminium can
- Working pressure of 2 – 4bar
- High precision regulation of the nozzle to control the texturized
- High precision depressurisation valve
- Product flow and air inlet pressure regulation
- Optional special aircap and extension kit for cavity wax
Specifications
| Part Number | Description | ||
| Dimensions | 228.1 x 100 x 364.5mm | ||
| Weight (empty) | 1.379g | ||
| Air Inlet Coupling | 6.35mm Male BSP | ||
| Air Consumption | 160l/min / 5.6cfm | ||
| Maximum Pressure | 10bar | ||
| Working Pressure | 2 – 4bar | ||
| Packing List | Sagola 518 PRO Undercoating Gun and 1L Pressurized Can with Aircap and 2.00mm Needle & Nozzle Kit (supplied fitted). | ||
| PG10330301 | Sagola 518 PRO Pneumatic Undercoating Gun | ||
| PT56418705 | Aircap & Extension Kit for Cavity Wax | ||
Data Sheet
Part Numbers
| Sagola 518 PRO Pneumatic Undercoating Gun | |
| Part Number: | 10330301 |
| Aircap & Extension Kit for Cavity Wax | |
| Part Number: | 56418705 |
