The Sagola 5200X 2 Stage Air Regulator Filter (part numbers PT10730307, PT10730304 and PT10730350) is a two-stage compressed air purifier with a pressure regulator and two line pressure gauges. Water, oil and fine impurities in the air supply ruin high quality finishes, so the Sagola 5200X 2 Stage Air Regulator Filter cleans and regulates the air across two filtration stages before it reaches the spray gun.
The first stage of the Sagola 5200X 2 Stage Air Regulator Filter uses an 8 micron sinterised brass filter that removes large particulates, water and oil by centrifugal action. The second stage is a 0.01 micron coalescent filter that takes the air to a purity of 99 percent. Two outlets allow two tools to run at once, and an automatic and semi-automatic drain system clears condensate while reducing maintenance. The vessels are heavy duty for long service, and an air-assisted regulator wheel sets line pressure.
Specifications of the Sagola 5200X 2 Stage Air Regulator Filter include air flow above 3000 LPM at 7 bar, a 12.7 mm BSP air inlet and 6.35 mm BSP air outlet, a maximum working pressure of 12 bar and a maximum operating temperature of 90 degrees C. The Sagola 5200X 2 Stage Air Regulator Filter measures 271 x 123 x 372 mm and weighs 4.7 kg. It ships with the brass and coalescent filters, both with integrated life timers, two male BSPT 6.35 mm couplings, two analogue pressure gauges and a support bracket. Used in spray booths and finishing lines. Supplied by BAMR, South Africa's authorised Sagola distributor.

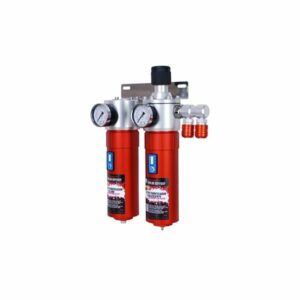

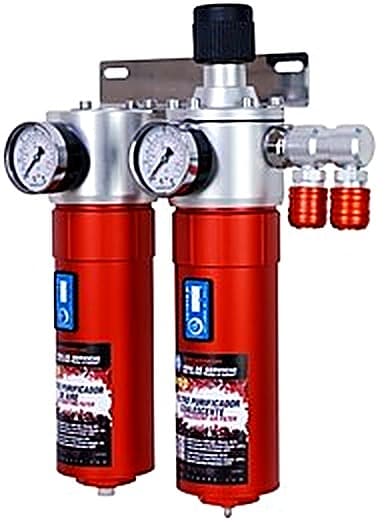

Sagola 5200X 2 Stage Air Regulator Filter
The Sagola 5200X Air Regulator Filter includes two air purifying stages, mechanical brass and coalescent, a pressure regulator and two line pressure gauges.
- Self-draining system and assisted regulator wheel
- Incorporates an 8 micron sinterised brass filter, followed by a final 0.01 micron coalescent filter
- 2 outlets allowing you to use two tools at once
- New vessels are tougher and more protective
- New draining system reduces maintenance costs due to its greater durability
- Double filtration with optimum flow and pressure regulation, retention of water and impurities attaining an air purity of 99%
- Tough heavy duty construction for long service life
When to use the Sagola 5200X
Reach for the 5200X when you need clean, regulated air feeding a spray gun and the compressed air supply carries water and oil. Its two stages, an 8 micron sinterised brass filter followed by a 0.01 micron coalescent filter, target the contamination that ruins a paint finish before it reaches the gun.
- 1Two-stage water and oil removalThe brass and coalescent stages reach an air purity of 99 percent, so moisture and impurities do not blow through to the substrate and cause defects in the coat.
- 2Run two tools at onceTwo outlets let one regulator feed a pair of tools, which suits a bench where a spray gun and a second air tool share the same supply.
- 3Self-draining for low upkeepThe automatic and semi-automatic draining system clears collected water without manual intervention, reducing the maintenance that an inline filter usually demands.
- 4Two gauges and regulated outputTwo line pressure gauges and an assisted regulator wheel let the operator set and read the working pressure at the wall, holding it steady at the gun.
Lower-budget alternatives
Ten minutes on a call with one of our specialists usually saves you from buying the wrong instrument.
Book a 10-minute callOr , our product assistant, for an instant answer.
When to use this
When to use the Sagola 5200X
Reach for the 5200X when you need clean, regulated air feeding a spray gun and the compressed air supply carries water and oil. Its two stages, an 8 micron sinterised brass filter followed by a 0.01 micron coalescent filter, target the contamination that ruins a paint finish before it reaches the gun.
- 1Two-stage water and oil removalThe brass and coalescent stages reach an air purity of 99 percent, so moisture and impurities do not blow through to the substrate and cause defects in the coat.
- 2Run two tools at onceTwo outlets let one regulator feed a pair of tools, which suits a bench where a spray gun and a second air tool share the same supply.
- 3Self-draining for low upkeepThe automatic and semi-automatic draining system clears collected water without manual intervention, reducing the maintenance that an inline filter usually demands.
- 4Two gauges and regulated outputTwo line pressure gauges and an assisted regulator wheel let the operator set and read the working pressure at the wall, holding it steady at the gun.
Lower-budget alternatives
Ten minutes on a call with one of our specialists usually saves you from buying the wrong instrument.
Book a 10-minute callOr , our product assistant, for an instant answer.
Specifications
Specifications
- Air Flow (at 7bar)
- >3000LPM
- Air inlet
- 12.7 mm BSP
- Air outlet
- 6.35 mm BSP
- Maximum working pressure
- 12bar
- Maximum operating temperature
- 90°C
- Drain system
- Automatic & Semi-Automatic
- Dimensions
- 271 x 123 x 372mm
- Weight
- 4.7kg
- Packing List
- Sagola 5200X Air Regulator Filter - 2 Stage containing Brass Filter (8μm) and Coalescent Filter (0.01μm) both with Integrated "Life" Timer, Male BSPT 6.35mm Coupling (x2), Analogue Pressure Gauge (x2) and Support Bracket
Accessories
Accessories
- Anti-static Air Hose - 6m Ø 8x15mm
- PT56414024
- Anti-static Air Hose - 11m Ø 8x15mm
- PT56414025
- Anti-static Air Hose - 16m Ø 8x15mm
- PT56414027
- Anti-static Air Hose - 26m Ø 8x15mm
- PT56414026
- Optional Double Outlet Kit
- PT56418704
- Sagola 5000 Series Stage 1 Brass Filter (8 micron) - not compatible with the 5000X
- PT56418719
- Sagola 5000 Series Stage 2 Coalescent Filter (0.01 micron)
- PT56418071
- Display Stand for Sagola 5200X
- PT70000006
- Sagola 5200X to 5300X Conversion Kit
- PT56418520
- Sagola 5000 Series Stage 1 Brass Filter (40 micron)
- PT56418532
- Anti-static Air Hose - 21m Ø 8x15mm
- PT56414028
Part Numbers
Part Numbers
| Description | Part Numbers |
|---|---|
| Sagola 5200X Air Regulator Filter - 2 Stage Filter; Euro-Profile Couplings | PT10730307 |
| Sagola 5200X Air Regulator Filter - 2 Stage Filter; US-MIL Couplings | PT10730304 |
| Sagola 5200X Air Regulator Filter - 2 Stage Filter; NITTO Couplings | PT10730350 |
Downloads
Frequently asked questions
What are the two filtration stages in the 5200X?
The first stage is a mechanical brass filter (8 micrometres) removing solid particles. The second is coalescent (0.01 micrometres) removing water and oil mist.
Is the 5200X suitable for my compressor at 12 bar?
Yes, if your compressor works at or below 12 bar, which is the maximum working pressure. Check your compressor's specifications.
How will I know when the filters need changing?
Both filters have integrated 'Life' Timers built in, so you can see at a glance when replacement is due.
What size hose connections do I need?
The air inlet is 12.7mm BSP and outlet is 6.35mm BSP. Male BSPT couplings are included in the pack.
What are the drain system options?
The 5200X offers automatic and semi-automatic drain systems, allowing you to choose based on your setup requirements.
