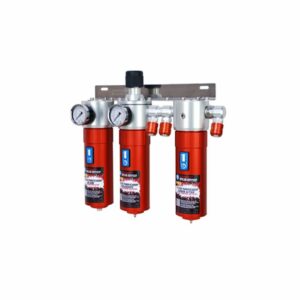

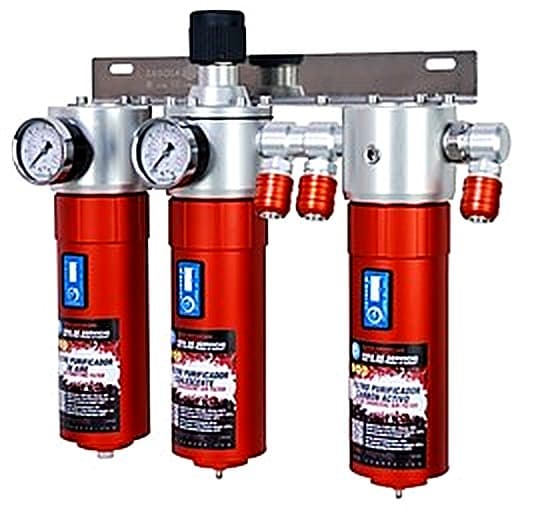

Sagola 5300X Plus 3 Stage Plus Regulator Filter
Product Description
The Sagola 5300X Plus 3 Stage Plus Regulator Filter offers the maximum filtration level in spray booths and spraying lines with high quality air demand.
- 3 Stage Plus Regulator Filter with a double outlet after the coalescent filter & final single outlet.
- Similar technical and mechanical characteristics to the 5300X.
- The Sagola 5300X Plus offers the maximum filtration level in spray booths and spraying lines with high quality air demand. Ideal for waterborne paint and where organic fumes in the network are a problem.
- Sinterised brass 8 micron pre-filtration is incorporated, followed by a 0.01 micron coalescent filter and final filtration by a wide surface active carbon filter. In addition to water and impurities, this process eliminates organic fumes and foul air.
- Tough heavy duty construction for long service life.
Stage 1
Centrifugal force for large particulates, water & oil.
Stage 2
Coalescent filtration down to 0.01 micron.
Stage 3
Activated carbon filter for oil vapours, smells & hydrocarbons
Specifications
| Air Flow (at 7bar) | 2870LPM | Air inlet | 12.7 mm BSP | Air outlet | 6.35 mm BSP |
| Maximum working pressure | 12bar | Maximum operating temperature | 90°C | ||
| Drain system | Automatic & Semi-Automatic | ||||
| Dimensions | Weight | ||||
| Sagola 5300X Plus | 377 x 119 x 372mm | 6.8kg | |||
| Packing List | Sagola 5300X Plus Air Regulator Filter – 3 Stage containing Brass Filter (8μm), Coalescent Filter (0.01μm) and Active Carbon Filter all with Integrated “Life” Timer, Male BSPT 6.35mm Coupling (x3)*, Analogue Pressure Gauge (x2) and Support Bracket | ||||
Data Sheet
Part Numbers
 | Sagola 5300X Plus Air Regulator Filter – 3 Stage Filter; Euro-Profile Couplings |
| Connection Type: Euro-Profile | |
| Filter Type: Stage 3 | |
| Part Number : PT10730309 | |
| Sagola 5300X Plus Air Regulator Filter – 3 Stage Filter; US-MIL Couplings |
| Connection Type: US-MIL | |
| Filter Type: Stage 3 | |
| Part Number : PT10730306 | |
| Sagola 5300X Plus Air Regulator Filter – 3 Stage Filter; NITTO Couplings |
| Connection Type: NITTO | |
| Filter Type: Stage 3 | |
| Part Number : PT10730310 | |
Accessories
| Anti-static Air Hose – 6m Ø 8x15mm | ||
 | Part Number: | PT56414024 |
| Anti-static Air Hose – 11m Ø 8x15mm | ||
| Part Number: | PT56414025 |
| Anti-static Air Hose – 16m Ø 8x15mm | ||
| Part Number: | PT56414027 |
| Anti-static Air Hose – 26m Ø 8x15mm | ||
| Part Number: | PT56414026 |
| Optional Double Outlet Kit | ||
 | Part Number: | PT56418704 |
| Sagola 5000 Series Stage 1 Brass Filter (8 micron) – not compatible with the 5000X | ||
 | Part Number: | PT56418719 |
| Sagola 5000 Series Stage 2 Coalescent Filter (0.01 micron) | ||
 | Part Number: | PT56418071 |
| Sagola 5000 Series Stage 3 Active Carbon Filter | ||
 | Part Number: | PT56418070 |
| Sagola 5000 Series Stage 1 Brass Filter (40 micron) | ||
| Part Number: | PT56418532 | |
| Anti-static Air Hose – 21m Ø 8x15mm | ||
| Part Number: | PT56414028 |
