The Sagola Airless Product Hose (part numbers PT86463826, PT86463827 and PT86463828) is a metal-reinforced fluid hose for airless spray painting systems, compatible with the Elcometer Typhoon Airless Pump. Airless painting pushes coating material at very high pressure, so the hose carrying it has to hold that pressure safely and resist the solvents and abrasion that would otherwise cause leaks, bursts or contaminated finishes. The Sagola Airless Product Hose is built to do that across long runs and at the high temperatures found in spray work.
The construction of the Sagola Airless Product Hose uses a polyamide inner with metal reinforcement and a polyurethane outer, in a 6 mm internal by 11.7 mm external diameter, finished in black with 1/4" swivel couplings at each end so the line resists kinking as the operator moves. It carries a maximum working pressure of 325 bar and a breakage pressure of 1300 bar, and operates from -40 degrees C to 98 degrees C. The Sagola Airless Product Hose is supplied in 5 m (PT86463826), 10 m (PT86463827) and 15 m (PT86463828) lengths.
The Sagola Airless Product Hose complies with ATEX 2014/34/EU II 2G cT5 for use in potentially explosive atmospheres, along with DIN EN 11 27-2, DIN 8028 - 6.3 and BGR 132 - 3.3.5. It is used in industrial finishing and coatings work and is supplied by BAMR, South Africa's authorised distributor.

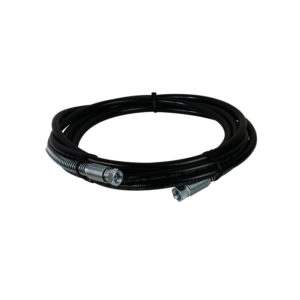

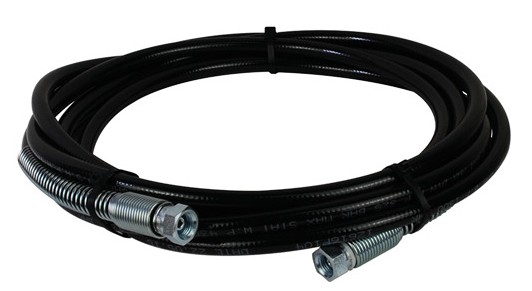

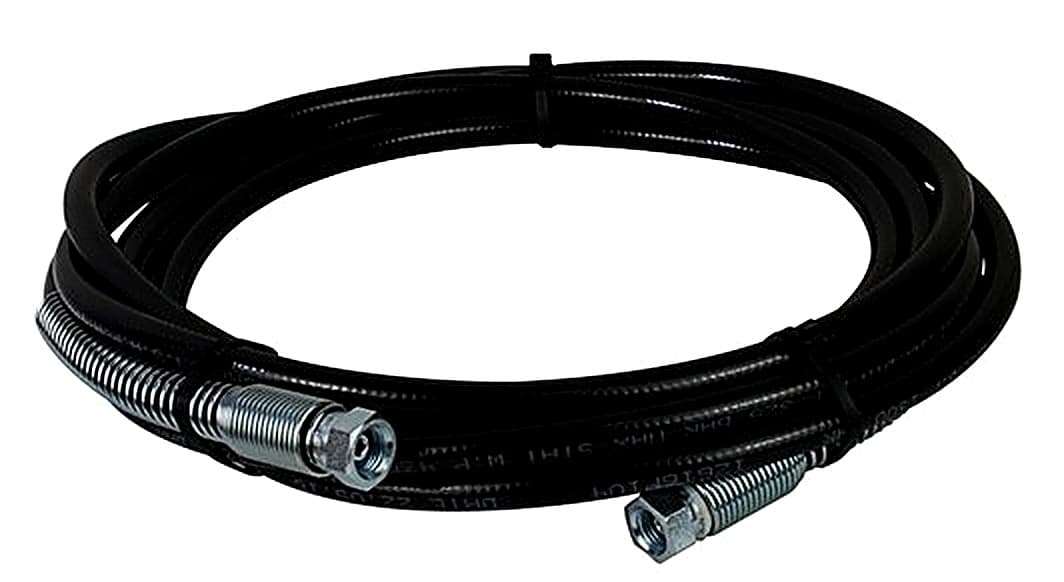

Sagola Airless Product Hose
The Sagola Airless Product Hose is compatible for use with the Elcometer Typhoon Airless Pump.
- Product hose for Airless system painting equipment
- Product hose with metal reinforcement and maximum working pressure of 325 bar with 1/4" swivel couplings
- Polyurethane hose (inside) and outside polyamide 6 x 11.7 mm
Specifications
- Temperature Range
- -40°C to 98°C
- Max Working Pressure
- 325 bar
- Breakage Pressure
- 1300 bar
- Dimensions (I/D x O/D)
- 6 / 11.7 mm
- Material (inside)
- Polyamide & Metal Reinforcement
- Material (outside)
- Polyurethane
- Colour
- Black
- Connections
- 1/4" Swivel Couplings
- Hoses Compliance
- ATEX 2014/34/EU II 2G cT5, DIN EN 11 27-2, DIN 8028 - 6.3, BGR 132 - 3.3.5
Specifications
Specifications
- Temperature Range
- -40°C to 98°C
- Max Working Pressure
- 325 bar
- Breakage Pressure
- 1300 bar
- Dimensions (I/D x O/D)
- 6 / 11.7 mm
- Material (inside)
- Polyamide & Metal Reinforcement
- Material (outside)
- Polyurethane
- Colour
- Black
- Connections
- 1/4" Swivel Couplings
- Hoses Compliance
- ATEX 2014/34/EU II 2G cT5, DIN EN 11 27-2, DIN 8028 - 6.3, BGR 132 - 3.3.5
Standards
Standards
Part Numbers
Part Numbers
| Description | Part Numbers |
|---|---|
| Airless Product Hose; 5m | PT86463826 |
| Airless Product Hose; 10m | PT86463827 |
| Airless Product Hose; 15m | PT86463828 |
Downloads
Frequently asked questions
Can I use this hose with the Elcometer Typhoon Airless Pump?
Yes, the Sagola Airless Product Hose is designed for use with the Typhoon Airless Pump. It features 1/4" swivel couplings for direct connection.
What is the maximum pressure rating?
The hose has a maximum working pressure of 325 bar and a breakage pressure of 1300 bar, suitable for standard airless spray applications.
What are the inner dimensions and construction materials?
The hose measures 6 mm inner diameter by 11.7 mm outer diameter. The inner tube is polyamide with metal reinforcement, and the outer cover is polyurethane.
What temperature range does the hose operate in?
The Sagola hose operates from -40°C to 98°C, suitable for indoor and outdoor use across a wide range of conditions.
What standards and certifications apply?
The hose complies with ATEX 2014/34/EU II 2G cT5, DIN EN 11 27-2, DIN 8028-6.3, and BGR 132-3.3.5 for industrial spray applications.
