The Sagola Classic PRO XD Gravity Spray Gun is a gravity-fed spray gun covering a wide range of application solutions, supplied across part numbers PG10141623, PG10141625, PG10141624, PG10141626, PG10141627, PG10141630 and PG10141629, with fillers and sanding surfacers as its main work. Matching the right needle, nozzle and aircap to the product is what separates an even, fully built coat from one that sags or finishes dry, and the Sagola Classic PRO XD Gravity Spray Gun covers that span with conventional and HVLP aircap options.
Internally the Sagola Classic PRO XD Gravity Spray Gun uses an air distributor with no joints between air and paint, so only metal contacts metal, which keeps it easy to clean and maintain. The needle and nozzle are stainless steel and the body is finished in matt chrome. Conventional 21EPA aircaps for the Sagola Classic PRO XD Gravity Spray Gun are offered in 1.4mm, 1.6mm and 1.8mm, all running at 1.5 to 2.0bar and 225LPM at 2bar; the 1.8mm delivers an average 179g/min with a fan up to 320mm at 18 to 20cm. HVLP aircaps in 1.4mm and 1.6mm draw 355LPM and are applied closer, at 12 to 15cm, for higher transfer efficiency, the 1.4mm giving 170g/min with a fan up to 305mm.
Compliance of the Sagola Classic PRO XD Gravity Spray Gun is to ATEX II 2G x for use in potentially explosive atmospheres. Used in vehicle refinishing and industrial coating, the Sagola Classic PRO XD Gravity Spray Gun is supplied by BAMR, South Africa's authorised distributor.

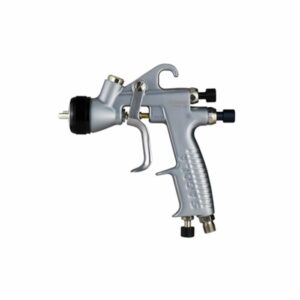

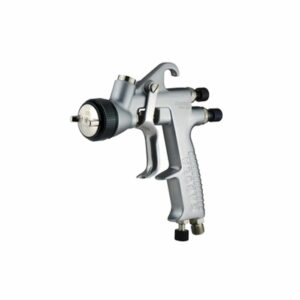

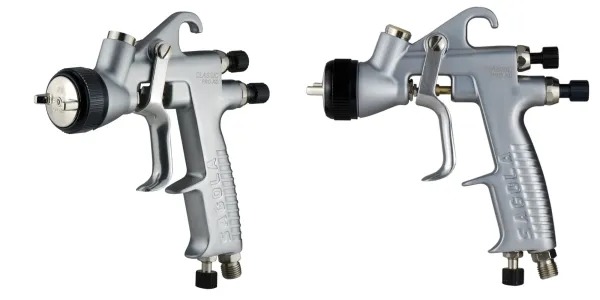

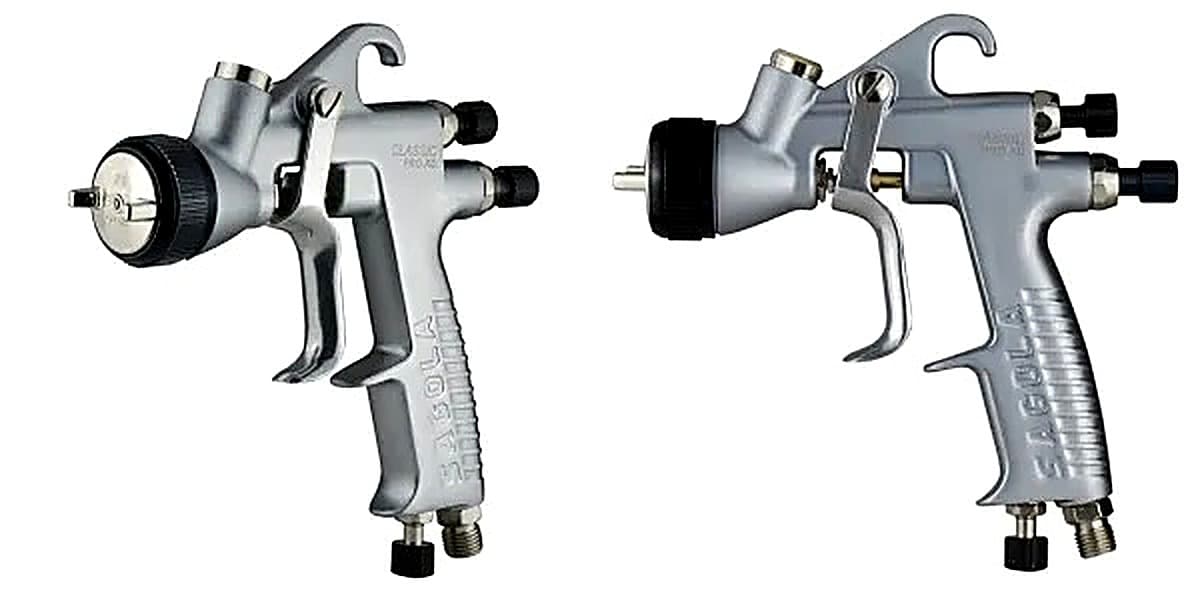

Sagola Classic PRO XD Gravity Spray Gun
The Sagola Classic PRO XD Gravity Spray Gun features a wide range of application solutions, ideal for fillers and sanding surfacers products.
- No joints Designed with internal air distributor. No joints between air and paint. Just metal in contact with metal. Easy to maintain and easy to clean.
- Aircaps High transfer aircaps.
- Needle & Nozzle Made of stainless steel.
- Body New matt chrome body.
When to use the Sagola Classic PRO XD

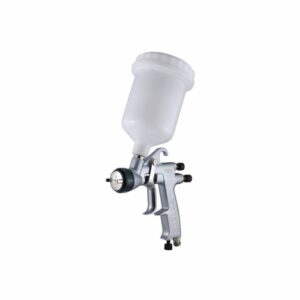

You are laying down fillers and sanding surfacers and need a gravity gun set up for thicker preparation products. The Classic PRO XD runs from a 650ml anti-drip cup and takes nozzles from 1.40mm up to 2.80mm to match the material.
- 1Built for fillers and surfacersIt is set up for fillers and sanding surfacers, the high-build products that block thinner finishing guns, so prep coats go on without starving the gun.
- 2Metal on metal fluid pathWith no joints between air and paint, only metal in contact with metal, there are fewer surfaces for product to lodge in, making the gun quicker to clean and maintain.
- 3Wide nozzle rangeNeedle and nozzle kits from 1.40mm to 2.80mm let you tune the gun to the viscosity of the surfacer in hand rather than forcing one fixed setup.
Lower-budget alternatives
Ten minutes on a call with one of our specialists usually saves you from buying the wrong instrument.
Book a 10-minute callOr , our product assistant, for an instant answer.
When to use this
When to use the Sagola Classic PRO XD
You are laying down fillers and sanding surfacers and need a gravity gun set up for thicker preparation products. The Classic PRO XD runs from a 650ml anti-drip cup and takes nozzles from 1.40mm up to 2.80mm to match the material.
- 1Built for fillers and surfacersIt is set up for fillers and sanding surfacers, the high-build products that block thinner finishing guns, so prep coats go on without starving the gun.
- 2Metal on metal fluid pathWith no joints between air and paint, only metal in contact with metal, there are fewer surfaces for product to lodge in, making the gun quicker to clean and maintain.
- 3Wide nozzle rangeNeedle and nozzle kits from 1.40mm to 2.80mm let you tune the gun to the viscosity of the surfacer in hand rather than forcing one fixed setup.
Lower-budget alternatives
Ten minutes on a call with one of our specialists usually saves you from buying the wrong instrument.
Book a 10-minute callOr , our product assistant, for an instant answer.
Specifications
Specifications
- Model
- Sagola Classic Pro XD
- Cup Capacity
- 650ml
- Cup Type
- Removable Anti-Drip System
- Air Inlet Couplings
- 6.35mm Male BSP
- Paint Filter
- Not Supplied
- Weight with Supplied Cup
- 665g
- Weight without Cup
- 480.8g
- Dimensions without Cup (W x D x H)
- 179.14 x 19 x 176.8mm
- Compliance
- ATEX II 2G x (Directive 94/9/CE)
- Packing List
- Sagola Classic Pro XD Gravity Spray Gun with aircap, needle & nozzle kit (supplied fitted), 650ml (22fl oz) Reusable Plastic Gravity Cup (product filter not supplied), Hexagonal Wrench & Cleaning Brush
What's in the kit
What's in the kit
Standards
Standards
Product Features
Product Features
| Needle & Nozzle | Ideal for use with: | Working Pressure Range | Air Consumption at 2bar | Output Flow (average) | Application Distance | Fan Width (max) |
|---|---|---|---|---|---|---|
| 1.4mm [21EPA] | Sanding surfacers | 1.5 - 2.0bar | 225l/min | 143g/min | 18 - 20cm | 285mm |
| 1.6mm [21EPA] | Sanding surfacers | 1.5 - 2.0bar | 225LPM | 147g/min | 18 - 20cm | 290mm |
| 1.8mm [21EPA] | Sanding surfacers | 1.5 - 2.0bar | 225l/min | 179g/min | 18 - 20cm | 320mm |
| 1.4mm [HVLP] | Sanding surfacers | - | 355LPM | 170g/min | 12 - 15cm | 305mm |
| 1.6mm [HVLP] | Sanding surfacers | 1.5 - 2.0bar | 355LPM | 202g/min | 12 - 15cm | 250mm |
| 1.8mm [HVLP] | Sanding surfacers | 1.5 - 2.0bar | 355LPM | 235g/min | 12 - 15cm | 280mm |
| 2.0mm [25] | Filler coats | 1.8 - 2.5bar | 155LPM | 218g/min | 18 - 20cm | 280mm |
| 2.8mm [28] | Filler coats | 1.8 - 2.5bar | 240LPM | 263g/min | 18 - 20cm | 240mm |
| 2.5mm [36] | Filler coats | 1.8 - 2.5bar | 205l/min | 249g/min | 18 - 20cm | 230mm |
Accessories
Accessories
- Product Mini FIlter (x10) for PT56418084, PT56418432, PT56418082 & PT56418433
- PT56418438
- RC2 Economy Air Flow Regulator with Analogue Pressure Gauge
- PT40000335
- Reusable Gravity Cup - Plastic; 650ml - Product Mini Filter included
- PT56418084
- Sagola Classic PRO XD: 1.40mm Needle & Nozzle Kit
- PT10011254
- Sagola Classic PRO XD: 1.60mm Needle & Nozzle Kit
- PT10011255
- Sagola Classic PRO XD: 1.80mm Needle & Nozzle Kit
- PT10011256
- Sagola Classic PRO XD: 2.00mm Needle & Nozzle Kit
- PT10011257
- Sagola Classic PRO XD: 2.50mm Needle & Nozzle Kit
- PT10011259
- Sagola Classic PRO XD: 2.80mm Needle & Nozzle Kit
- PT10011260
- Air Gasket Replacement Kit (x6)
- PT56418494
- Sagola Classic Pro XD: 2.20mm Needle & Nozzle Kit
- PT10011258
- Air Valve Kit
- PT56418481
Part Numbers
Part Numbers
| Description | Part Numbers |
|---|---|
| Sagola Classic Pro XD Gravity, 21 EPA Aircap - 1.60mm Needle & Nozzle Kit | PG10141623PG10141625 |
| Sagola Classic Pro XD Gravity, HVLP Aircap - 1.60mm Needle & Nozzle Kit | PG10141624 |
| Sagola Classic Pro XD Gravity, HVLP Aircap - 1.80mm Needle & Nozzle Kit | PG10141626 |
| Sagola Classic Pro XD Gravity, 25 Aircap - 2.00mm Needle & Nozzle Kit | PG10141627 |
| Sagola Classic Pro XD Gravity, 28 Aircap - 2.80mm Needle & Nozzle Kit | PG10141630 |
| Sagola Classic Pro XD Gravity, 36 Aircap - 2.80mm Needle & Nozzle Kit | PG10141629 |
Downloads
Frequently asked questions
Which needle and nozzle size should I select for different coating types?
The spray gun offers needle sizes from 1.4mm to 2.8mm. Use 1.4mm, 1.6mm, or 1.8mm for sanding surfacers; use 2.0mm, 2.5mm, or 2.8mm for filler coats. Larger nozzles increase output flow but require higher working pressure, 1.8 to 2.5 bar for fillers versus 1.5 to 2.0 bar for sanding surfacers.
What air supply requirements does the Sagola Classic PRO XD have?
Air consumption ranges from 155 to 355 LPM depending on the needle size and configuration. Working pressure for sanding surfacers is 1.5 to 2.0 bar; for filler coats, 1.8 to 2.5 bar. The air inlet uses a 6.35mm male BSP coupling.
Can I change the needle and nozzle kit to suit different products?
Yes, the needle and nozzle kit is removable. BAMR supplies needle kits in 1.4mm, 1.6mm, 1.8mm, 2.0mm, 2.2mm, 2.5mm, and 2.8mm sizes as separate accessories, allowing you to optimise for your current product.
What is the cup capacity, and can I replace it?
The cup holds 650ml (22fl oz) and features a removable anti-drip system, making it easy to swap between paint products or empty and rinse between applications. Replacement cups are available as accessories.
Is this spray gun suitable for use in spray booths?
The Sagola Classic PRO XD meets ATEX II 2G x certification (Directive 94/9/CE), making it suitable for use in areas where explosive atmospheres may be present. Always confirm compliance with your spray booth operator.
What accessories and spare parts are available?
Accessories include air flow regulators, replacement needle and nozzle kits, product filters, air gasket kits, and air valve kits. A paint filter is not supplied with the spray gun but can be sourced separately.
