The Sagola Classic S1 Blow Gun (part numbers PG20340605, PG20340603, PG20340604 and PG20340601) is a compact, lightweight air gun for blow drying surfaces and clearing dust and burrs from hard to reach areas. In a spray shop or workshop, trapped dust and machining debris ruin finishes and interfere with assembly, so a controllable blast of clean air before painting or after machining is part of routine preparation.
The Sagola Classic S1 Blow Gun is built around a hard wearing aluminium body, which resists solvents, workshop oils and chemicals so it stands up to daily use in a finishing environment. A responsive trigger gives precision control over the air flow, allowing the Sagola Classic S1 Blow Gun to be used across a wide range of applications. It is supplied with a male coupling for plug and blow installation, so it connects quickly to an existing air line.
Air consumption is 240 litres per minute at a 6 bar air inlet pressure, with a working pressure range of 3 to 10 bar and a maximum of 10 bar. The air inlet connection is a 3/4 inch BSP male fitting. Weight is 190g with the metallic aircap and 187g with the plastic version, both aircap options being available for the Sagola Classic S1 Blow Gun. The Sagola Classic S1 Blow Gun is supplied by BAMR, South Africa's authorised distributor.
Sagola Classic S1 Blow Gun
The Sagola Classic S1 Blow Gun is small and lightweight, making it ideal for blow drying and removal of dust and burrs from hard to reach areas.
- Hard wearing aluminum body Makes the gun resistant to solvents, workshop oils and chemicals.
- Responsive trigger, precision control Allows the blow gun to be used for all types of applications.
- Plug & Blow Supplied with male coupling for easy and fast installation.
Specifications
- Aircap
- Metallic or Plastic
- Air Consumption
- 240lpm at 6bar air inlet pressure
- Working Pressure
- 3 - 10bar
- Maximum Pressure
- 10bar
- Air Inlet Connection
- 3/4" BSP Male
- Weight*
- Metallic: 190g, Plastic: 187g
Specifications
Specifications
- Aircap
- Metallic or Plastic
- Air Consumption
- 240lpm at 6bar air inlet pressure
- Working Pressure
- 3 - 10bar
- Maximum Pressure
- 10bar
- Air Inlet Connection
- 3/4" BSP Male
- Weight*
- Metallic: 190g, Plastic: 187g
Part Numbers
Part Numbers

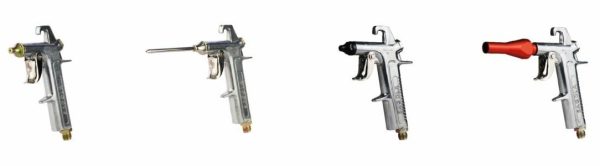

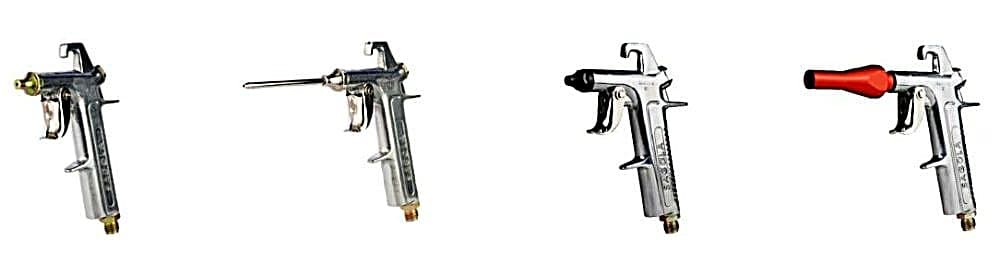

| Description | Part Numbers |
|---|---|

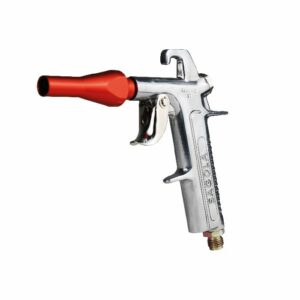

| Sagola Classic S1 Venturi Blow Gun | PG20340605 |

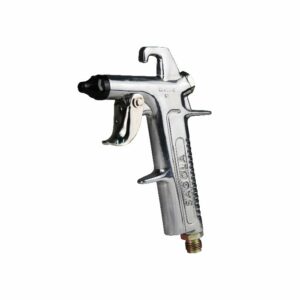

| Sagola Classic S1 Blow Gun with Plastic Aircap | PG20340603 |

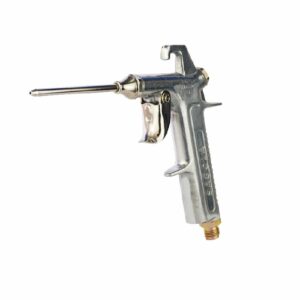

| Sagola Classic S1 Blow Gun with Extension Aircap | PG20340604 |

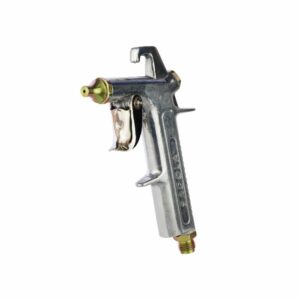

| Sagola Classic S1 Blow Gun with Metallic Aircap | PG20340601 |
Downloads
Frequently asked questions
What pressure range does the Classic S1 operate at?
The blow gun works between 3bar and 10bar working pressure, with a maximum of 10bar.
How much air does the S1 consume?
At 6bar inlet pressure, it consumes 240 litres per minute.
What size air inlet connection does the S1 have?
The air inlet is a 3/4 inch BSP male thread.
Is the S1 suitable for cleaning tight spaces?
Yes. It is specifically designed for blow drying and removing dust and burrs from hard-to-reach areas due to its small, lightweight design.
What is the weight difference between the metallic and plastic aircaps?
The metallic aircap weighs 190g and the plastic aircap weighs 187g. Both deliver identical performance at the same pressure and air consumption.
