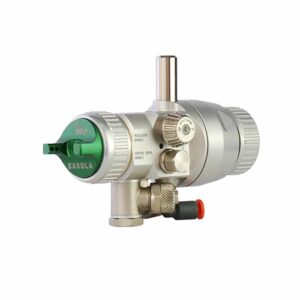

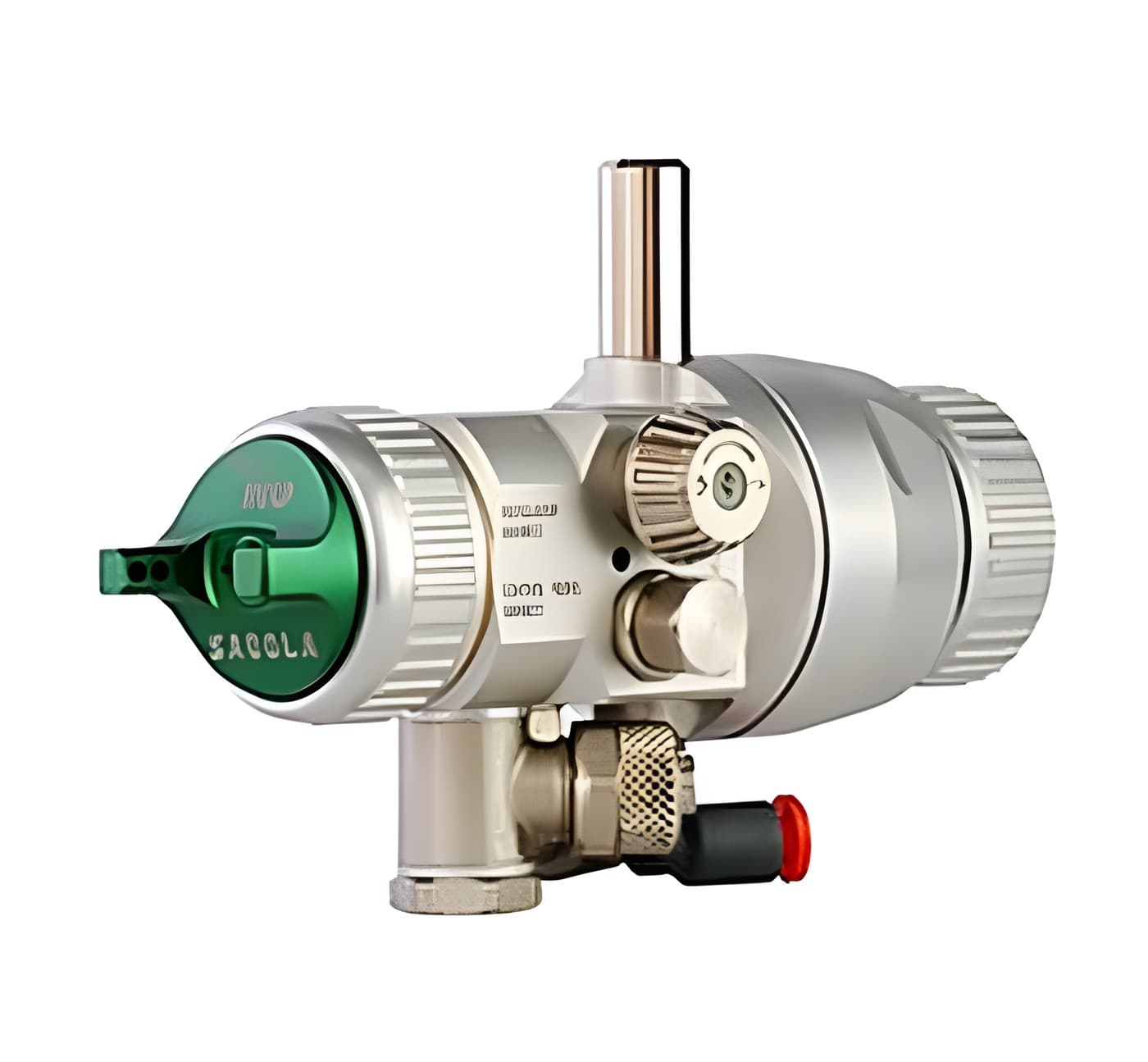

Sagola Mini V Automatic Spray Gun
Product Description
The Sagola Mini V is a small, high precision automatic spray gun which is ideal for small components or hard to access areas on the paint line.
Metal on Metal Technology
Incredibly reliable, the Sagola Mini V has no air diffusers, blind chambers or threads in contact with paint, and no gaskets, seals or plastic parts in the product area – just metal on metal contact, making it easier to clean and maintain.
Versatile
The extensive range of interchangeable needles, nozzles and aircaps enables the Sagola Mini V to apply all types of solvent or water-based products.
Access to complex shaped parts
Thanks to its compact size, the Sagola Mini V fits in the smallest of spaces and can be manouevered to even the most complex of components.
Precision Regulation
Paint flow, fan and pattern shape, 50mm fan size up to 348mm.
Key Features
1) Stainless steel automatic paint packing gland with no gaskets – just metal on metal technology.
2) High precision product regulator.
3) Fan regulator allows the user to adjust the size of the fan.
4) Fan control regulator allows perfect distribution of the spray pattern independently of the product’s viscosity.
5) Stainless steel needle and nozzle.
Specifications
| Dimensions | 116 x 48 x 58mm |
| Weight | 216g |
| Operation inlet connection | 4mm |
| Air Inlet Connection | 8mm |
| Product Inlet Connection | Tube Ø6xØ4 mm |
| Maximum Air Pressure | 5bar |
| Recommended maximum air pressure | 2 – 3bar |
| Average sound pressure level | 84db (EPA) 85db (HVLP) |
| Materials in contact with the product | Stainless steel, anodized aluminum, graphite teflon, nylon, nickel-plated brass |
| Compliance | ATEX II 2G Ex ia IIC T4 Gb (Directive 2014/34/EU), EN 1953, CE |
| Recommended application distance | Mini EPA: 18 – 20cm Mini HVLP: 12 – 15cm Mini Conventional: 18 – 20cm |
| Packing List | Sagola Mini V Automatic Spray Gun complete with Sagola Mini V Aircap, Stainless Steel Needle & Nozzle Kit, Cleaning Brush & Wrench |
Data Sheet
Part Numbers
 |
Sagola Mini V, supplied with 0.30mm Mini HVLP Aircap |
| Part Number : PG10210217 | |
|
|
Sagola Mini V, supplied with 0.50mm Mini HVLP Aircap |
| Part Number : PG10210208 | |
|
|
Sagola Mini V, supplied with 0.80mm Mini HVLP Aircap |
| Part Number : PG10210201 | |
|
|
Sagola Mini V, supplied with 1.00mm Mini HVLP Aircap |
| Part Number : PG10210202 | |
|
|
Sagola Mini V, supplied with 1.20mm Mini HVLP Aircap |
| Part Number : PG10210203 | |
|
|
Sagola Mini V, supplied with 1.30mm Mini HVLP Aircap |
| Part Number : PG10210204 | |
|
|
Sagola Mini V, supplied with 1.40mm Mini HVLP Aircap |
| Part Number : PG10210205 | |
|
|
Sagola Mini V, supplied with 1.60mm Mini HVLP Aircap |
| Part Number : PG10210206 | |
|
|
Sagola Mini V, supplied with 1.80mm Mini HVLP Aircap |
| Part Number : PG10210207 | |
 |
Sagola Mini V, supplied with 0.30mm Mini EPA Aircap |
| Part Number : PG10210218 | |
|
|
Sagola Mini V, supplied with 0.50mm Mini EPA Aircap |
| Part Number : PG10210216 | |
|
|
Sagola Mini V, supplied with 0.80mm Mini EPA Aircap |
| Part Number : PG10210215 | |
|
|
Sagola Mini V, supplied with 1.00mm Mini EPA Aircap |
| Part Number : PG10210209 | |
|
|
Sagola Mini V, supplied with 1.20mm Mini EPA Aircap |
| Part Number : PG10210210 | |
|
|
Sagola Mini V, supplied with 1.30mm Mini EPA Aircap |
| Part Number : PG10210211 | |
|
|
Sagola Mini V, supplied with 1.40mm Mini EPA Aircap |
| Part Number : PG10210212 | |
|
|
Sagola Mini V, supplied with 1.60mm Mini EPA Aircap |
| Part Number : PG10210213 | |
|
|
Sagola Mini V, supplied with 1.80mm Mini EPA Aircap |
| Part Number : PG10210214 | |
|
|
Sagola Mini V, supplied with 0.60mm Mini TECH Aircap |
| Part Number : PG10210219 | |
|
|
Sagola Mini V, supplied with 1.00mm Mini TECH Aircap |
| Part Number : PG10210220 | |
 |
Sagola Mini V, supplied with 0.50mm Mini AERO JET Aircap |
| Part Number : PG10210221 | |
Accessories
| Lubricant Grease (SAE 10), 100ml | ||
 |
Part Number: | PT56418589 |
| Spray Gun Cleaning Kit | ||
 |
Part Number: | PT40000086 |
| Sagola Mini V: Mini HVLP Aircap | ||
|
|
Part Number: | PT56418507 |
| Sagola Mini V: Mini EPA Aircap | ||
|
|
Part Number: | PT56418512 |
| Sagola Mini V: Mini TECH Aircap | ||
|
|
Part Number: | PT56418707 |
| Sagola Mini V: Mini AERO JET Aircap | ||
|
|
Part Number: | PT56418724 |
| Sagola Mini V: Mini HVLP & Mini EPA 0.30mm Needle and Nozzle Kit | ||
|
|
Part Number: | PT10011218 |
| Sagola Mini V: Mini HVLP & Mini EPA 0.50mm Needle and Nozzle Kit | ||
|
|
Part Number: | PT10011247 |
| Sagola Mini V: Mini HVLP & Mini EPA 0.80mm Needle and Nozzle Kit | ||
|
|
Part Number: | PT10011240 |
| Sagola Mini V: Mini HVLP & Mini EPA 1.00mm Needle and Nozzle Kit | ||
|
|
Part Number: | PT10011241 |
| Sagola Mini V: Mini HVLP & Mini EPA 1.20mm Needle and Nozzle Kit | ||
|
|
Part Number: | PT10011242 |
| Sagola Mini V: Mini HVLP & Mini EPA 1.30mm Needle and Nozzle Kit | ||
|
|
Part Number: | PT10011243 |
| Sagola Mini V: Mini HVLP & Mini EPA 1.40mm Needle and Nozzle Kit | ||
|
|
Part Number: | PT10011244 |
| Sagola Mini V: Mini HVLP & Mini EPA 1.60mm Needle and Nozzle Kit | ||
|
|
Part Number: | PT10011245 |
| Sagola Mini V: Mini HVLP & Mini EPA 1.80mm Needle and Nozzle Kit | ||
|
|
Part Number: | PT10011246 |
| Sagola Mini V: Mini TECH 0.60mm Needle and Nozzle Kit | ||
|
|
Part Number: | PT10011248 |
| Sagola Mini V: Mini TECH 1.00mm Needle and Nozzle Kit | ||
|
|
Part Number: | PT10011249 |
| Sagola Mini V: Mini AERO JET 0.50mm Needle and Nozzle Kit | ||
|
|
Part Number: | PT10011219 |
| Sagola Mini V: 300mm Extension with 1.20mm Needle | ||
|
|
Part Number: | PT52411730 |
| Sagola Mini V: 300mm Extension with 1.30mm Needle | ||
|
|
Part Number: | PT52411731 |
