The Sagola Mini Xtreme Mix Air Assisted Airless Spray Gun is a compact air assisted airless gun aimed at French polishers and finishers applying UV coatings to complex shapes or hard to reach areas. Air assisted airless atomisation combines fluid pressure with shaping air, so it lays down a high quality finish while keeping overspray and material waste lower than conventional spraying. That matters where finish quality has to be consistent across awkward profiles and where coating cost adds up across a production run.
The Sagola Mini Xtreme Mix Air Assisted Airless Spray Gun runs at a working pressure of 150 to 200 bar against a design pressure of 200 bar, and it is built to work with any assisted airless pump up to 200 bar fluid pressure. Air consumption at the aircap is 150 lpm. A 360 degree revolving swivel keeps hoses from coiling and adds comfort during extended use, and at 555 g with the cup, measuring 172 x 190 x 182 mm, the Sagola Mini Xtreme Mix Air Assisted Airless Spray Gun stays light in the hand. Couplings are M16 on the air inlet and 6.35 mm BSP male on the product inlet, with a 100 mesh product filter.
The Sagola Mini Xtreme Mix Air Assisted Airless Spray Gun carries ATEX II 2G x certification under Directive 2014/34/EU, marking it for use in potentially explosive atmospheres. The Sagola Mini Xtreme Mix Air Assisted Airless Spray Gun is supplied with the Mini Xtreme Mix aircap, a 100 mesh product filter, yellow spring (max 120 bar) and red spring (max 200 bar), cleaning brush, wrench, a tungsten carbide needle and nozzle kit, and an air assisted airless spray tip. Supplied by BAMR, South Africa's authorised Sagola distributor.

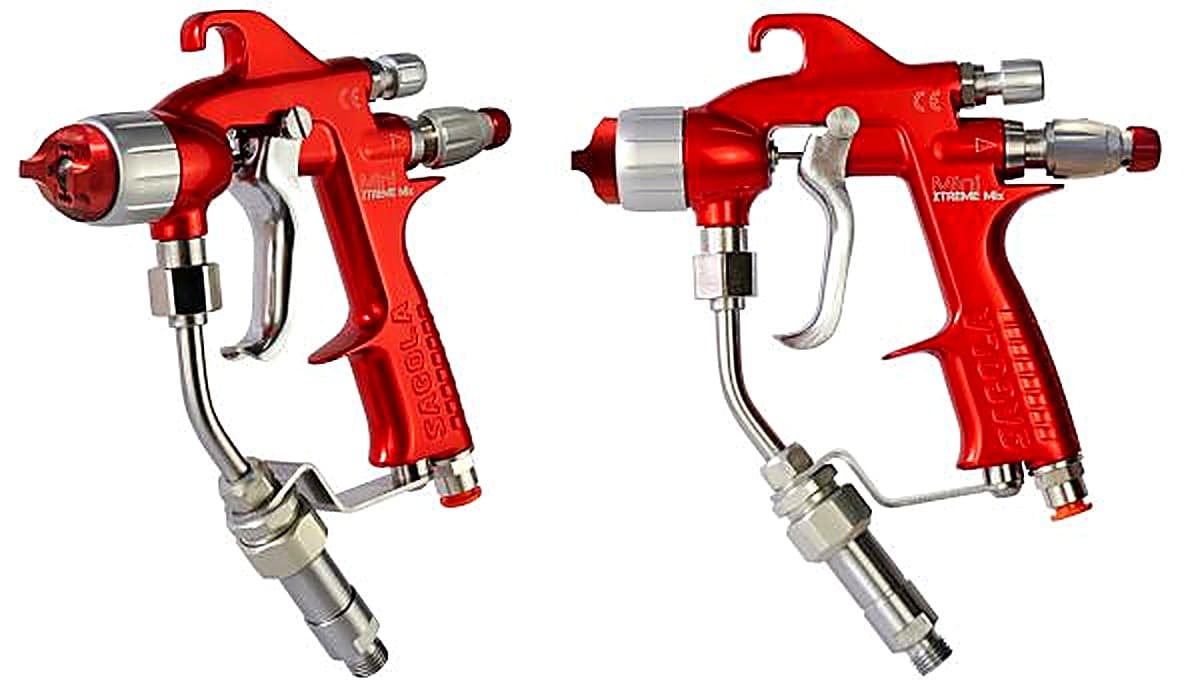

Sagola Mini Xtreme Mix Air Assisted Airless Spray Gun
The Sagola Mini Xtreme Mix Air Assisted Airless Spray Gun is the perfect choice for French Polishers requiring high quality finishes of UV on complex shapes or hard to reach areas.
- 360° revolving swivel Ease and comfort of operation and prevents hoses from coiling up.
- Compact and easy to use
- Comfortable and lightweight Small and lightweight for enhanced usability.
- Versatile Designed for use with any assisted airless pump up to 200bar fluid pressure.
Specifications
- Model
- Sagola Mini Xtreme Mix Air Assisted Airless Spray Gun
- Dimensions
- 172 x 190 x 182mm - with cup
- Weight
- 555g
- Air Inlet Coupling
- M16
- Product Inlet Coupling
- 6.35mm BSP Male
- Product Filter
- 100 Mesh
- Design Pressure
- 200bar
- Working Pressure
- 150 - 200bar
- Air Consumption (at Aircap)
- 150lpm
- Compliance
- ATEX II 2G x (Directive 2014/34/EU)
- Packing List
- Sagola Mini Xtreme Mix Spray Gun, Sagola Mini Xtreme Mix Aircap, 100 Mesh Product Filter (x1), Yellow Spring (Max WP 120 bar), Red Spring (Max WP 200 bar), Cleaning Brush, Wrench, Tungsten Carbide Needle & Nozzle Kit Kit & Air Assisted Airless Spray Tip (x1)
Specifications
Specifications
- Model
- Sagola Mini Xtreme Mix Air Assisted Airless Spray Gun
- Dimensions
- 172 x 190 x 182mm - with cup
- Weight
- 555g
- Air Inlet Coupling
- M16
- Product Inlet Coupling
- 6.35mm BSP Male
- Product Filter
- 100 Mesh
- Design Pressure
- 200bar
- Working Pressure
- 150 - 200bar
- Air Consumption (at Aircap)
- 150lpm
- Compliance
- ATEX II 2G x (Directive 2014/34/EU)
- Packing List
- Sagola Mini Xtreme Mix Spray Gun, Sagola Mini Xtreme Mix Aircap, 100 Mesh Product Filter (x1), Yellow Spring (Max WP 120 bar), Red Spring (Max WP 200 bar), Cleaning Brush, Wrench, Tungsten Carbide Needle & Nozzle Kit Kit & Air Assisted Airless Spray Tip (x1)
Accessories
Accessories
- Filter Holder with Swivel Coupling & Product Tube
- PT56418057
- Product Filter; 100 Mesh (x10)
- PT56418053
- Product Filter; 60 Mesh (x10)
- PT56418054
- 09/25 Standard Air Assisted Airless Spray Tip
- PT81460518
- 09/40 Standard Air Assisted Airless Spray Tip
- PT81460519
- 11/40 Standard Air Assisted Airless Spray Tip
- PT81460529
- 11/65 Standard Air Assisted Airless Spray Tip
- PT81460531
- 13/40 Standard Air Assisted Airless Spray Tip
- PT81460540
- 13/65 Standard Air Assisted Airless Spray Tip
- PT81460542
- 13/80 Standard Air Assisted Airless Spray Tip
- PT81460543
- 15/25 Standard Air Assisted Airless Spray Tip
- PT81460549
- 15/40 Standard Air Assisted Airless Spray Tip
- PT81460550
- 15/50 Standard Air Assisted Airless Spray Tip
- PT81460551
- 15/65 Standard Air Assisted Airless Spray Tip
- PT81460552
- 15/80 Standard Air Assisted Airless Spray Tip
- PT81460553
- 18/40 Standard Air Assisted Airless Spray Tip
- PT81460575
- 18/65 Standard Air Assisted Airless Spray Tip
- PT81460577
- 21/40 Standard Air Assisted Airless Spray Tip
- PT81460590
- 21/80 Standard Air Assisted Airless Spray Tip
- PT81460593
- Air Assisted Airless Spray Tip Micro Filters (x10) – Use behind the spray tip to improve atomization quality
- PT30010015
- 1.40mm Stainless Steel Needle and Nozzle Kit Sagola V4000
- PT56418153
- Air Assisted Airless Spray Tip 100 Layer Filter – Use behind the spray tip to improve atomization quality.
- PT83660037
- Spray Gun Product Filter Holder
- PT56410104
- 1.40mm Tungsten Carbide Needle and Nozzle Kit Sagola V4000
- PT56418102
- Sagola Mini Xtreme Mix Aircap
- PT56410768
- Sagola Mini Xtreme Mix Tungsten Carbide Needle & Nozzle Kit
- PT10011250
- Yellow Spring (for Max Working Pressure 120 bar)
- PT54710288
- Red Spring (for Max Working Pressure 200 bar)
- PT54710289
- Air Valve Kit
- PT56418612
- Needle Guide Box Closing Washer
- PT50810202
- Air Valve Seat
- PT54110012-1
- Needle Packing Kit
- PT56418614
Application Guide
Application Guide
| Application | Spray Tip | Nozzle | Spray Angle | Spray width at 30cm | Air flow at 100bar | Part Number |
|---|---|---|---|---|---|---|
| Finishes | 09/25 Standard | 0.23mm | 25° | 140mm | 0.25lpm | PT81460518 |
| 09/40 Standard | 0.23mm | 40° | 178mm | 0.25lpm | PT81460519 | |
| 11/40 Standard | 0.28mm | 40° | 190mm | 0.37lpm | PT81460529 | |
| 11/65 Standard | 0.28mm | 65° | 254mm | 0.37lpm | PT81460531 | |
| Basecoats and Primers | 13/40 Standard | 0.33mm | 40° | 0.57lpm | PT81460540 | |
| 13/65 Standard | 0.33mm | 65° | 0.57lpm | PT81460542 | ||
| 13/80 Standard | 0.38mm | 80° | 0.57lpm | PT81460543 | ||
| 15/25 Standard | 0.38mm | 25° | 178mm | 0.72lpm | PT81460549 | |
| 15/40 Standard | 0.38mm | 40° | 216mm | 0.72lpm | PT81460550 | |
| 15/50 Standard | 0.38mm | 50° | 254mm | 0.72lpm | PT81460551 | |
| 15/65 Standard | 0.38mm | 65° | 279mm | 0.72lpm | PT81460552 | |
| 15/80 Standard | 0.38mm | 80° | 330mm | 0.72lpm | PT81460553 | |
| High viscosity products | 18/40 Standard | 0.46mm | 40° | 254mm | PT81460575 | |
| 18/65 Standard | 0.46mm | 65° | 330mm | PT81460577 | ||
| 21/40 Standard | 0.53mm | 40° | 279mm | 1.52lpm | PT81460590 | |
| 21/80 Standard | 0.53mm | 80° | 1.52lpm | PT81460593 |
Part Numbers
Part Numbers
| Description | Part Numbers |
|---|---|
| Sagola Mini Xtreme Mix with 8mm Quick Connect Air Coupling and 1/4″ Swivel Product Coupling, with Air Assisted Airless Spray Tip 11/40: 0.011″/0.28mm, 40 Degree | PG35130202 |
| Sagola Mini Xtreme Mix with 8mm Quick Connect Air Coupling and 1/4″ Swivel Product Coupling, with Air Assisted Airless Spray Tip 13/40: 0.013″/0.33mm, 40 Degree | PG35130206 |
| Sagola Mini Xtreme Mix with M16 Coupling and 1/4″ Swivel Product Coupling, with Air Assisted Airless Spray Tip 11/40: 0.011″/0.28mm, 40 Degree | PG35130204 |
| Sagola Mini Xtreme Mix with M16 Coupling and 1/4″ Swivel Product Coupling, with Air Assisted Airless Spray Tip 13/40: 0.013″/0.33mm, 40 Degree | PG35130208 |
| Sagola Mini Xtreme Mix with Quick connector 8mm and 1/4″ Standard Coupling, with Air Assisted Airless Spray Tip 11/40: 0.011″/0.28mm, 40 Degree | PG35130201 |
| Sagola Mini Xtreme Mix with Quick connector 8mm and 1/4″ Standard Coupling, with Air Assisted Airless Spray Tip 13/40: 0.013″/0.33mm, 40 Degree | PG35130205 |
| Sagola Mini Xtreme Mix with M16 coupling and 1/4″ Standard Coupling, with Air Assisted Airless Spray Tip 11/40: 0.013″/0.28mm, 40 Degree | PG35130203 |
| Sagola Mini Xtreme Mix with M16 coupling and 1/4″ Standard Coupling, with Air Assisted Airless Spray Tip 13/40: 0.013″/0.33mm, 40 Degree | PG35130207 |
Downloads
Frequently asked questions
Is the Sagola Mini Xtreme Mix suited to UV finishes on complex shapes?
Yes. It is designed for French Polishers who need high quality UV finishes on complex shapes or hard to reach areas, using air assisted airless atomisation for the control this work needs.
Which spray tip should I use for finishes, basecoats, or high viscosity products?
The application guide splits tips by job: 09/25 to 11/65 for finishes, 13/40 to 15/80 for basecoats and primers, and 18/40 to 21/80 for high viscosity products. Nozzle sizes run from 0.23mm to 0.53mm with spray angles from 25 to 80 degrees.
What air consumption and pressure figures do I need to plan for?
Air consumption at the aircap is rated at 150 litres per minute. Working pressure is 150 to 200bar, with a design pressure of 200bar.
Can the Mini Xtreme Mix be used in areas with explosive atmospheres?
Yes. It is ATEX II 2G certified to Directive 2014/34/EU, making it suitable for use where flammable gases or vapours may be present.
What's included with the gun, and what do I need to reorder as a consumable?
It ships with the Mini Xtreme Mix aircap, a 100 mesh product filter, a tungsten carbide needle and nozzle kit, yellow (120bar) and red (200bar) springs, a cleaning brush and a wrench. Replacement 60 and 100 mesh filters are sold separately for ongoing use.
Can I swap the pressure spring to suit a different product?
Yes. The gun comes with a yellow spring rated to a maximum working pressure of 120bar and a red spring rated to 200bar, so you can fit the spring that matches the pressure your job requires.
