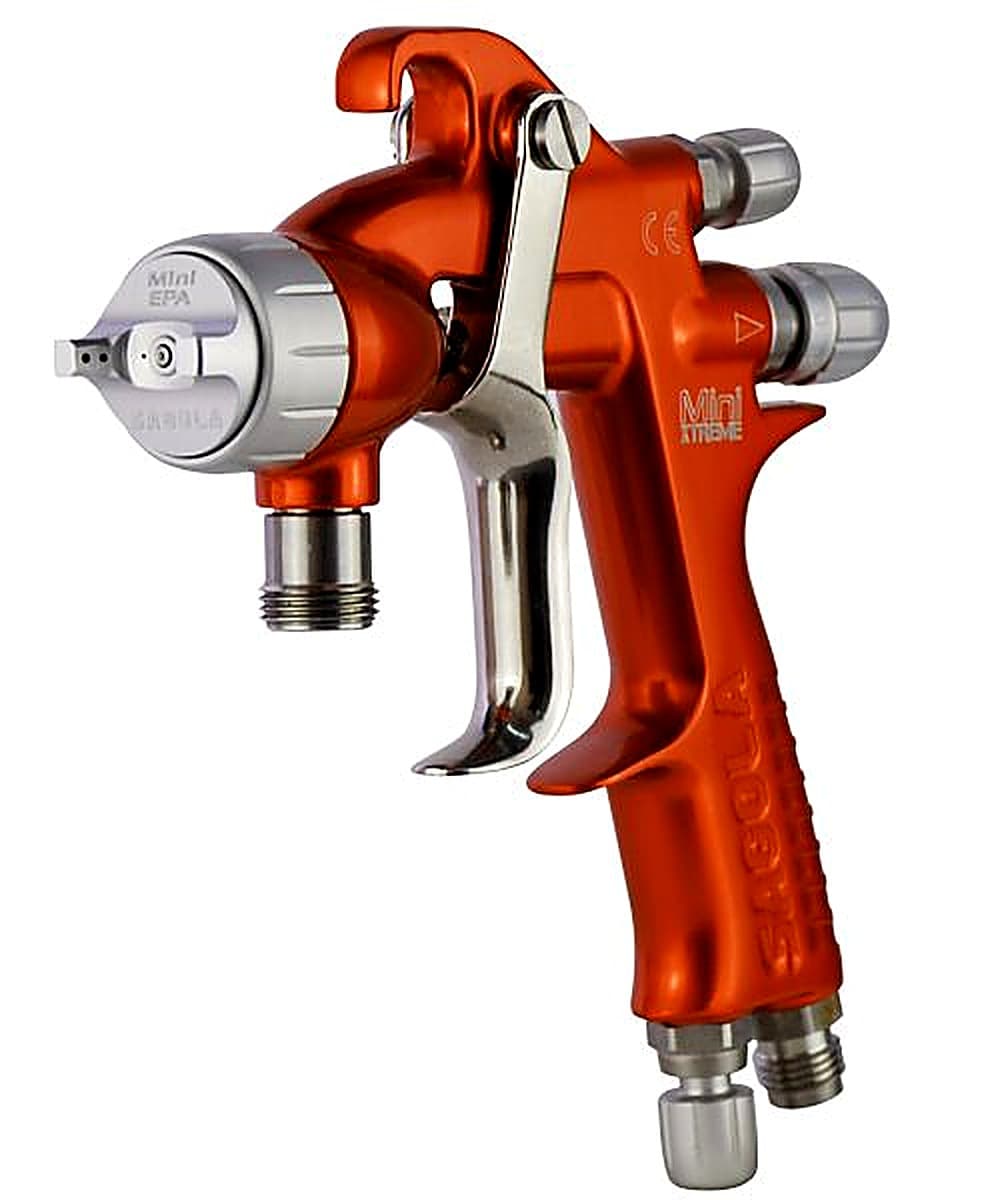

Sagola Mini Xtreme Pressure Spray Gun
Product Description
The Sagola Mini Extreme Pressure Spray Gun is lightweight and ergonomic, ideal for use all day, every day.
The Mini Xtreme Pressure gun’s compact size makes this gun the perfect choice to work in difficult to access areas. Ideal for spot repairs lettering or complex surface areas.
- Ideal for continuous use: Lightweight and ergonomic for comfortable use over long periods
- Low maintenance: no gaskets, seals or plastic parts, just metal to metal technology
- Interchangeable aircaps, and needles & nozzles: for a high quality of spray, whatever the coating.
- Huge fan width & fast application: Supported by a pressure pot or a double diaphragm pump, this small gun is able to reach outstanding levels of product flow in huge fan patterns of more than40cm.
- Versatility: Its wide range of interchangeable aircaps and nozzles
makes it suitable for any industrial bodyshop work. From finishes to design lines or lettering.
The Sagola Mini Xtreme pressure is available to purchase as a complete kit with the aircap, needle and nozzle specified supplied and fitted.
Key Features:
- Sagola Mini Xtreme Kit Contents
Each Sagola Mini Xtreme is supplied complete with:
1. Aircap, needle & nozzle kit (fitted – depending on part number ordered)
2. Accessory Wrench for removing / fitting the nozzle
3. Cleaning Brush
4. Key Assembly for changing the Air Valve Kit
Specifications
| Model | Sagola Mini Xtreme Pressure |
| Dimensions | 158.1 x 18 x 164.83mm |
| Weight | 383g |
| Air Inlet Couplings | 6.35mm Male BSP |
| Product Inlet Coupling | 9.5mm Male BSP |
| Design Pressure | 8bar |
| Working Pressure | 2 – 3bar |
| Compliance | ATEX II 2G T60°C X (Directive 94/9/CE) |

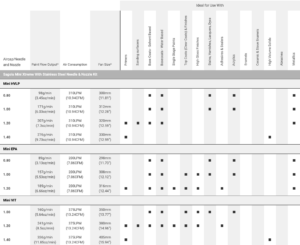

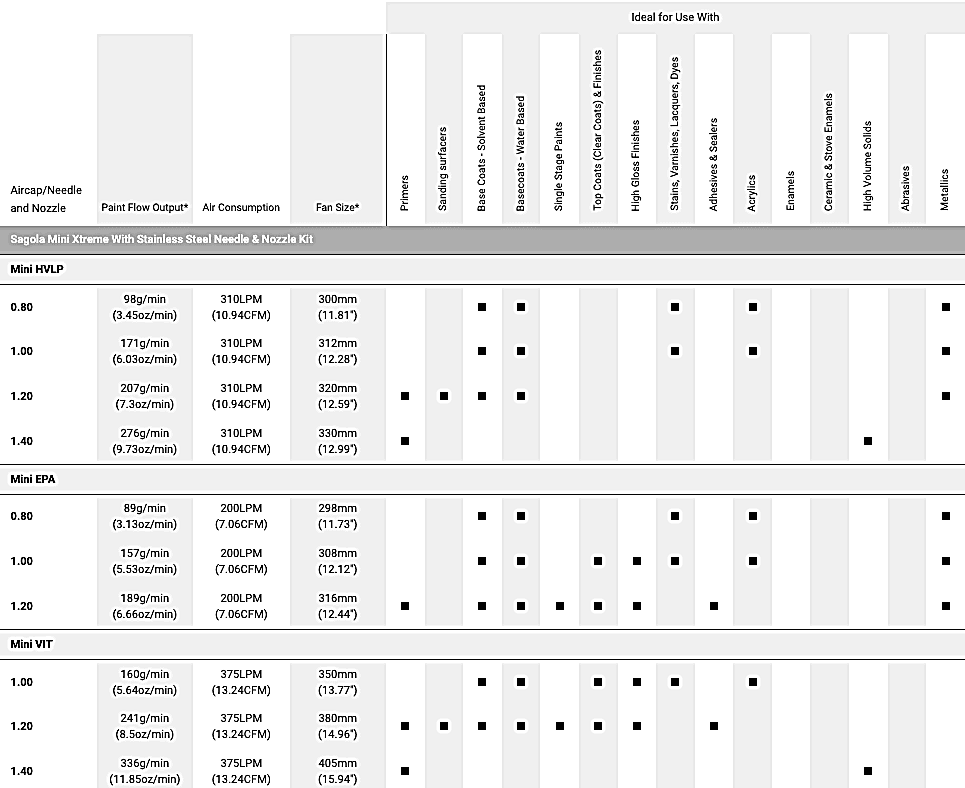

Application Guide
Data Sheet
Part Numbers
 | Sagola Mini Xtreme Pressure Spray Gun, Mini EPA Aircap – 0.80 Needle & Nozzle Kit |
| This Sagola Mini Xtreme Pressure Gun is supplied with a mini EPA aircap and 0.80mm needle and nozzle. It is ideal for use with clearcoats. | |
| Needle & Nozzle Size: 0.80 (0.80mm) | |
| SG Mini Xtreme Aircap Type: Mini EPA | |
| Part Number: PG10111904 | |
| Sagola Mini Xtreme Pressure Spray Gun, Mini EPA Aircap – 1.00 Needle & Nozzle Kit |
| The Sagola Mini Xtreme Pressure Gun is supplied with a 1.00 Needle and Nozzle and a Mini EPA Conventional (CA) Aircap. It is ideal for clearcoats and basecoats. | |
| Needle & Nozzle Size: 1.00 (1.00mm) | |
| SG Mini Xtreme Aircap Type: Mini EPA | |
| Part Number: PG10111905 | |
| Sagola Mini Xtreme Pressure Spray Gun, Mini EPA Aircap – 1.20 Needle & Nozzle Kit |
| The Sagola Mini Xtreme Pressure Gun is supplied with a 1.20 Needle and Nozzle and a Mini EPA Conventional (CA) Aircap. It is ideal to use with Basecoats. | |
| Needle & Nozzle Size: 1.20 (1.20mm) | |
| SG Mini Xtreme Aircap Type: Mini EPA | |
| Part Number: PG10111906 | |
| Sagola Mini Xtreme Pressure Spray Gun, Mini VIT Aircap – 0.80 Needle & Nozzle Kit |
| The Sagola Mini Xtreme Pressure Gun is supplied with a 0.80 Needle and Nozzle and a Mini VIT Conventional (CA) Aircap. It is ideal to use with Clearcoats. | |
| Needle & Nozzle Size: 0.80 (0.80mm) | |
| SG Mini Xtreme Aircap Type: Mini VIT | |
| Part Number: PG10111907 | |
| Sagola Mini Xtreme Pressure Spray Gun, Mini VIT Aircap – 1.00 Needle & Nozzle Kit |
| The Sagola Mini Xtreme Pressure Gun is supplied with a 1.00 Needle and Nozzle and a Mini VIT Aircap. It is ideal to use with clearcoats and basecoats. | |
| Needle & Nozzle Size: 1.00 (1.00mm) | |
| SG Mini Xtreme Aircap Type: Mini VIT | |
| Part Number: PG10111908 | |
| Sagola Mini Xtreme Pressure Spray Gun, Mini VIT Aircap – 1.20 Needle & Nozzle Kit |
| The Sagola Mini Xtreme Pressure Gun is supplied with a 1.20mm Needle and Nozzle and a Mini VIT Aircap. It is ideal to use with basecoats, Sanding Surfacers, Wet / Wet Primers and Fillers. | |
| Needle & Nozzle Size: 1.20 (1.20mm) | |
| SG Mini Xtreme Aircap Type: Mini VIT | |
| Part Number: PG10111909 | |
| Sagola Mini Xtreme Pressure Spray Gun, Mini HVLP Aircap – 0.80 Needle & Nozzle Kit |
| The Sagola Mini Xtreme Pressure Gun is supplied with a 0.80 Needle and Nozzle and a Mini HVLP Aircap. It is ideal to use with clearcoats. | |
| Needle & Nozzle Size: 0.80 (0.80mm) | |
| SG Mini Xtreme Aircap Type: Mini HVLP | |
| Part Number: PG10111901 | |
| Sagola Mini Xtreme Pressure Spray Gun, Mini HVLP Aircap – 1.00 Needle & Nozzle Kit |
| The Sagola Mini Xtreme Pressure Gun is supplied with a 1.00 Needle and Nozzle and a Mini HVLP Aircap. It is ideal to use with clearcoats and basecoats. | |
| Needle & Nozzle Size: 1.00 (1.00mm) | |
| SG Mini Xtreme Aircap Type: Mini HVLP | |
| Part Number: PG10111902 | |
| Sagola Mini Xtreme Pressure Spray Gun, Mini HVLP Aircap – 1.20 Needle & Nozzle Kit |
| The Sagola Mini Xtreme Pressure Gun is supplied with a 1.20 Needle and Nozzle and a Mini HVLP Aircap. It is ideal to use with basecoats and sanding surfaces. | |
| Needle & Nozzle Size: 1.20 (1.20mm) | |
| SG Mini Xtreme Aircap Type: Mini HVLP | |
| Part Number: PG10111903 | |
Accessories
| RC1 Premium Air Flow Regulator with Analogue Pressure Gauge | ||
 | Part Number: | PT56418020 |
| Spray Gun Cleaning Kit | ||
 | Part Number: | PT40000086 |
| Spray Gun & Accessories Locker | ||
 | Part Number: | PT70000010 |
| SAGOLA Mini Xtreme Gun: Mini EPA Aircap | ||
 | Part Number: | PT56418525 |
| SAGOLA Mini Xtreme: Mini HVLP Aircap | ||
 | Part Number: | PT56418526 |
| Sagola Mini Xtreme: 0.80mm Needle & Nozzle Kit | ||
 | Part Number: | PT10011200 |
| Sagola Mini Xtreme: 1.00 Needle & Nozzle Kit (not compatible with Mini TECH Aircap) | ||
| Part Number: | PT10011201 |
| Sagola Mini Xtreme: 1.20 Needle & Nozzle Kit | ||
| Part Number: | PT10011202 |
| Paint Packing Nut | ||
 | Part Number: | PT56411616 |
| Filter Holder with Swivel Coupling | ||
 | Part Number: | PT56410110 |
| Filter Holder with Swivel Coupling & Product Tube | ||
 | Part Number: | PT56418057 |
| 150mm 0.80; Mini Xtreme Series Extension | ||
 | Part Number: | PT52411713 |
| 150mm 1.00; Mini Xtreme Series Extension | ||
| Part Number: | PT52411714 |
| 150mm 1.20; Mini Xtreme Series Extension | ||
| Part Number: | PT52411715 |
| 300mm 0.80; Mini Xtreme Series Extension | ||
| Part Number: | PT52411717 |
| 300mm 1.00; Mini Xtreme Series Extension | ||
| Part Number: | PT52411718 |
| 300mm 1.20; Mini Xtreme Series Extension | ||
| Part Number: | PT52411719 |
| Air Valve Kit | ||
| Part Number: | PT56418445 | |
| Air Gasket Replacement Kit (x6) | ||
| Part Number: | PT56418441 | |
| SAGOLA Mini Xtreme: Mini VIT Aircap | ||
 | Part Number: | PT56418560 |
