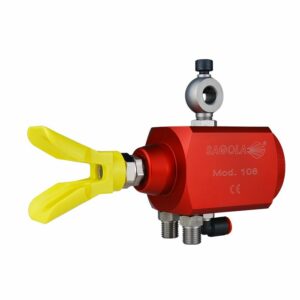

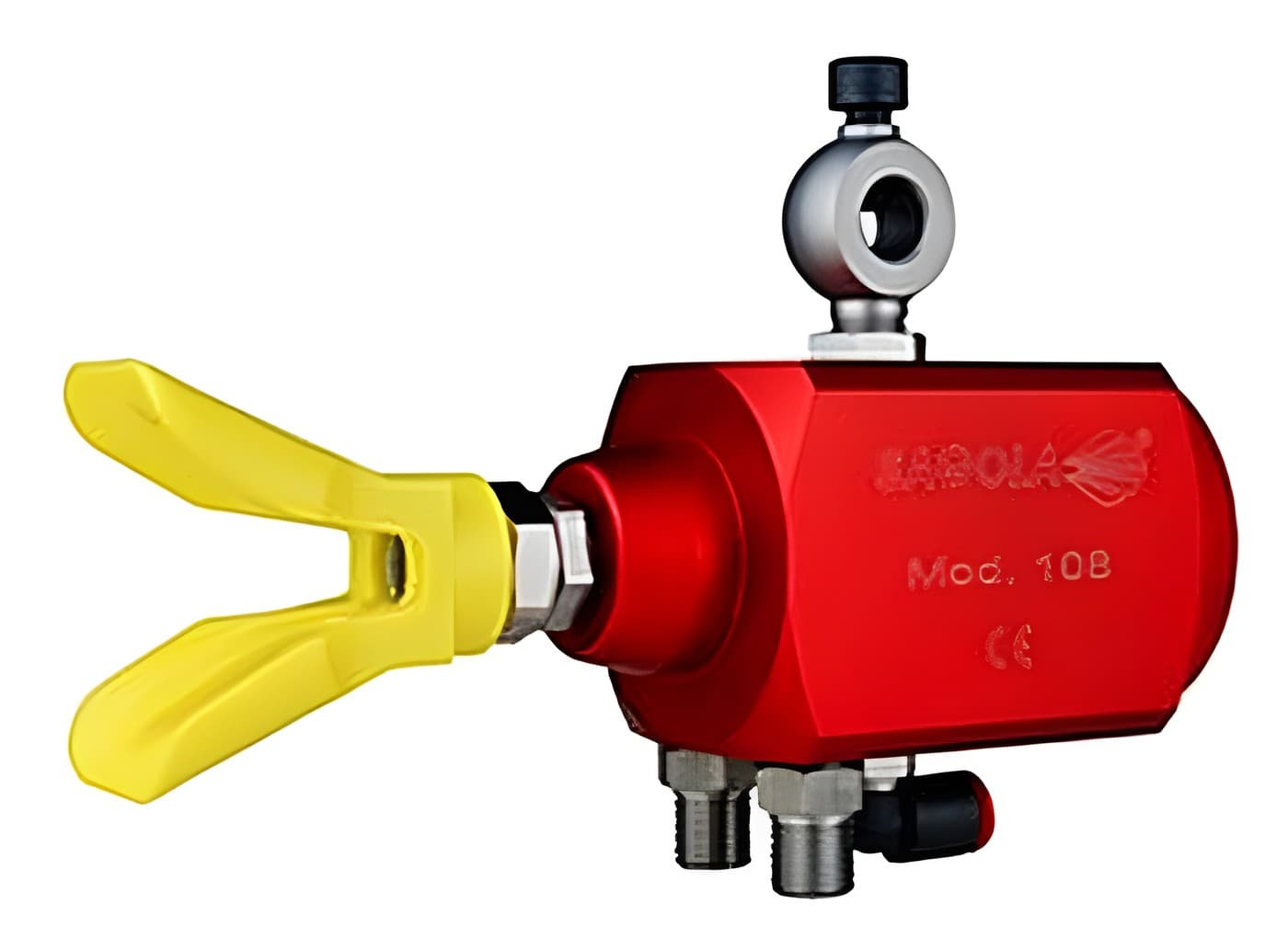

Sagola PSAA 108 Airless Automatic Spray Gun

Product Description


The Sagola 108 PSAA is an automatic airless spray gun to use with all types of medium and high viscosity products up to 300bar.

High viscosity products
working up to 300bar the Sagola 108 PSAA is ideal for high viscosity product application.

Low maintenance
tungsten carbide closures.

Reversible and fixed tips
for high quality spraying, whatever the coating.



Specifications

Dimensions178 x 59 x 81mm
Weight817g
Operation inlet connection8mm
Product Inlet ConnectionBSP 1/4″
Minimum operational pressure3.5bar
Recommended maximum air pressureMaximum fluid pressure 300bar
Materials in contact with the productStainless Steel, nylon, anodized aluminium, viton, tungsten carbide
Recommended application distance18 – 20cm

Data Sheet

Sagola PSAA 108 Airless Automatic Spray Gun Data Sheet

Part Numbers


Sagola 108 PSAA Automatic Airless Spray Gun with Fixed Airless Spray Tip Guard

Part Number : PG30270101

Sagola PSAM 107 & PSAA 108 Product Needle & Nozzle Kit Kit (including washers)

PT30010013
