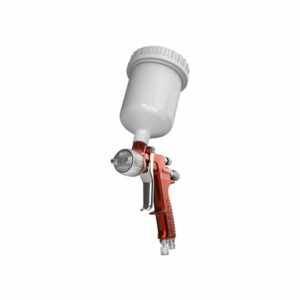

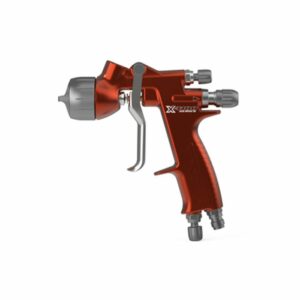

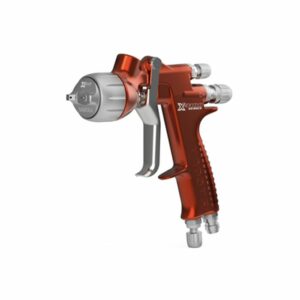

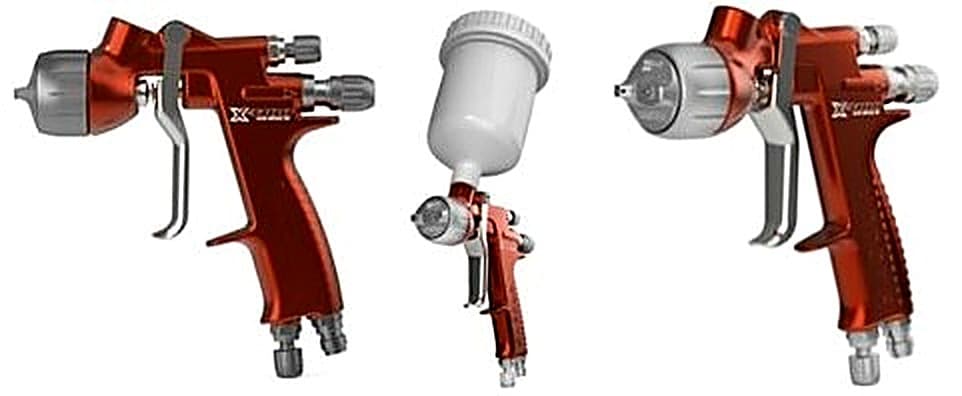

Sagola X 4100 Gravity Spray Gun
Product Description
Engineered for the most demanding industrial bodyshop the Sagola X 4100 Gravity Spray Gun is ergonomic, robust and offers a high quality finish. Ideal for industrial vehicles, trailers and coachwork, the Sagola X 4100 has been designed for high production industrial bodyshops. Ergonomically balanced for continuous all-day use and easy to clean with minimal maintenance. The Sagola X 4100 Aircap range consists of conventional and HVLP aircaps for perfect colour matching and finishes with basecoats, clearcoats and one coat systems. The Sagola X 4100 is available to purchase as a complete kit with the aircap, needle and nozzle specified supplied and fitted. Alternatively, as the spray gun is universal and can be used with any of the aircaps in the X range, all items can be purchased separately to meet your specific requirements.
Key Features:
- High transfer aluminium aircaps
Wide range of high resistance aluminium aircaps. HVLP and conventional (CA) models to fit your spraying needs.
- Consistent quality finish guaranteed
1. Interchangeable stainless steel nozzles for optimum paint flow, fast and smooth application.
2. Interchangeable colour coded aluminium aircaps available in high transfer EPA and HVLP, perfect for colour matching and finish with basecoats, clearcoats and one coat systems.
3. There are no metallic or plastic external parts used for air distribution, making the cleaning process easier.
4. High precision “soft flow” air valve allows accurate set up of air pressure without wasting paint.
NO PAINT SPRAYING IS REQUIRED.
– meaning no paint is wasted whilst setting up optimal spray pattern.
- Low maintenance
5. Manufactured without gaskets or seals in the product area. No air diffusers, no blind chambers, no threads in contact with paint. Just metal in contact with metal. Extremely easy to clean, extremely easy to maintain.
6. Manufactured with only one single piece automatic paint packing gland minimising potential damage and breakage and much easier to remove when cleaning the gun.
- Making the sprayer’s job easier
7. Anodized forged aluminium body; ergonomic, light and perfectly balanced. Great robustness and high protection against corrosion.
8. Ergonomically designed stainless steel trigger reducing operator discomfort and fatigue. Ultra-ergonomic design.
9. Product regulator. Great sensitivity in adjusting the amount of material to apply.
- Sagola X 4100 Kit Contents
Each Sagola X 4100 is supplied with:
1. Aircap, needle & nozzle kit (supplied fitted)
2. 650ml reusable plastic gravity cup with product filter
3. Wrench for removing and fitting the nozzle and all servicing needs
4. Cleaning brush
5. Key assembly for changing the air valve
Product Features
| X SERIES XT01 Conventional (CA) Aircap Ideal for basecoats, clearcoats, primers and fillers |
||||||
|---|---|---|---|---|---|---|
| Needle & Nozzle | Ideal for use with: | Working Pressure Range | Air Consumption at 2bar | Output Flow (average) | Application Distance | Fan Width (max) |
| 1.30 (1.30mm) |
Basecoats | 1.8 – 2.2bar | 235l/min | 171g/min | 18 – 20cm | 250mm |
| 1.40 (1.40mm) |
Basecoats, Clearcoats Single Stage |
1.8 – 2.2bar | 235l/min | 175g/min | 18 – 20cm | 255mm |
| 1.60 (1.60mm) |
Fillers | 1.8 – 2.2bar | 235l/min | 209g/min | 18 – 20cm | 285mm |
| X SERIES X96 Conventional (CA) Aircap Ideal for basecoats, clearcoats, single stage and fillers |
||||||
|---|---|---|---|---|---|---|
| Needle & Nozzle | Ideal for use with: | Working Pressure Range | Air Consumption at 2bar | Output Flow (average) | Application Distance | Fan Width (max) |
| 1.30 (1.30mm) |
Basecoats | 1.8 – 2.2bar | 250LPM | 177g/min | 18 – 20cm | 260mm |
| 1.40 (1.40mm) |
Clearcoats Single Stage |
1.8 – 2.2bar | 250LPM | 178g/min | 18 – 20cm | 270mm |
| 1.60 (1.60mm) |
Fillers | 1.8 – 2.2bar | 250LPM | 216g/min | 18 – 20cm | 310mm |
| 1.80 (1.80mm) |
Fillers | 1.8 – 2.2bar | 250LPM | 293g/min | 18 – 20cm | 380mm |
| X SERIES XT03 High Volume Low Pressure (HVLP) Aircap For high volume and low pressure applications – ideal for basecoats or fillers |
||||||
|---|---|---|---|---|---|---|
| Needle & Nozzle | Ideal for use with: | Working Pressure Range | Air Consumption at 2bar | Output Flow (average) | Application Distance | Fan Width (max) |
| 1.30 (1.30mm) |
Basecoats | 1.8 – 2.0bar | 465LPM | 139g/min | 12 – 15cm | 240mm |
| 1.40 (1.40mm) |
Basecoats | 1.8 – 2.0bar | 465LPM | 143g/min | 12 – 15cm | 245mm |
| 1.60 (1.60mm) |
Fillers | 1.8 – 2.0bar | 465LPM | 165g/min | 12 – 15cm | 270mm |
| 1.80 (1.80) |
Fillers | 1.8 – 2.0bar | 465LPM | 202g/min | 12 – 15cm | 295mm |
| X SERIES 64S Conventional (CA) Aircap For high viscosity products |
||||||
|---|---|---|---|---|---|---|
| Needle & Nozzle | Ideal for use with: | Working Pressure Range | Air Consumption at 2bar | Output Flow (average) | Application Distance | Fan Width (max) |
| 2.20 (2.20mm) |
Putty Fillers | 2.0 – 2.5bar | 305LPM | 290g/min | 18 – 20cm | 280mm |
Specifications
| Model | Sagola X 4100 Series |
| Cup Capacity | 650ml |
| Cup Type | Removable Anti-Drip System |
| Air Inlet Couplings | 6.35mm Male BSP |
| Paint Filter | 100 mesh |
| Weight with Supplied Cup | 692g |
| Weight without Cup | 502g |
| Dimensions with Cup | 340 x 170 x 42mm |
| Sound Pressure Level (Average) | 80 dB |
| Compliance | ATEX II 2G x (Directive 2014/34/EU) |
Data Sheet
Part Numbers
 |
Sagola X 4100 Series Gravity Spray Gun, XT01 X Series Aircap – 1.30mm Needle & Nozzle Kit
|
|
| This Sagola X 4100 Series Gravity Spray Gun is supplied with a 1.30mm Needle and Nozzle size and an XT01 X Series Conventional (CA) Aircap, which is ideal for basecoats. | ||
| Needle & Nozzle Size: 1.30 (1.30mm) | ||
| X 4100 Series Aircap Type: XT01 X Series | ||
| Part Number : PG10142004 | ||
|
|
Sagola X 4100 Series Gravity Spray Gun, XT01 X Series Aircap – 1.40mm Needle & Nozzle Kit
|
|
| This Sagola X 4100 Series Gravity Spray Gun is supplied with a 1.40mm Needle and Nozzle size and an XT01 X Series Conventional (CA) Aircap, which is ideal for basecoats, clearcoats and one coat systems. | ||
| Needle & Nozzle Size: 1.40 (1.40mm) | ||
| X 4100 Series Aircap Type: XT01 X Series | ||
| Part Number : PG10142005 | ||
|
|
Sagola X 4100 Series Gravity Spray Gun, XT01 X Series Aircap – 1.60mm Needle & Nozzle Kit
|
|
| This Sagola X 4100 Series Gravity Spray Gun is supplied with a 1.60mm Needle and Nozzle size and an XT01 X Series Conventional (CA) Aircap, which is ideal for fillers. | ||
| Needle & Nozzle Size: 1.60 (1.60mm) | ||
| X 4100 Series Aircap Type: XT01 X Series | ||
| Part Number : PG10142006 | ||
|
|
Sagola X 4100 Series Gravity Spray Gun, X96 X Series Aircap – 1.30mm Needle & Nozzle Kit
|
|
| This Sagola X 4100 Series Gravity Spray Gun is supplied with a 1.30mm Needle and Nozzle size and an X96 X Series Conventional (CA) Aircap, which is ideal for basecoats. | ||
| Needle & Nozzle Size: 1.30 (1.30mm) | ||
| X 4100 Series Aircap Type: X96 X Series | ||
| Part Number : PG10142012 | ||
|
|
Sagola X 4100 Series Gravity Spray Gun, X96 X Series Aircap – 1.40mm Needle & Nozzle Kit
|
|
| This Sagola X 4100 Series Gravity Spray Gun is supplied with a 1.40mm Needle and Nozzle size and an X96 X Series Conventional (CA) Aircap, which is ideal for clearcoats and single stage. | ||
| Needle & Nozzle Size: 1.40 (1.40mm) | ||
| X 4100 Series Aircap Type: X96 X Series | ||
| Part Number : PG10142001 | ||
|
|
Sagola X 4100 Series Gravity Spray Gun, X96 X Series Aircap – 1.60mm Needle & Nozzle Kit
|
|
| This Sagola X 4100 Series Gravity Spray Gun is supplied with a 1.60mm Needle and Nozzle size and an X96 X Series Conventional (CA) Aircap, which is ideal for fillers. | ||
| Needle & Nozzle Size: 1.60 (1.60mm) | ||
| X 4100 Series Aircap Type: X96 X Series | ||
| Part Number : PG10142002 | ||
|
|
Sagola X 4100 Series Gravity Spray Gun, X96 X Series Aircap – 1.80mm Needle & Nozzle Kit
|
|
| This Sagola X 4100 Series Gravity Spray Gun is supplied with a 1.80mm Needle and Nozzle size and an X96 X Series Conventional (CA) Aircap, which is ideal for fillers. | ||
| Needle & Nozzle Size: 1.80 (1.80mm) | ||
| X 4100 Series Aircap Type: X96 X Series | ||
| Part Number : PG10142003 | ||
|
|
Sagola X 4100 Series Gravity Spray Gun, XT03 X Series Aircap – 1.30mm Needle & Nozzle Kit
|
|
| This Sagola X 4100 Series Gravity Spray Gun is supplied with a 1.30mm Needle and Nozzle size and an XT03 X Series High Volume Low Pressure (HVLP) Aircap, which is ideal for basecoats | ||
| Needle & Nozzle Size: 1.30 (1.30mm) | ||
| X 4100 Series Aircap Type: XT03 X Series | ||
| Part Number : PG10142007 | ||
|
|
Sagola X 4100 Series Gravity Spray Gun, XT03 X Series Aircap – 1.40mm Needle & Nozzle Kit
|
|
| This Sagola X 4100 Series Gravity Spray Gun is supplied with a 1.40mm Needle and Nozzle size and an XT03 X Series High Volume Low Pressure (HVLP) Aircap, which is ideal for basecoats | ||
| Needle & Nozzle Size: 1.40 (1.40mm) | ||
| X 4100 Series Aircap Type: XT03 X Series | ||
| Part Number : PG10142008 | ||
|
|
Sagola X 4100 Series Gravity Spray Gun, XT03 X Series Aircap – 1.60mm Needle & Nozzle Kit
|
|
| This Sagola X 4100 Series Gravity Spray Gun is supplied with a 1.60mm Needle and Nozzle size and an XT03 X Series High Volume Low Pressure (HVLP) Aircap, which is ideal for fillers | ||
| Needle & Nozzle Size: 1.60 (1.60mm) | ||
| X 4100 Series Aircap Type: XT03 X Series | ||
| Part Number : PG10142009 | ||
|
|
Sagola X 4100 Series Gravity Spray Gun, XT03 X Series Aircap – 1.80mm Needle & Nozzle Kit
|
|
| This Sagola X 4100 Series Gravity Spray Gun is supplied with a 1.80mm Needle and Nozzle size and an XT03 X Series High Volume Low Pressure (HVLP) Aircap, which is ideal for fillers. | ||
| Needle & Nozzle Size: 1.80 (1.80mm) | ||
| X 4100 Series Aircap Type: XT03 X Series | ||
| Part Number : PG10142010 | ||
|
|
Sagola X 4100 Series Gravity Spray Gun, X64S X Series Aircap – 2.20mm Needle & Nozzle Kit
|
|
| This Sagola X 4100 Series Gravity Spray Gun is supplied with a 2.20mm Needle and Nozzle size and an X64S X Series Conventional (CA) Aircap, which is ideal for putty fillers. | ||
| Needle & Nozzle Size: 2.20 (2.20mm) | ||
| X 4100 Series Aircap Type: X64S X Series | ||
| Part Number : PG10142011 |
Accessories
| Reusable Gravity Cup – Aluminium | ||
 |
Part Number: | PT56418082 |
| 1 Litre | ||
| Spray Gun Cleaning Kit | ||
 |
Part Number: | PT40000086 |
| Spray Gun & Accessories Locker | ||
 |
Part Number: | PT70000010 |
| Coupling for Disposable Gravity Cup – 3M PPS | ||
 |
Part Number: | PT55711612 |
| Coupling for Disposable Gravity Cup – MIPA-CARWOX | ||
 |
Part Number: | PT55711616 |
| Coupling for Disposable Gravity Cup – GERSON-NORTON | ||
 |
Part Number: | PT55711614 |
| Coupling for Disposable Gravity Cup – FLEXI-CUP | ||
 |
Part Number: | PT55711615 |
| Coupling for Disposable Gravity Cup – DEVILBISS-DEKUPS | ||
 |
Part Number: | PT55711618 |
| Coupling for Disposable Gravity Cup – SATA RPS | ||
 |
Part Number: | PT55711620 |
| Sagola X 4100 series: 1.30 Needle & Nozzle Kit | ||
 |
Part Number: | PT10011121 |
| Sagola X 4100 series: 1.40 Needle & Nozzle Kit | ||
|
|
Part Number: | PT10011122 |
| Sagola X 4100 series: 1.60 Needle & Nozzle Kit | ||
|
|
Part Number: | PT10011123 |
| Sagola X 4100 series: 1.80mm Needle & Nozzle Kit | ||
|
|
Part Number: | PT10011124 |
| Sagola X 4100 series: 2.20 Needle & Nozzle Kit | ||
|
|
Part Number: | PT10011126 |
| Air Valve Kit | ||
 |
Part Number: | PT56418669 |
| Paint Packing Nut | ||
 |
Part Number: | PT56411616 |
| Air Gasket Replacement Kit (x6) | ||
 |
Part Number: | PT56418494 |
| Sagola X 4100 Series: 1.00mm Needle & Nozzle Kit | ||
 |
Part Number: | PT10011252 |
| Sagola X 4100 Series: 1.20mm Needle & Nozzle Kit | ||
|
|
Part Number: | PT10011253 |
| Sagola X 4100 Series: 0.80mm Needle & Nozzle Kit | ||
|
|
Part Number: | PT10011251 |
