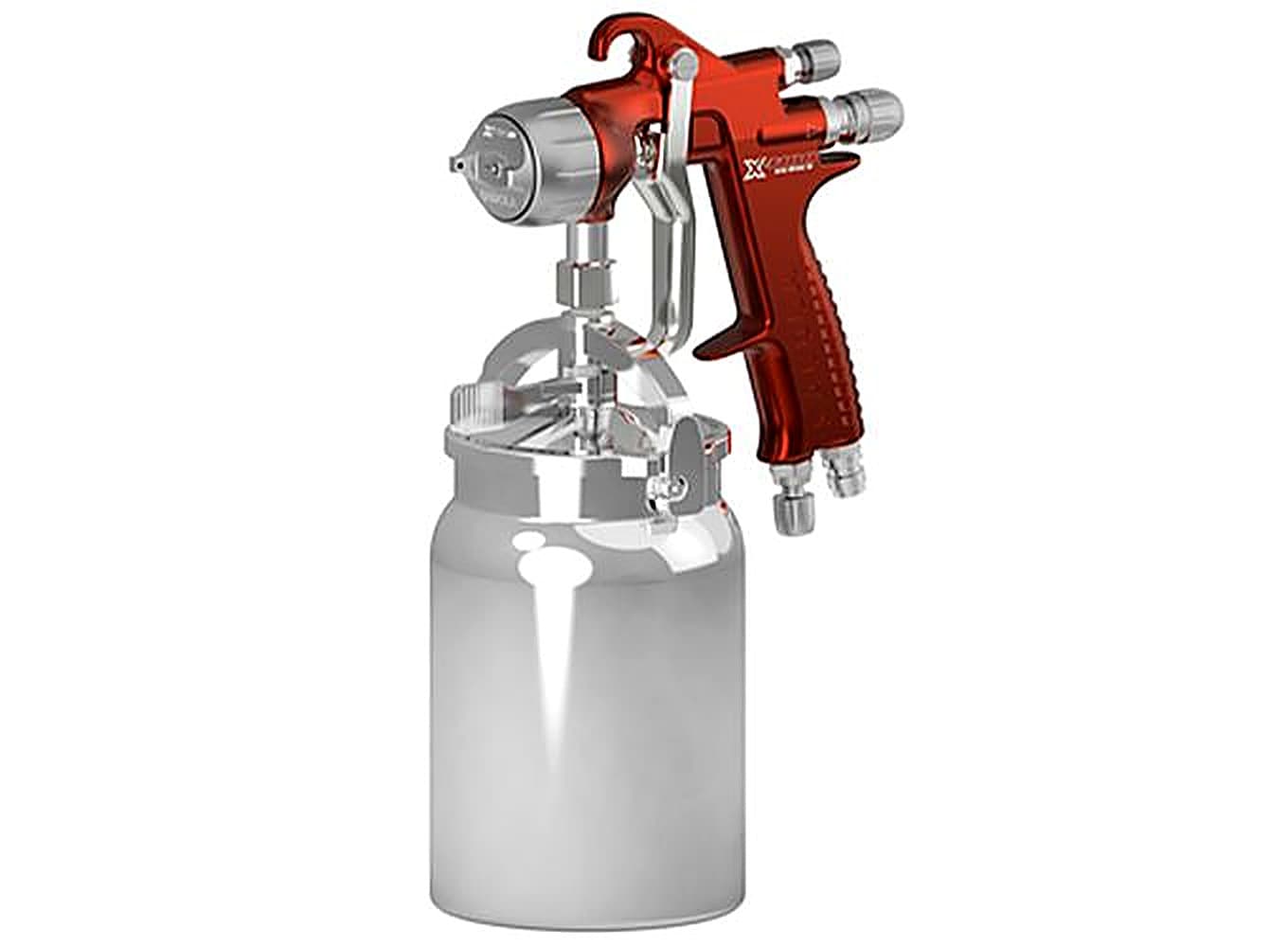

Sagola X 4100 Series Suction Spray Gun
Product Description
The Sagola X 4100 Series Suction Spray Gun provides high speed application with a high quality finish.
To reduce fatigue and improve usability the size and weight of the Sagola X 4100 has been reduced and the centre of gravity altered to make it more comfortable.
As well as the ‘soft flow’ air valve that provides the ultimate feeling of control on the trigger at any air inlet pressure, the product regulator allows fingertip adjustment of the amount of product you want to apply whilst the progressive fan regulator allows you to alter the pattern size to suit your needs.
The large capacity and application speed of the Sagola X 4100 means its ideal for spraying large areas, machinery or industrial vehicles.
With a range of aircaps to fit any spraying need the durable anodized aluminium aircaps are corrosion resistant – ideal for tough environments.
Features
• Engineering excellence: All products are quality tested before they leave the factory
• Interchangeable aircaps, Needles & nozzles for a high quality spray, whatever the coating
• 3 Year Warranty with minimal maintenance required
| X Series Conventional (CA) Aircap – Ideal for basecoats, primers and fillers. | ||||||
| Needle & Nozzle | Ideal for use with: | Working Pressure Range | Air Consumption at 2bar | Output Flow (average) | Application Distance | Fan Width (max) |
| 1.4mm [96] | Basecoats | 2.0 – 2.2bar | 280LPM | 168g/min | 18 – 20cm | 235mm |
| 1.6mm [96] | Clearcoats | 2.0 – 2.5bar | 280LPM | 235g/min | 18 – 20cm | 295mm |
| Single Stage | ||||||
| 1.8mm [96] | Primers & Fillers | 2.0 – 2.5bar | 280LPM | 228g/min | 18 – 20cm | 285mm |
| 1.6mm [XT01] | Washprimers | 2.0 – 2.5bar | 295LPM | 241g/min | 18 – 20cm | 305mm |
| 1.8mm [XT01] | Primers & Fillers | 2.0 – 3.0bar | 295LPM | 234g/min | 18 – 20cm | 295mm |
Specifications
Sagola X 4100 Series Suction Spray Gun-Specifications
| Model | Sagola X 4100 Series | ||
| Cup Capacity | 1 litre | Cup Type | Aluminium Suction Cup |
| Air Inlet Couplings | 6.35mm Male BSP | Paint Filter | 250 microns |
| Weight with Supplied Cup | 895g | Weight without Cup | 502g |
| Dimensions without Cup (W x D x H) | 200 x 170 x 42mm | ||
| Compliance | ATEX II 2G x (Directive 2014/34/EU) |
Data Sheet
Sagola X 4100 Series Suction Spray Gun-Data Sheet
Sagola X 4100 Series Suction Spray Gun Data Sheet
Part Numbers
Sagola X 4100 Series Suction Spray Gun-Part Numbers
 |
Sagola X 4100 Series Suction Spray Gun, 96 X Series Aircap – 1.40mm Needle & Nozzle Kit |
| Needle & Nozzle Size: 1.40 (1.40mm) | |
| X 4100 Series Aircap Type: 96 X Series | |
| Part Number: PG10121001 | |
|
Sagola X 4100 Series Suction Spray Gun, 96 X Series Aircap – 1.60mm Needle & Nozzle Kit |
| Needle & Nozzle Size: 1.60 (1.60mm) | |
| X 4100 Series Aircap Type: 96 X Series | |
| Part Number: PG10121006 | |
|
Sagola X 4100 Series Suction Spray Gun, 96 X Series Aircap – 1.80mm Needle & Nozzle Kit |
| Needle & Nozzle Size: 1.80 (1.80mm) | |
| X 4100 Series Aircap Type: 96 X Series | |
| Part Number: PG10121003 | |
|
Sagola X 4100 Series Suction Spray Gun, XT01 X Series Aircap – 1.60mm Needle & Nozzle Kit |
| Needle & Nozzle Size: 1.60 (1.60mm) | |
| X 4100 Series Aircap Type: XT01 X Series | |
| Part Number: PG10121007 | |
|
Sagola X 4100 Series Suction Spray Gun, XT01 X Series Aircap – 1.80mm Needle & Nozzle Kit |
| Needle & Nozzle Size: 1.80 (1.80mm) | |
| X 4100 Series Aircap Type: XT01 X Series | |
| Part Number: PG10121005 |
Accessories
Sagola X 4100 Series Suction Spray Gun-Accessories

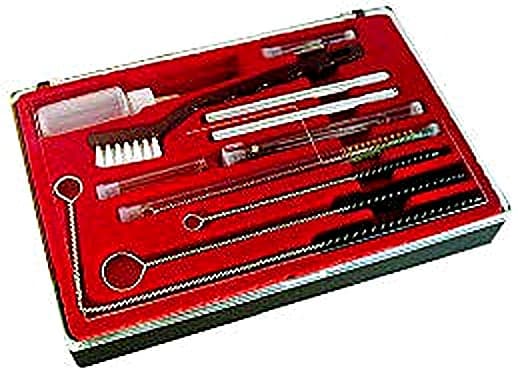

| Spray Gun Cleaning Kit | ||
 |
Part Number: | PT40000086 |

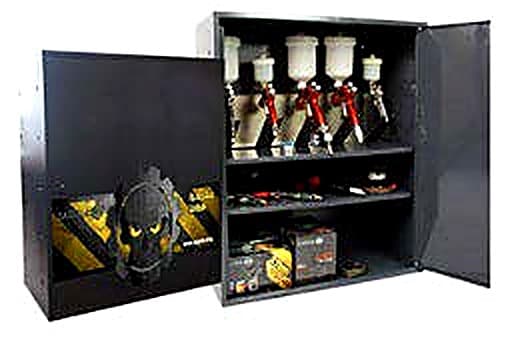

| Spray Gun & Accessories Locker | ||
 |
Part Number: | PT70000010 |
| Sagola X 4100 series: 1.80mm Needle & Nozzle Kit | ||
 |
Part Number: | PT10011124 |
| Paint Packing Nut | ||
 |
Part Number: | PT10011616 |
| Air Valve Kit | ||
| Part Number: | PT56418445 | |
| Air Gasket Replacement Kit (x6) | ||
| Part Number: | PT56418441 | |
| Reusable Suction Cup – Aluminium; 1 Litre | ||
 |
Part Number: | PT56418074 |
| Product Filter Kit (x10) | ||
 |
Part Number: | PT56418014 |
| Anti-drip Lid Kit (x5) | ||
 |
Part Number: | PT56418013 |
| Deposit Closure Flanged Washer | ||
| Part Number: | PT56418509 | |
| Sagola X 4100 Suction: 96 X Series Aircap | ||
| Part Number: | PT56418573 | |
| Sagola X 4100 Series: 1.40mm Needle & Nozzle Kit | ||
| Part Number: | PT56418565 | |
| Sagola X 4100 Series: 1.60mm Needle & Nozzle Kit | ||
|
Part Number: | PT10011155 |
