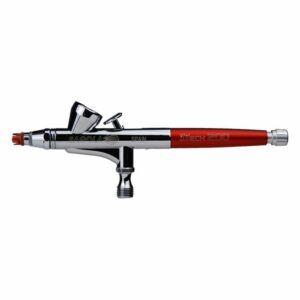

Sagola XTech 200 Airbrush
Specialist pick
Image 1 / 1
About this product

The Sagola XTech 200 Airbrush (part numbers PT17410601 and PT17410602) is a precision airbrush in the Sagola XTech range, built for design work, smooth feathering, part retouching and part marking with high accuracy. Detailed work such as custom automotive paint, fine-line illustration and graphic design needs an airbrush that holds a controllable line while still carrying enough paint to work without constant refilling, and the Sagola XTech 200 Airbrush sits in that middle ground of the range.

The Sagola XTech 200 Airbrush is available with a 0.2 mm or 0.3 mm needle and nozzle set-up, giving a fine spray for high precision, with the larger nozzle suited to slightly broader detail work. The 1.5 ml cup capacity of the Sagola XTech 200 Airbrush handles medium amounts of paint, cleans easily and allows quick colour changes. The needle closing and packing are made of Teflon, and a highly precise, smooth air and product valve gives the controlled trigger response detail work depends on.

The Sagola XTech 200 Airbrush runs at a working pressure of 1 to 2 bar through a 3.17 mm male BSP air inlet, and is supplied with its 1.5 ml cup, aircap and the chosen 0.2 mm or 0.3 mm needle and nozzle kit fitted. Used by custom painters, illustrators and modelmakers, and supplied by BAMR, South Africa's authorised Sagola distributor.

Sagola

Sagola XTech 200 Airbrush

SKU · PT17410601 (+1 more - see Part Numbers)

The Sagola XTech 200 airbrushes ensure precision design, smooth feathering, part retouching and marking with incredible accuracy.

  • 0.2mm or 0.3mm needle and nozzle set up offers a fine spray, for high precision
  • 1.5ml capacity to use with medium amounts of paint. Easy to clean. Ideal for quick colour changes
  • Needle closing and packing made of Teflon
  • Highly precise, smooth air and product valve
Indicative price
POA
Specialist-built quote, by close of business
Or ask a quick question on WhatsApp
Used by inspection teams in
RefiningMarineMiningBridge / civil
Specifications

Specifications

Nozzle
0.20 - 0.30mm
Cup Capacity
1.5ml
Working Pressure
1 - 2bar
Air Inlet Connection
3.17mm Male BSP
Packing List
XTech 200 Airbrush with 1.5ml Cup complete with Aircap and 0.2mm or 0.3mm Needle & Nozzle Kit (supplied fitted)
What's in the kit

What's in the kit

XTech 200 Airbrush with 1.5ml Cup
complete with Aircap and 0.2mm or 0.3mm Needle & Nozzle Kit (supplied fitted)
Accessories

Accessories

Airbrush Clean 3N1. Cleaning Recipient
PT40000241
Airbrush Clean 3N1. Cleaning Recipient
PT70000008
Multi-Airbrush Rack (4 airbrushes capacity)
PT40000344
Multi-airbrush Rack
PT40000242
Plug & Air Regulator Kit; M - F BSPP 1/8
PT11011603
Plug & Connector Kit; M - F BSPP 1/8"
PT11011601
Plug & Connector Kit; F 1/8" at Ø4 BSPP (Barb.)
PT11011602
3m Textile Air Hose; Connector 1/8" F - 1/8" M
PT56414203
3m Textile Air Hose; Connector 1/4" F - 1/8" M
PT56414209
Aircap & 0.2mm Needle & Nozzle Kit for XTech 200
PT49000583
Aircap & 0.3mm Needle & Nozzle Kit for XTech 200 - 500
PT49000584
Aircap for XTech 200 - 500
PT49000588
Part Numbers

Part Numbers

DescriptionPart Numbers
Sagola XTech 200 Airbrush, 0.2mm Needle & Nozzle Kit
PT17410601
Sagola XTech 200 Airbrush, 0.3mm Needle & Nozzle Kit
PT17410602
Downloads
Answers

Frequently asked questions

What nozzle options are available for the XTech 200?

The airbrush comes fitted with either a 0.2mm or 0.3mm needle and nozzle kit. Replacement kits for both sizes are available as separate accessories if you need to switch.

What air pressure does the XTech 200 need?

Working pressure is 1 to 2 bar. Your air supply and regulator must deliver this pressure range for correct operation.

What's the air inlet connection type?

The XTech 200 has a 3.17mm male BSP connection. Sagola offers connector and regulator kits designed to integrate with standard workshop air systems.

What is the cup capacity?

The reservoir holds 1.5ml. This suits precision work where small quantities of coating or finishing material are applied per application.

What applications is the XTech 200 designed for?

The airbrush is designed for precision design work, smooth feathering, part retouching and marking. These applications cover both initial application and finishing work.
