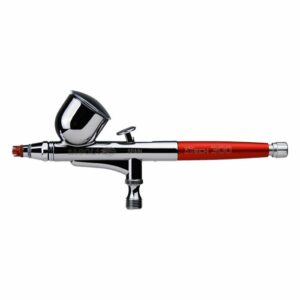

The Sagola XTech 300 Airbrush (part number PT17410701) is a precision airbrush in the Sagola XTech range for design work, smooth feathering, part retouching and part marking with high accuracy. Detail work such as custom automotive paint, fine-line illustration and graphic design calls for an airbrush that holds a controllable line, and the XTech 300 pairs that control with a larger cup for longer runs between refills.
A 0.3 mm needle and nozzle set-up gives a fine spray with good precision. The 5 ml cup capacity lets the user work with any paint quantity while keeping the easy cleaning and quick colour change the Sagola XTech 300 Airbrush is known for. The needle closing and packing are made of Teflon, and a highly precise, smooth air and product valve provides the controlled trigger response that detail work depends on.
The Sagola XTech 300 Airbrush runs at a working pressure of 1 to 2 bar through a 3.17 mm male BSP air inlet, and is supplied with its 5 ml cup, aircap and the 0.3 mm needle and nozzle kit fitted. Used by custom painters, illustrators and modelmakers, and supplied by BAMR, South Africa's authorised Sagola distributor.

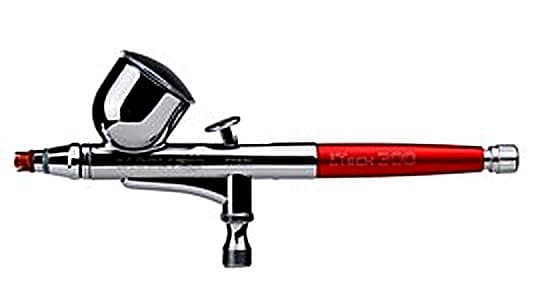

Sagola XTech 300 Airbrush
The Sagola XTech 300 airbrushes ensure precision design, smooth feathering, part retouching and marking with incredible accuracy.
- 0.3mm needle and nozzle set up Offers a fine spray and good precision.
- 5ml capacity Maintains the advantage of easy cleaning and colour change.
- Needle closing and packing made of Teflon
- Highly precise, smooth air and product valve
Specifications
- Part Number
- PT17410701
- Description
- Sagola XTech 300 Airbrush, 0.3mm Needle & Nozzle Kit
- Nozzle
- 0.30mm
- Cup Capacity
- 5ml
- Working Pressure
- 1 - 2bar
- Air Inlet Connection
- 3.17mm Male BSP
- Packing List
- XTech 300 Airbrush with 5ml Cup complete with Aircap and 0.3mm Needle & Nozzle Kit (supplied fitted)
Specifications
Specifications
- Part Number
- PT17410701
- Description
- Sagola XTech 300 Airbrush, 0.3mm Needle & Nozzle Kit
- Nozzle
- 0.30mm
- Cup Capacity
- 5ml
- Working Pressure
- 1 - 2bar
- Air Inlet Connection
- 3.17mm Male BSP
- Packing List
- XTech 300 Airbrush with 5ml Cup complete with Aircap and 0.3mm Needle & Nozzle Kit (supplied fitted)
Accessories
Accessories
- Airbrush Clean 3N1. Cleaning Recipient
- PT40000241
- Airbrush Clean 3N1. Cleaning Recipient
- PT70000008
- Multi-Airbrush Rack (4 airbrushes capacity)
- PT40000344
- Multi-airbrush Rack
- PT40000242
- XTech Airbrush Aircap Head Protector
- PT52710051
- Plug & Connector Kit; M - F BSPP 1/8"
- PT11011601
- Plug & Connector Kit; F 1/8" at Ø4 BSPP (Barb.)
- PT11011602
- 3m Textile Air Hose; Connector 1/8" F - 1/8" M
- PT56414203
- Aircap & 0.3mm Needle & Nozzle Kit for XTech 200 - 500
- PT49000584
- Aircap for XTech 200 - 500
- PT49000588
- Aircap & 0.3mm Needle & Nozzle Kit for XTech 200 - 500
- PT49000584
- Aircap for XTech 200 - 500
- PT49000588
Part Numbers
Part Numbers
| Description | Part Numbers |
|---|---|
| Sagola XTech 300 Airbrush, 0.3mm Needle & Nozzle Kit | PT17410701 |
Downloads
Frequently asked questions
What applications is the 0.3mm nozzle designed for?
The XTech 300 with 0.3mm nozzle is designed for precision design, smooth feathering, part retouching and marking. The fine orifice delivers excellent accuracy for detailed work and fine line control.
What air pressure does the XTech 300 require?
Working pressure is 1 to 2 bar. Ensure your air supply and regulator can deliver consistent pressure in this range for optimal spray pattern and material atomisation.
Will the XTech 300 fit my existing air line setup?
The airbrush has a 3.17mm Male BSP air inlet connection. Check your current air hose or connector fittings match this spec. BAMR stocks connector kits if you need to adapt your line.
How much material can the cup hold?
The cup capacity is 5ml. For extended spray work or production runs, you may need to refill regularly. Consider a larger-capacity airbrush if material volume is a constraint.
Can I change the needle and nozzle on the XTech 300?
Yes. The kit supplies a 0.3mm needle and nozzle fitted as standard. BAMR stocks replacement aircap and needle/nozzle kits compatible with the XTech range if you need to switch sizes.
