The Sagola Spot Repair Kit (part numbers PG10141708, PG10141709 and PG10141710) is a complete spray-finishing kit for spot and SMART (Small and Medium Area Repair Technique) repairs, touch-ups of small to large panels, and spraying smaller panels and parts. The aim is to complete jobs faster while using less material, which lowers both turnaround time and paint cost in a bodyshop.
The Sagola Spot Repair Kit is built around two Sagola Mini Xtreme spray guns, supplied with 1.00mm fluid nozzle sets: one configured for basecoat (Aqua air cap for water-based, HVLP air cap for solvent-based) and one for clearcoat (EPA air cap). A spare 1.2mm needle and nozzle kit handles UHS clearcoats, 2K topcoats, primers, UV primers and thicker basecoats, while a Mini Tech air cap with a 0.6mm needle and nozzle kit turns the gun into an airbrush for the finest retouches. Paint cups in 125ml and 200ml suit any size of repair.
Two premium Sagola RC1 flow regulators give precise air control for basecoats, drop coats and blending adjacent panels, supported by two 3M PPS disposable cup couplings and two steel connectors supplied in Euro Profile, US MIL or Nitto depending on the kit version. The Sagola Spot Repair Kit also includes 100ml of spray gun lubricant grease, colour-coded O-rings, a spray gun tool and cleaning brush, all laid out in a solid protective case. Supplied by BAMR, South Africa's authorised distributor of Sagola.

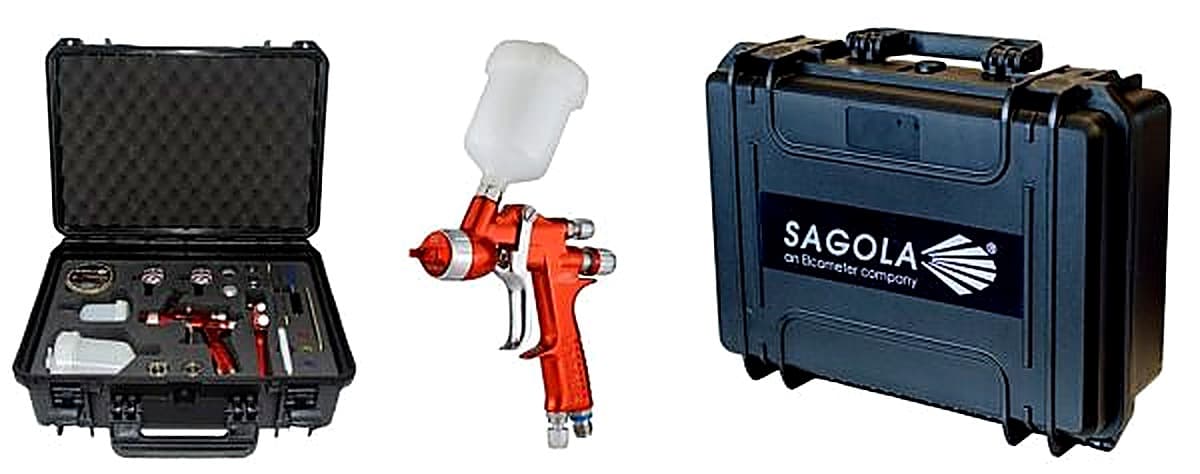

Sagola Spot Repair Kit
Complete jobs faster whilst using less material with the Sagola Spot Repair Kit - everything you need for spot and SMART (Small and Medium Area Repair Technique) repairs, touch ups of small to large panels and spraying smaller panels and parts in one easy-to-use kit!
- SIMPLY UNPACK, PLUG IN & PAINT! From nozzles and needles to air caps and cups - and everything in between. The complete system to allow you to carry out Spot & SMART repairs, complete panel repairs & micro repairs.

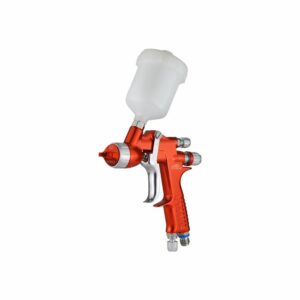

- INCLUDES TWO SAGOLA MINI XTREME SPRAY GUNS Lightweight, comfortable spray guns with easy fan pattern adjustment, excellent paint transfer efficiency, quality spray and quick maintenance.
- EVERYTHING YOU NEED IN ONE PLACE Everything you need for Spot repairs in one cost effective kit. Strong compact case keeps all your equipment together.

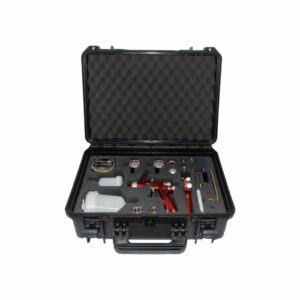

Kit Contents
- Two Sagola Mini Xtreme guns
- Complete with 1.00mm Fluid Nozzle sets: one for Basecoat (Aqua air cap for water based, HVLP air cap for solvent based) and one for Clearcoat (EPA air cap)
- Spare 1.2mm Needle/Nozzle kit
- For UHS clearcoats, 2K topcoats, primers, UV primers or thicker basecoats
- Mini Tech Air Cap
- With unique 0.6mm Needle/Nozzle kit, transforms the spray gun into an airbrush
- Paint Cups
- 125ml & 200ml suitable for any size repair
- Two premium Sagola RC1 Flow Regulators
- For precise control of air, crucial for applying basecoats, drop coats and blending adjacent panels
- Two 3M PPS Disposable Cup Couplings
- For paint cup attachment
- Two Steel Connectors
- Euro Profile, US MIL or Nitto options depending on kit version
- Spray Gun Lubricant Grease
- 100ml for threads to keep parts in perfect condition
- Colour Coded O Rings
- To personalise the guns for easier identification
- Spray Gun Tool & Cleaning Brush
- For maintenance and cleaning

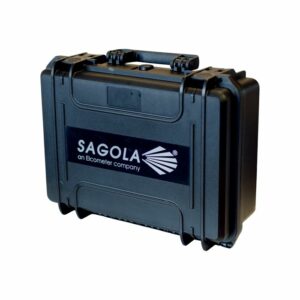

- Solid Protective Case
- Laid out to keep everything at hand
Specifications
- Sagola Mini Xtreme Gravity Spray Gun c/w Mini Aqua Aircap & 1.00mm Needle & Nozzle Kit
- PG10111802
- Sagola Mini Xtreme Gravity Spray Gun c/w Mini EPA Aircap & 1.00mm Needle & Nozzle Kit
- PG10111807
- Sagola Mini Xtreme Mini HVLP Aircap
- PT56418526
- Sagola Mini Xtreme Mini TECH Aircap
- PT56418598
- 1.20mm Needle & Nozzle Kit
- PT10011202
- 0.60mm Needle & Nozzle Kit for Mini TECH Aircap
- PT10011216
- 3M PPS Disposable Cup Coupling (x2)
- PT55711612
- RC1 Air Flow Regulator with Analogue Pressure Gauge (x2)
- PT56418020
- Euro Profile Steel Connector (x2) F-BSPP 1/4″ - Supplied in EURO Profile SMART Repair K...
- PT11020810
- US Mil Steel Connector (x2) F-BSPP 1/4″ - Supplied in US MIL SMART Repair Kit
- PT11020520
- Nitto Steel Connector (x2) F-BSPP 1/4″ - Supplied in NITTO SMART Repair Kit
- PT11021101
- Lubricating Grease, 100ml
- PT56418589
Specifications
Kit Contents
- Two Sagola Mini Xtreme guns
- Complete with 1.00mm Fluid Nozzle sets: one for Basecoat (Aqua air cap for water based, HVLP air cap for solvent based) and one for Clearcoat (EPA air cap)
- Spare 1.2mm Needle/Nozzle kit
- For UHS clearcoats, 2K topcoats, primers, UV primers or thicker basecoats
- Mini Tech Air Cap
- With unique 0.6mm Needle/Nozzle kit, transforms the spray gun into an airbrush
- Paint Cups
- 125ml & 200ml suitable for any size repair
- Two premium Sagola RC1 Flow Regulators
- For precise control of air, crucial for applying basecoats, drop coats and blending adjacent panels
- Two 3M PPS Disposable Cup Couplings
- For paint cup attachment
- Two Steel Connectors
- Euro Profile, US MIL or Nitto options depending on kit version
- Spray Gun Lubricant Grease
- 100ml for threads to keep parts in perfect condition
- Colour Coded O Rings
- To personalise the guns for easier identification
- Spray Gun Tool & Cleaning Brush
- For maintenance and cleaning
- Solid Protective Case
- Laid out to keep everything at hand
Specifications
- Sagola Mini Xtreme Gravity Spray Gun c/w Mini Aqua Aircap & 1.00mm Needle & Nozzle Kit
- PG10111802
- Sagola Mini Xtreme Gravity Spray Gun c/w Mini EPA Aircap & 1.00mm Needle & Nozzle Kit
- PG10111807
- Sagola Mini Xtreme Mini HVLP Aircap
- PT56418526
- Sagola Mini Xtreme Mini TECH Aircap
- PT56418598
- 1.20mm Needle & Nozzle Kit
- PT10011202
- 0.60mm Needle & Nozzle Kit for Mini TECH Aircap
- PT10011216
- 3M PPS Disposable Cup Coupling (x2)
- PT55711612
- RC1 Air Flow Regulator with Analogue Pressure Gauge (x2)
- PT56418020
- Euro Profile Steel Connector (x2) F-BSPP 1/4″ - Supplied in EURO Profile SMART Repair K...
- PT11020810
- US Mil Steel Connector (x2) F-BSPP 1/4″ - Supplied in US MIL SMART Repair Kit
- PT11020520
- Nitto Steel Connector (x2) F-BSPP 1/4″ - Supplied in NITTO SMART Repair Kit
- PT11021101
- Lubricating Grease, 100ml
- PT56418589
What's in the kit
What's in the kit
Part Numbers
Part Numbers
| Description | Part Numbers |
|---|---|
| Sagola Mini Xtreme Spot Repair Kit; EURO Profile Version | PG10141708 |
| Sagola Mini Xtreme Spot Repair Kit; US MIL Version | PG10141709 |
| Sagola Mini Xtreme Spot Repair Kit; NITTO Version | PG10141710 |
Downloads
Downloads
Frequently asked questions
Can I use this kit for both water-based and solvent-based coatings?
The kit includes one gun with an Aqua air cap for water-based basecoats and another with an EPA air cap for clearcoat work. Additional air caps are available for solvent-based basecoats.
What panel sizes can I repair with this kit?
The kit is designed for touch-ups on small to large panels, and handles spot repairs and SMART (Small and Medium Area Repair Technique) applications.
When should I use the spare 1.2mm needle and nozzle kit?
Use the 1.2mm kit for UHS clearcoats, 2K topcoats, primers, UV primers, or thicker basecoats that require a wider fluid opening than the standard 1.00mm nozzle.
Can I do fine detail work with this kit?
Yes. The Mini Tech air cap with its 0.6mm needle and nozzle transforms the gun into an airbrush for precise detail applications.
What do the RC1 flow regulators do?
The two RC1 regulators deliver precise air control, essential for clean basecoat application, drop coats, and blending adjacent panels without overspraying.
Which connector version should I order?
The kit is available in three versions with different steel connectors (Euro Profile, US MIL, and Nitto). Confirm your air compressor fitting type before ordering.
