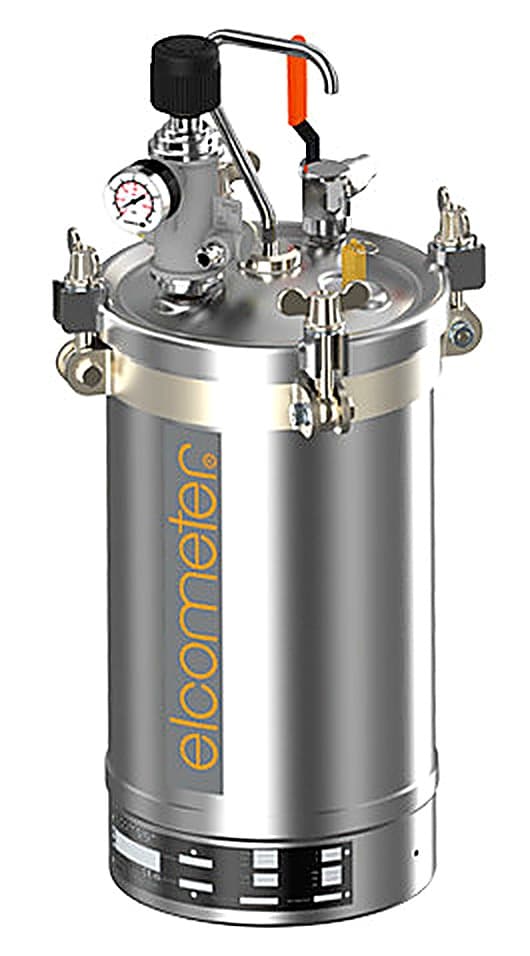

The Elcometer P10TS Pressure Tank (part number PP10TS) is a 10 litre stainless steel pressure pot for supplying material to spray guns, suitable for use with adhesives. Spraying adhesive from a pressurised tank gives a steady, controlled flow that helps lay down an even film and lets the operator work without stopping to refill, while a single regulator keeps the supply pressure managed safely for the application.
A single pressure regulator with a discharge valve safely regulates both the spray gun and pot pressure, fed from a top outlet connection. The body and lid are stainless steel, with a manual agitator. Maximum working pressure is 7bar, with an air pressure gauge reading 0 to 8bar. The air inlet connection is 6.35mm BSP male and the product outlet is 9.52mm male BSP. The tank measures 208 x 208 x 375mm up to the lid, weighs 11.2kg and operates between 0 and 50°C. It is ideal for use with two spray guns, and an optional stainless steel reusable pressure pot liner is available.
The Elcometer P10TS Pressure Tank is safety compliant to international standards and conforms to Spain AP 1070 FBZ 2330, France CODAP, UK BS 1101-1977, Germany A.D. Merkblatter, ATEX 2 II GX, 2014/68/CE and UKCA, covering pressure equipment safety and use in potentially explosive atmospheres. A full equipment kit is available pairing the tank with a 10 litre, 6m combined anti-static air and product hose, with a version bundled with a Sagola X 4100 spray gun. It is supplied by BAMR, South Africa's authorised distributor.
Elcometer P10TS Pressure Tank
The Elcometer P10TS Pressure Tank has a 10 Litre tank capacity and is suitable for use with adhesives.
- Suitable for adhesive products.
- Safety compliant to International Standards.
- Body and lid in stainless Steel.
- Top outlet connection.
- Single pressure regulator with discharge valve, to safely regulate both the spray gun and pot pressure.
- Ideal for use with two spray guns.
- Optional stainless steel reusable pressure pot liner.
Specifications
- Tank Capacity
- 10l
- Agitator Type
- Manual
- Product Outlet Position
- Top
- Construction Material
- Stainless Steel Body & Lid
- Working Pressure (Max)
- 7bar
- Air Inlet Connection
- 6.35mm BSP Male
- Product Outlet Connection
- 9.52mm Male BSP
- Air Pressure Gauge
- 0 - 8bar
- Product Pressure Gauge
- -
- Operating Temperature
- 0 - 50°C
- Dimensions (up to lid)
- 208 x 208 x 375mm
- Weight
- 11.2kg
- Packing List
- Elcometer P10T Pressure Tank; 10 Litre & 6m Combined Anti-Static Air & Product Hose
- Suitable for
- Adhesives
Part Numbers
- ELCOMETER P10TS 10L Tank with X4100 spray gun
- P10TS
Specifications
Specifications
- Tank Capacity
- 10l
- Agitator Type
- Manual
- Product Outlet Position
- Top
- Construction Material
- Stainless Steel Body & Lid
- Working Pressure (Max)
- 7bar
- Air Inlet Connection
- 6.35mm BSP Male
- Product Outlet Connection
- 9.52mm Male BSP
- Air Pressure Gauge
- 0 - 8bar
- Product Pressure Gauge
- -
- Operating Temperature
- 0 - 50°C
- Dimensions (up to lid)
- 208 x 208 x 375mm
- Weight
- 11.2kg
- Packing List
- Elcometer P10T Pressure Tank; 10 Litre & 6m Combined Anti-Static Air & Product Hose
- Suitable for
- Adhesives
Part Numbers
- ELCOMETER P10TS 10L Tank with X4100 spray gun
- P10TS
Standards
Standards
Accessories
Accessories
- Anti-static Air Hose - 6m Ø 8x15mm
- PT56414024
- Anti-static Air Hose - 11m Ø 8x15mm
- PT56414025
- Anti-static Air Hose - 16m Ø 8x15mm
- PT56414027
- Anti-static Air Hose - 26m Ø 8x15mm
- PT56414026
- Anti-static Air Hose - 21m Ø 8x15mm
- PT56414028
- 6m (Thermo Rubber Product Hose with 3/8″ Female Connection
- PT56414116
- 11m Thermo Rubber Product Hose with 3/8″ Female Connection
- PT56414117
- 16m Thermo Rubber Product Hose with 3/8″ Female Connection
- PT56414115
- 10m Product Hose (ID: 8mm x OD: 16mm) with 3/8″ Female Swivel Coupling Connections
- PT56414112
- 5m Product Hose (ID: 19mm x OD: 23mm) with 3/4″ Female Swivel Coupling Connections
- PT56414111
- 15m Product Hose (ID: 19mm x OD: 23mm) with 3/4″ Female Swivel Coupling Connections
- PT56414113
- 21m Thermo Rubber, ID: 8mm x OD: 16mm with 3/8″ Female Connection
- PT56414118
- 26m Thermo Rubber, ID: 8mm x OD: 16mm with 3/8″ Female Connection
- PT56414119
Part Numbers
Part Numbers
| Description | Part Numbers |
|---|---|
| ELCOMETER P10TS 10L Stainless Steel Pressure Tank for Adhesives with Sagola X 4100 spray gun, 20A aircap, 1.80 needle & nozzle | PP10TS-X41-20A18 |
| Elcometer P10TS Tank; 10 Litre | PP10TS |
| 10L Interchangeable Tank | PT52411607 |
Downloads
Frequently asked questions
What are the maximum working pressure and operating temperature limits?
Maximum working pressure is 7 bar with an operating temperature range of 0 to 50°C. The air pressure gauge reads 0 to 8 bar.
What are the connection sizes for air inlet and product outlet?
The air inlet uses 6.35mm BSP Male and the product outlet uses 9.52mm Male BSP. Verify your supply and application equipment have compatible fittings.
What hose is included with the P10TS?
The tank includes a 6m combined anti-static air and product hose. Longer anti-static air hoses and various product hoses are available as separate accessories.
What are the physical dimensions and weight?
The P10TS measures 208 x 208 x 375mm up to the lid and weighs 11.2kg empty.
What type of agitator does it have?
The P10TS is equipped with a manual agitator, so it does not require powered equipment.
Are replacement or longer hoses available?
Yes. Anti-static air hoses are available in lengths from 6m to 26m. Product hoses are also available in multiple configurations with 3/8 inch or 3/4 inch female connections.
