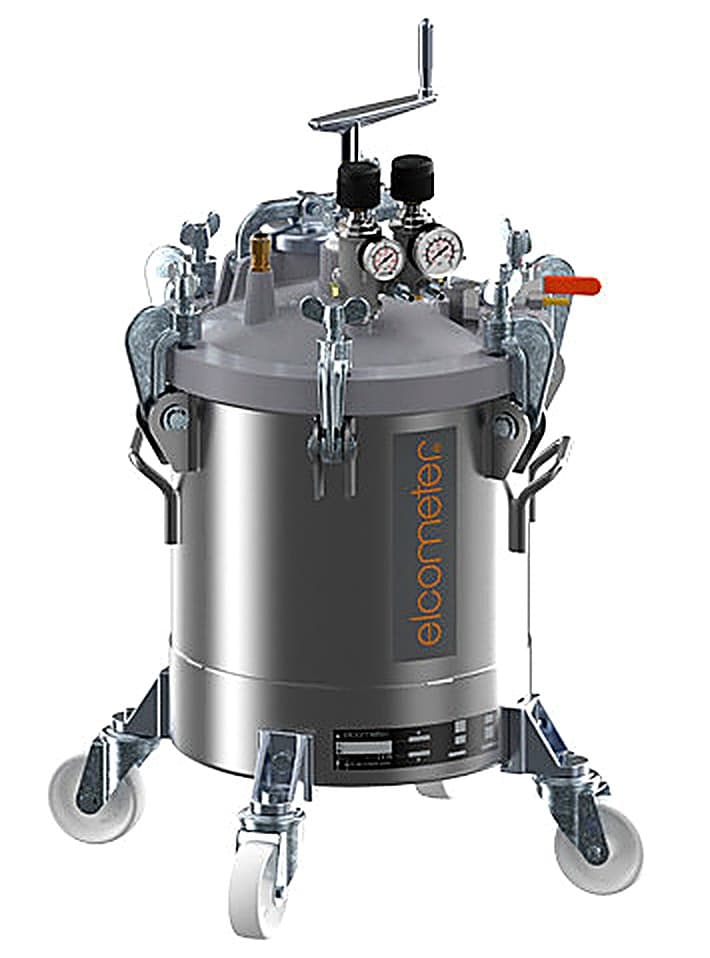

Elcometer P25T Pressure Tank
Product Description
The Elcometer P25T Pressure Tank has a 25 Litre tank capacity and is suitable for use with solvent and water-based paints.
- Suitable for solvent and water-based paints.
- Safety compliant to International Standards.
- Stainless steel body with Teflon™ coated aluminium lid.
- Top outlet connection.
- Dual air regulator with discharge valve, to regulate spray gun and
pot pressure independently. - Robust castor wheels for easy transportation around site.
- Ideal for two spray guns.
- Optional stainless steel 25 Litre reusable pressure pot liner.
- Three agitator options:
Manual Pneumatic Rotary – For products which need to be continuously
stirred to keep the mixture homogeneous
Pneumatic Oscillating – Makes alternate oscillating movements
through 180° for products that contain solid particles and need
constant mixing
Full equipment kit available:
Elcometer P25T Pressure Tank 25 Litre 10m Combined Anti-Static Air & Product Hose
Compliance:
SPAIN: AP 1070 FBZ 2330, FRANCE: CODAP
UK: BS 1101-1977, GERMANY: A.D. Merkblätter
ATEX 2 II GX, 2014/68/CE, UKC
Specifications
| Tank Capacity | 25l |
| Agitator Type | Manual (Rotary & Oscillating Kits available) |
| Product Outlet Position | Top |
| Construction Material | Stainless Steel Body & Teflon Coated Aluminium Lid |
| Working Pressure (Max) | 4bar |
| Air Inlet Connection | 6.35mm BSP Male |
| Product Outlet Connection | 9.52mm Male BSP |
| Air Pressure Gauge | 0 – 4bar |
| Product Pressure Gauge | 0 – 8bar |
| Operating Temperature | 0 – 50°C |
| Dimensions (with agitator) | 365 x 365 x 744mm 14.37 x 14.37 x 29.29”) |
| Weight | 38kg |
| Packing List | Elcometer P25T Pressure Tank 25 Litre 10m Combined Anti-Static Air & Product Hose2 |
| Suitable for | Solvent & waterbased products |
Data Sheet
Part Numbers
 | Elcometer P25T Stainless Steel Pressure Tank 25 Litre |
| Part Number : PP25T-MA | |
 | Elcometer P25T 25L Stainless Steel Pressure Tank with Sagola X 4100 spray gun, 765 aircap, 1.20 needle & nozzle |
| Part Number : PP25TMA-X41-76512 | |
| Elcometer P25T 25L Stainless Steel Pressure Tank with Sagola X 4100, 765 aircap, 1.40 needle & nozzle |
| Part Number : PP25TMA-X41-76514 | |
| Elcometer P25T 25L Stainless Steel Pressure Tank with Sagola X 4100, XT03 aircap, 1.20 needle & nozzle |
| Part Number : PP25TMA-X41-XT0312 | |
Accessories
| Anti-static Air Hose – 6m Ø 8x15mm | ||
 | Part Number: | PT56414024 |
| Anti-static Air Hose – 11m Ø 8x15mm | ||
| Part Number: | PT56414025 |
| Anti-static Air Hose – 16m Ø 8x15mm | ||
| Part Number: | PT56414027 |
| Anti-static Air Hose – 26m Ø 8x15mm | ||
| Part Number: | PT56414026 |
| 1.8m Covered Anti-Static Air & Nylon Product Hose | ||
 | Part Number: | PT56414130 |
| 5m Covered Anti-Static Air & Nylon Product Hose | ||
| Part Number: | PT56414039 |
| 7.5m Covered Anti-Static Air & Nylon Product Hose | ||
| Part Number: | PT56414044 |
| 10m Covered Anti-Static Air & Nylon Product Hose | ||
| Part Number: | PT56414040 |
| 15m Covered Anti-Static Air & Nylon Product Hose | ||
| Part Number: | PT56414041 |
| 20m Covered Anti-Static Air & Nylon Product Hose | ||
| Part Number: | PT56414042 |
| 10L Interchangeable Tank | ||
 | Part Number: | PT52411607 |
| 25L Interchangeable Tank | ||
| Part Number: | PT52411608 |
| 50L Interchangeable Tank | ||
| Part Number: | PT52411609 |
| Anti-static Air Hose – 21m Ø 8x15mm | ||
 | Part Number: | PT56414028 |
| 6m Thermo Rubber Product Hose with 3/8″ Female Connection | ||
 | Part Number: | PT56414116 |
| 11m Thermo Rubber Product Hose with 3/8″ Female Connection | ||
| Part Number: | PT56414117 |
| 16m Thermo Rubber Product Hose with 3/8″ Female Connection | ||
| Part Number: | PT56414115 |
| Elcometer P25T & P50T Rotary Agitator Installation Kit | ||
 | Part Number: | PT25T50T-RAKIT |
| Elcometer P25T & P50T Oscillating Agitator Installation Kit | ||
 | Part Number: | PT25T50T-SAKIT |
| 10m Product Hose (ID: 8mm x OD: 16mm) with 3/8″ Female Swivel Coupling Connections | ||
 | Part Number: | PT56414112 |
| 5m Product Hose (ID: 19mm x OD: 23mm) with 3/4″ Female Swivel Coupling Connections | ||
| Part Number: | PT56414111 |
| 15m Product Hose (ID: 19mm x OD: 23mm) with 3/4″ Female Swivel Coupling Connections | ||
| Part Number: | PT56414113 |
| 21m Thermo Rubber, ID: 8mm x OD: 16mm with 3/8″ Female Connection | ||
 | Part Number: | PT56414118 |
| 26m Thermo Rubber, ID: 8mm x OD: 16mm with 3/8″ Female Connection | ||
| Part Number: | PT56414119 |
