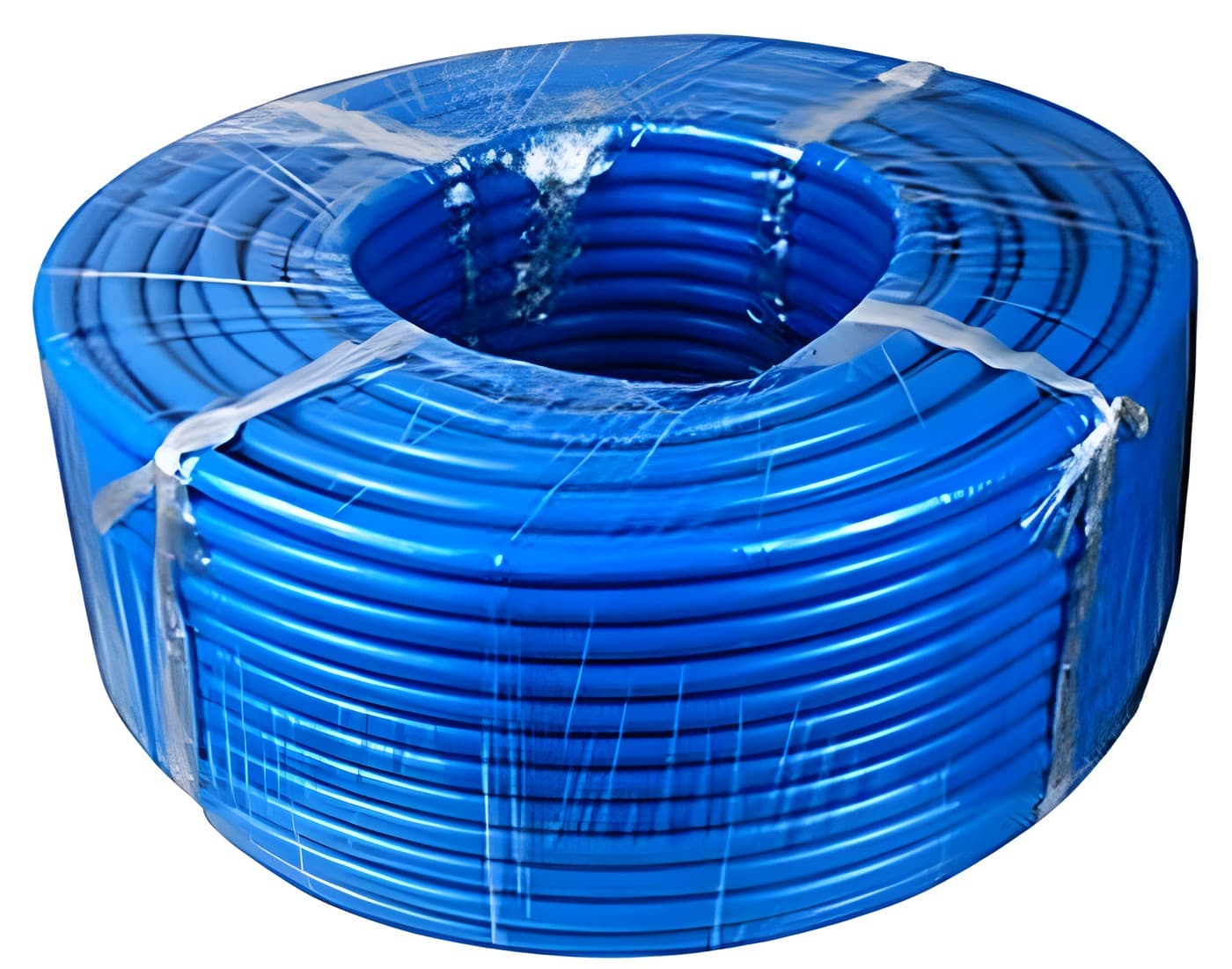

The Sagola Air Hose (part number PT52450008) is a light, flexible multi-use air hose for low pressure compressed air systems. Spray and air tool work needs a hose that stays manageable and does not kink or twist during use, since a stiff or tangling hose slows the operator and strains couplings, and this hose is built to remain flexible and twist free in everyday workshop use.
Construction of the Sagola Air Hose is a thermo rubber inner bonded to a polyester outer, giving a light hose that handles easily. The Sagola Air Hose carries a working pressure of 20 bar and a breakage pressure of 60 bar, with a temperature range of -40 to 120 degrees C. The internal and outer diameters are 8 x 15 mm, and the hose is blue. Connections are 6.35 mm female couplings with a conical closure and a flare fitting for easy assembly of the push connector.
The Sagola Air Hose conforms to 97/23/CE, the European pressure equipment directive covering the design and manufacture of pressure-bearing equipment. The Sagola Air Hose is supplied in a 100m length. Used in spray finishing and general compressed air work. Supplied by BAMR, South Africa's authorised Sagola distributor.
Sagola Air Hose
The Sagola Air Hose is a light, flexible and manageable multi-use air hose for low pressure systems.
- Thermo Rubber (inside) & Polyester (outside)
- Light, flexible, manageable and twist free
Specifications
- Working Pressure
- 20bar
- Breakage Pressure
- 60bar
- Spray Hoses Temperature Range (air hose)
- -40°C to 120°C
- Hose Dimensions (I/D x O/D)
- 8 x 15mm
- Material (inside)
- Thermo Rubber
- Material (outside)
- Polyester
- Colour
- Blue
- Connections
- 6.35mm female couplings with conical closure and flare fitting for easy assembly of the push connector
- Hoses Compliance
- 97/23/CE
Specifications
Specifications
- Working Pressure
- 20bar
- Breakage Pressure
- 60bar
- Spray Hoses Temperature Range (air hose)
- -40°C to 120°C
- Hose Dimensions (I/D x O/D)
- 8 x 15mm
- Material (inside)
- Thermo Rubber
- Material (outside)
- Polyester
- Colour
- Blue
- Connections
- 6.35mm female couplings with conical closure and flare fitting for easy assembly of the push connector
- Hoses Compliance
- 97/23/CE
Standards
Standards
Part Numbers
Part Numbers
| Description | Part Numbers |
|---|---|
| Sagola 100m Air Hose | PT52450008 |
Downloads
Downloads
Frequently asked questions
What is the working pressure of the Sagola Air Hose?
The working pressure is 20bar with a breakage pressure of 60bar. It is designed for low pressure systems and complies with 97/23/CE (the Pressure Equipment Directive).
What temperature range can the Sagola Air Hose operate in?
The hose is rated for -40°C to 120°C, making it suitable for both outdoor and temperature-controlled indoor environments.
What are the dimensions and connection type of the Sagola Air Hose?
The hose has an 8mm internal diameter and 15mm external diameter. It features 6.35mm female couplings with conical closure and flare fitting for push-fit assembly.
What materials are used in the Sagola Air Hose?
The interior is thermo rubber and the exterior is polyester. This combination provides flexibility and durability for multi-use air applications.
Does the Sagola Air Hose comply with safety standards?
Yes, the hose complies with 97/23/CE, the European Pressure Equipment Directive, ensuring it meets regulatory requirements for safe operation.
