The Sagola Air Spray Product Hose is a thermo rubber product hose built for low-pressure air spray systems, supplying material to spray guns in refinishing and finishing work. It carries fluid from the supply to the gun while resisting the twisting and kinking that interrupts an even spray pattern.
A product hose that stiffens, twists or restricts flow makes consistent application difficult and slows the operator. The Sagola Air Spray Product Hose is light, flexible and manageable, runs twist-free, and uses swivel couplings so it does not bind during use. The Sagola Air Spray Product Hose can also be used with adhesive products. The bore is lined with PA polyamide and polyester, with a thermo rubber outer in black.
The Sagola Air Spray Product Hose has an internal diameter of 8mm and an outside diameter of 16mm, a maximum working pressure of 100bar and a breakage pressure of 300bar, and operates from -20°C to 65°C. The Sagola Air Spray Product Hose is fitted with 3/8 inch swivel couplings. Length options for the Sagola Air Spray Product Hose cover 6m (PT56414116), 11m (PT56414117), 16m (PT56414115), 21m (PT56414118) and 26m (PT56414119), each with a 3/8 inch female connection.
Used in independent bodyshops and industrial refinishing, the Sagola Air Spray Product Hose is supplied by BAMR, South Africa's authorised Sagola distributor.

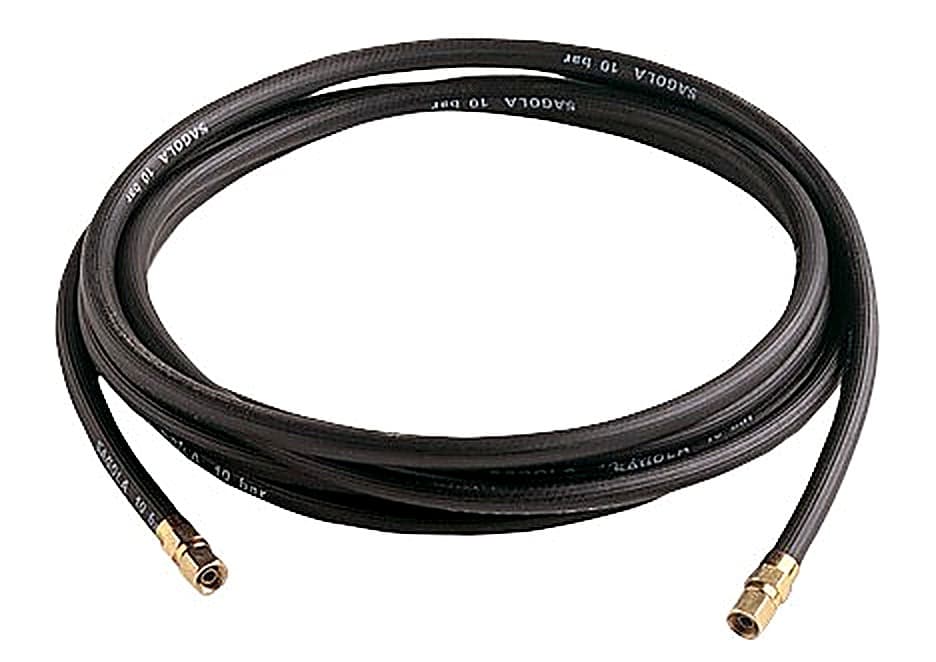

Sagola Air Spray Product Hose
The Sagola Air Spray Product Hose is a Thermo Rubber Product Hose for Air Spray (Low Pressure) Systems.
- Thermo rubber.
- Light, flexible, manageable and twist free.
- Swivel couplings.
- Can be used with adhesive products.
Specifications
- Max Working Pressure
- 100bar
- Breakage Pressure
- 300bar
- Temperature Range
- -20°C to 65°C
- Dimensions (I/D x O/D)
- 8 / 16mm
- Material (inside)
- PA Polyamide + Polyester
- Material (outside)
- Thermo Rubber
- Colour
- Black
- Connections
- 3/8" Swivel Couplings
Specifications
Specifications
- Max Working Pressure
- 100bar
- Breakage Pressure
- 300bar
- Temperature Range
- -20°C to 65°C
- Dimensions (I/D x O/D)
- 8 / 16mm
- Material (inside)
- PA Polyamide + Polyester
- Material (outside)
- Thermo Rubber
- Colour
- Black
- Connections
- 3/8" Swivel Couplings
Part Numbers
Part Numbers
| Description | Part Numbers |
|---|---|
| 6m Thermo Rubber Product Hose with 3/8″ Female Connection | PT56414116 |
| 11m Thermo Rubber Product Hose with 3/8″ Female Connection | PT56414117 |
| 16m Thermo Rubber Product Hose with 3/8″ Female Connection | PT56414115 |
| 21m Thermo Rubber, ID: 8mm x OD: 16mm with 3/8″ Female Connection | PT56414118 |
| 26m Thermo Rubber, ID: 8mm x OD: 16mm with 3/8″ Female Connection | PT56414119 |
Downloads
Frequently asked questions
Does the Sagola Air Spray hose have 3/8" couplings?
Yes. The hose features 3/8" swivel couplings for flexible connection and easier installation.
What is the maximum working pressure?
Maximum working pressure is 100bar, with a breakage pressure of 300bar. Confirm your air spray system operates at or below 100bar.
Will this hose work in my temperature range?
The hose operates safely between -20°C and 65°C. Verify your facility temperature falls within these limits.
What is the hose construction material?
The interior is PA polyamide and polyester, and the exterior is Thermo Rubber. The hose is designed for low pressure air spray systems.
What are the hose dimensions?
Inner diameter is 8mm and outer diameter is 16mm. These dimensions are specified for low pressure air spray applications.
