The Sagola Combined Air and Product Hose for Air Assisted Airless Systems (part numbers PT56414036 and PT56414037) is a paired air and fluid hose set with a protective cover, sized for air assisted airless equipment. It is compatible with systems such as the Elcometer Baltic, Elcometer Riga V and Elcometer Riga H, carrying both compressed air and the higher pressure product line in one bundled run so the operator manages a single hose to the gun.
The blue polyurethane air hose has a 6mm inside and 8mm outside diameter and suits an 8mm quick connector, while the blue product hose runs 4mm inside and 10.4mm outside with a 1/4 inch female adaptor. A black polyester protective cover with high resistance to friction and abrasion shrouds the pair. The product hose works to 18 bar and the air hose to 20 bar, with a 60 bar breakage pressure on the air hose. Both connections are 6.35mm female BSP, and the air hose is anti-static.
For standards, the product hose conforms to DIN 73378, the air hose to 97/23/CE and UNE EN 559, and the protective cover to RoHS, ISO 6945 and MSHA. Supplied in 7m and 11m lengths, the hose set is available from BAMR, South Africa's authorised distributor.

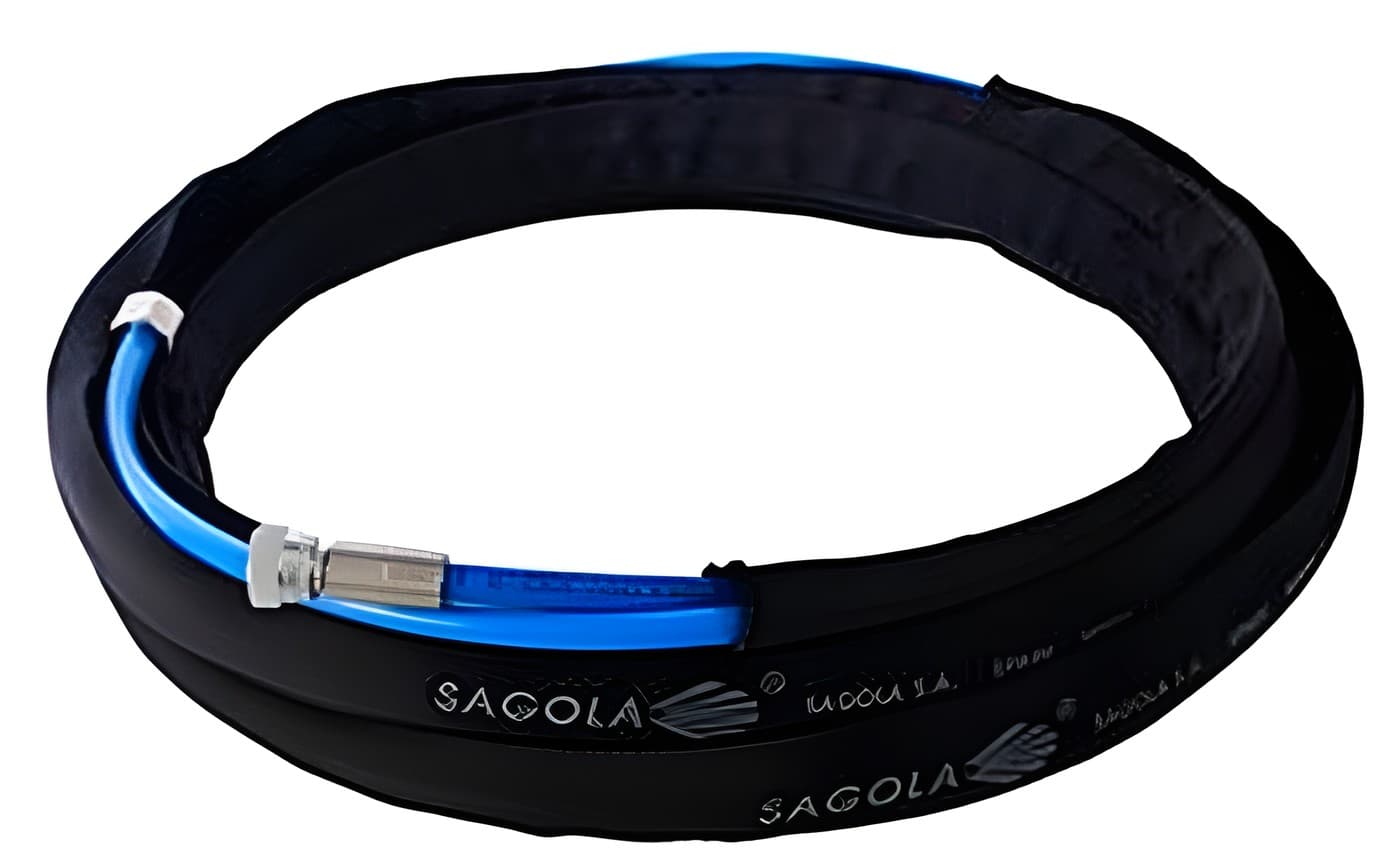

Sagola Combined Air & Product Hose For Air Assisted Airless Systems
Combined Air & Product Hose For Air Assisted Airless Systems. Air Hose (Blue): Polyurethane, ID: 6mm x OD: 8mm (compatible with 8mm quick connector). Product Hose (Blue): ID: 4mm x OD: 10.4mm with 1/4" Female Adaptor. Protective Cover: Black Polyester. Compatible with air assisted airless systems such as the Elcometer Baltic, Elcometer Riga V & Elcometer Riga H.
- Air Hose (Blue) Polyurethane, ID: 6mm x OD: 8mm (compatible with 8mm quick connector)
- Product Hose (Blue) ID: 4mm x OD: 10.4mm with 1/4" Female Adaptor
- Protective Cover Black Polyester
- Compatible with air assisted airless systems Such as the Elcometer Baltic, Elcometer Riga V & Elcometer Riga H
Specifications
– = not applicable to this component
| Property | Product Hose | Air Hose | Protective Cover |
|---|---|---|---|
| Working Pressure | 18bar | 20bar | – |
| Breakage Pressure | – | 60bar | – |
| Temperature Range | -20°C to 60°C | -40°C to 120°C | -60°C to 125°C |
| Dimensions (I/D x O/D) | 4 / 10.4mm | 6 / 8mm | – |
| Material (inside) | Polyamide PA12 | EPDM | Polyester |
| Material (outside) | Polyamide PA12 | Textile Reinforcement | Polyester |
| Colour | Blue | Blue | Black |
| Anti-Static | – | Yes | – |
| Connections | 6.35mm F BSP | 6.35mm Female BSP | – |
| Compliance | DIN 73378 | 97/23/CE UNE - EN 559 | RoHS, ISO 6945, MSHA |
Specifications
Specifications
– = not applicable to this component
| Property | Product Hose | Air Hose | Protective Cover |
|---|---|---|---|
| Working Pressure | 18bar | 20bar | – |
| Breakage Pressure | – | 60bar | – |
| Temperature Range | -20°C to 60°C | -40°C to 120°C | -60°C to 125°C |
| Dimensions (I/D x O/D) | 4 / 10.4mm | 6 / 8mm | – |
| Material (inside) | Polyamide PA12 | EPDM | Polyester |
| Material (outside) | Polyamide PA12 | Textile Reinforcement | Polyester |
| Colour | Blue | Blue | Black |
| Anti-Static | – | Yes | – |
| Connections | 6.35mm F BSP | 6.35mm Female BSP | – |
| Compliance | DIN 73378 | 97/23/CE UNE - EN 559 | RoHS, ISO 6945, MSHA |
Standards
Standards
Part Numbers
Part Numbers
| Description | Part Numbers |
|---|---|
| Combined Air & Product Hose with Protective Cover; 7m | PT56414036 |
| Combined Air & Product Hose with Protective Cover; 11m | PT56414037 |
Frequently asked questions
Which Elcometer systems is this hose assembly designed for?
This combined hose assembly is designed for Elcometer Baltic, Elcometer Riga V, and Elcometer Riga H air-assisted airless systems.
What are the maximum working pressures for each hose?
The product hose is rated to 18 bar working pressure, whilst the air hose is rated to 20 bar. The air hose has a breakage pressure of 60 bar.
What are the operating temperature ranges?
The product hose operates between minus 20°C and 60°C, the air hose between minus 40°C and 120°C, and the protective cover between minus 60°C and 125°C.
Is the air hose anti-static?
Yes, the air hose is anti-static. It is polyurethane with textile reinforcement, 6 mm ID by 8 mm OD.
What standards does this hose assembly meet?
The product hose complies with DIN 73378, the air hose with 97/23/CE and UNE EN 559, and the protective cover with RoHS, ISO 6945, and MSHA.
