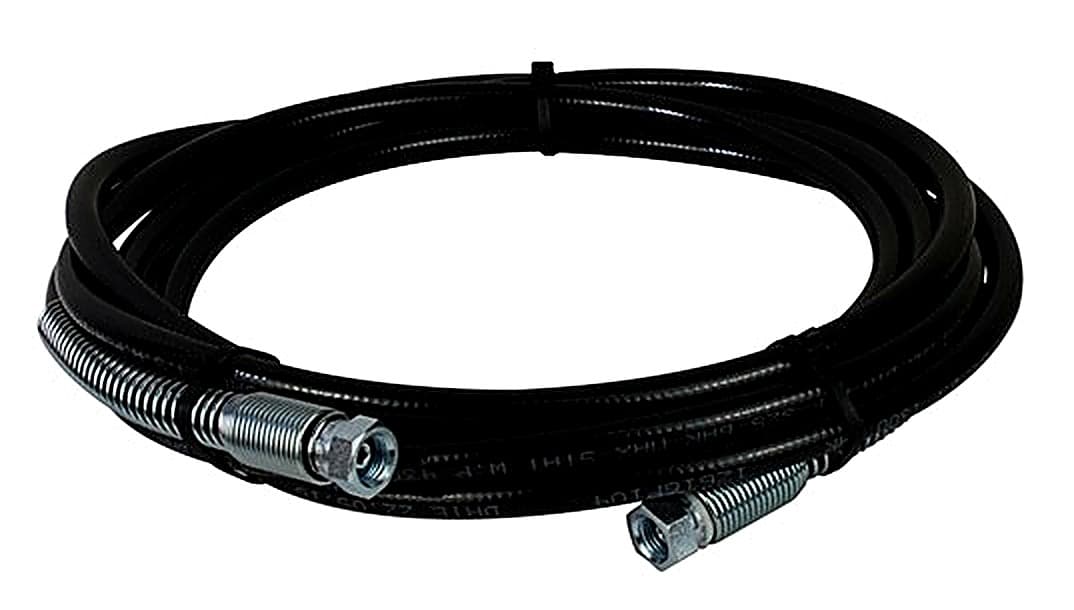

The Sagola Standard Product Hose is a fluid hose for carrying regular paint and coating products from a pressure tank to the spray gun, compatible with the Elcometer P30B and P60B pressure tanks. Choosing a hose rated for the working pressure and the products being sprayed matters, because an under-rated or chemically unsuitable hose can fail under tank pressure or degrade against solvent-borne materials.
The Sagola Standard Product Hose has a 19mm internal diameter and a 26mm outer diameter with an inner wall of EPDM rubber and a textile-reinforced outer, finished in black, and terminates in 3/4" female connections. It carries a maximum working pressure of 20bar with a breakage pressure of 60bar, and operates across a temperature range of -40 degrees C to 120 degrees C, giving headroom over normal spraying conditions.
The Sagola Standard Product Hose is offered in three lengths to suit the working distance between tank and gun: 5m (part number PT56414111), 10m (part number PT56414112) and 15m (part number PT56414113), each with female swivel coupling connections. The Sagola Standard Product Hose is used in industrial finishing where coatings are fed from a pressure tank. Supplied by BAMR, South Africa's authorised distributor.
Sagola Standard Product Hose
The Sagola Standard Product Hose is compatible for use with the Elcometer P30B & P60B Pressure Tank. Product Hose for Regular Products: ID: 19mm x OD: 26mm with 3/4" Female Connection
- Compatible with Elcometer P30B & P60B Pressure Tank
- ID: 19mm x OD: 26mm with 3/4" Female Connection
Specifications
- Temperature Range
- -40°C to 120°C
- Max Working Pressure
- 20bar
- Breakage Pressure
- 60bar
- Dimensions (I/D x O/D)
- 19 / 26mm
- Material (inside)
- EPDM Rubber
- Material (outside)
- Textile Reinforcement
- Colour
- Black
- Connections
- 3/4" Female Connection
- Ideal for use with
- Elcometer P30B & P60B
Specifications
Specifications
- Temperature Range
- -40°C to 120°C
- Max Working Pressure
- 20bar
- Breakage Pressure
- 60bar
- Dimensions (I/D x O/D)
- 19 / 26mm
- Material (inside)
- EPDM Rubber
- Material (outside)
- Textile Reinforcement
- Colour
- Black
- Connections
- 3/4" Female Connection
- Ideal for use with
- Elcometer P30B & P60B
Part Numbers
Part Numbers
| Description | Part Numbers |
|---|---|
| 5m Product Hose (ID: 19mm x OD: 23mm) with 3/4″ Female Swivel Coupling Connections | PT56414111 |
| 10m Product Hose (ID: 8mm x OD: 16mm) with 3/8″ Female Swivel Coupling Connections | PT56414112 |
| 15m Product Hose (ID: 19mm x OD: 23mm) with 3/4″ Female Swivel Coupling Connections | PT56414113 |
Downloads
Frequently asked questions
Will this hose work with my Elcometer P30B or P60B?
The Sagola Standard Product Hose is designed specifically for use with Elcometer P30B and P60B Pressure Tank models. If you are using either tank, this hose is the correct choice.
What is the maximum pressure this hose can handle?
The hose has a maximum working pressure of 20 bar and a breakage pressure of 60 bar, which is suitable for standard coating application scenarios.
What temperature range does this hose operate in?
The hose is rated for operation between -40°C and 120°C. This range covers most standard workshop and field application conditions you will encounter.
What materials are used in this hose construction?
The inner tube is EPDM rubber and the outer layer is textile reinforcement, providing compatibility and durability for regular product application.
What is the connection size for this hose?
The hose features a 3/4 inch female connection with an inner diameter of 19 mm and an outer diameter of 26 mm.
