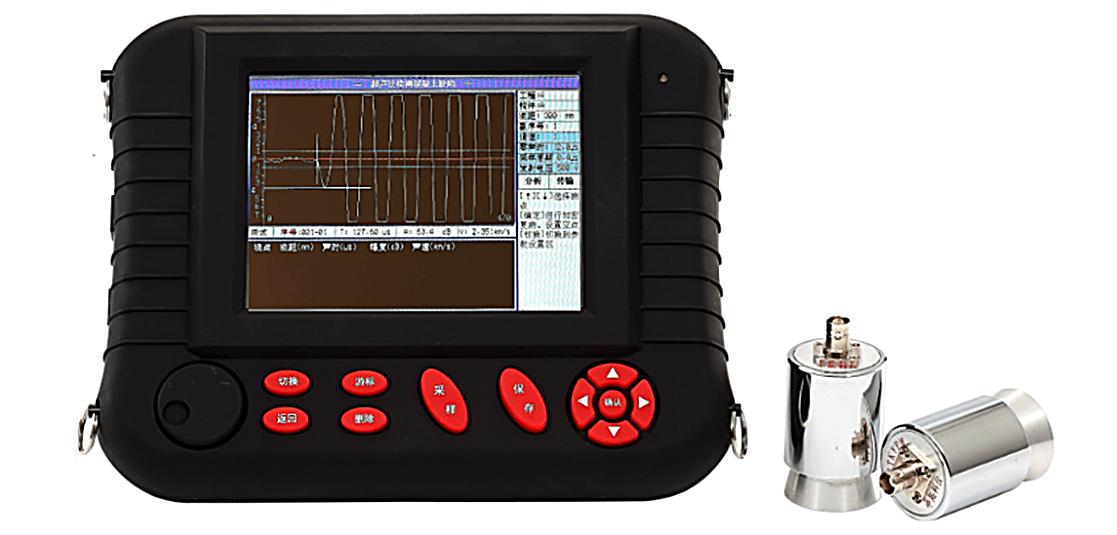

TIME TC700 Concrete Ultrasonic Tester
Product Description
The TIME TC700 Non-Metal Ultrasonic Tester can detect internal defects, allowing you to measure crack depth, homogeneity, and thickness of the damaged layers. It can also measure concrete strength, pile integrity and thickness.
The TIME TC700 detects internal defects and crack depth, measures concrete homogeneity and damaged layer thickness, and performs concrete strength testing, pile integrity inspection, and thickness measurement.
Features
- Dual-channel, real-time waveform display with a screen refresh rate of more than 30fps.
- Automatic interpretation of acoustic parameters (sound time, amplitude, frequency – all fully automatic)
- High receiving sensitivity & large penetration depth of up to 10 meters in concrete
- Compact and portable structure makes the unit ideal for onsite use
- Utilizes an AC and DC power supply, the DC power supply can work continuously up to 10 hours
- Data analysis and processing software complies with current specifications
- Extended functions: impact-echo concrete thickness tester, rock mass parameter determination, and concrete-filled steel tube test.
Technical Specifications
Technical Specifications
| Model | TIME TC700 Non-Metal Ultrasonic Tester |
| Mainframe | Dedicated Microcomputer System |
| Acoustic Time Reading Range | 0-640kµs |
| Acoustic Time Readability | ±0.05µs |
| Amplitude Reading Range | 0-177dB |
| Gain Accuracy | 3% |
| Amplifier bandwidth | 5Hz – 1MHz |
| Transmission Voltage | 250, 500, 1000V Multigear Adjustable |
| Sampling Period | 0.05, 0.1, 0.2, 0.4, 0.8, 1.6, 3.2, 6.4µs Adjustable |
| Operation | Button & Photoelectric Knob |
| Trigger Mode | Signal Trigger, External Trigger |
| Receiver Sensitivity | ≤10µV |
| Signal Acquisition mode | Continuous Signal, Transient Signal |
| Number of Channels | Dual Channel |
| Channel Isolation | No less than 42dB |
| Maximum Penetration Distance | 10m |
| Display | 640 x 480 |
| Universal Interface | Parallel Port, USB Port |
| Power Supply Mode | 1. Built-in Lithium battery supplies continuous power for 6 hours |
| 2. AC:220V±10%; DC: 12V (AV & DC) | |
| 3. External large capacity battery, which can work continuously for 8-10 hours | |
| Weight | 1.8kg |
| Dimensions | 250mm x 200mm x 100mm |
