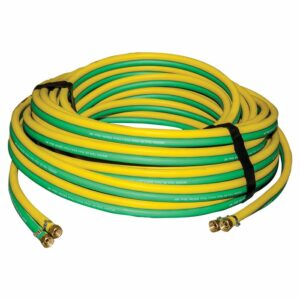

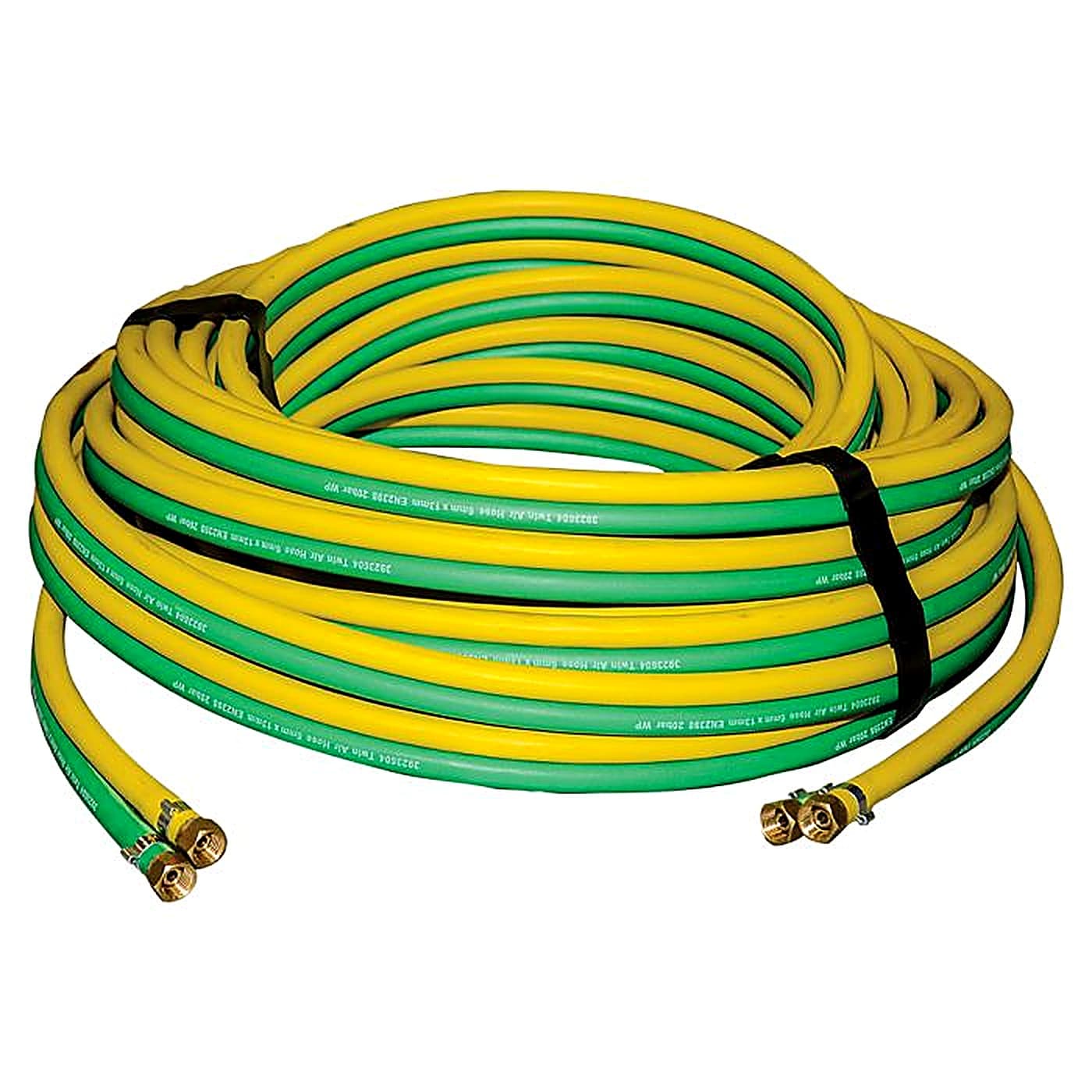

Twinline Pneumatic Remote Control Hose – 20 metres
Product Description
Elcometer’s tough 6mm ID Twinline Control Hose prevents tangles and trip hazards compared to using single lines with the blast hose. Durable, reliable and lightweight the Elcometer Twinline Control Hose is constructed using spiral polyester with reinforced rubber.
It is available with 6mm female swivel couplings to fit directly to your deadman’s handle and remote control valve outlet.
Product Range
BSP Thread
- Part Number :TWINLINE-20B
NPT / NPSM Thread
- Part Number :TWINLINE-20N
Spare Parts
PED
| Twinline Pneumatic Remote Control Hose | |||||||
| Part Number | Description | ||||||
| TWINLINE | Twinline Control Hose, bare – 40m | ||||||
| MT28600 | Male/ Female BSP Threaded Connectors complete with Hose Clamps for use with Twinline Control Hose, (2 pairs) | ||||||
| HOSETAPE-1 | Black Hose Tape to attach Twinline Control Hose to Blast Hose (1 Roll) | ||||||
| HOSETAPE-3 | Black Hose Tape to attach Twinline Control Hose to Blast Hose (3 Rolls) | ||||||
| MT30532 | 6mm to 6mm Hex Nipple BSP 60° Cone | ||||||
| MT30534 | 6mm Hose Crimping Tool | ||||||
ASME
| Twinline Pneumatic Remote Control Hose | |||||||
| Part Number | Description | ||||||
| TWINLINE | Twinline Control Hose, bare – 40m | ||||||
| MT28600N | Male/ Female Threaded Connectors complete with Hose Clamps for use with Twinline Control Hose, (2 pairs) | ||||||
| HOSETAPE-1 | Black Hose Tape to attach Twinline Control Hose to Blast Hose (1 Roll) | ||||||
| HOSETAPE-3 | Black Hose Tape to attach Twinline Control Hose to Blast Hose (3 Rolls) | ||||||
| MT30532N | 6mm to 6mm Hex Nipple 60° Cone | ||||||
| MT30534 | 6mm Hose Crimping Tool | ||||||
Technical Specifications
PED
| Part Number | TWINLINE-20B |
| Length | 20 metres |
| Internal Diameter ID | 6mm |
| Outside Diameter OD | 13mm |
| Construction | Linging Back NR+SBTR+EPDM Rubber |
| Reinforcement | Spiral Polyester Yarn |
| Working Pressure | 20bar |
| Burst Pressure | 60bar |
| Operating Temperature | -35oC to +80oC |
ASME
| Part Number | TWINLINE-20N |
| Length | 20 metres |
| Internal Diameter ID | 6mm |
| Outside Diameter OD | 13mm |
| Construction | Linging Back NR+SBTR+EPDM Rubber |
| Reinforcement | Spiral Polyester Yarn |
| Working Pressure | 20bar |
| Burst Pressure | 60bar |
| Operating Temperature | -35oC to +80oC |
