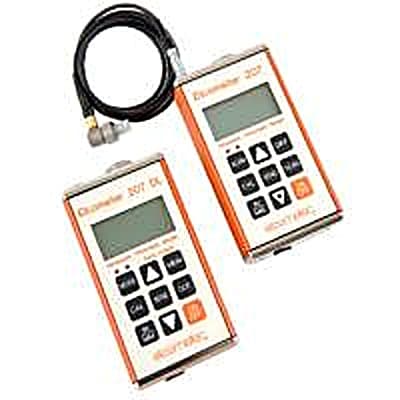

The Elcometer 207 and 207DL Precision Ultrasonic Gauge (part numbers C207---1 and C207DL---1) is a handheld ultrasonic thickness gauge built to measure thin materials accurately without cutting or sectioning the part. Wall thinning from corrosion or erosion in pipes, tanks and pressure equipment is a safety and integrity issue, and measuring it precisely on thin sections is where standard gauges struggle. The 207 series uses high-frequency precision transducers to read material thickness from 0.15 to 25.4mm, with an accuracy of plus or minus 0.02mm and a resolution of 0.002mm.

The gauge offers several measurement modes for different jobs. Interface-to-Echo mode covers 1.65 to 25.4mm; Echo-to-Echo mode reads materials as thin as 0.15mm while ignoring any applied coating; PLAS mode handles very thin plastics and needs a separate graphite delay line accessory. Differential mode shows the plus or minus deviation from a set nominal value, and Alarm mode triggers a red LED and buzzer if a reading falls below a preset minimum. The velocity range of 1250 to 10000m/s lets it work across cast iron, steels, plastic, glass and aluminium. The 207DL adds 1000-reading data logging and connects to ElcoMaster software.

It can be used in accordance with ASTM E 797 and EN 15317, the recognised standards for ultrasonic thickness measurement. Used in corrosion monitoring, inspection and quality control, the Elcometer 207 series is now discontinued. Contact BAMR, South Africa's authorised Elcometer distributor, for a current replacement recommendation.
