About this product

The Elcometer FV Flat Valve (part numbers FV-B for the PED version and FV-N for the ASME version) is an abrasive metering valve for blast machines, designed for use with mineral abrasives. The Elcometer FV Flat Valve controls the flow of abrasive from the blast pot to the hose, giving precise metering so less media is wasted during blasting. Poor metering wastes abrasive and gives an inconsistent blast, so accurate, repeatable control of media flow keeps both running costs and surface quality under control.

The Elcometer FV Flat Valve uses a 45 degree inclined design to produce a uniform mixture of air and abrasive, with durable steel control discs that meter the abrasive quantity. It is manufactured from high grade, non-corrosive aluminium, and the lever handle, with a locking nut, lets the operator set and hold how far the media valve is open. An easy access service port allows the Elcometer FV Flat Valve to be cleared when it clogs.

Maintenance is straightforward: the steel control discs of the Elcometer FV Flat Valve can be replaced in minutes in the field using standard tools, and service kits are available for simple upkeep of the Elcometer FV Flat Valve. The Elcometer FV Flat Valve is offered in two versions, the compact Elcometer Mini Flat Valve for the Elcometer 1020 blast machine and the larger Elcometer Flat Valves that fit most abrasive blast machines on the market. Used in surface preparation and abrasive blasting operations, and supplied by BAMR, South Africa's authorised Elcometer distributor.

Elcometer

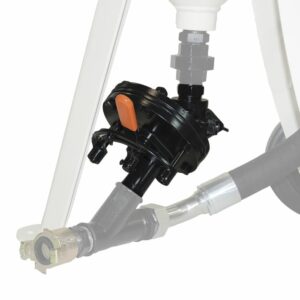

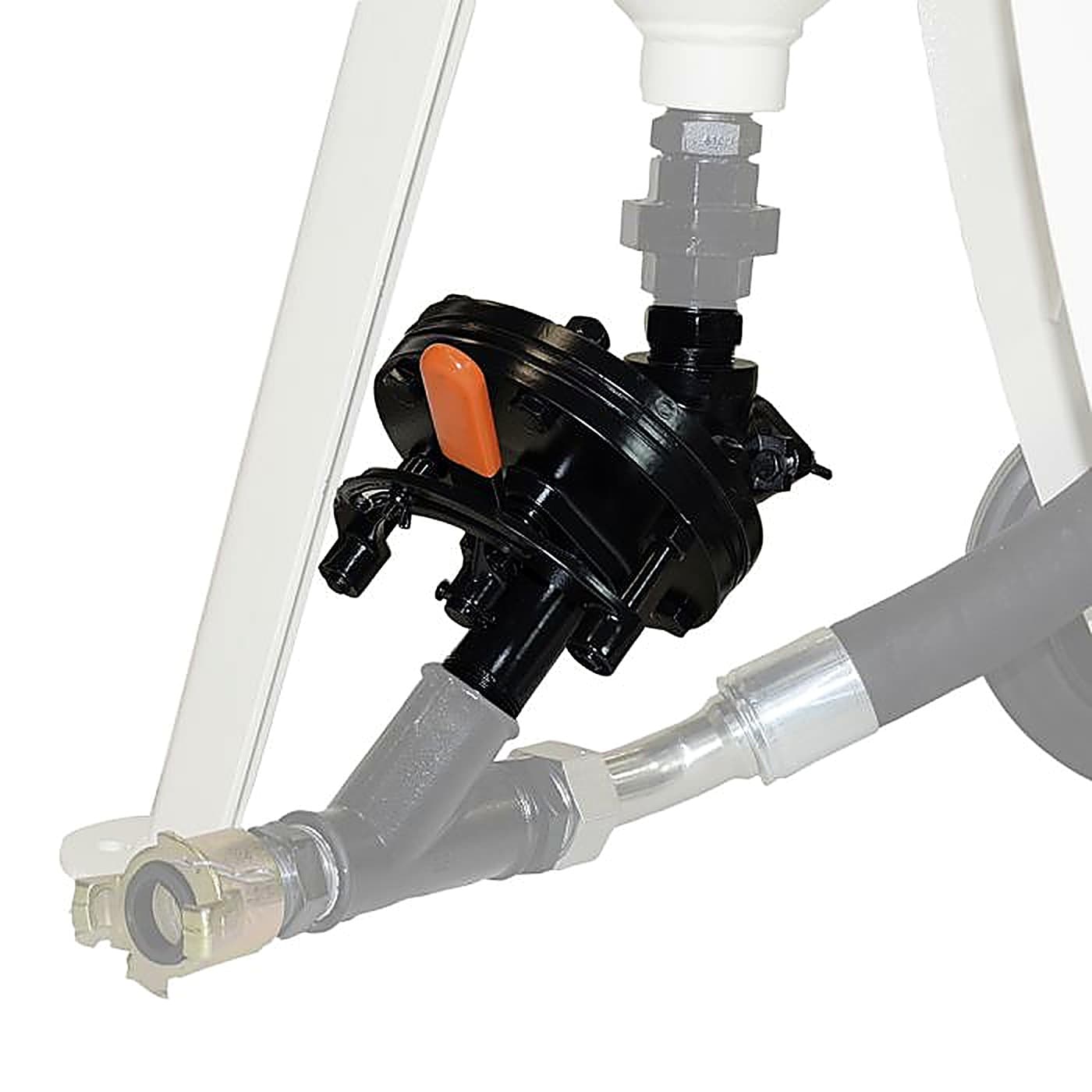

Elcometer FV Flat Valve

SKU · FV-B (+1 more)

Designed for use with mineral abrasives, the Elcometer Flat Valve provides precise metering of abrasive from the blast pot to the hose, ensuring less wastage.

45° incline design ensures uniform mixture of air and abrasive
Manufactured from high grade aluminium
Easy access service port to clear the valve from clogging
Locking nut allows user to define how open the media valve is
Designed to work with mineral abrasives
Service kits available for simple maintenance
Efficient Manufactured out of high grade, non-corrosive aluminium with durable steel control discs, precise abrasive control can be easily maintained by use of the lever handle.
Easy to Use The service port allows the valve to be cleared of clogging. The flow control valve is designed for working with mineral abrasives (slag).
Easy to Service Easy to service out in the field the durable steel control discs can be replaced in minutes using standard tools.
Flexible Available in two versions, the compact Elcometer Mini Flat Valve for the Elcometer 1020 Blast Machine and the larger Elcometer Flat Valves fit most abrasive blast machines on the market.

Indicative price

Specialist-built quote, by close of business

Used by inspection teams in

RefiningMarineMiningBridge / civil

Accessories

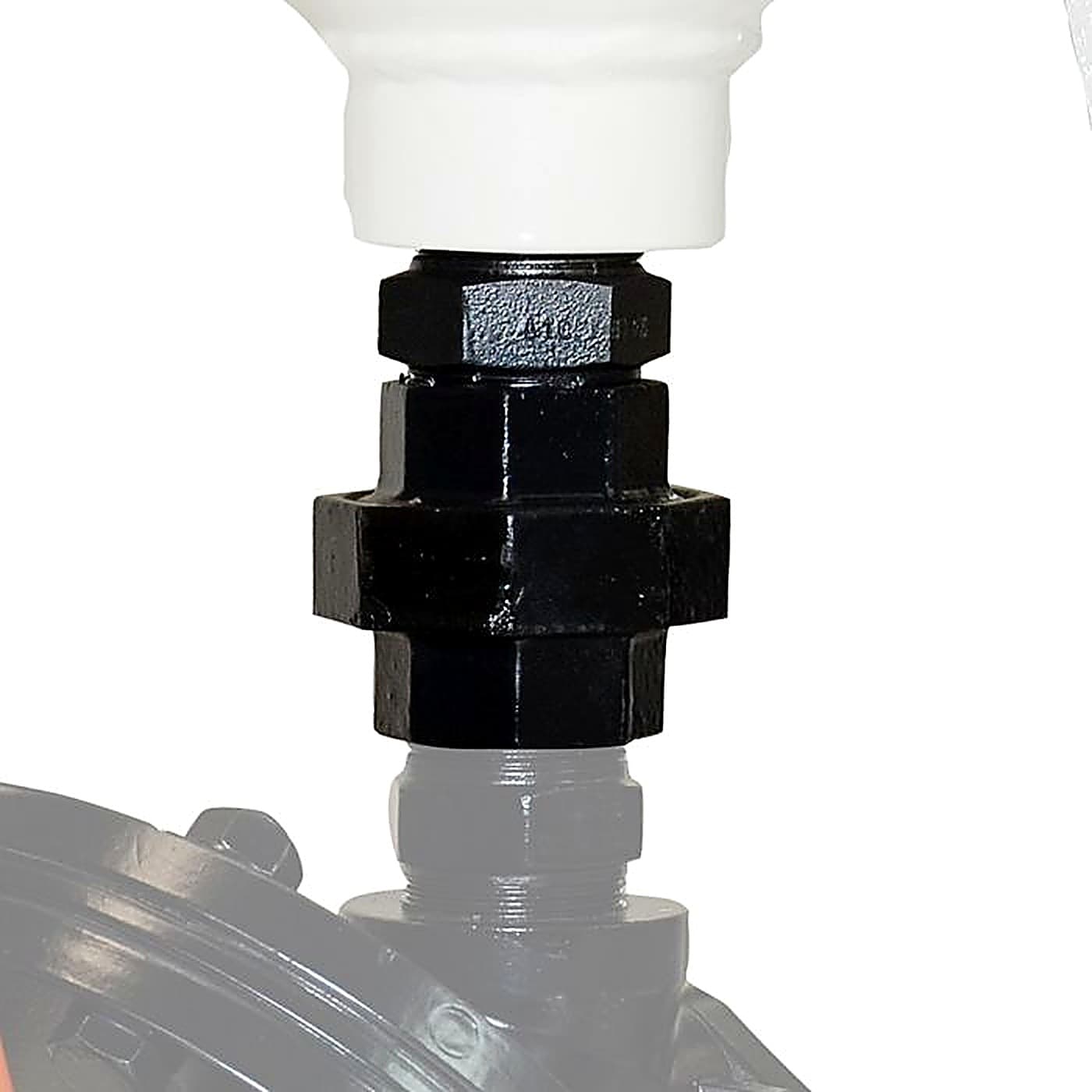

Flat Valve Pot Connection

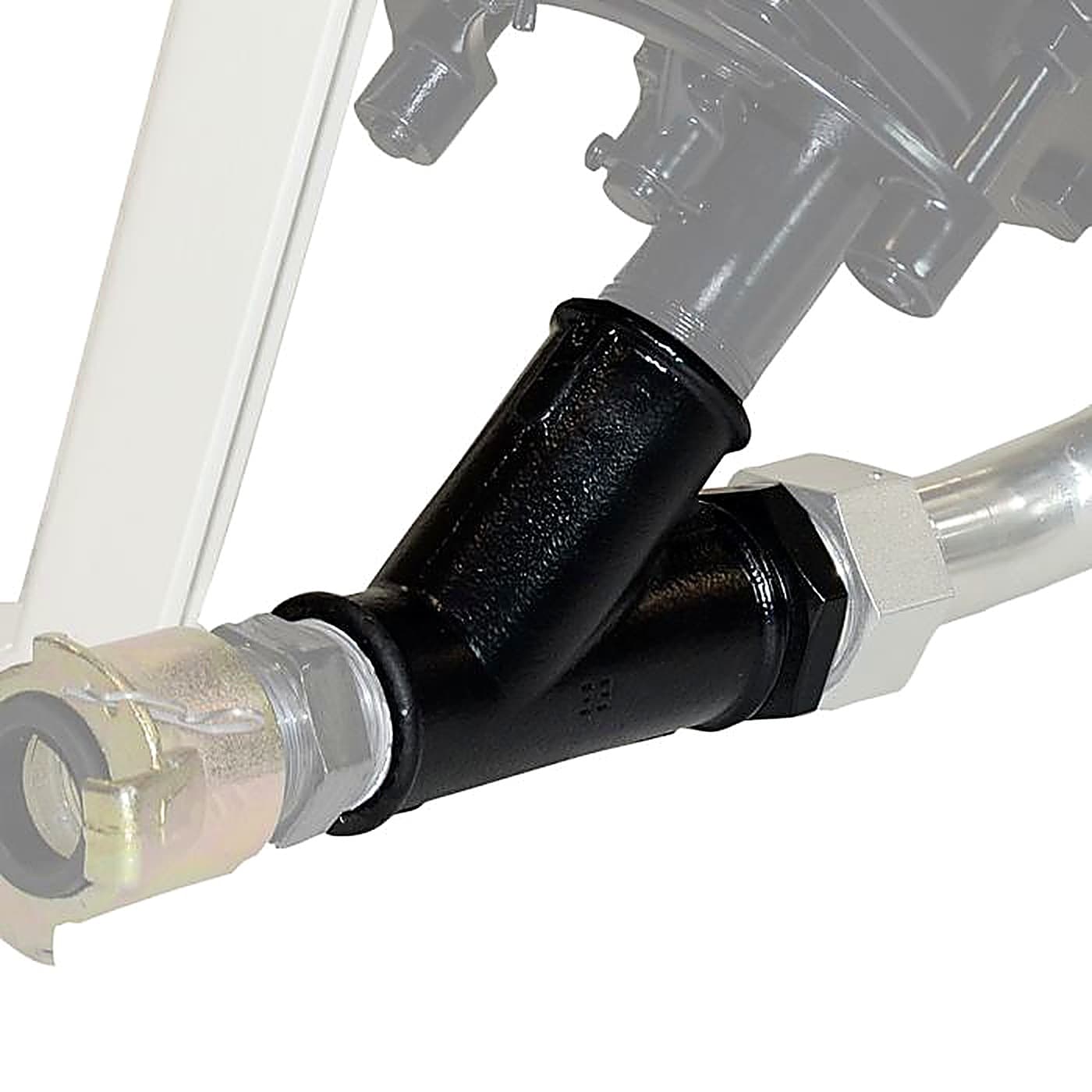

Flat Valve 45° Mixer

Accessories

Flat Valve Pot Connection

Flat Valve 45° Mixer

Spare Parts

Wing Nut M6: KIT 2
Spacer M6 x 11: KIT 2
Washer M6 (x2): KIT 2
Bolt M6 x 30: KIT 2
Air Hose, Steel Standard Safety Clip: KIT 1
Long Bolt (M12) (x2): KIT 2
Flat Valve Top Plate: MT30078
Flat Valve Top Plate Gasket: KIT 1
Flat Valve Middle Plate: MT30079
Bottom Cover Gasket: KIT 1
Flat Valve Bottom Cover: MT30080
Wing Nut M8 (x2): KIT 2
FV Level Handle Guide: MT28578
Flat Valve Handle: MT30006
Handle Pin: KIT 1
Spring: KIT 1
Bolt M12 x 50 (x4): KIT 2
Washer (x12): KIT 2
Nut M12 (x8): KIT 2
Gasket (x2): KIT 1
Flat Valve Shut Plate + Shaft: KIT 1
Flat Valve Bottom Plate: MT30007
Bolt M8 x 35 (x2): KIT 2
Washer M8 (x4): KIT 2
FV Service Kit 1 (contains items 5, 8, 10, 15, 16, 20, & 21): MT30153
FV Service Kit 2 (contains items 1, 2, 3, 4, 7, 13, 18, 19, 20, 23 & 24): MT30053
Elcometer 1440 Full FV Assembly complete with Pusher Line, 45° Mixer, FV Flat Valve, Pot...: MT30068-1
Elcometer 1460 Full FV Assembly complete with Pusher Line, 45° Mixer T, FV Flat Valve, Po...: MT30068-2
Elcometer 20100 Full FV Assembly complete with Pusher Line, 45° Mixer T, FV Flat Valve, P...: MT30068-3
Elcometer 24200 Full FV Assembly complete with Pusher Line, 45° Mixer T, FV Flat Valve, P...: MT30068-4
Elcometer 24285 Full FV Assembly complete with Pusher Line, 45° Mixer T, FV Flat Valve, P...: MT30068-5
1 1 ⁄ 2 " 15bar Pusher Line Assembly complete with Swaged Hose: MT28609-2 MT28609-4 MT28609-6 MT28609-7 MT28609-7
Wing Nut M6: KIT 2
Spacer M6 x 11: KIT 2
Washer M6 (x2): KIT 2
Bolt M6 x 30: KIT 2
Air Hose, Steel Standard Safety Clip: KIT 1
Long Bolt (M12) (x2): KIT 2
Flat Valve Top Plate: MT30078N
Flat Valve Top Plate Gasket: KIT 1
Flat Valve Middle Plate: MT30079
Bottom Cover Gasket: KIT 1
Flat Valve Bottom Cover: MT30080
Wing Nut M8 (x2): KIT 2
FV Level Handle Guide: MT28578
Flat Valve Handle: MT30006
Handle Pin: KIT 1
Spring: KIT 1
Bolt M12 x 50 (x4): KIT 2
Washer (x12): KIT 2
Nut M12 (x8): KIT 2
Gasket (x2): KIT 1
Flat Valve Shut Plate + Shaft: KIT 1
Flat Valve Bottom Plate: MT30007N
Bolt M8 x 35 (x2): KIT 2
Washer M8 (x4): KIT 2
FV Service Kit 1 (contains items 5, 8, 10, 15, 16, 20, & 21): MT30153
FV Service Kit 2 (contains items 1, 2, 3, 4, 7, 13, 18, 19, 20, 23 & 24): MT30053
1.5 BSP Male, 60 Cone / 0.25 Male Red: MT30019
1 Male/Female Equal Union Taper Seat: MT28562
1.25 BSP Male Equal Union Taper Seat: MT30009
1.25 BSP Male Hex Nipple: MT30010
1.25 BSP Male Equal Pitcher T: MT30011
1.25 BSP Male/Female 90 Elbow: MT30012
1.25 BSP Male/Female Equal Union Taper Seat: MT30013
1.25 Male NPT / 1.875 Male JIC: MT30019N
1 Male/Female Equal Union Taper Seat: MT28562N
1.25 Male NPT Union Taper Seat: MT30009N
1.25 Male NPT Hex Nipple: MT30010N
1.25 Male NPT Equal Pitcher T: MT30011N
1.25 Male NPT / Female 90 Elbow: MT30012N
1.25 Male/Female Equal Union Taper Seat: MT30013N

Downloads

PDF

Elcometer FV Flat Valve Data Sheet

Answers

Frequently asked questions

Which blast pot models are compatible with the FV Flat Valve?

The FV Flat Valve is available in full assembly form for the Elcometer 1440, 1460, 20100, 24200, and 24285. Contact BAMR to confirm compatibility with your existing system or to arrange an assembly for your pot model.

How does the flat valve design reduce abrasive wastage?

The FV Flat Valve provides precise metering of mineral abrasive flow from the blast pot to the hose. This controlled delivery minimises spillage and overfeeding, lowering the amount of abrasive you need to reorder.

Are spare parts available for the FV Flat Valve?

Yes. Individual parts such as plates, gaskets, handles, and fasteners are stocked as separate line items. Two service kits are available: FV Service Kit 1 (MT30153) and FV Service Kit 2 (MT30053), each containing the most commonly replaced wear items.

What connection options does the FV Flat Valve offer?

The valve is supplied with multiple thread options. Standard versions include 1.5 BSP and 1.25 BSP connections. NPT variants are also available (1.25 Male NPT and others) if your system uses imperial thread fittings.

Can I retrofit the FV Flat Valve to an existing blast setup?

Yes. The FV is designed to integrate with pusher line assemblies and 45° mixers already in service. Spare pusher line assemblies (part MT28609 series) are available separately, and gaskets plus fasteners are stocked to support installation.
