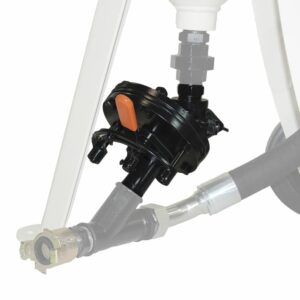

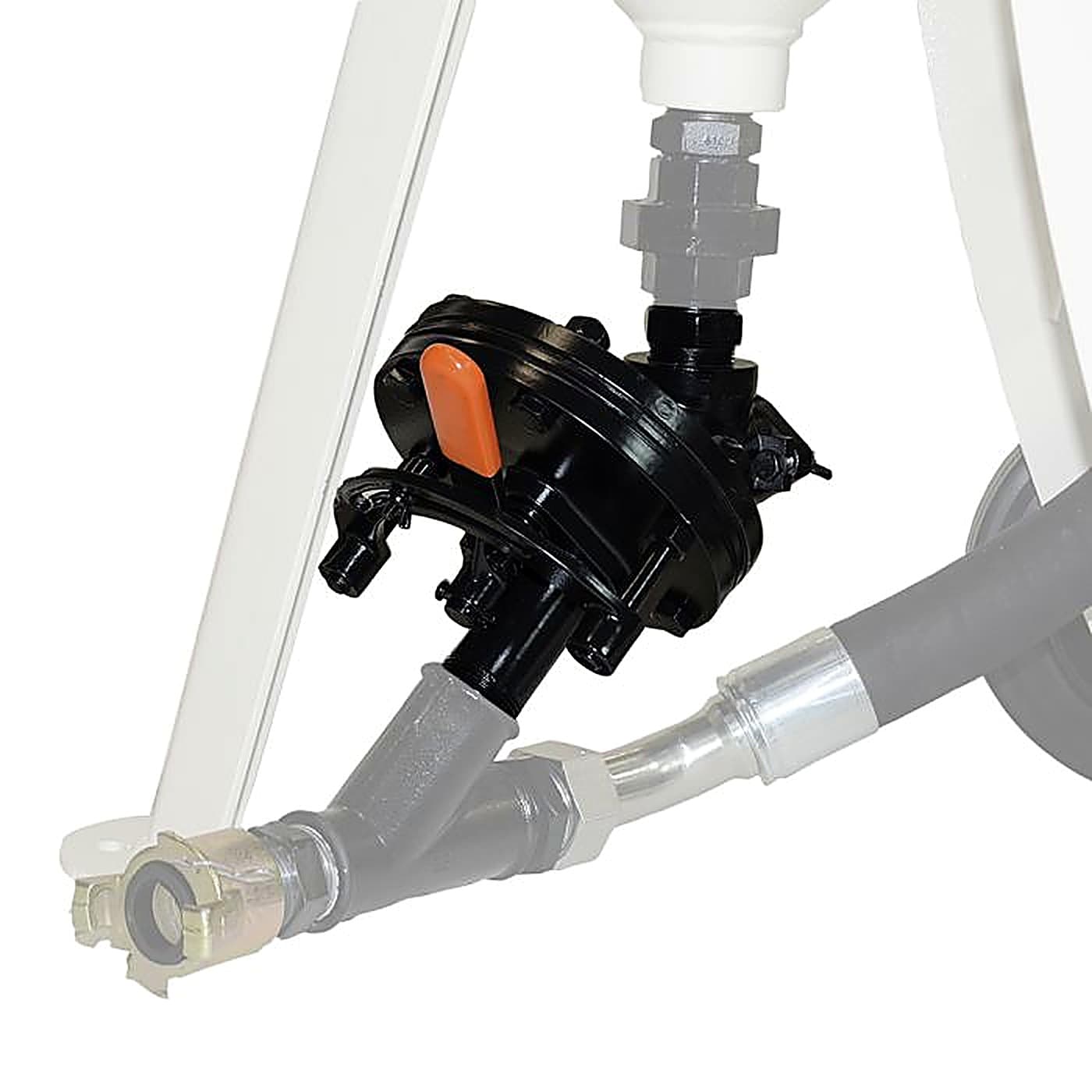

The Elcometer MFV Mini Flat Valve (part numbers MFV-B for the PED version and MFV-N for the ASME version) is a compact abrasive metering valve designed for use with mineral abrasives and suited to the Elcometer 1020 abrasive blast machine. The Elcometer MFV Mini Flat Valve provides precise metering of abrasive from the blast pot to the hose, which keeps wastage down. Poor metering wastes media and gives an inconsistent blast, so controlled, repeatable feed of abrasive is important to both running costs and surface quality.
The Elcometer MFV Mini Flat Valve uses a 45 degree inclined design to give a uniform mixture of air and abrasive, with durable steel control discs that provide precise metering of the abrasive quantity, all manufactured from high grade, non-corrosive aluminium. Abrasive flow is set and held using the lever handle, and an easy access service port allows the Elcometer MFV Mini Flat Valve to be cleared when it clogs.
Maintenance of the Elcometer MFV Mini Flat Valve is simple: the steel control discs can be replaced in minutes in the field using standard tools, and service kits are available for routine upkeep of the Elcometer MFV Mini Flat Valve. Used in surface preparation and abrasive blasting with the Elcometer 1020 machine, and supplied by BAMR, South Africa's authorised Elcometer distributor.
Elcometer MFV Mini Flat Valve
Designed for use with mineral abrasives the Elcometer Mini Flat Valve provides precise metering of abrasive from the blast pot to the hose, ensuring less wastage.
- Suitable for use with the Elcometer 1020 Abrasive Blast Machine
- 45° incline design ensures uniform mixture of air and abrasive
- Manufactured from high grade aluminium
- Easy access service port to clear the valve from clogging
- Durable steel control discs provide precise metering of abrasive
- Designed to work with mineral abrasives
- Service kits available for simple maintenance
Accessories

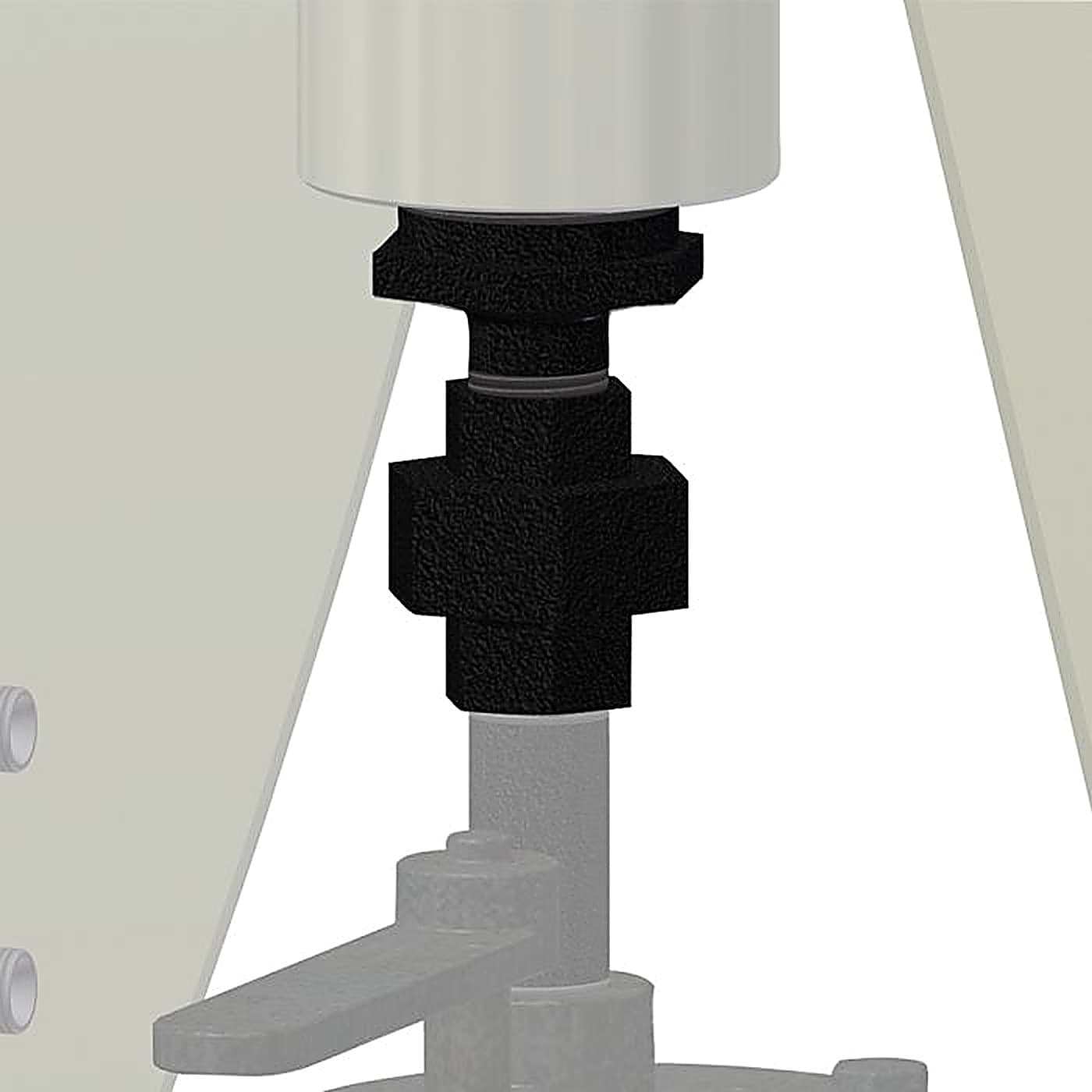

| Mini Flat Valve Pot Connection |

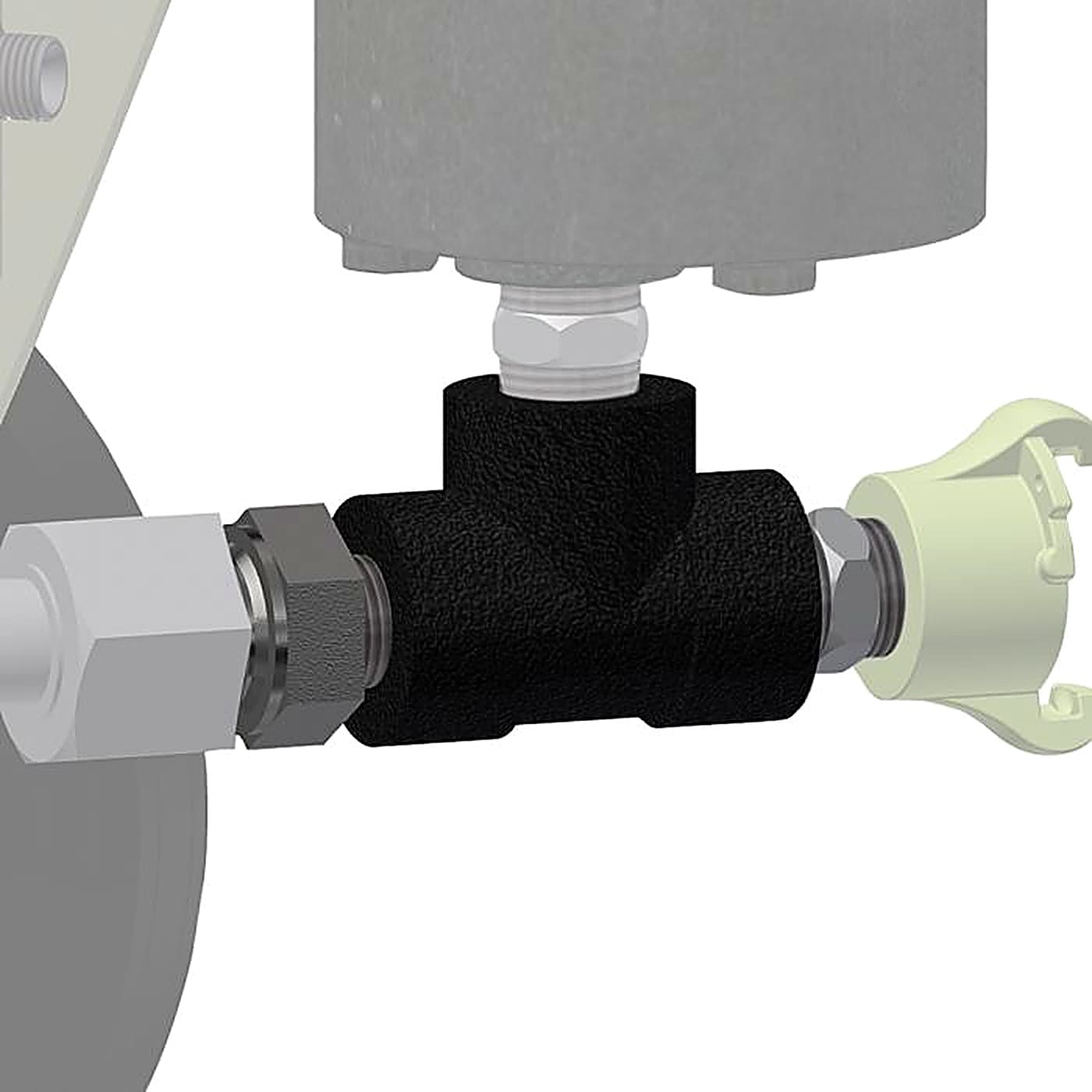

| Mini Flat Valve Equal T |
Accessories
Accessories
| Mini Flat Valve Pot Connection |
| Mini Flat Valve Equal T |
Spare Parts
Spare Parts
- Nut M8 (x4)
- KIT 1
- Spring Washer M8 (x4)
- KIT 1
- Washer M8 (x8)
- KIT 1
- Shut Off Valve Assembly
- MT30150
- Gasket
- MT30152
- Bottom Plate
- MT30151
- Bolt M8 x 50 (x4)
- KIT 1
- MFV Service Kit 1 (contains items 1, 2, 3 & 7)
- MT30054
- Elcometer 1020 Full MFV Assembly complete with Pusher Line, 45° Mixer T, MFV Mini Flat Va...
- MT30069
- 3 ⁄ 4 " 15bar Pusher Line Assembly complete with Swaged Hose
- MT28608-1
- 3 ⁄ 4 " BSP 60° Cone x 1 ⁄ 2 " Adaptor
- MT28540
- 1 ⁄ 2 " Flanged Equal T
- MT28563
- 1 ⁄ 2 " BSP Forged Hex Nipple 3000lb
- MT29224
- 1 ⁄ 2 " BSP Claw Coupling
- MT30090
- Mini Flat Valve Assembly
- MFV-B
- 1 ⁄ 2 " Nipple 60mm
- MT28567
- 1 ⁄ 2 " Female/Female Union Taper Seat
- MT30020
- 1 1 ⁄ 4 " x 1 ⁄ 2 " Reducing Hex Nipple
- MT30021
- Nut M8 (x4)
- KIT 1
- Spring Washer M8 (x4)
- KIT 1
- Washer M8 (x8)
- KIT 1
- Shut Off Valve Assembly
- MT30150N
- Gasket
- MT30152
- Bottom Plate
- MT30151N
- Bolt M8 x 50 (x4)
- KIT 1
- MFV Service Kit 1 (contains items 1, 2, 3 & 7)
- MT30054N
- Elcometer 1020 Full MFV Assembly complete with Pusher Line, 45° Mixer T, MFV Mini Flat Va...
- MT30069N
- 3 ⁄ 4 " 15bar Pusher Line Assembly complete with Swaged Hose
- MT28608-1N
- 3 ⁄ 4 " 60° Cone x 1 ⁄ 2 " Adaptor
- MT28540N
- 1 ⁄ 2 " Flanged Equal T
- MT28563N
- 1 ⁄ 2 " Forged Hex Nipple 3000lb
- MT29224N
- 1 ⁄ 2 " Claw Coupling
- MT30090N
- Mini Flat Valve Assembly
- MFV-N
- 1 ⁄ 2 " Nipple 60mm
- MT28567N
- 1 ⁄ 2 " Female/Female Union Taper Seat
- MT30020N
- 1 1 ⁄ 4 " x 1 ⁄ 2 " Reducing Hex Nipple
- MT30021N
Downloads
Frequently asked questions
Will the Mini Flat Valve work with my abrasive type?
Yes, if you're using mineral abrasives. The valve is specifically designed for precise metering of mineral abrasive from the blast pot to the hose.
How does the valve reduce abrasive wastage?
The precise metering function controls abrasive flow from the blast pot to the hose, reducing the amount of abrasive wasted during the blasting process.
What replacement and service parts are available?
Elcometer supplies spares including the MFV Service Kit (MT30054), gaskets (MT30152), valve assemblies, and hose and fitting components for maintenance and repair.
Can I replace just the valve if mine is damaged?
Yes. The Mini Flat Valve Assembly is available separately (MFV-B or MFV-N variants) so you can replace the valve without purchasing a complete system.
