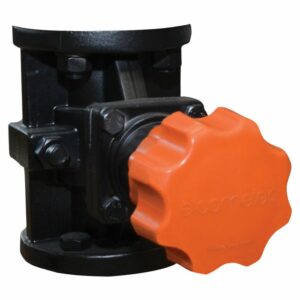

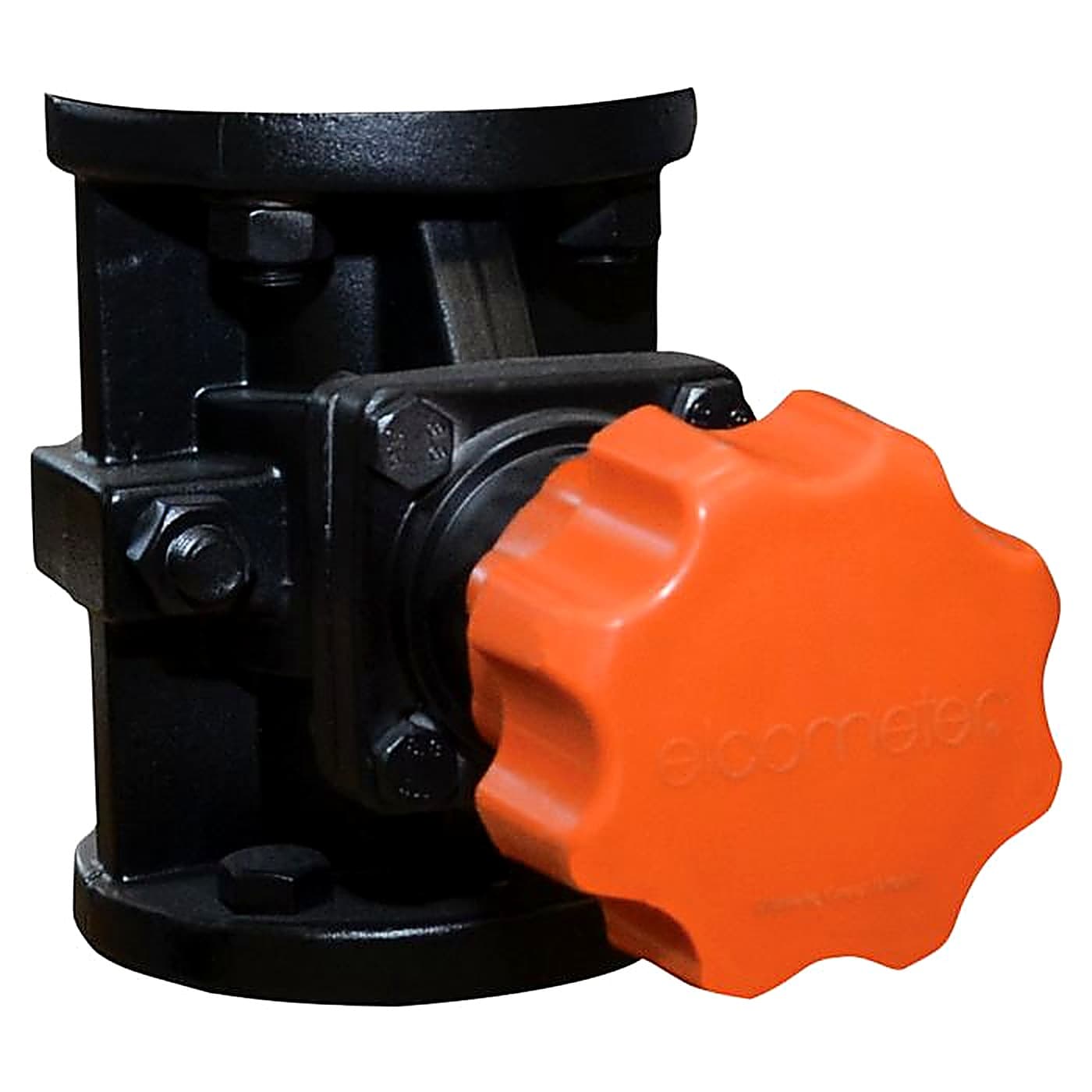

The Elcometer MGV Mini General Valve (part numbers MGV-B for the PED version and MGV-N for the ASME version) is a compact abrasive metering valve that gives precise control of media for an even, regulated flow. A long life rubber liner makes it durable and quick to service, reducing downtime. Accurate metering matters because over-feeding wastes abrasive and uneven feeding spoils the blast, so a valve that can be adjusted in use and shut off completely keeps both consumption and surface quality under control.

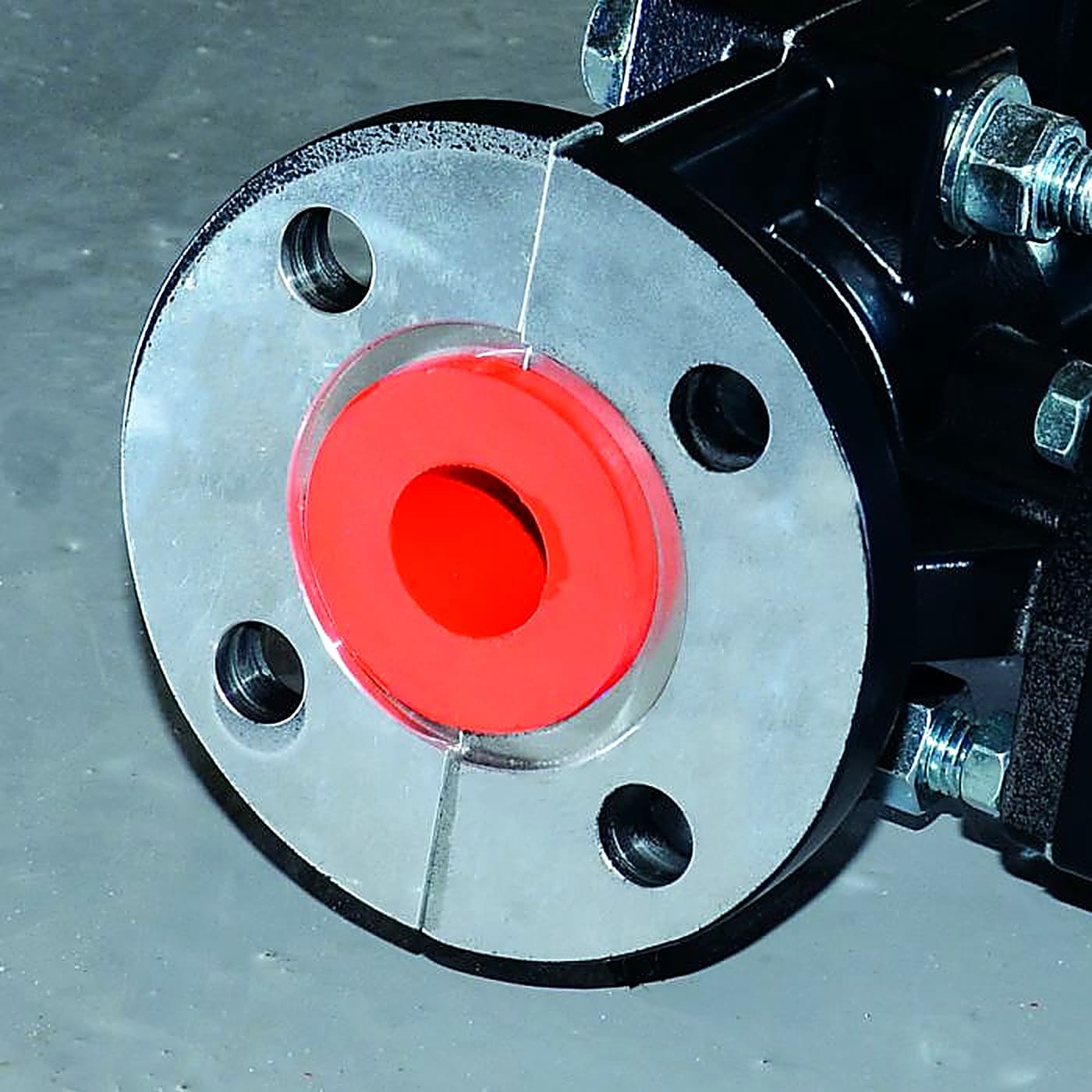

The Elcometer MGV Mini General Valve carries a built-in media flow indicator and a rubber liner wear indicator, and is tested to a maximum working pressure of 15 bar. The operator can safely adjust media flow while blasting and achieve 100 percent abrasive shut off to cut wastage. The Elcometer MGV Mini General Valve is suitable for all media types: the design keeps the valve body out of the abrasive stream so that only the elcoTOUGH rubber valve liner contacts the media, and that liner can be replaced with just two bolts.
Used in surface preparation and abrasive blasting, the Elcometer MGV Mini General Valve suits compact machines where the larger General Valve is not required. Supplied by BAMR, South Africa's authorised Elcometer distributor.
Elcometer MGV Mini General Valve
The Elcometer Mini General Valve ensures precise abrasive metering for an even, regulated flow. With its long life rubber liner it's highly durable, incredibly fast and easy to service, reducing downtime.

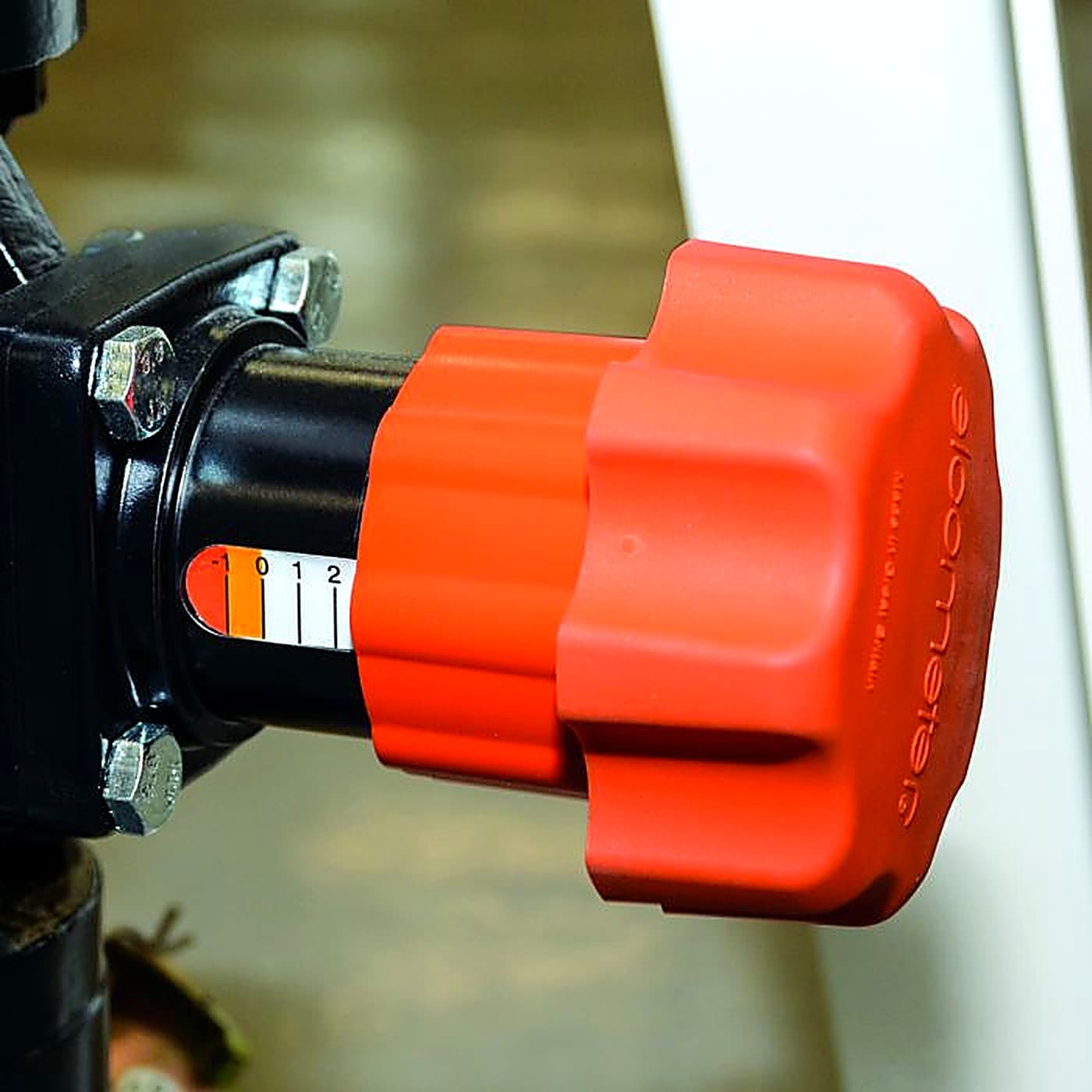

- Media flow indicator and rubber liner wear indicator
- Tested to a maximum working pressure of 15bar
- Precision abrasive control to ensure maximum efficiency
- Safely adjust media flow when in use to save time
- Complete with elcoTOUGH™ rubber liner that can be quickly replaced without disconnecting the valve
- 100% abrasive shut off - reducing wastage
- Replace the elcoTOUGH™ rubber valve liner with just 2 bolts
Specifications
- Media Types
- Suitable for all media types
- Abrasive Contact
- Only elcoTOUGH™ rubber valve liner touches abrasive stream
Specifications
Specifications
- Media Types
- Suitable for all media types
- Abrasive Contact
- Only elcoTOUGH™ rubber valve liner touches abrasive stream
Accessories
Accessories

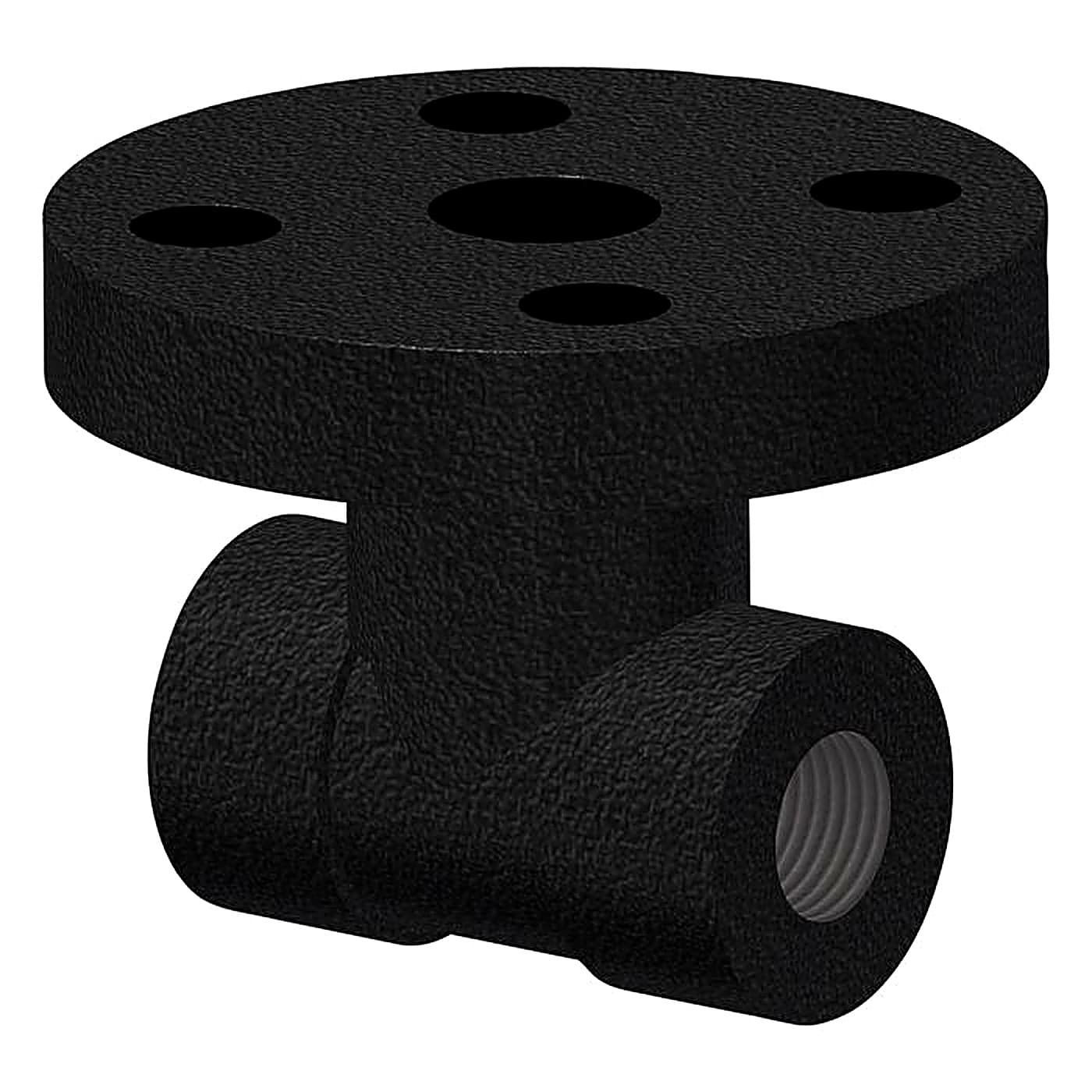

| Mini Flanged & Equal T Assembly for use with Elcometer MGV Mini General Valve 13mm |

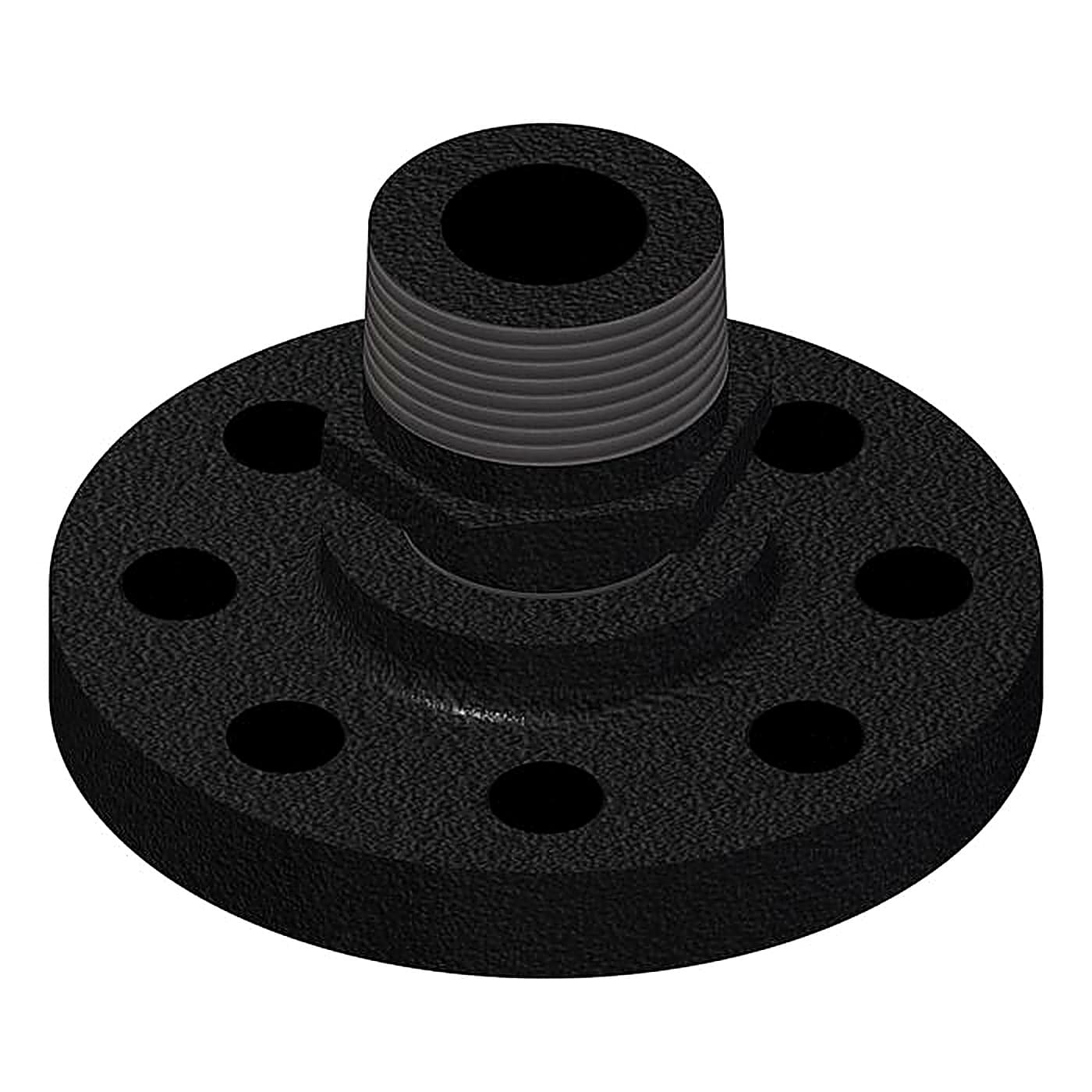

| 8 Hole Pot Flange |

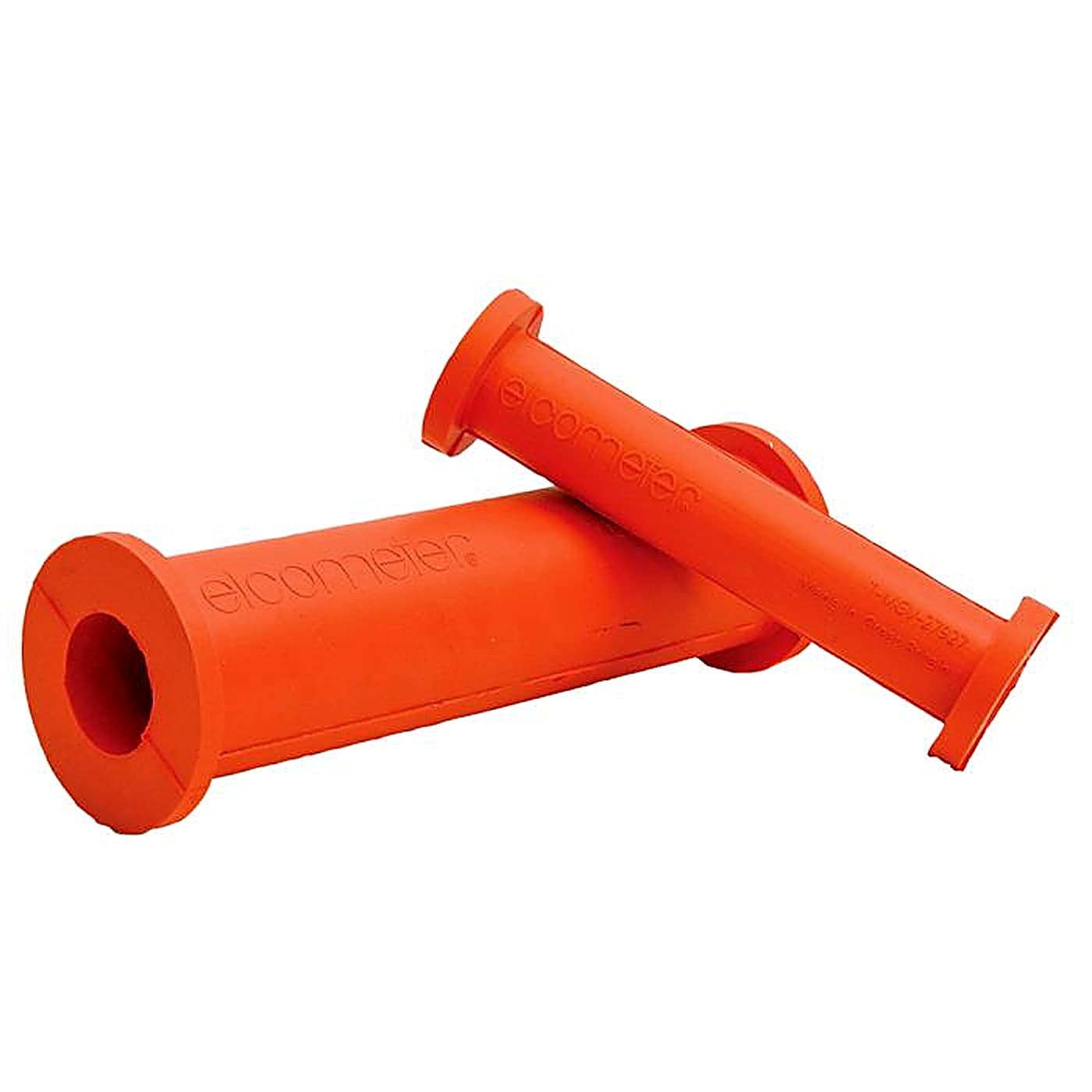

| MGV elcoTOUGH™ Rubber Valve Liner 13mm |
Spare Parts
Spare Parts
- Mini General Valve Stem Assembly
- MT28541
- Mini General Valve Housing Body
- MT30003
- M8 x 30 Zinc Plated Hex Head Bolt (x4)
- KIT 1
- M8 Zinc Plated Steel Nut (x4)
- KIT 1
- M8 Steel Spring Washer (x4)
- KIT 1
- M12 Zinc Plated Steel Nut (x2)
- KIT 2
- M12 Steel Spring (x2)
- KIT 2
- Mini Rubber Valve Liner
- MGV-LINER1
- M12 x 50 Zinc Plated Hex Bolt (x2)
- KIT 2
- M12 Zinc Plated Steel Washer Grade A (x2)
- KIT 2
- MGV Valve Handwheel & Shaft
- MT30167
- O Ring 3mm Cord x 44.5 ID
- KIT 3
- MGV Stem Housing
- MT30076
- Mini General Valve Indicator Label
- KIT 3
- M6 Flat Nylon Washer
- KIT 3
- Valve Nut
- MT30077
- M12 Steel Spring Washer
- KIT 3
- M6 x 25 Cap HD SKT Screw, ST STL
- KIT 3
- Mini Valve Plunger
- MT30005
- MGV Service Kit 1 (contains items 3, 4 & 5)
- MT30049
- MGV Service Kit 2 (contains items 6, 7, 9 & 10)
- MT30046
- MGV Service Kit 3 (contains items 12, 14, 15, 17 & 18)
- MT30051
- Elcometer 1020 Full MGV Assembly complete with Pusher Line, Mixer T, MGV Mini General Val...
- MT30067
- 3 ⁄ 4 " 15bar Pusher Line Assembly complete with Swaged Hose
- MT28608-1
- 3 / 4 " BSP 60° Cone x 1 ⁄ 2 " Adaptor
- MT28540
- 1 ⁄ 2 " Flanged Equal T Assembly
- MT29224
- 1 ⁄ 2 " BSP Forged Hex Nipple 3000lb
- MT29224
- 1 ⁄ 2 " BSP Claw Coupling
- MT30090
- MGV Main Assembly
- MGV-B
- 1 1 ⁄ 4 " x 1 ⁄ 2 " Reducing Nipple Flange Assembly
- MT28536
- M12 Zinc Plated Steel Nut (x8)
- KIT4
- M12 x 45 Zinc Plated Hex Bolt (x8)
- KIT4
- M12 Zinc Plated Steel Washer Grade A (x16)
- KIT4
- MGV Service Kit 4 (contains items 8, 9 & 10)
- MT30052
- Elcometer 1020 Full MGV Assembly complete with Pusher Line, Mixer T, MGV Mini General Val...
- MT30067N
- 3 ⁄ 4 " 15bar Pusher Line Assembly complete with Swaged Hose
- MT28608-1N
- 3 / 4 " 60° Cone x 1 ⁄ 2 " Adaptor
- MT28540N
- 1 ⁄ 2 " Flanged Equal T Assembly
- MT29224N
- 1 ⁄ 2 " Forged Hex Nipple 3000lb
- MT29224N
- 1 ⁄ 2 " Claw Coupling
- MT30090N
- MGV Main Assembly
- MGV-N
- 1 1 ⁄ 4 " x 1 ⁄ 2 " Reducing Nipple Flange Assembly
- MT28536N
- M12 Zinc Plated Steel Nut (x8)
- KIT4
- M12 x 45 Zinc Plated Hex Bolt (x8)
- KIT4
- M12 Zinc Plated Steel Washer Grade A (x16)
- KIT4
- MGV Service Kit 4 (contains items 8, 9 & 10)
- MT30052
Downloads
Frequently asked questions
How does the MGV Mini regulate abrasive flow?
The valve delivers precise metering, ensuring an even, regulated flow of abrasive. This precision control is critical for consistent blasting results.
Why protect the internal valve with a rubber liner?
Only the elcoTOUGH™ rubber liner contacts the abrasive stream, preventing erosion to the valve body and other components. This extends the valve's lifespan and maintains performance.
Will the MGV Mini accept any abrasive type?
Yes, the valve is rated for all media types, so it works with whatever abrasive you use.
How much downtime does a liner replacement take?
The MGV Mini is fast and easy to service. The rubber liner and other parts replace quickly, minimising downtime during maintenance. The Mini Rubber Valve Liner (MGV-LINER1) and service kits are readily available.
What spare parts should I keep on hand?
Stock the rubber liner (MGV-LINER1), stem assembly (MT28541), and at least one service kit (MT30049, MT30046, or MT30051) depending on your servicing needs. Complete replacement assemblies are also available.
